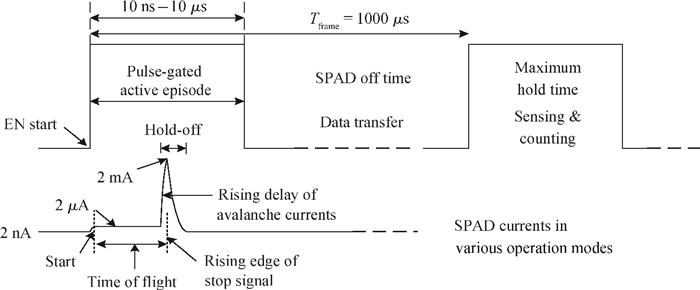

Fig. 1.
EN signal and SPAD operation modes.
DownLoad:
| Citation: |
Lixia Zheng, Jin Wu, Longxing Shi, Shuiqing Xi, Siyang Liu, Weifeng Sun. Active quenching circuit for a InGaAs single-photon avalanche diode[J]. Journal of Semiconductors, 2014, 35(4): 045011. doi: 10.1088/1674-4926/35/4/045011
****
L X Zheng, J Wu, L X Shi, S Q Xi, S Y Liu, W F Sun. Active quenching circuit for a InGaAs single-photon avalanche diode[J]. J. Semicond., 2014, 35(4): 045011. doi: 10.1088/1674-4926/35/4/045011.
|
Active quenching circuit for a InGaAs single-photon avalanche diode
DOI: 10.1088/1674-4926/35/4/045011
More Information
-
Abstract

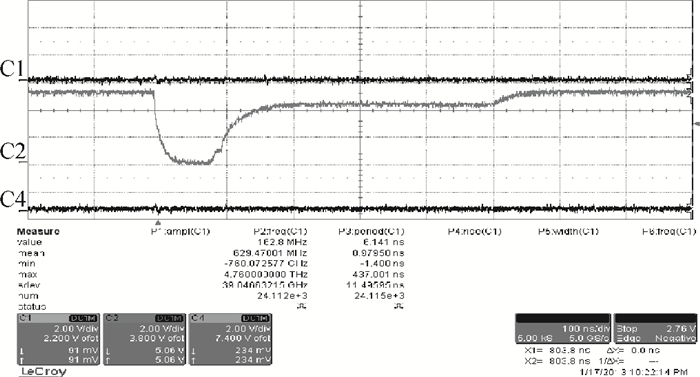

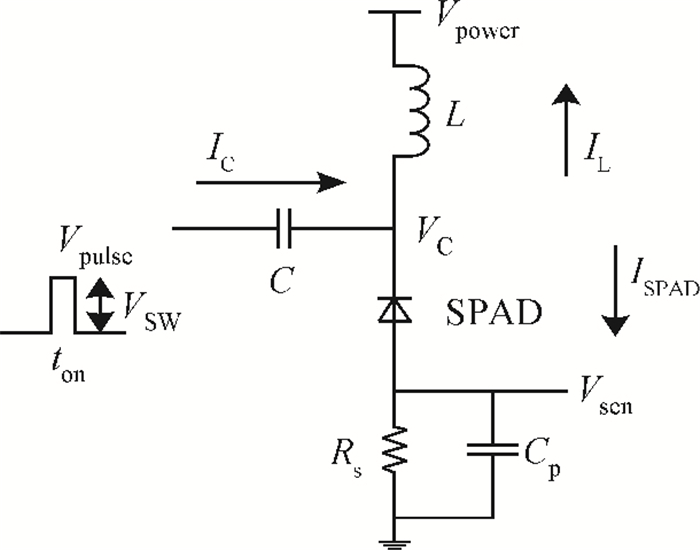

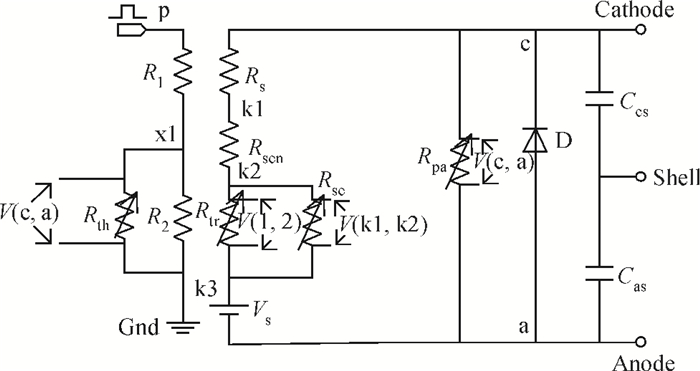

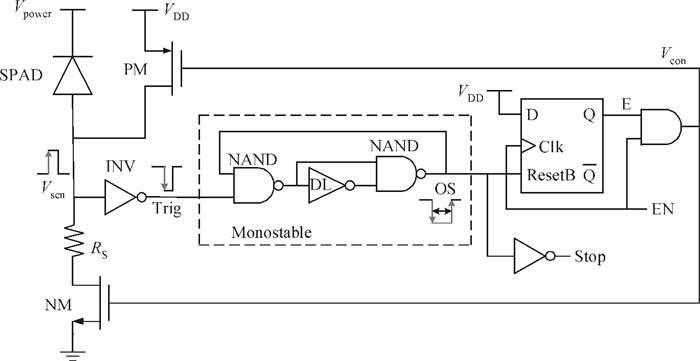

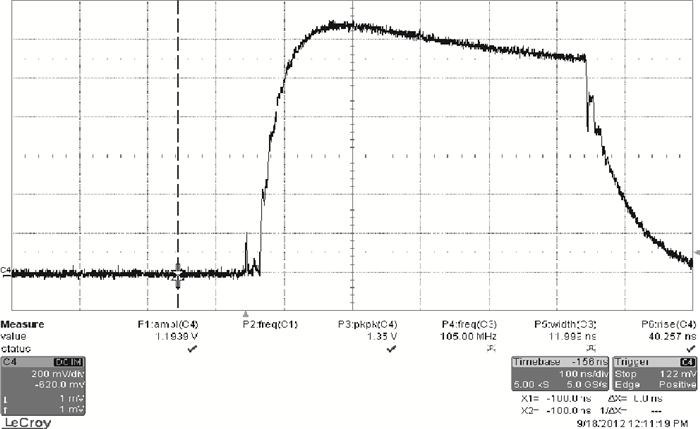

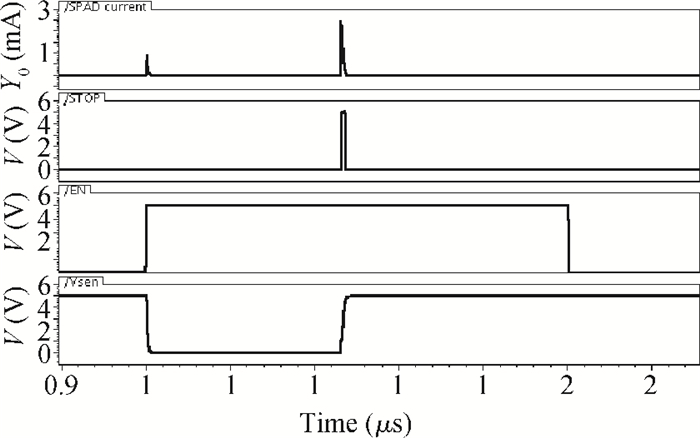

We present a novel gated operation active quenching circuit (AQC). In order to simulate the quenching circuit a complete SPICE model of a InGaAs SPAD is set up according to the I-V characteristic measurement results of the detector. The circuit integrated with a ROIC (readout integrated circuit) is fabricated in an CSMC 0.5 μm CMOS process and then hybrid packed with the detector. Chip measurement results show that the functionality of the circuit is correct and the performance is suitable for practical system applications. -
