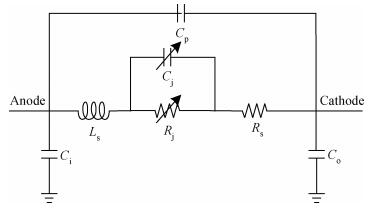

Fig. 1.
Schematic diagram and photograph of the PSVD.
DownLoad:
| Citation: |
Jie Huang, Qian Zhao, Hao Yang, Junrong Dong, Haiying Zhang. Planar Schottky varactor diode and corresponding large signal model for millimeter-wave applications[J]. Journal of Semiconductors, 2014, 35(5): 054006. doi: 10.1088/1674-4926/35/5/054006
****
J Huang, Q Zhao, H Yang, J R Dong, H Y Zhang. Planar Schottky varactor diode and corresponding large signal model for millimeter-wave applications[J]. J. Semicond., 2014, 35(5): 054006. doi: 10.1088/1674-4926/35/5/054006.
|
Planar Schottky varactor diode and corresponding large signal model for millimeter-wave applications
DOI: 10.1088/1674-4926/35/5/054006
More Information
-
Abstract
A GaAs-based planar Schottky varactor diode (PSVD) is successfully developed to meet the demand of millimeter-wave harmonic generation. Based on the measured S-parameter, I-V and C-V characteristics, an accurate and reliable extraction method of the millimeter-wave large signal equivalent circuit model of the PSVD is proposed and used to extract the model parameters of two PSVDs with Schottky contact areas of 160 μm2 and 49 μm2, respectively. The simulated S-parameter, I-V and C-V performances of the proposed physics-based model are in good agreement with the measured one over the frequency range from 0.1 to 40 GHz for wide operation bias range from -10 to 0.6 V for these two PSVDs. The proposed equivalent large signal circuit model of this PSVD has been proven to be reliable and can potentially be used to design microwave circuits. -
References
[1] Carman E, Case M, Kamegawa M, et al. V-band and W-band broadband monolithic distributed multipliers. IEEE Microw Guided Wave Lett, 1992, 2(6):253 doi: 10.1109/75.136523[2] Debabani C, Margaret A F, Paul D B. A 200 GHz tripler using a single barrier varactor. IEEE Trans Microw Theory Tech, 1999, 41(4):595 http://www.academia.edu/7126314/A_200_GHz_tripler_using_a_single_barrier_varactor[3] Bentley N S, Gailon E B, Fred H D. X-band GaAs monolithic voltage controlled oscillator. ISSCC-82 Dig, 1982:138[4] Garver R V. 360° varactor linear phase modulator. IEEE Trans Microw Theory Tech, 1969, 17(3):137 doi: 10.1109/TMTT.1969.1126912[5] Kim H, Kozyrev A B, Karbassi A, et al. Compact left-handed transmission line as a linear phase-voltage modulator and efficient harmonic generator. IEEE Trans Microw Theory Tech, 2007, 55(3):571 doi: 10.1109/TMTT.2007.891692[6] Pascal P, Walid E K, Vlad P. Physical equivalent circuit model for planar Schottky varactor diode. IEEE Trans Microw Theory Tech, 1988, 36(2):250 doi: 10.1109/22.3512[7] Crupi G, Schreurs D M M, Caddemi A, et al. A new millimeter-wave small-signal modeling approach for pHEMTs accounting for the output conductance time delay. IEEE Trans Microw Theory Tech, 2008, 56(4):741 doi: 10.1109/TMTT.2008.918147[8] Huang J, Dong J R, Yang H, et al. A K-band broadband monolithic distributed frequency multiplier based on nonlinear transmission line. Chin Phys B, 2011, 20(6):060702 doi: 10.1088/1674-1056/20/6/060702[9] Dong J R, Huang J, Tian C, et al. A broadband GaAs MMIC frequency doubler on left-handed nonlinear transmission lines. Journal of Semiconductors, 2011, 32(9):095003 doi: 10.1088/1674-4926/32/9/095003[10] Chen S W, Ho C T, Pande K, et al. Rigorous analysis and design of a high-performance 94 GHz MMIC doubler. IEEE Trans Microw Theory Tech, 1993, 41(12):2317 doi: 10.1109/22.260723[11] Qun X. Millimeter and sub-millimeter wave heterostructure barrier varactor frequency multipliers. PhD Dissertation, University of Virginia, 2005[12] Donald N. Semiconductor physics and device. Beijing:Electronics Industry Press, 2005 -
