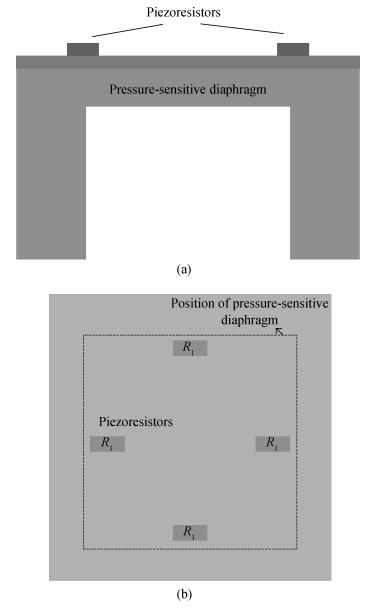

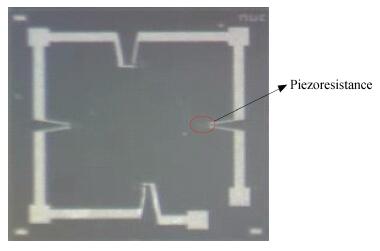

Fig. 1.
The designed SOI piezoresistive pressure sensor chip. (a) Profile. (b) Front view.
DownLoad:
| Citation: |
Yingping Hong, Ting Liang, Binger Ge, Wei Wang, Tingli Zheng, Sainan Li, Jijun Xiong. A novel algorithmic method for piezoresistance calculation[J]. Journal of Semiconductors, 2014, 35(5): 054009. doi: 10.1088/1674-4926/35/5/054009
****
Y P Hong, T Liang, B E Ge, W Wang, T L Zheng, S N Li, J J Xiong. A novel algorithmic method for piezoresistance calculation[J]. J. Semicond., 2014, 35(5): 054009. doi: 10.1088/1674-4926/35/5/054009.
|
A novel algorithmic method for piezoresistance calculation
DOI: 10.1088/1674-4926/35/5/054009
More Information
-

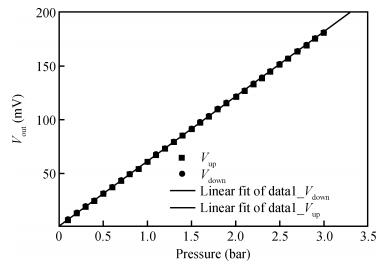

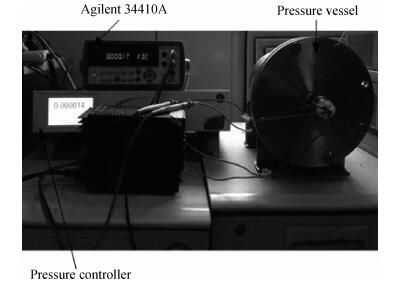

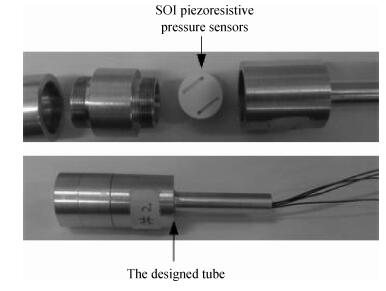

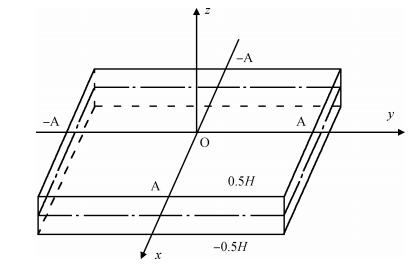

Abstract
A novel algorithmic method, based on the different stress distribution on the surface of thin film in an SOI microstructure, is put forward to calculate the value of the silicon piezoresistance on the sensitive film. In the proposed method, we take the Ritz method as an initial theoretical model to calculate the rate of piezoresistance Δ R/R through an integral (the closed area Ω where the surface piezoresistance of the film lies as the integral area and the product of stress σ and piezoresistive coefficient π as the integral object) and compare the theoretical values with the experimental results. Compared with the traditional method, this novel calculation method is more accurate when applied to calculating the value of the silicon piezoresistance on the sensitive film of an SOI pieoresistive pressure sensor.-
Keywords:
- piezoresistance,
- integral,
- piezoresistive pressure sensor,
- accuracy
-
