J. Semicond. > 2014, Volume 35 > Issue 8 > 084004
|

SEMICONDUCTOR DEVICES

A novel double trench reverse conducting IGBT with robust freewheeling switch

Liheng Zhu and Xingbi Chen

+ Author Affiliations

 Corresponding author: Zhu Liheng, Email:zhu_li_heng@163.com

DOI: 10.1088/1674-4926/35/8/084004

PDF

Abstract: The phenomenon that the wide P-emitter region in the conventional reverse conducting insulated gate bipolar transistor (RC-IGBT) results in the non-uniform current distribution in the integrated freewheeling diode (FWD), and then causes a parasitic thyristor to latch-up during its reverse-recovery process, which induces a hot spot in the local region of the device is revealed for the first time. Furthermore, a novel RC-IGBT based on double trench IGBT is proposed. It not only solves the snapback problem but also has uniform current distribution and high ruggedness during the reverse-recovery process.

Key words: reverse conducting insulated gate bipolar transistor, snapback, current concentration



[1]
Rahimo M, Schlapbach U, Schnell R, et al. Realization of higher output power capability with the bi-mode insulated gate transistor (BIGT). Proc EPE, 2009:1 http://ieeexplore.ieee.org/document/5279012/
[2]
Donnellan B T, Mawby P A, Rahimo M, et al. Introducing a 1200 V vertical merged IGBT and power MOSFET:the HUBFET. APEC, 2012:152
[3]
Minato T, Aono S, Uryu K, et al. Making a bridge from SJ-MOSFET to IGBT via RC-IGBT structure concept for 600 V class SJ-RC-IGBT in a single chip solution. Proc ISPSD, 2012:137 http://ieeexplore.ieee.org/document/6229042/
[4]
Zhang Wenliang, Tian Xiaoli, Tan Jingfei, et al. The snap-back effect of an RC-IGBT and its simulations. Jounal of Semiconductors, 2013, 34(7):034007 http://kns.cnki.net/KCMS/detail/detail.aspx?filename=bdtx201307019&dbname=CJFD&dbcode=CJFQ
[5]
Zhu Liheng, Chen Xingbi. Novel reverse conducting insulated gate bipolar transistor with anti-parallel MOS controlled thyristor. Jounal of Semiconductors, 2014, 35(7): http://kns.cnki.net/KCMS/detail/detail.aspx?filename=bdtx201407010&dbname=CJFD&dbcode=CJFQ
[6]
Nishii A, Nakamura K, Masuoka F, et al. Relaxation of current filament due to RFC technology and ballast resistor for robust FWD operation. Proc ISPSD, 2011:96 http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=5890799
[7]
Zhu L, Chen X. A novel snapback-free reverse conducting IGBT with anti-parallel Shockley diode. 25th International Symposium on Power Semiconductor Devices and ICs (ISPSD), 2013:261 http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=6694436
[8]
Huang Q, Amaratunga G. Analysis of double trench insulated gate bipolar transistor. Solid-State Electron, 1995, 38(4):829 doi: 10.1016/0038-1101(94)00110-2
[9]
Voss S, Niedernostheide F, Schulze H. Anode design variation in 1200-V trench field-stop reverse-conducting IGBTs. Proc ISPSD, 2008:169 http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=4538925
[10]
Mori M, Oyama K, Kohno Y, et al. A trench-gate high-conductivity IGBT (HiGT) with short-circuit capability. IEEE Trans Electron Devices, 2007, ED-54:2011 http://ieeexplore.ieee.org/document/4277969/
[11]
MEDICI. Two Dimensional Device Simulation Program, ed. 2002. 2. 0, Synopsys Inc. , Fremont, CA, 2002

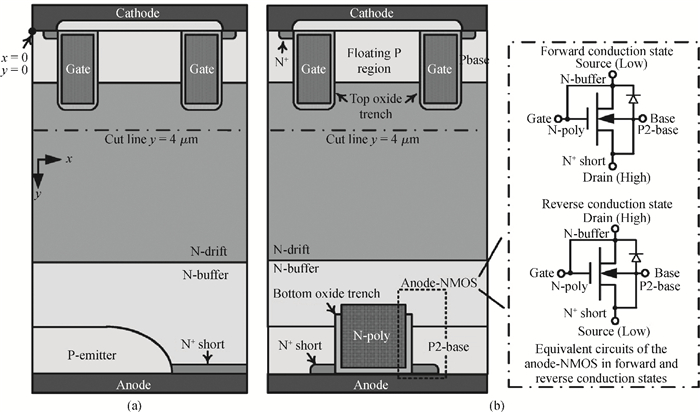

Fig. 1.  Schematic cross sections of (a) the conventional and (b) the novel RC-IGBT. In (b), the equivalent circuits of the anode-NMOS are also shown.

DownLoad: Full-Size Img PowerPoint

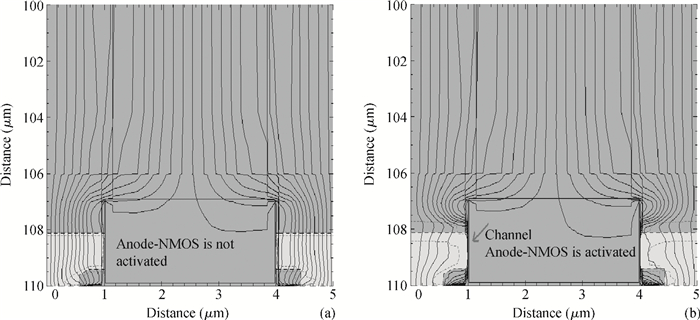

Fig. 2.  Current flow line of the DT-RC-IGBT on the (a) forward and (b) reverse conduction states.

DownLoad: Full-Size Img PowerPoint

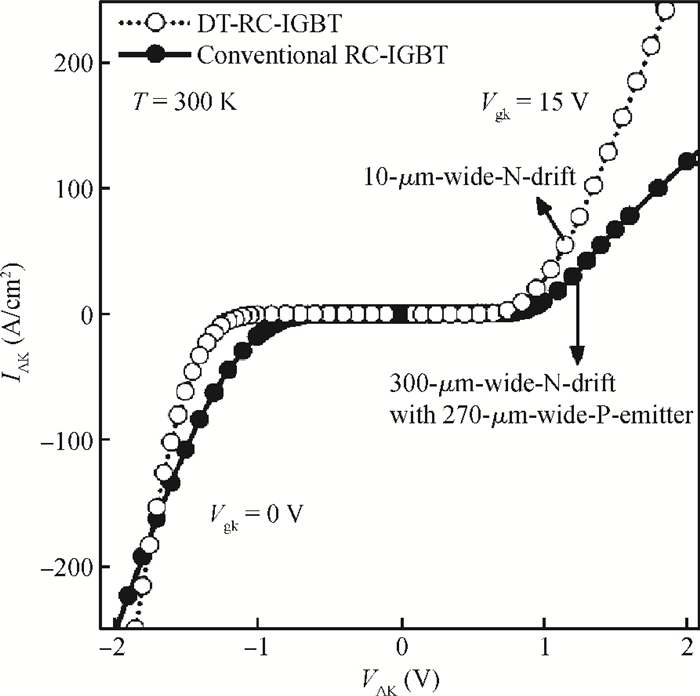

Fig. 3.  Output performances of the conventional and the novel RC-IGBT at 300 K.

DownLoad: Full-Size Img PowerPoint

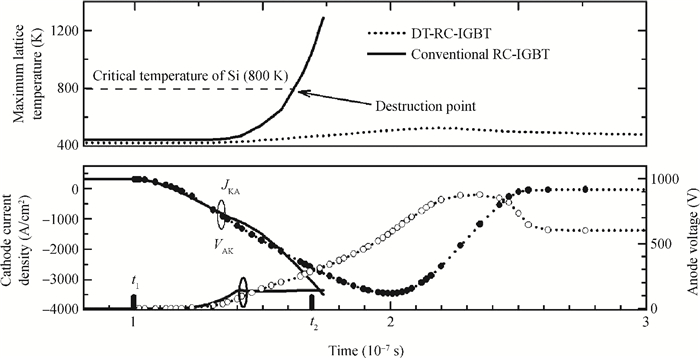

Fig. 4.  The reverse-recovery current waveforms of the two RC-IGBTs. $T$ $=$ 400 K. $V_{\rm bus}$ $=$ 600 V, $J_{\rm f}$ $=$ 300 A/cm$^{2}$, initial d$J_{\rm f}$/d$t$ $=$ 2000 A/$\mu $s$\cdot $cm$^{2}$, $t_{1}$ $=$ 1 $\times $ 10$^{-7}$ s, $t_{2}$ $=$ 1.7 $\times $ 10$^{-7}$ s.

DownLoad: Full-Size Img PowerPoint

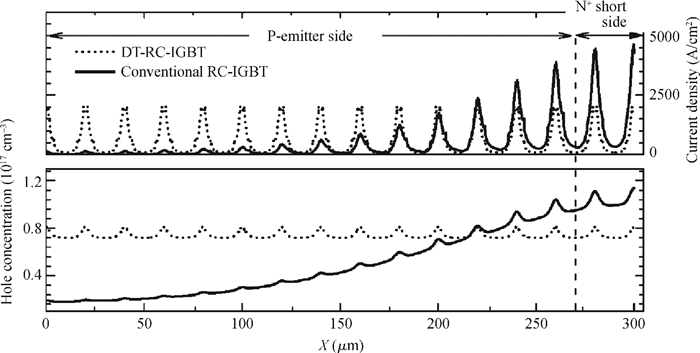

Fig. 5.  The hole concentration and the current density distributions of the conventional RC-IGBT on the cut line of $y$ $=$ 4 $\mu $m at the time point of $t_{1}$ $=$ 1 $\times $ 10$^{-7}$ s; at this time, the two RC-IGBT operate in the reverse conduction states.

DownLoad: Full-Size Img PowerPoint

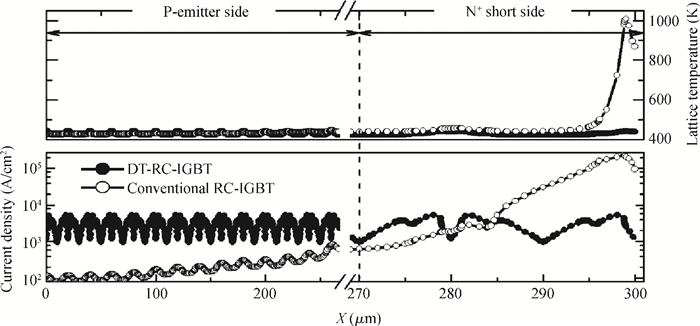

Fig. 6.  The current and the temperature distributions of the conventional RC-IGBT on the cut line of $y$ $=$ 4 $\mu $m at the time point of $t_{2}$ $=$ 1.7 $\times$ 10$^{-7}$ s; at this time, the maximum lattice temperature of the conventional RC-IGBT exceeds 800 K.

DownLoad: Full-Size Img PowerPoint

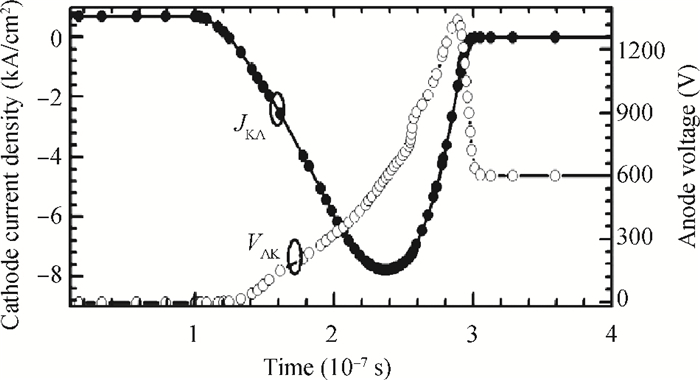

Fig. 7.  The reverse-recovery current waveforms of the DT-RC-IGBTs. $T$ $=$ 400 K. $V_{\rm bus}$ $=$ 600 V, $J_{\rm f}$ $=$ 700 A/cm$^{2}$, initial d$J_{\rm f}$/d$t$ $=$ 2000 A/$\mu $s$\cdot $cm$^{2}$.

DownLoad: Full-Size Img PowerPoint

Table 1.   Device specifications.
