All-optical NRZ wavelength conversion using a Sagnac loop with optimized SOA characteristics

Xiyan Jiang; Jin Wang; Chen Gao; Ji Xu; Hongdan Wan

doi:10.1088/1674-4926/36/1/014013

J. Semicond. > 2015, Volume 36 > Issue 1 > 014013

SEMICONDUCTOR DEVICES

All-optical NRZ wavelength conversion using a Sagnac loop with optimized SOA characteristics

Xiyan Jiang, Jin Wang, Chen Gao, Ji Xu and Hongdan Wan

+ Author Affiliations

Corresponding author: Jin Wang, E-mail: jinwang@njupt.edu.cn

DOI: 10.1088/1674-4926/36/1/014013

Abstract: We investigated the all-optical wavelength conversion technique for non-return-to-zero (NRZ) signals based on a Sagnac loop interferometer using an SOA. For the wavelength conversion of the NRZ signal at and above 40 Gbit/s, we used an in-house numerical SOA model to analyze the influence of the SOA carrier characteristics and the SOA length on the performance of the Sagnac loop. We found that the SOA carrier recovery time should be between 2 and 3 times of one bit duration in order to get optimum NRZ wavelength conversion. In addition to the carrier recovery time requirement, SOAs with a shorter physical length are preferred to be used in the Sagnac interferometer.

Key words: semiconductor optical amplifier, wavelength conversion, non-return-to-zero signal, cross-gain modulation, cross-phase modulation

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]

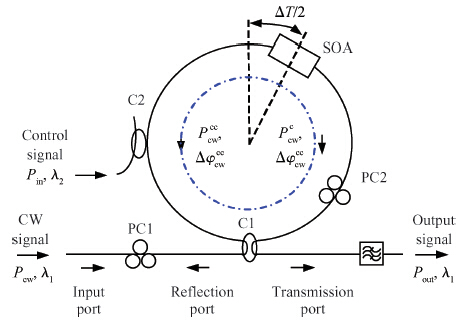

Fig. 1. Wavelength conversion scheme using a Sagnac loop based on SOA.

DownLoad: Full-Size Img PowerPoint

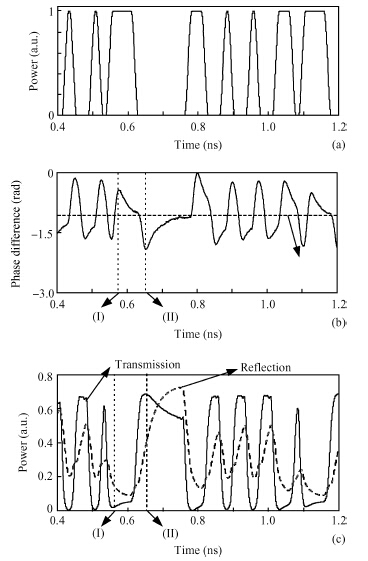

Fig. 2. Wavelength conversion from (a) an input signal to (c) output signals through a Sagnac loop with a selected SOA2. (b) The phase difference of two counter-propagating signals after the SOA2.

DownLoad: Full-Size Img PowerPoint

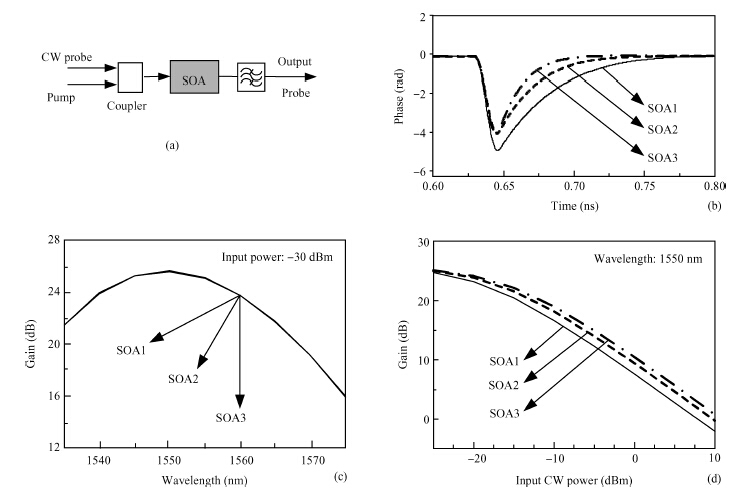

Fig. 3. (a) Schematic pump-probe experiment setup. (b) Phase recovery dynamics of three prepared SOAs. (c) Gain spectra. (d) Gain saturation characteristic.

DownLoad: Full-Size Img PowerPoint

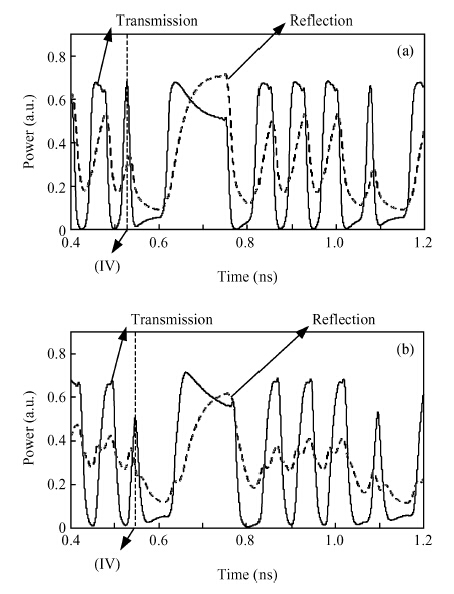

Fig. 4. Wavelength converted signals after a Sagnac loop with (a) a "slow" SOA1 and (b) a "fast" SOA3.

DownLoad: Full-Size Img PowerPoint

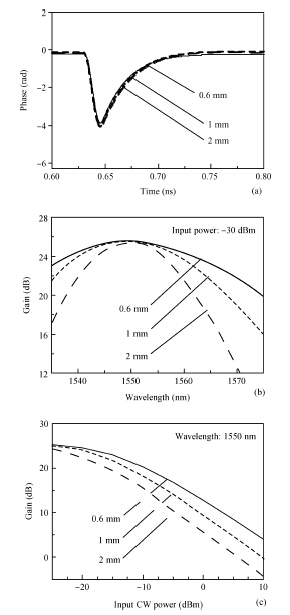

Fig. 5. Characteristic of SOAs with a length of 0.6 mm, 1 mm and 2 mm. (a) Phase recovery dynamics of three prepared SOAs. (b) Gain spectra. (c) Gain saturation characteristic.

DownLoad: Full-Size Img PowerPoint

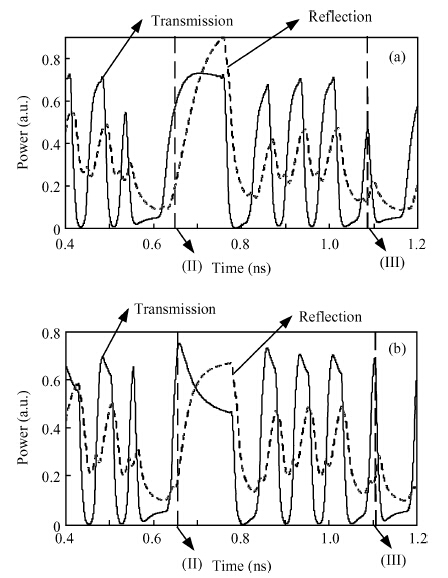

Fig. 6. Wavelength converted signals through the Sagnac loop with an SOA having a length of (a) 0.6 mm or (b) 2 mm.
