A novel lateral cavity surface emitting laser with top sub-wavelength grating

Aiyi Qi1, 2, Yufei Wang2, Xiaojie Guo1, 2 and Wanhua Zheng1, 2,

+ Author Affiliations

 Corresponding author: Wanhua Zheng, E-mail: whzheng@semi.ac.cn

DOI: 10.1088/1674-4926/36/1/014012

PDF

Abstract: We report a novel lateral cavity surface emitting laser based on sub-wavelength high-index-contrast grating with in-plane resonance and surface-normal emission. The device is fabricated on a simple commercial wafer without the distributed Bragg reflector and it needs no wafer bonding. It exhibits a side mode suppression ratio of 23.0 dB and a high output power of 5.32 mW at 1552.44 nm. The specific single mode lasing agrees well with the band edge mode calculation of the grating. In 3D simulation, we observe obvious light output from the grating.

Key words: photonic crystal, surface emitting laser, grating



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]

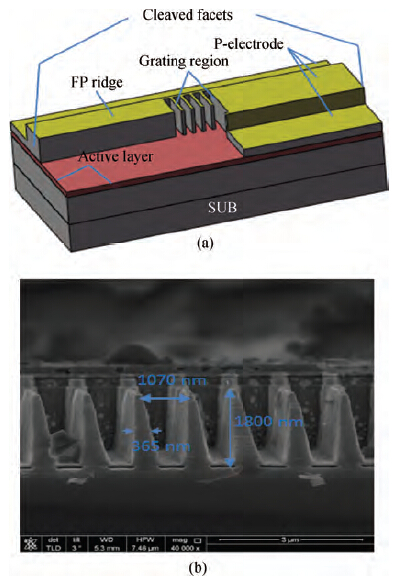

Fig. 1.  (a) Schematic picture of the SWG-LCSEL. (b) Cross section view of grating bars.

DownLoad: Full-Size Img PowerPoint

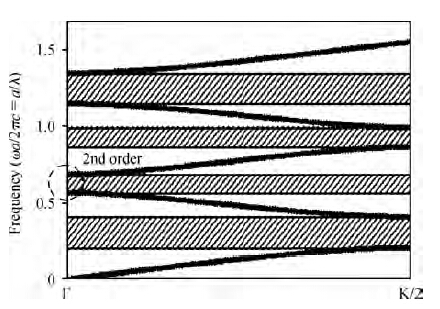

Fig. 2.  The photonic band structure of SWG.

DownLoad: Full-Size Img PowerPoint

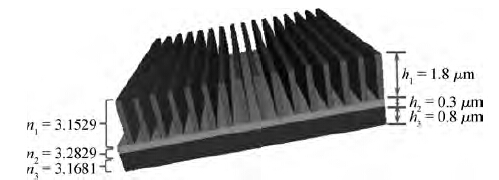

Fig. 3.  The schematic structure of the calculation model.

DownLoad: Full-Size Img PowerPoint

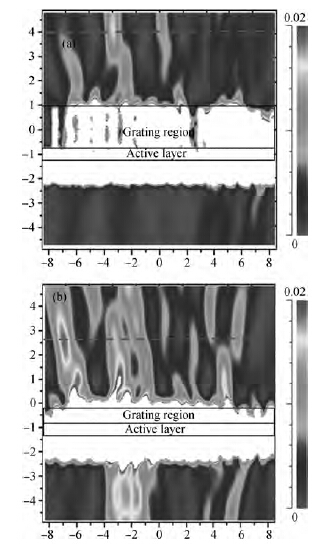

Fig. 4.  Longitudinal energy distribution cross section of the SWG-LCSEL. The grating heights are (a) 1.8 $\mu $m and (b) 0.5 $\mu $m, respectively.

DownLoad: Full-Size Img PowerPoint

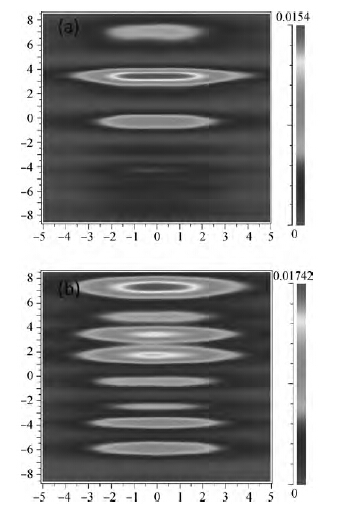

Fig. 5.  Energy distribution of the SWG-LCSEL at the position about 1.5$\lambda $ above the grating surface, shown by the dashed lines in Figure 4. The grating heights are (a) 1.8 $\mu $m and (b) 0.5 $\mu $m, respectively.

DownLoad: Full-Size Img PowerPoint

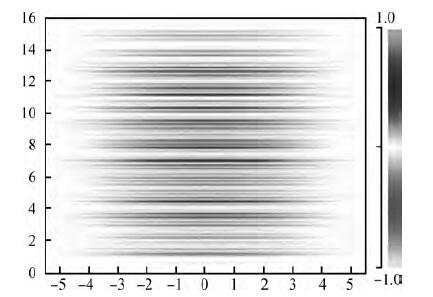

Fig. 6.  The mode profile of the SWG-LCSEL.

DownLoad: Full-Size Img PowerPoint

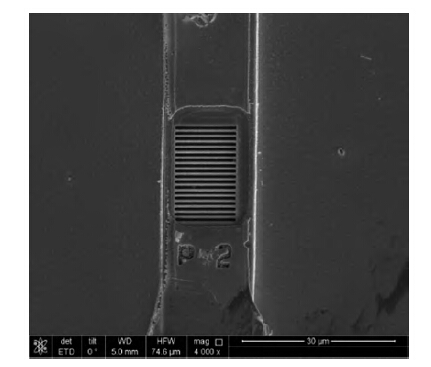

Fig. 7.  Top view of the SWG-LCSEL. The height, period and duty cycle of the grating are estimated to be about 1800 nm, 1070 nm and 0.341, respectively.

DownLoad: Full-Size Img PowerPoint

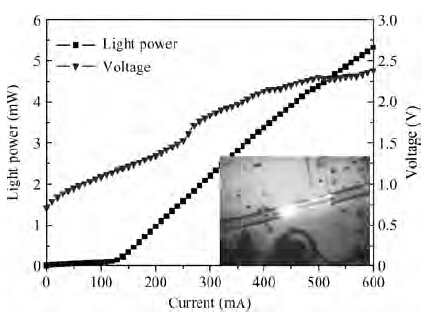

Fig. 8.  The light-current-voltage curve of the SWG-LCSEL. The inset is the real lasing picture of the device.

DownLoad: Full-Size Img PowerPoint

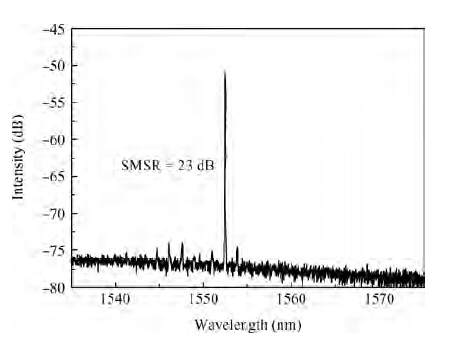

Fig. 9.  The surface-emitting spectrum of the SWG-LCSEL.

DownLoad: Full-Size Img PowerPoint

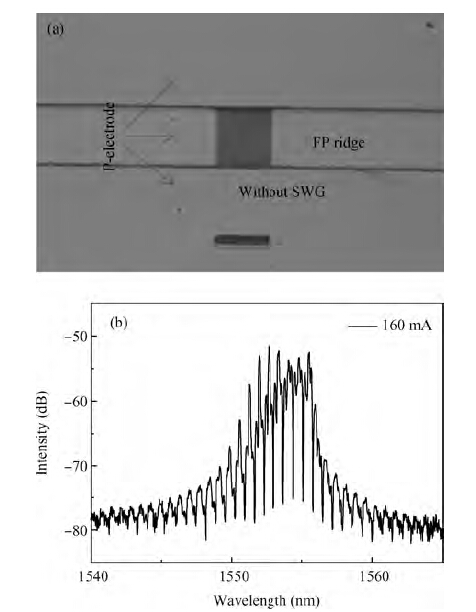

Fig. 10.  (a) Image of a surface emitting laser without top SWG. (b) Surface-emitting spectrum of the device.

DownLoad: Full-Size Img PowerPoint
