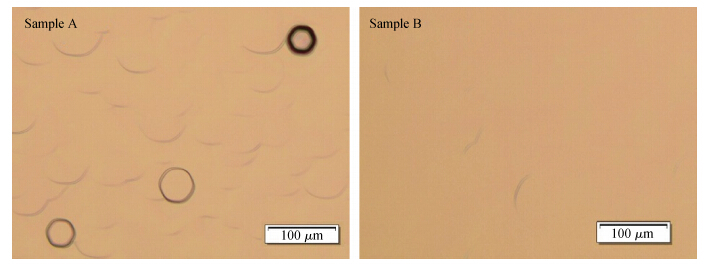

Fig1.
The surface topography of GaN epitaxial material when the growth pressures of GaN are 0.1 atm (sample A) and 0.2 atm (sample B),respectively.
DownLoad:
| Citation: |
Lei Cui, Haibo Yin, Lijuan Jiang, Quan Wang, Chun Feng, Hongling Xiao, Cuimei Wang, Jiamin Gong, Bo Zhang, Baiquan Li, Xiaoliang Wang, Zhanguo Wang. The influence of Fe doping on the surface topography of GaN epitaxial material[J]. Journal of Semiconductors, 2015, 36(10): 103002. doi: 10.1088/1674-4926/36/10/103002
****
L Cui, H B Yin, L J Jiang, Q Wang, C Feng, H L Xiao, C M Wang, J M Gong, B Zhang, B Q Li, X L Wang, Z G Wang. The influence of Fe doping on the surface topography of GaN epitaxial material[J]. J. Semicond., 2015, 36(10): 103002. doi: 10.1088/1674-4926/36/10/103002.
|
The influence of Fe doping on the surface topography of GaN epitaxial material
DOI: 10.1088/1674-4926/36/10/103002
More Information
-
Abstract
Fe doping is an effective method to obtain high resistivity GaN epitaxial material.But in some cases, Fe doping could result in serious deterioration of the GaN material surface topography, which will affect the electrical properties of two dimensional electron gas (2DEG) in HEMT device.In this paper, the influence of Fe doping on the surface topography of GaN epitaxial material is studied.The results of experiments indicate that the surface topography of Fe-doped GaN epitaxial material can be effectively improved and the resistivity could be increased after increasing the growth rate of GaN materials.The GaN material with good surface topography can be manufactured when the Fe doping concentration is 9×1019 cm-3.High resistivity GaN epitaxial material which is 1×109Ω·cm is achieved.-
Keywords:
- Fe doping,
- GaN,
- MOCVD,
- surface topography
-
