Ambipolar organic heterojunction transistors based on F16CuPc/CuPc with a MoO3 buffer layer

Mingdong Yi1, Ning Zhang1, Linghai Xie1, and Wei Huang1, 2,

+ Author Affiliations

 Corresponding author: Linghai Xie, iamlhxie@njupt.edu.cn; Wei Huang, iamwhuang@njupt.edu.cn

DOI: 10.1088/1674-4926/36/10/104001

PDF

Abstract: We fabricated heterojunction organic field-effect transistors (OFETs) using copper phthalocyanine (CuPc) and hexadecafluorophtholocyaninatocopper (F16CuPc) as hole transport layer and electron transport layer, respectively.Compared with F16CuPc based OFETs, the electron field-effect mobility in the heterojunction OFETs increased from 3.1×10-3 to 8.7×10-3 cm2/(V·s), but the p-type behavior was not observed.To enhanced the hole injection, we modified the source-drain electrodes using the MoO3 buffer layer, and the hole injection can be effectively improved.Eventually, the ambipolar transport characteristics of the CuPc/F16CuPc based OFETs with a MoO3 buffer layer were achieved, and the field-effect mobilities of electron and hole were 2.5×10-3 and 3.1×10-3 cm2/(V·s), respectively.

Key words: organic field-effect transistors, heterojunction, ambipolar, contact resistance



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]

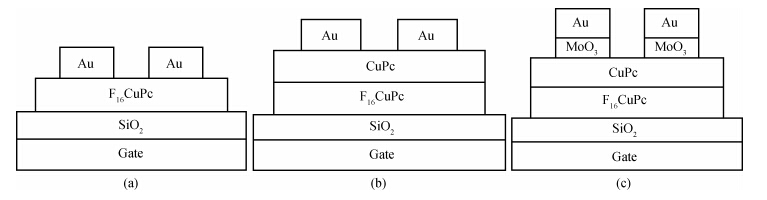

Fig. 1.  Schematic diagram of (a) device I,(b) device II,and (c) device III.

DownLoad: Full-Size Img PowerPoint

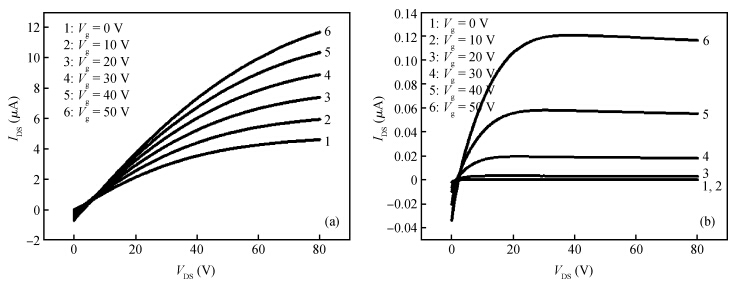

Fig. 2.  The output characteristics for (a) device II and (b) device I.

DownLoad: Full-Size Img PowerPoint

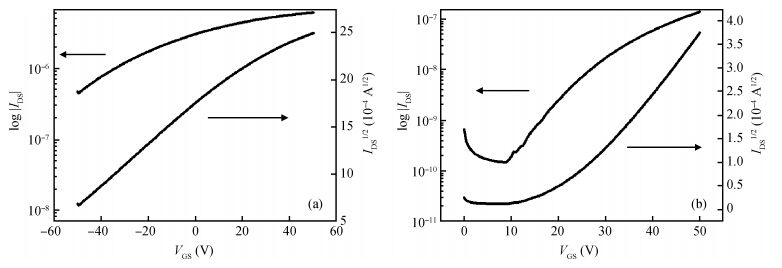

Fig. 3.  The transfer characteristics for (a) device II and (b) device I when $V_{\rm DS}$ is set as 50 V.

DownLoad: Full-Size Img PowerPoint

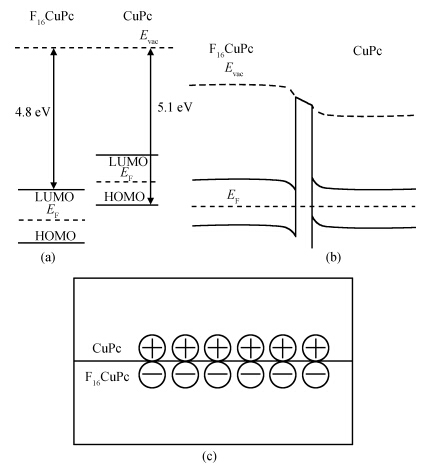

Fig. 4.  (a) Energy diagram of F$_{16}$CuPc and CuPc (a) before and (b) after contact. $E_{\rm vac}$ and $E_{\rm F}$ are the vacuum level and Fermi level,respectively. (c) The charge carrier distribution at the interface of the F$_{16}$CuPc/CuPc heterojunction under zero bias conditions.

DownLoad: Full-Size Img PowerPoint

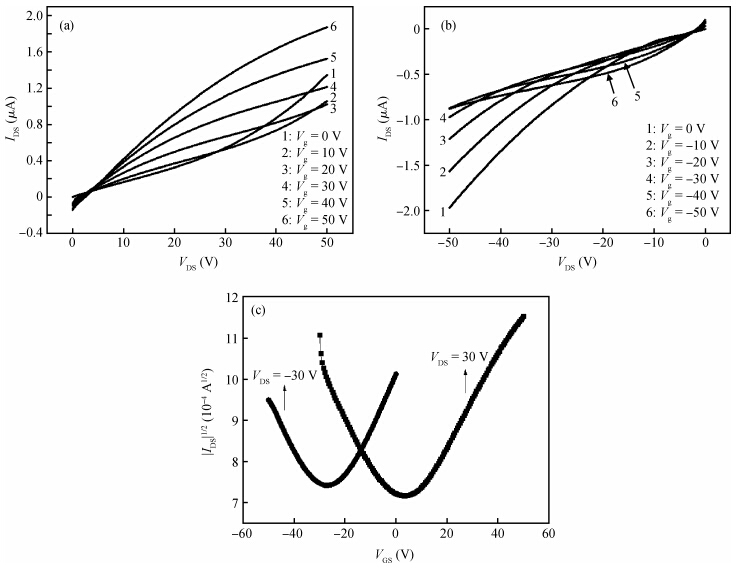

Fig. 5.  The ambipolar electrical characteristics of our heterojunction OFET with MoO$_{3}$ buffer layer. (a) The output characteristics of electron-accumulation mode with varied positive gate voltages from 0 to $+50$ V. (b) The output characteristics of hole-accumulation mode with varied positive gate voltages from 0 to -50 V. (c) The transfer characteristics of ambipolar OFET.

DownLoad: Full-Size Img PowerPoint

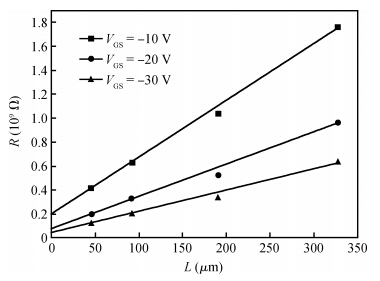

Fig. 6.  Plots for total resistance $R_{\rm T}$ versus channel length $L$ of the OFETs with the MoO$_{3}$ modified electrodes for various gate voltages.

DownLoad: Full-Size Img PowerPoint

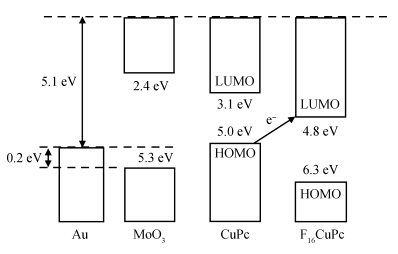

Fig. 7.  Schematic of energy level diagram of the materials in the contact region.
