Broadband terahertz radiation from a biased two-dimensional electron gas in an AlGaN/GaN heterostructure

Zhongxin Zheng1, 2, Jiandong Sun1, Yu Zhou1, Zhipeng Zhang1 and Hua Qin1,

+ Author Affiliations

 Corresponding author: Hua Qin, hqin2007@sinano.ac.cn

DOI: 10.1088/1674-4926/36/10/104002

PDF

Abstract: The broadband terahertz emission from drifting two-dimensional electron gas (2DEG) in an Al-GaN/GaN heterostructure at 6 K is reported.The devices are designed as THz plasmon emitters according to the Smith-Purcell effect and the 'shallow water' plasma instability mechanism in 2DEG.Plasmon excitation is excluded since no signature of electron-density dependent plasmon mode is observed.Instead, the observed THz emission is found to come from the heated lattice and/or the hot electrons.Simulated emission spectra of hot electrons taking into account the THz absorption in air and Fabry-Pérot interference agree well with the experiment.It is confirmed that a blackbody-like THz emission will inevitably be encountered in similar devices driven by a strong in-plane electric field.A conclusion is drawn that a more elaborate device design is required to achieve efficient plasmon excitation and THz emission.

Key words: two-dimensional electron gas, hot electron, blackbody radiation, plasmon, Fabry-Pérot cavity



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]

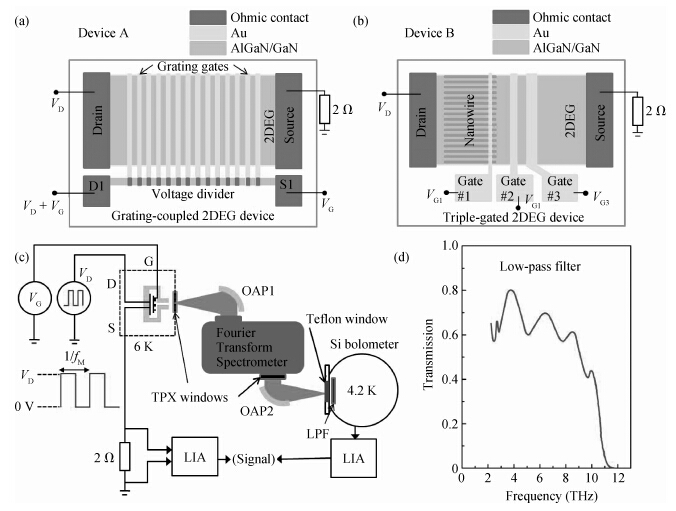

Fig. 1.  (a) Device A: the grating-coupled 2DEG device. (b) Device B: the triple-gated 2DEG device. (c) Schematic of the measurement setup. (d) Transmission coefficient of the THz low-pass filter (LPF) installed in the silicon bolometer.

DownLoad: Full-Size Img PowerPoint

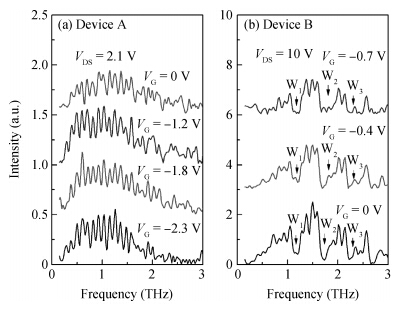

Fig. 2.  THz emission spectra at different gate voltages. (a) Grating-coupled 2DEG device (Device A),the curves are offset by 0.5 for clarity. (b) Triple-gated 2DEG device (Device B),the curves are offset by 3 for clarity. The source-drain bias is modulated at 7 Hz.

DownLoad: Full-Size Img PowerPoint

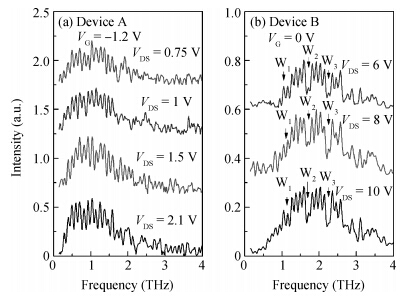

Fig. 3.  THz emission spectra at different drain-source biases. (a) Grating-coupled 2DEG device (Device A),the curves are offset by 0.6 for clarity. (b) Triple-gated 2DEG device (Device B),the curves are offset by 0.3 for clarity. The source-drain bias is modulated at 7~Hz.

DownLoad: Full-Size Img PowerPoint

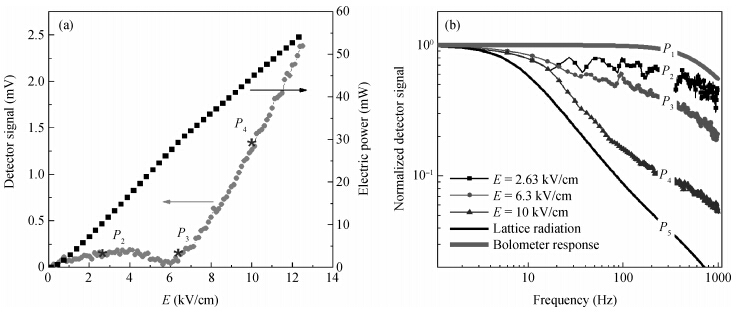

Fig. 4.  (a) Electric power (squares) and emission power (circles) as a function of the electric field for device B. (b) Frequency response characteristics measured at $E=$ 2.63,6.3,10 kV/cm. $P_1$ is the frequency characteristic curve of the bolometer. $P_5$ is the frequency characteristic curve for lattice radiation.

DownLoad: Full-Size Img PowerPoint

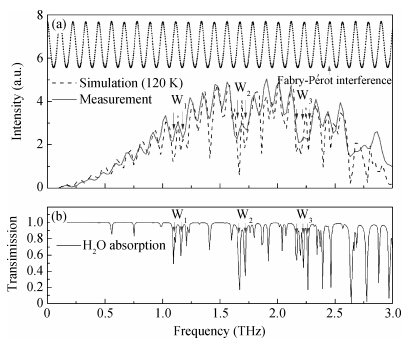

Fig. 5.  (a) Measured and simulated emission spectra from hot electrons driven by an electric field of $E =$ 6.25 kV/cm. The transmission coefficient of the sapphire substrate is shown with an arbitrary unit. (b) Calculated transmission coefficient of the air column with a humidity of 3{\%} using program am.

DownLoad: Full-Size Img PowerPoint

Table 1.   Gate parameters of devices A and B.

Device A Device B
Grating gate period Grating gate Source-drain distance Gate length Source-drain distance
#1 #2 #3 8 $\mu $m
200 nm 100 nm 8 $\mu $m 50 nm 100 nm 400 nm
DownLoad: CSV
