An improved performance of copper phthalocyanine OFETs with channel and source/drain contact modifications

Huanqin Dang1, 2, Xiaoming Wu1, 2, Xiaowei Sun3, Runqiu Zou1, 2, Ruochuan Zhang1, 2 and Shougen Yin1, 2

+ Author Affiliations
DOI: 10.1088/1674-4926/36/10/104003

PDF

Abstract: We report an effective method to improve the performance of p-type copper phthalocyanine (CuPc) based organic field-effect transistors (OFETs) by employing a thin para-quaterphenyl (p-4p) film and simultaneously applying V2O5 to the source/drain regions.The p-4p layer was inserted between the insulating layer and the active layer, and V2O5 layer was added between CuPc and Al in the source-drain (S/D) area.As a result, the fieldeffect saturation mobility and on/off current ratio of the optimized device were improved to 5×10-2 cm2/(V·s) and 104, respectively.We believe that because p-4p could induce CuPc to form a highly oriented and continuous film, this resulted in the better injection and transport of the carriers.Moreover, by introducing the V2O5 electrode's modified layers, the height of the carrier injection barrier could be effectively tuned and the contact resistance could be reduced.

Key words: organic field-effect transistors, copper phthalocyanine active layer, para-quaterphenyl buffer layer, source/drain contact modifications



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]

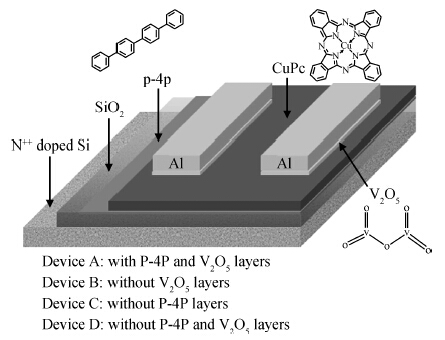

Fig. 1.  The configurations of device A (Al/V$_{2}$O$_{5}$/CuPc/4p/SiO$_{2})$,device B (Al/CuPc/4p/SiO$_{2})$,device C (Al/V$_{2}$O$_{5}$/CuPc/SiO$_{2})$,device D (Al/CuPc/SiO$_{2})$,and the chemical structures of CuPc,p-4p,and V$_{2}$O$_{5}$.

DownLoad: Full-Size Img PowerPoint

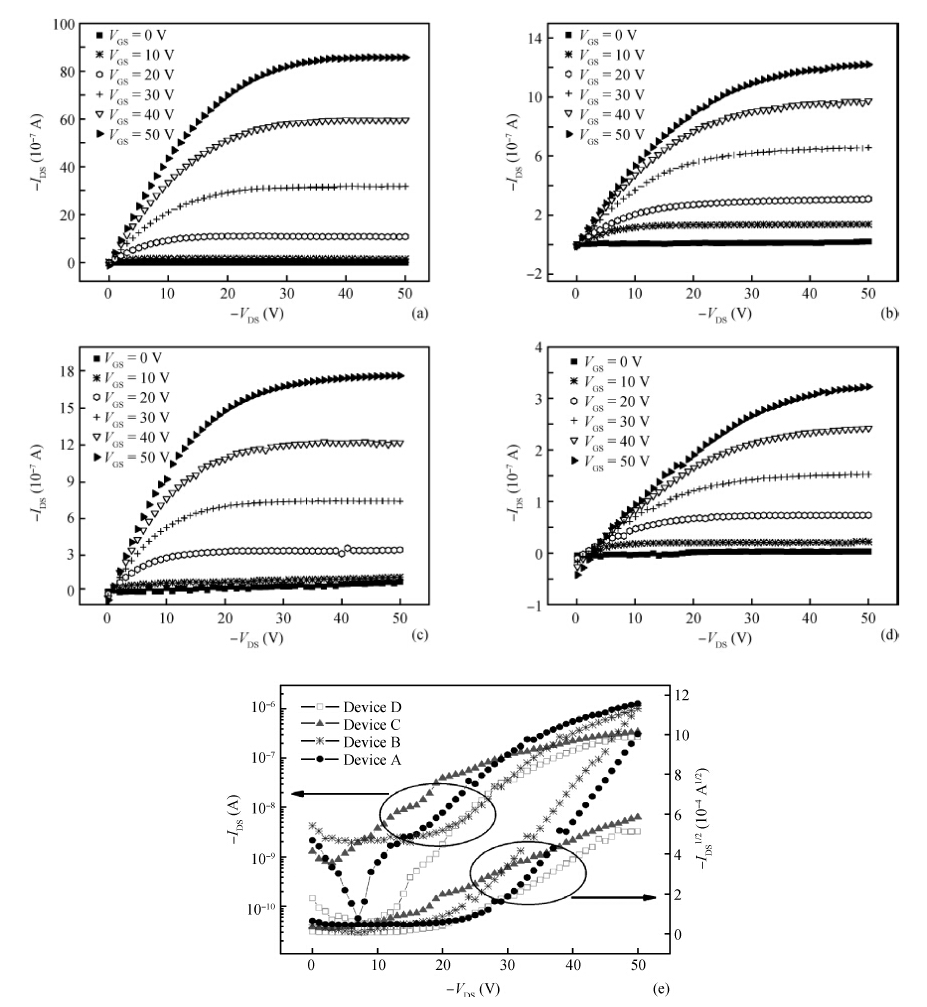

Fig. 2.  The output curves of the devices (a) device A,(b) device B,(c) device C,and (d) device D. Transfer characteristics of (e) devices A,B,C,and D at a fixed $V_{\rm DS}$ of $-50$ V.

DownLoad: Full-Size Img PowerPoint

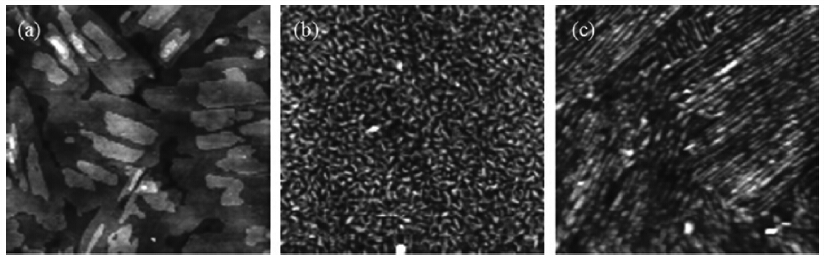

Fig. 3.  (a) 5 $\times $ 5 $\mu $m$^{2}$ AFM image of 4 nm p-4p/SiO$_{2}$/Si thin film; 2 $\times $ 2 $\mu $m$^{2}$ AFM images of (b) CuPc (40 nm)/SiO$_{2}$/Si,and (c) CuPc (40~nm)/p-4p/SiO$_{2}$/Si.

DownLoad: Full-Size Img PowerPoint

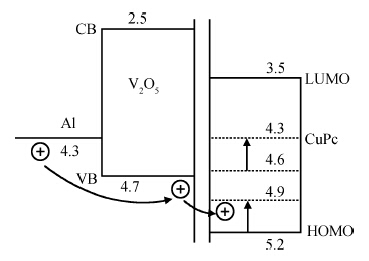

Fig. 4.  Energy level schematics of Al,V$_{2}$O$_{5}$,and CuPc (units: -eV).

DownLoad: Full-Size Img PowerPoint

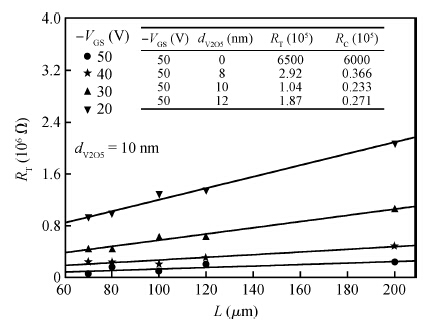

Fig. 5.  Plots for the relationship between the channel length $L$ and the total resistant $R_{\rm T}$ with the 10 nm V$_{2}$O$_{5}$ layer modification; Inset: the total and contact resistances of the V$_{2}$O$_{5}$ modified devices with different thicknesses at a specific gate bias.
