J. Semicond. > 2015, Volume 36 > Issue 10 > 105008
|

SEMICONDUCTOR INTEGRATED CIRCUITS

A low power low noise analog front end for portable healthcare system

Yanchao Wang, Keren Ke, Wenhui Qin, Yajie Qin, Ting Yi and Zhiliang Hong

+ Author Affiliations

 Corresponding author: Wang Yanchao, wangyanchao@fudan.edu.cn; Yi Ting, yiting@fudan.edu.cn

DOI: 10.1088/1674-4926/36/10/105008

PDF

Abstract: The presented analog front end (AFE) used to process human bio-signals consists of chopping instrument amplifier (IA), chopping spikes filter and programmable gain and bandwidth amplifier.The capacitorcoupling input of AFE can reject the DC electrode offset.The power consumption of current-feedback based IA is reduced by adopting capacitor divider in the input and feedback network.Besides, IA's input thermal noise is decreased by utilizing complementary CMOS input pairs which can offer higher transconductance.Fabricated in Global Foundry 0.35 μm CMOS technology, the chip consumes 3.96 μA from 3.3 V supply.The measured input noise is 0.85 μVrms (0.5-100 Hz) and the achieved noise efficient factor is 6.48.

Key words: AFE, chopping IA, low power consumption, low noise, NEF



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]

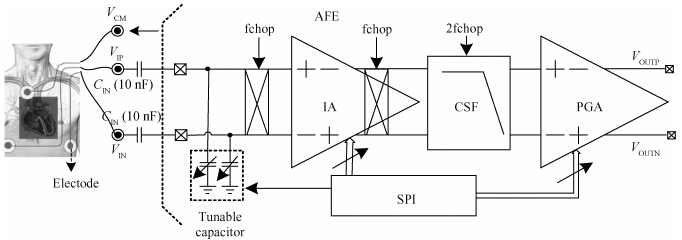

Fig. 1.  System block diagram of AFE.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  System diagram of IA.

DownLoad: Full-Size Img PowerPoint

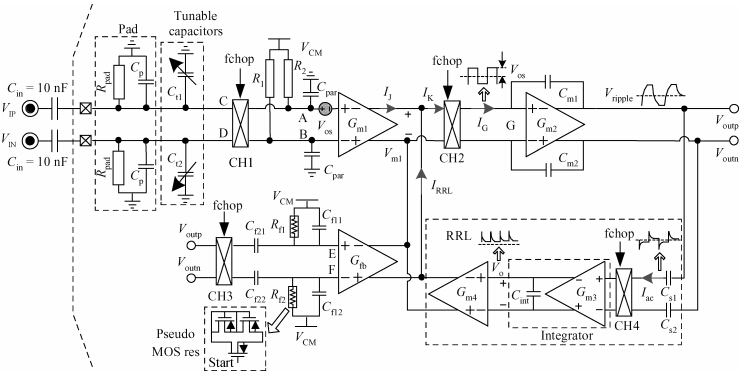

Fig. 3.  Main schematic of IA.

DownLoad: Full-Size Img PowerPoint

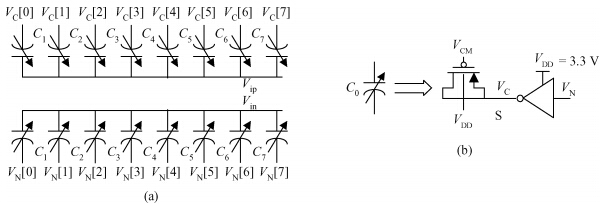

Fig. 4.  Realization of $C$. (a) Structure of tunable capacitor $C_{\rm t}$. (b) Implementation of $C_0.$

DownLoad: Full-Size Img PowerPoint
Fig. 5.  Relationship of $C_0$ and $V_{\rm c}$.

DownLoad: Full-Size Img PowerPoint
Fig. 6.  Input impedance model of IA.

DownLoad: Full-Size Img PowerPoint

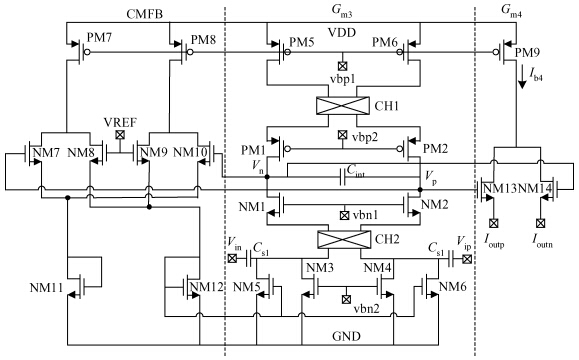

Fig. 7.  Schematic of RRL.

DownLoad: Full-Size Img PowerPoint

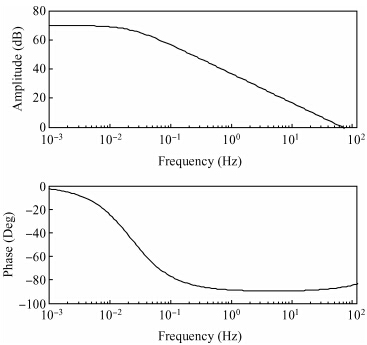

Fig. 8.  AC response of RRL.

DownLoad: Full-Size Img PowerPoint

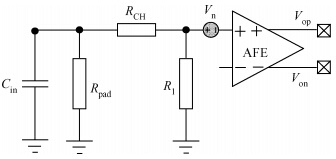

Fig. 9.  Noise model of AFE.

DownLoad: Full-Size Img PowerPoint

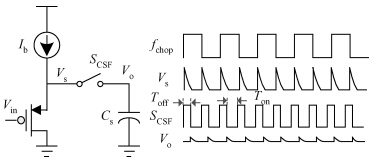

Fig. 10.  CSF and the control signals.

DownLoad: Full-Size Img PowerPoint

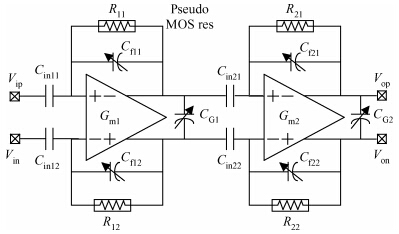

Fig. 11.  The topology of PGA.

DownLoad: Full-Size Img PowerPoint
Fig. 12.  CSF and the control signals.

DownLoad: Full-Size Img PowerPoint

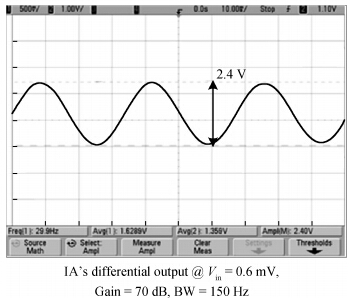

Fig. 13.  Transient response of AFE.

DownLoad: Full-Size Img PowerPoint

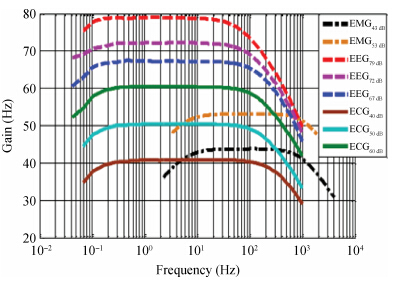

Fig. 14.  (Color online) Measured results of AFE's AC response.

DownLoad: Full-Size Img PowerPoint
Fig. 15.  Measured input noise density spectrum.

DownLoad: Full-Size Img PowerPoint

Table 1.   Performance summary and comparison.

Parameter Reference [10] Reference [13] Reference [14] Reference [15] This work
Technology 0.13 $\mu$m 0.5 $\mu$m 0.18 $\mu$m 0.18 $\mu$m 0.35 $\mu$m
Power supply (V) 1 3.3 1.8 1.8 3.3
Supply current ($\mu $A) 12.1 20 11 12.5 3.96
Input impedance (M$\upOmega )$ 4 @ 1 kHz >100 >2000 2000 300 @ 80 Hz
Input noise ($\mu $Vrms) 2.2 - 0.8 0.8 0.85
(20-10 kHz)(0.5-100 Hz)(0.5-100 Hz)(0.5-100 Hz)
DEO (mV) Rail to rail 50 Rail to rail Rail to rail Rail to rail
CMRR (dB) 80 120 82 82 115
PSRR (dB) $>80$ $>80$ - - 100
NEF 4.9 9.2 12 16 6.48
Gain (dB) 40 52-68 10-40 43-63 41-79
