J. Semicond. > 2015, Volume 36 > Issue 2 > 024013
|

SEMICONDUCTOR DEVICES

Improvements on high voltage capacity and high temperature performances of Si-based Schottky potential barrier diode

Yongshun Wang, Li Rui, Adnan Ghaffar, Zaixing Wang and Chunjuan Liu

+ Author Affiliations

 Corresponding author: Zaixing Wang, E-mail: zaixw@mail.lzjtu.cn

DOI: 10.1088/1674-4926/36/2/024013

PDF

Abstract: In order to improve the reverse voltage capacity and low junction temperature characteristics of the traditional silicon-based Schottky diode, a Schottky diode with high reverse voltage capacity and high junction temperature was fabricated using ion implantation, NiPt60 sputtering, silicide-forming and other major technologies on an N-type silicon epitaxial layer of 10.6—11.4 μm and (2.2—2.4) × 1015 cm-3 doping concentration. The measurement results show that the junction temperature of the Schottky diode fabricated can reach 175 ℃, that is 50 ℃ higher than that of the traditional one; the reverse voltage capacity VR can reach 112 V, that is 80 V higher than that of the traditional one; the leakage current is only 2 μ A and the forward conduction voltage drop is VF = 0.71 V at forward current IF = 3 A.

Key words: Schottky potential barrier diode, breakdown voltage, I—V characteristics, NiPt60 sputtering, junction temperature



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]

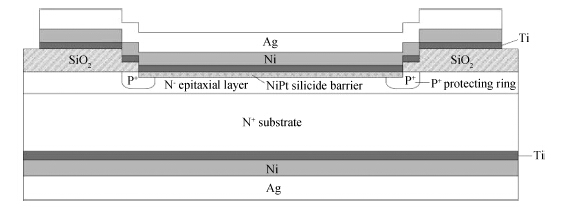

Fig. 1.  Cross-section of designed Schottky diode structure.

DownLoad: Full-Size Img PowerPoint

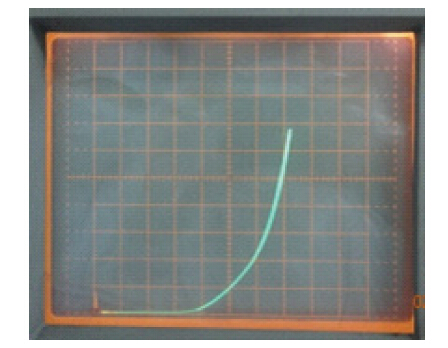

Fig. 2.  Forward $I$-$V$ characteristic of Schottky diode measured at 175 C (500 mA/div on linear vertical axis; 100 mV/div on linear horizontal axis).

DownLoad: Full-Size Img PowerPoint

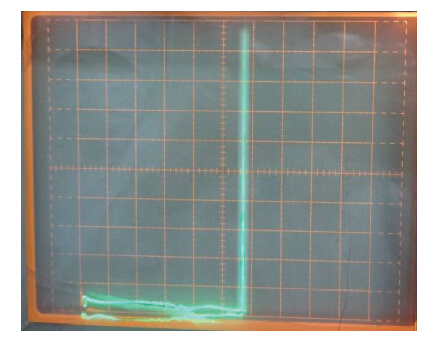

Fig. 3.  Reverse $I$-$V$ characteristics of Schottky diode measured at 175 C (20 $\mu $A/div on linear vertical axis; 20 V/div on linear horizontal axis).

DownLoad: Full-Size Img PowerPoint

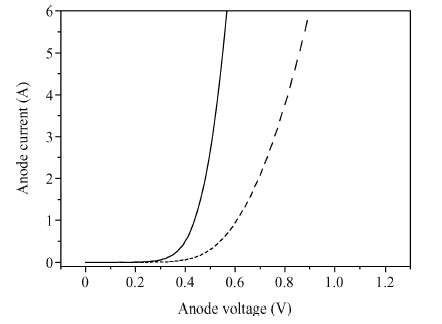

Fig. 4.  Forward $I$-$V$ characteristics of NiSi/Si Schottky diode simulated at 125 C (dotted line) and of Ni(Pt)Si/Si Schottky diode simulated at 175 C (solid line).

DownLoad: Full-Size Img PowerPoint

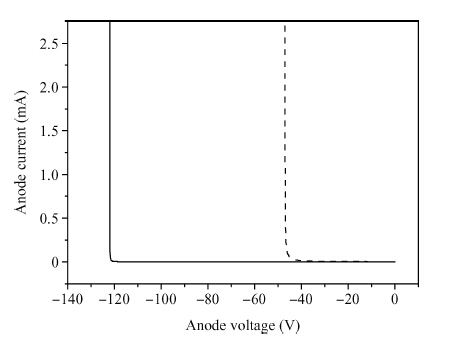

Fig. 5.  Reverse $I$-$V$ characteristics of NiSi/Si Schottky diode simulated at 125 C (dotted line) and of Ni(Pt)Si/Si Schottky diode simulated at 175 C (solid line).

DownLoad: Full-Size Img PowerPoint
