A novel hybrid III—V/silicon deformed micro-disk single-mode laser

Peng Feng1, 2, Yejin Zhang1, 2, Yufei Wang2, Lei Liu1, 2, Siriguleng Zhang1, 2, Hailing Wang1, 2 and Wanhua Zheng1, 2,

+ Author Affiliations

 Corresponding author: Wanhua Zheng, E-mail: whzheng@semi.ac.cn

DOI: 10.1088/1674-4926/36/2/024012

PDF

Abstract: A novel hybrid III—V/silicon deformed micro-disk single-mode laser connecting to a Si output waveguide is designed, and fabricated through BCB bonding technology and standard i-line photolithography. Compared to a traditional circular micro-disk in multi-longitudinal-mode operation, unidirectional emission and single longitudinal-mode output from a Si waveguide are realized. In the experiments, an output power of 0.31 mW and a side-mode suppression ratio of 27 dB in the continuous-wave regime are obtained.

Key words: hybrid laser, deformed micro-disk, single longitudinal mode



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]

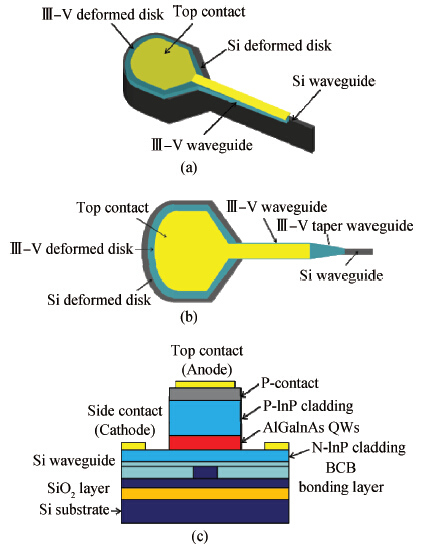

Fig. 1.  (a) Three-dimensional schematic structure, (b) top-view topographical structure of the deformed micro-disk III-V/SOI hybrid laser, and (c) detailed cross-sectional view of the straight cavity of the hybrid laser.

DownLoad: Full-Size Img PowerPoint

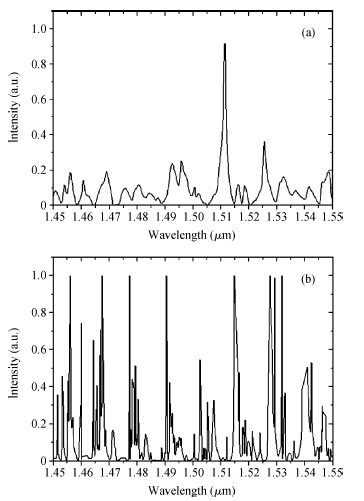

Fig. 2.  (a) Intensity spectra for TE modes obtained by simulation for the deformed micro-disk ($D =$ 20 $\mu $m) with a 2-$\mu $m-wide output waveguide and (b) the circular micro-disk ($D =$ 20 $\mu $m) with the same output waveguide.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  (a) SEM of the cross-section of III-V material bonded on a Si strip waveguide, (b) infrared micrographs taken from an end facet of the devices, and (c) the electrode pads distribution.

DownLoad: Full-Size Img PowerPoint

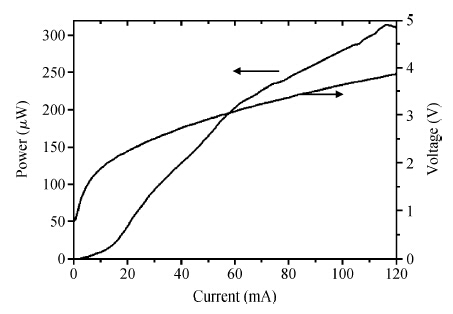

Fig. 4.  Light output power and voltage versus continuous injection current.

DownLoad: Full-Size Img PowerPoint

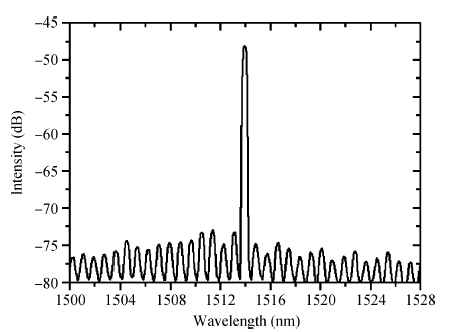

Fig. 5.  The spectrum at 60 mA injection current under cooling conditions.
