Wafer-bonding AlGaInP light emitting diodes with pyramidally patterned metal reflector

Zhiyuan Zuo1, 2, , Wei Xia2, 3, Gang Wang1 and Xiangang Xu2, 3

+ Author Affiliations

 Corresponding author: Zhiyuan Zuo, E-mail: zuozhiyuan@inspur.com

DOI: 10.1088/1674-4926/36/2/024011

PDF

Abstract: We demonstrate and introduce here a pyramidally patterned metal reflector into wafer-bonding AlGaInP light emitting diodes (LEDs) to improve the light extraction efficiency by using a photo-assisted chemical etched GaP:Mg layer. The pyramid patterns were fabricated employing a HF and H2O2 mixed solution in combination with a 532 nm laser on a GaP:Mg surface firstly, and then a gold reflector layer was evaporated onto the patterned GaP:Mg surface. After the whole chip process, the patterned gold reflector structure was confirmed to be efficient for light extraction and a 18.55% enhancement of the electroluminescent flux has been obtained by an integrating sphere, compared to the surface textured LEDs with flat reflectors.

Key words: pyramidally patterned reflector, light emitting diodes, wafer-bonding, light extraction efficiency



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]

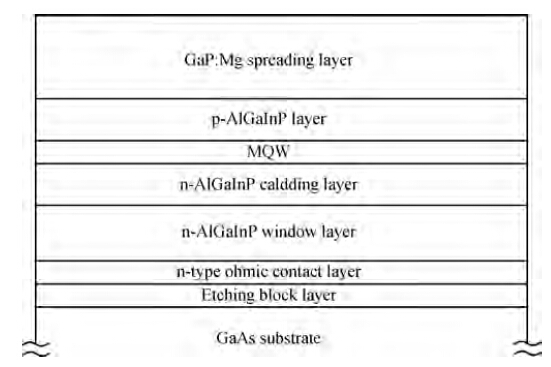

Fig. 1.  Structures of wafer-bonding AlGaInP LED wafer.

DownLoad: Full-Size Img PowerPoint

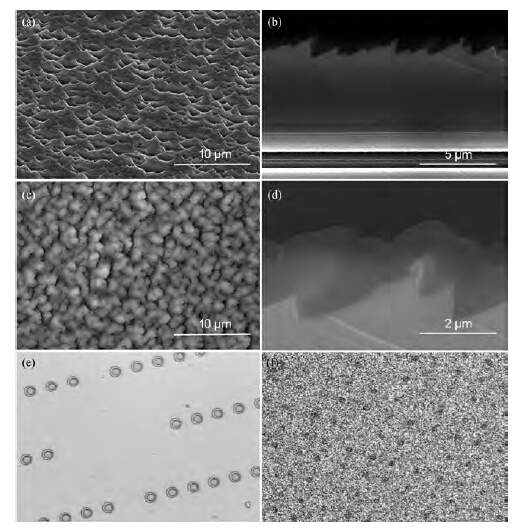

Fig. 2.  SEM and optical microscope images of the patterned GaP and reflector. (a) SEM image of the patterned GaP surface, (b) shows the cross section. (c) Top view and (d) cross section SEM images of the pattered gold reflector on the GaP surface. The optical microscope images of (e) the flat reflector and (f) the patterned reflector.

DownLoad: Full-Size Img PowerPoint

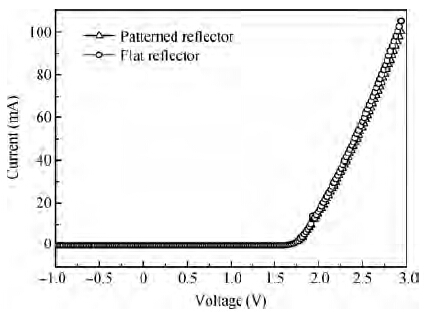

Fig. 3.  $I$-$V$ curves of flat reflector and patterned reflector samples.

DownLoad: Full-Size Img PowerPoint

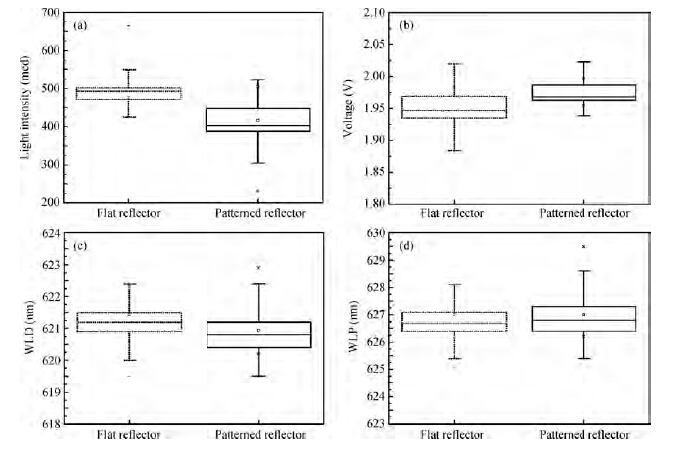

Fig. 4.  Optical and electrical properties of flat reflector and patterned reflector samples obtained on wafer test before encapsulation. (a) The light intensity. (b) The voltage under 20 mA injection. (c) The dominant and (d) peak wavelengths.

DownLoad: Full-Size Img PowerPoint

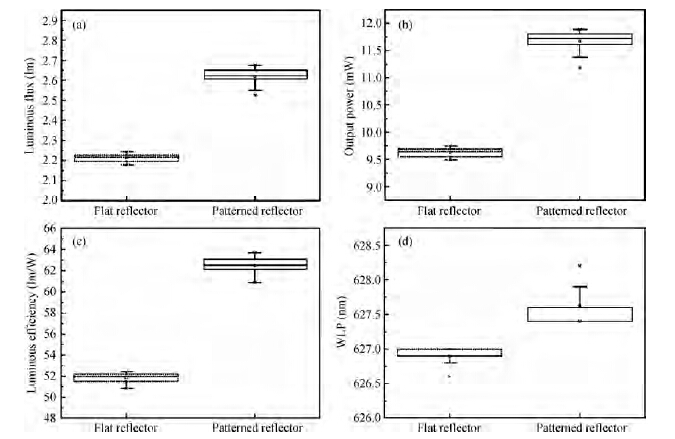

Fig. 5.  Optical properties of flat reflector and patterned reflector samples obtained after encapsulation. (a) Luminous flux. (b) Output light power. (c) Luminous efficiency. (d) Peak wavelength.
