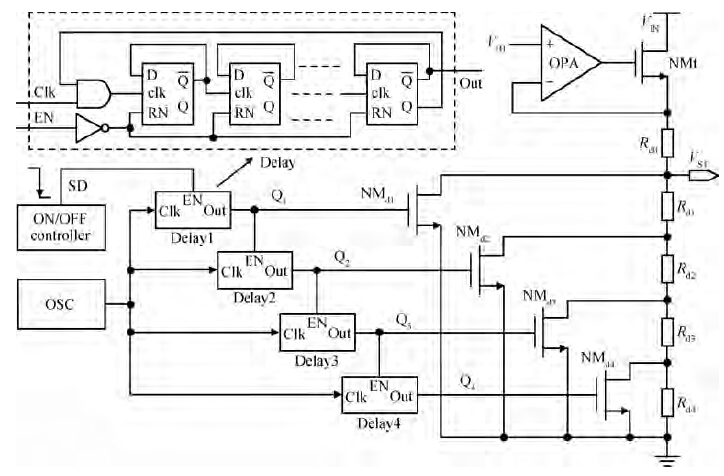

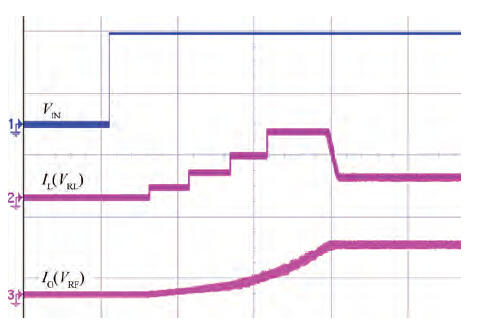

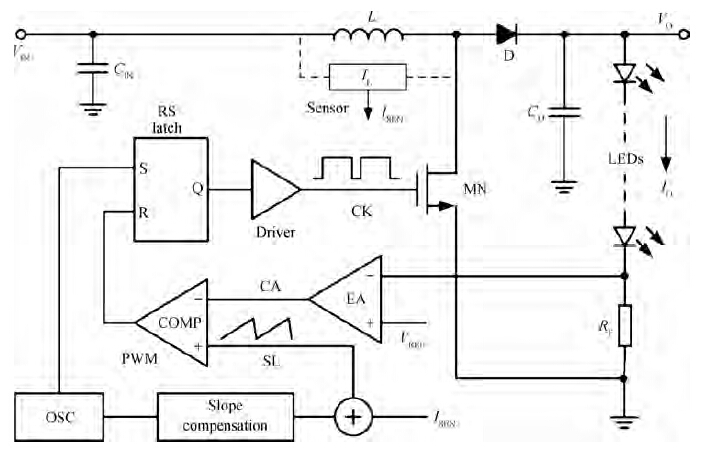

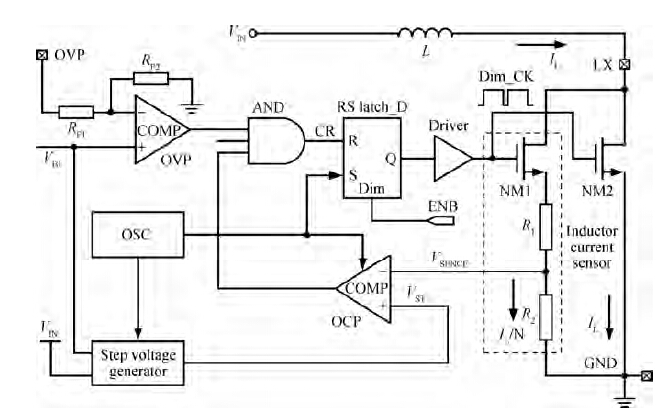

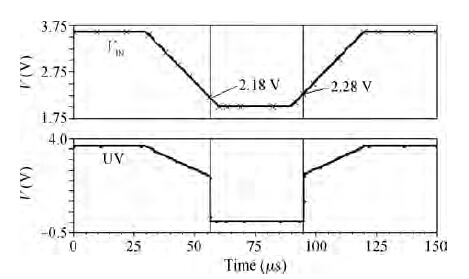

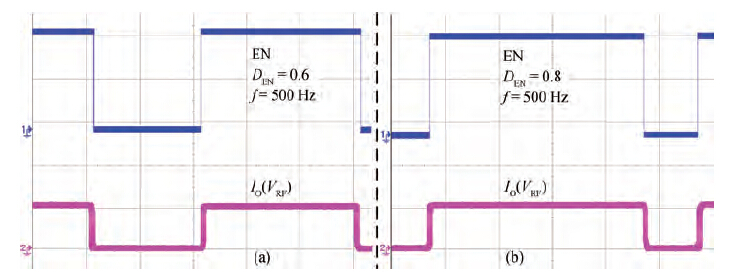

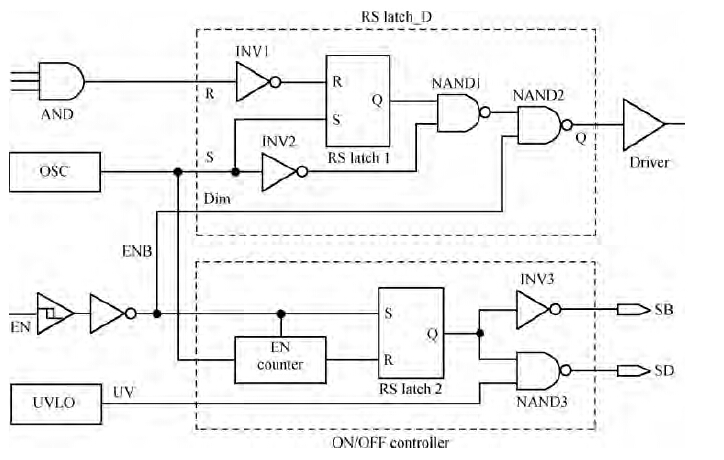

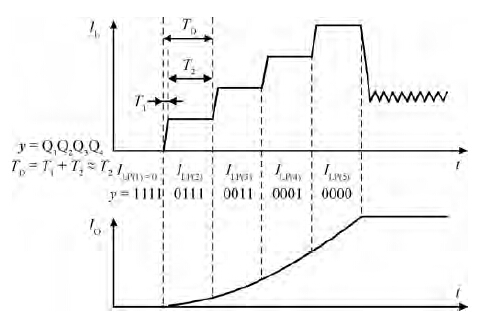

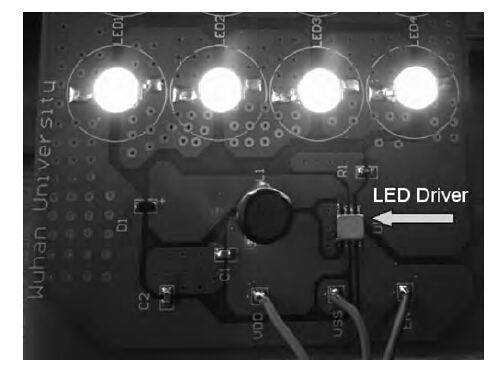

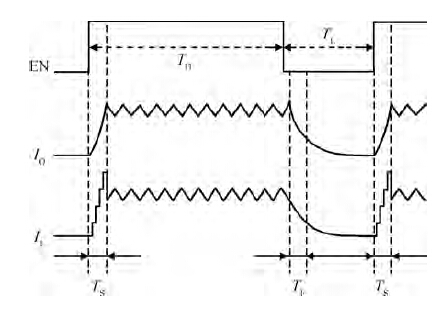

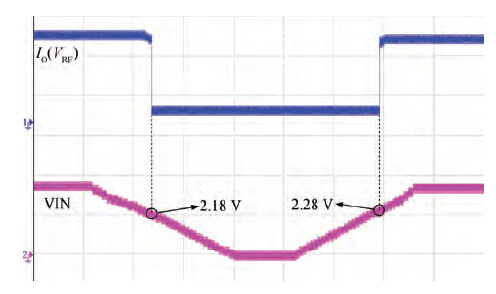

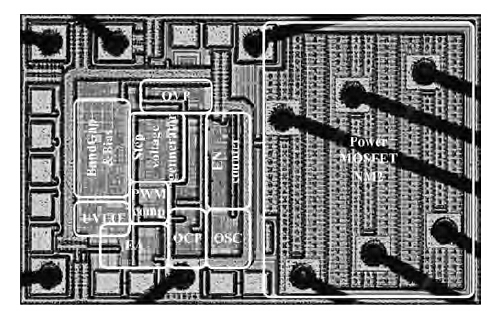

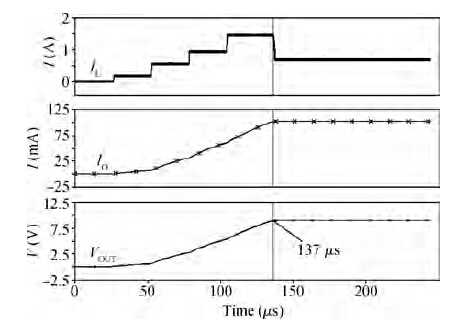

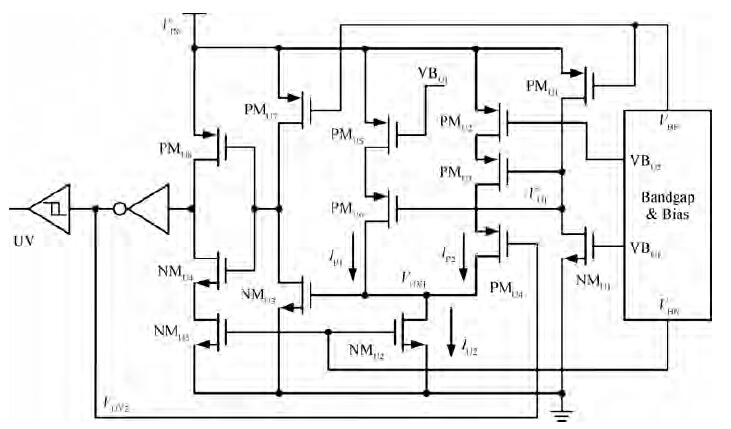

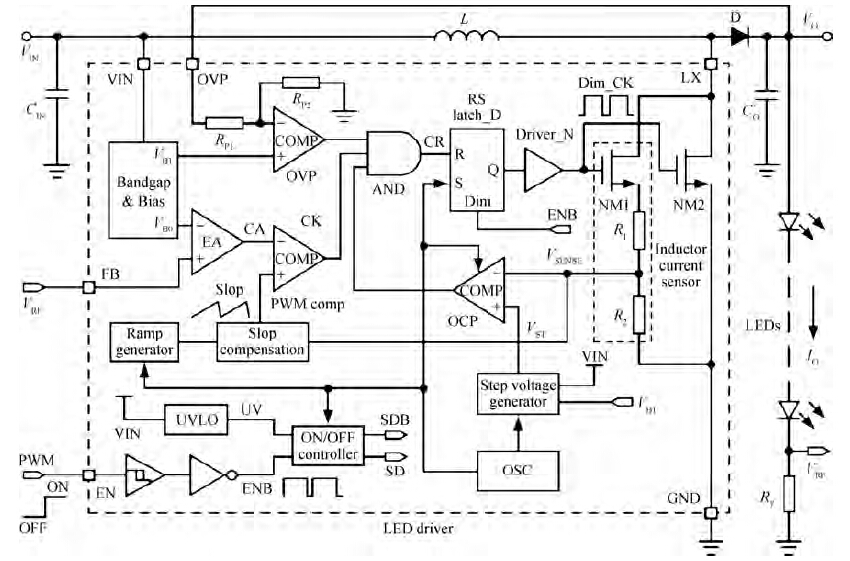

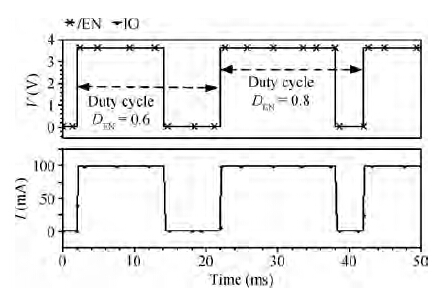

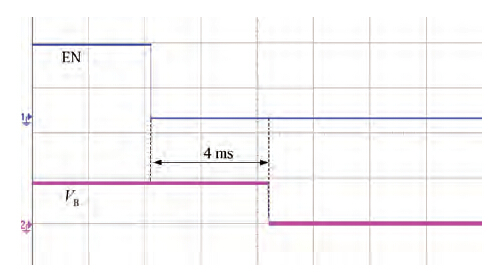

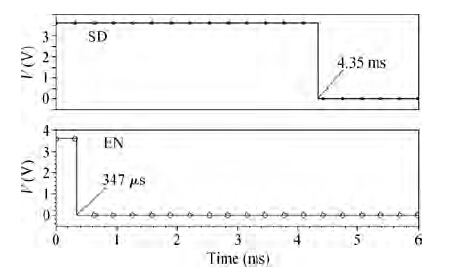

Abstract: A fully integrated LED driver based on a current mode PWM boost DC—DC converter with constant output current is proposed. In order to suppress the inrush of current and the overshoot voltage at the start up state, a soft-start circuit is adopted. Additionally, to adjust the LED brightness without color variation over the full dimming range and achieve high efficiency, a PWM dimming circuit is presented. Furthermore, to keep the loop stability of the LED driver, an internal slope compensation network is designed to avoid the sub-harmonic oscillation when the duty cycle exceeds 50%. Finally, a UVLO circuit is adopted to improve the reliability of the LED driver against the input voltage changing. The LED driver has been fabricated with a standard 0.5 μm CMOS process, and only occupies 1.21 × 0.76 mm². Experimental results show that the brightness of the LED can be adjusted by an off-chip PWM signal with a wide adjusting range. The inductor current and output current increase smoothly over the whole load range. The chip is in the UVLO condition when the input voltage is below 2.18 V and has achieved about 137 μs typical start-up time.

Key words: LED driver, DC—DC converter, UVLO, soft-start, PWM dimming
