J. Semicond. > 2015, Volume 36 > Issue 3 > 035003
|

SEMICONDUCTOR INTEGRATED CIRCUITS

A 3.16—7 GHz transformer-based dual-band CMOS VCO

Zhu Li1, 2, Zhigong Wang1, , Zhiqun Li1, Qin Li1 and Faen Liu1

+ Author Affiliations

 Corresponding author: Zhigong Wang, E-mail: zgwang@seu.edu.cn

DOI: 10.1088/1674-4926/36/3/035003

PDF

Abstract: A dual-band, wide tuning range voltage-controlled oscillator that uses transformer-based fourth-order (LC) resonator with a compact common-centric layout is presented. Compared with the traditional wide band (VCO), it can double frequency tuning range without degrading phase noise performance. The relationship between the coupling coefficient of the transformer, selection of frequency bands, and the quality factor at each band is investigated. The transformer used in the resonator is a circular asymmetric concentric topology. Compared with conventional octagon spirals, the proposed circular asymmetric concentric transformer results in a higher quality-factor, and hence a lower oscillator phase noise. The VCO is designed and fabricated in a 0.18-μm CMOS technology and has 75% wide tuning range of 3.16—7.01 GHz. Depending on the oscillation frequency, the VCO current consumption is adjusted from 4.9 to 6.3 mA. The measured phase noises at 1 MHz offset from carrier frequencies of 3.1, 4.5, 5.1, and 6.6 GHz are —122.5, —113.3, —110.1, and —116.8 dBc/Hz, respectively. The chip area, including the pads, is 1.2 × 0.62 mm2 and the supply voltage is 1.8 V.

Key words: CMOS, phase noise, voltage-controlled oscillator (VCO), wideband, transformer



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]

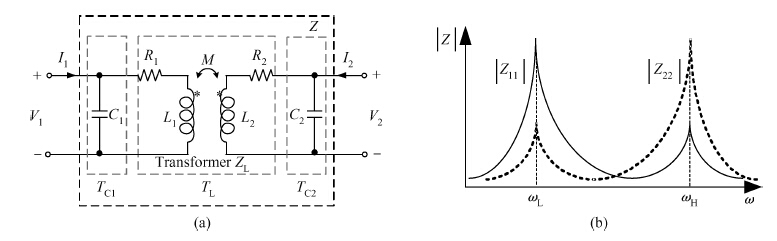

Fig. 1.  Transformer-based LC tank. (a) Equivalent circuit. (b) The amplitude-frequency response of the tank.

DownLoad: Full-Size Img PowerPoint

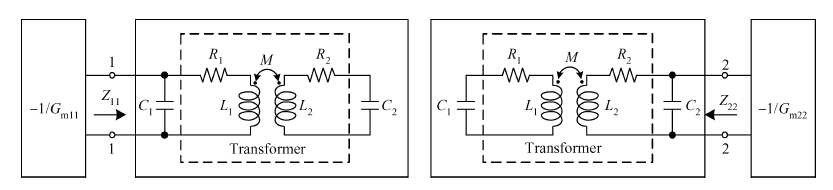

Fig. 2.  Model of one-port dual-band oscillator.

DownLoad: Full-Size Img PowerPoint

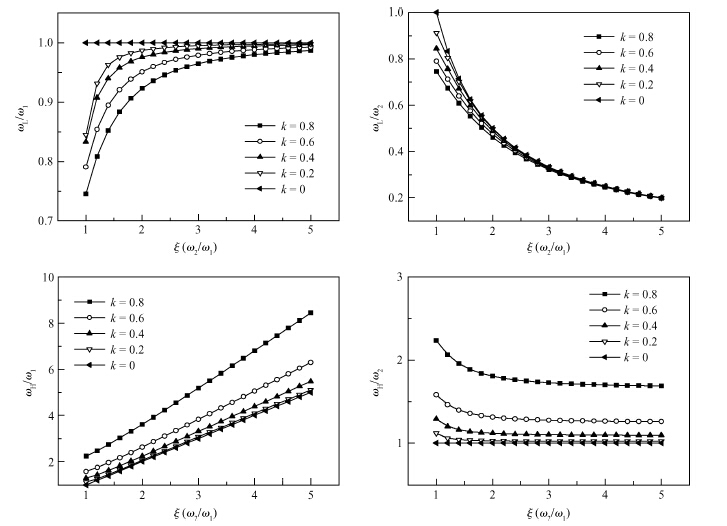

Fig. 3.  The dependence of $\omega_{\rm L}$/$\omega_{1}$, $\omega_{\rm L}$/$\omega_{2}$, $\omega_{\rm H}$/$\omega_{1}$ and $\omega_{\rm H}$/$\omega_{2}$ on the coupling factor ($k)$ and the ratio of the resonance frequencies of the uncoupled tank($\xi$ $=$ $\omega_{2}$/$\omega$

DownLoad: Full-Size Img PowerPoint

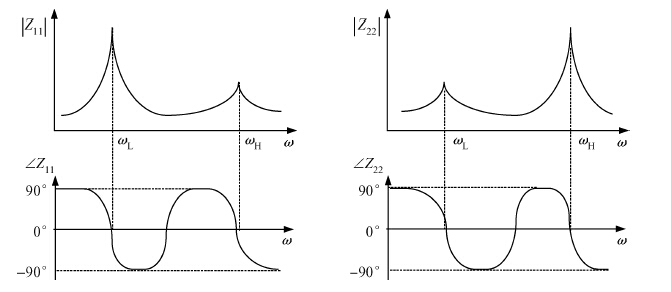

Fig. 4.  The magnitude and phase responses of $Z_{11}$ and $Z_{22}$.

DownLoad: Full-Size Img PowerPoint

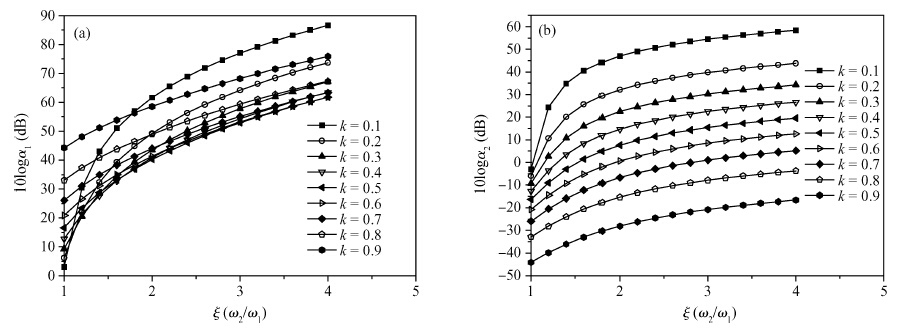

Fig. 5.  (a) The transconductance ratio $\alpha_{1}$ versus $\xi$ and $k$. (b) The transconductance ratio $\alpha_{2}$ versus $\xi$ and $k$.

DownLoad: Full-Size Img PowerPoint

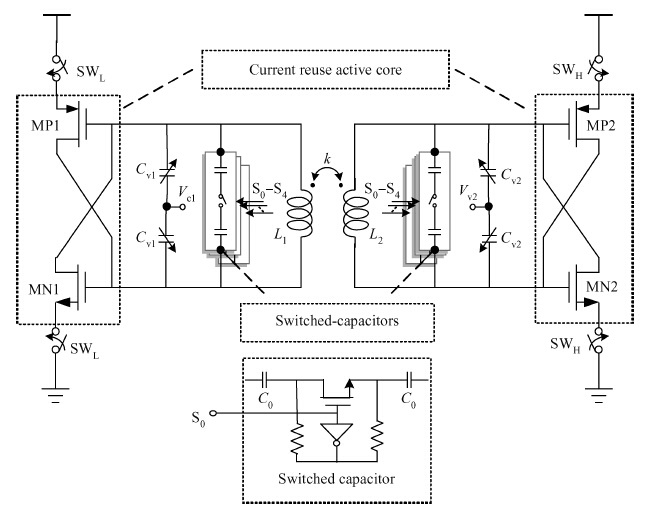

Fig. 6.  Schematic of the one-port dual-band wide tuning range VCO.

DownLoad: Full-Size Img PowerPoint
Fig. 7.  Layout of the transformer.

DownLoad: Full-Size Img PowerPoint

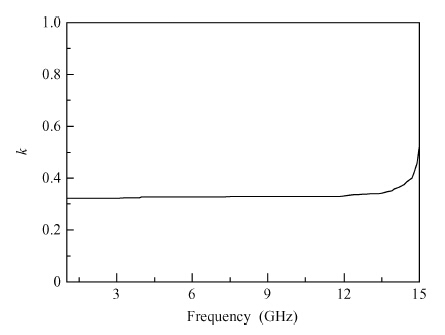

Fig. 8.  The coupling coefficient $k$ of the transformer.

DownLoad: Full-Size Img PowerPoint

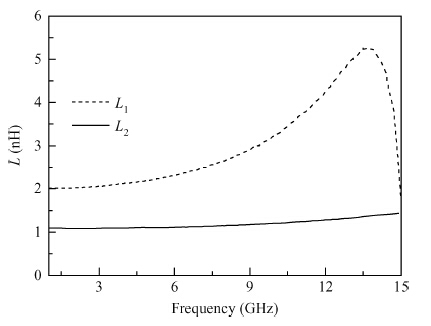

Fig. 9.  The inductance of $L_{1}$ and $L_{2}$ of the transformer.

DownLoad: Full-Size Img PowerPoint

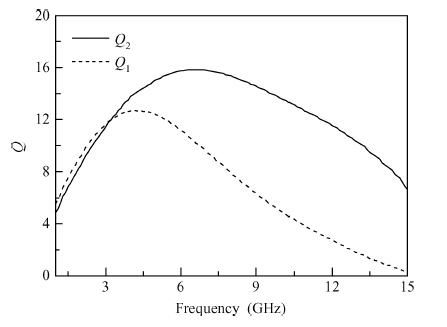

Fig. 10.  The quality factor $Q_{1}$ and $Q_{2}$ of the transformer.

DownLoad: Full-Size Img PowerPoint

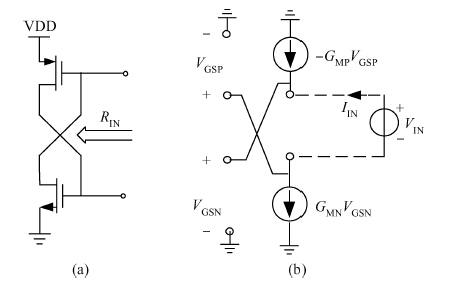

Fig. 11.  (a) The proposed cross-connected pair. (b) Small-signal equivalent circuits of (a).

DownLoad: Full-Size Img PowerPoint

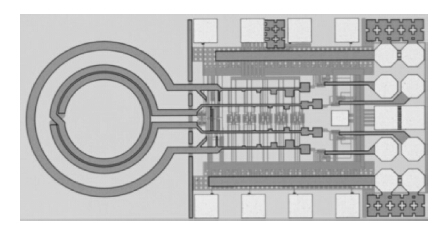

Fig. 12.  The micrograph of the VCO.

DownLoad: Full-Size Img PowerPoint

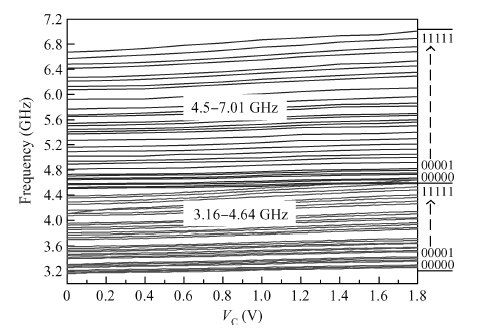

Fig. 13.  The frequency spectrum of the VCO.

DownLoad: Full-Size Img PowerPoint

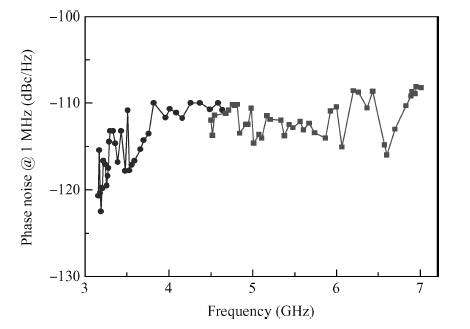

Fig. 14.  Phase noise of the VCO.

DownLoad: Full-Size Img PowerPoint

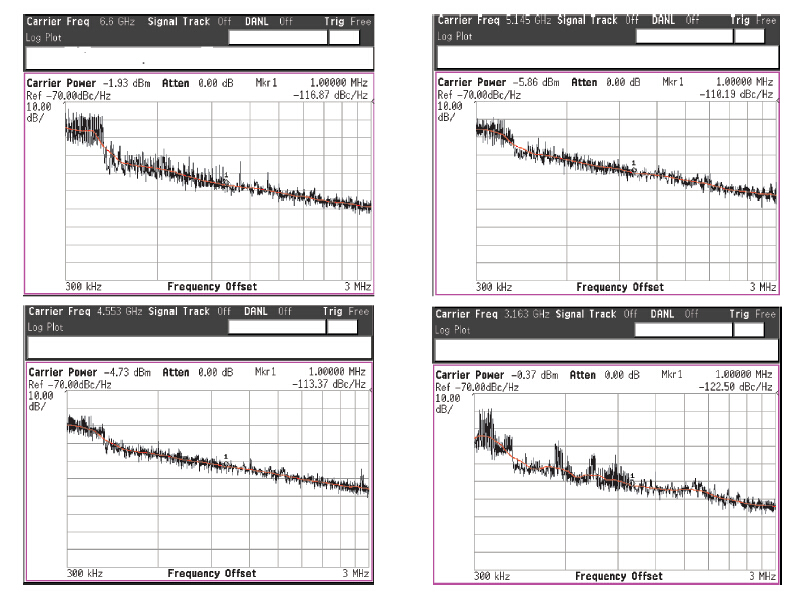

Fig. 15.  Phase noise measurements at 3.16, 4.55, 5.14, and 6.6 GHz.

DownLoad: Full-Size Img PowerPoint
DownLoad: CSV
DownLoad: CSV

Table 1.   Comparison of the performances for the currently published VCOs.

DownLoad: CSV
