High quality non-rectifying contact of ITO with both Ni and n-type GaAs

Qingsong Wang1, 2, Masao Ikeda1, Ming Tan1, Pan Dai1, 3, Yuanyuan Wu1, Shulong Lu1, and Hui Yang1

+ Author Affiliations

 Corresponding author: Shulong Lu, E-mail: sllu2008@sinano.ac.cn

DOI: 10.1088/1674-4926/36/5/053003

PDF

Abstract: We report the specific contact resistance for ITO with both metal and a semiconductor. Good quality ITO was deposited by electron beam evaporation with the resistivity of 2.32 × 10-4 Ω ·cm and an averaged transmittance of 92.8% in the visible light region. The circular transmission line model (c-TLM) method was used to evaluate and compare the properties of the ITO/metal and ITO/semiconductor ohmic contacts. The lowest specific contact resistance of the ITO/Ni is 2.81 × 10-6 Ω ·cm2, while that of ITO/n-GaAs is 7 × 10-5 Ω ·cm2. This is the best ohmic contact between ITO and n-GaAs ever reported. These results suggest that good quality ITO has strong potential to be used to realize highly efficient solar cells.

Key words: ITO, electron beam evaporation, ITO/n-GaAs, specific contact resistance



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]

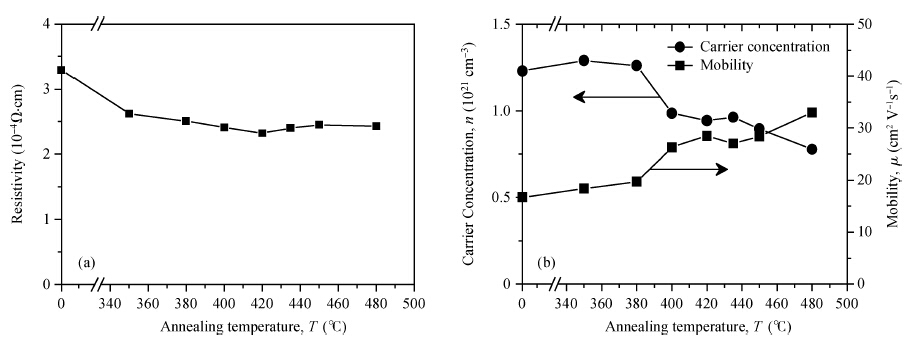

Fig. 1.  Graph of (a) resistivity, (b) carrier concentration and Hall mobility versus annealing (in N$_{2}$ atmosphere) temperature for ITO films grown by electron beam evaporation.

DownLoad: Full-Size Img PowerPoint

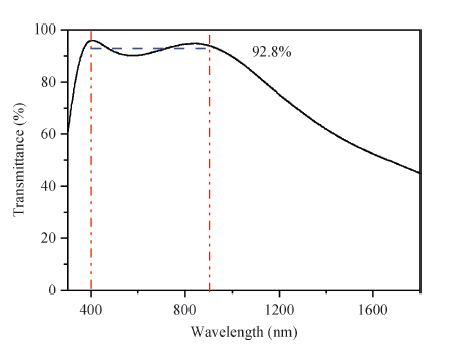

Fig. 2.  Graph of measured transmittance versus wavelength for ITO film grown by electron beam evaporation. Film thickness was approximately 100 nm.

DownLoad: Full-Size Img PowerPoint

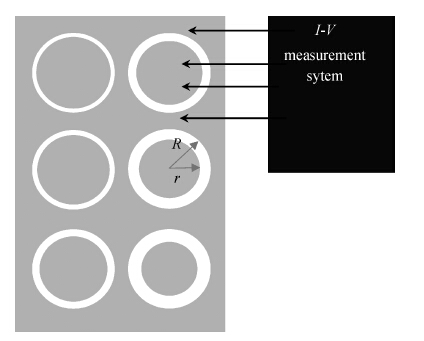

Fig. 3.  Circular test patterns for ohmic contact characteristic, the outer radius $R =$ 110 nm, and the inner radius $r =$ 105, 100, 95, 90, 85, 80 $\mu $m, and the schematic of $I$-$V$ measurement by using high precision probes.

DownLoad: Full-Size Img PowerPoint

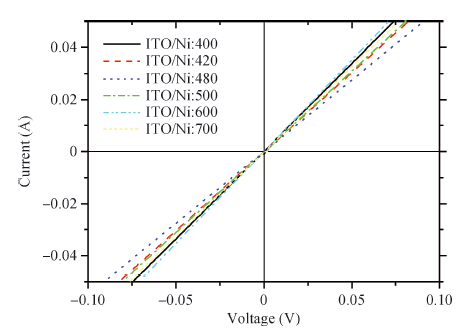

Fig. 4.  (Color online) Current-voltage characteristics of ITO/Ni structure annealing at 400-700 C.

DownLoad: Full-Size Img PowerPoint

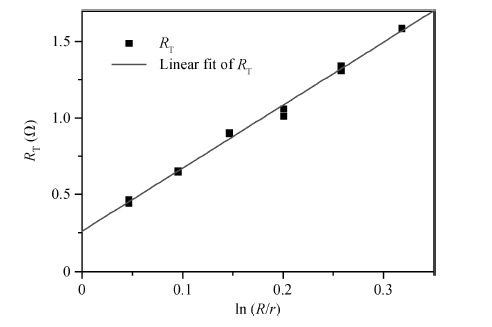

Fig. 5.  The terminal resistance regarded as a function of ln($R/r$) to measure the contact resistivity $\rho_{\rm c}$.

DownLoad: Full-Size Img PowerPoint

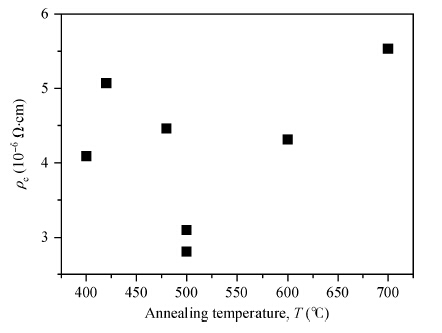

Fig. 6.  ITO/Ni contact resistivity at various annealing (in N$_{2}$ atmosphere) temperatures.

DownLoad: Full-Size Img PowerPoint

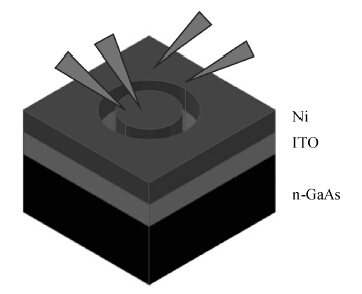

Fig. 7.  The structure and the schematic of the touch between probes and Ni/ITO/n-GaAs.

DownLoad: Full-Size Img PowerPoint

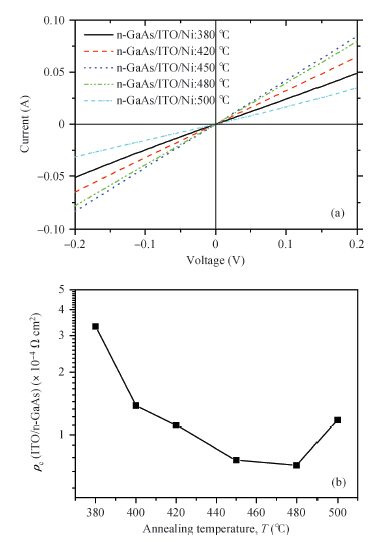

Fig. 8.  (Color online) (a) Current-voltage characteristics of Ni/ITO/n-GaAs structure. (b) The contact resistivity between ITO and GaAs as a function of the annealing (in N$_{2}$ atmosphere) temperature.
