J. Semicond. > 2015, Volume 36 > Issue 5 > 054001
|

SEMICONDUCTOR DEVICES

Deposition and doping of CdS/CdTe thin film solar cells

Nima E. Gorji

+ Author Affiliations

 Corresponding author: Nima E. Gorji, E-mail: nima.eshaghigorji2@unibo.it

DOI: 10.1088/1674-4926/36/5/054001

PDF

Abstract: 1% oxygen is incorporated into both CdS and CdTe layers through RF sputtering of CdS/CdTe thin film solar cells. The optical and electrical parameters of the oxygenated and O2-free devices are compared after CdCl2 treatment and annealing in ambient Ar and/or air. The effects of ambient annealing on the electrical and optical properties of the films are investigated using current-voltage characterization, field emission scanning electron microscopy, X-ray diffraction, and optical transmission spectroscopy. The 1% oxygen content can slightly increase the grain size while the crystallinity does not change. Annealing in ambient Ar can increase the transmission rate of the oxygenated devices.

Key words: CdTe thin film, oxygen incorporation, SEM, X-ray diffraction



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]

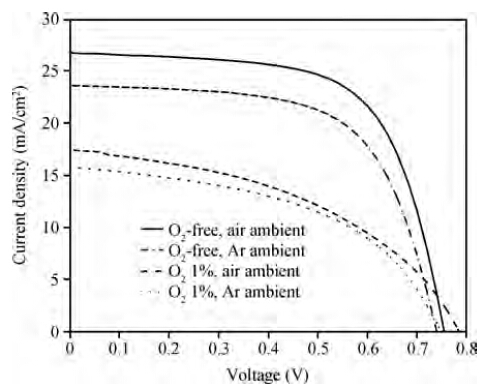

Fig. 1.  The current-voltage characteristics of O$_2$-free and 1% oxygenated CdS/CdTe thin film devices. The electrical parameters are given in Table 1.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  The SEM images of oxygenated and O$_2$-free films after activation by CdCl$_2$ and annealing in air or Ar ambient. The effect of activation process on the grain sizes is clear. The images were taken at 100 nm.

DownLoad: Full-Size Img PowerPoint

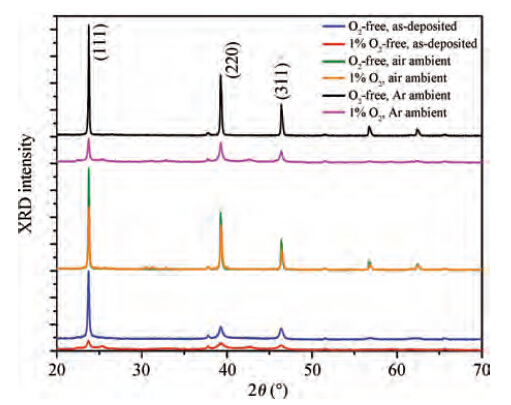

Fig. 3.  The XRD patterns of the O$_2$-free and 1% O$_2$ incorporated CdS/CdTe thin films: as-deposited and treated films in air and Ar ambient. All the films show zincblende phase with (1 1 1) plane with less oriented structure for the oxygenated films.

DownLoad: Full-Size Img PowerPoint

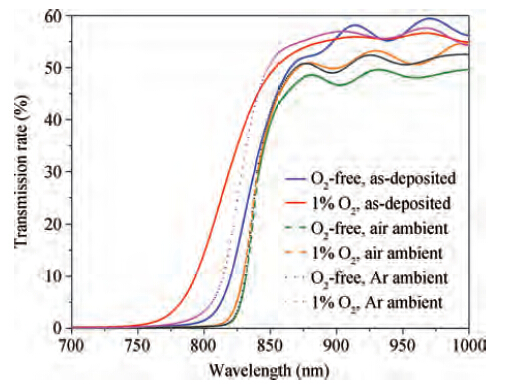

Fig. 4.  Color online) The transmission spectra of O$_2$-free and 1% O$_2$ CdS/CdTe films: as-deposited, annealed in air and Ar ambient. All samples show very good absorption by around 820 nm. As-deposited sample has a red-shift to lower wavelengths. The treatment reduced the band gap of the device. Oxygenation increases the band gap.

DownLoad: Full-Size Img PowerPoint

Table 1.   The best paramters of the fabricated CdS/CdTe thin film solar cells.

DownLoad: CSV
DownLoad: CSV
DownLoad: CSV
