J. Semicond. > 2015, Volume 36 > Issue 5 > 054007
|

SEMICONDUCTOR DEVICES

High power laser diodes of 2 μm AlGaAsSb/InGaSb type I quantum-wells

Yongping Liao1, 2, Yu Zhang1, 2, Junliang Xing1, 2, Sihang Wei1, 2, Hongyue Hao1, 2, Guowei Wang1, 2, Yingqiang Xu1, 2 and Zhichuan Niu1, 2,

+ Author Affiliations

 Corresponding author: Zhichuan Niu, E-mail: zcniu@semi.ac.cn

DOI: 10.1088/1674-4926/36/5/054007

PDF

Abstract: 2 μ m AlGaAsSb/InGaSb type-I quantum-well high-power laser diodes (LDs) are grown using molecular beam epitaxy. Stripe-type waveguide single LD (single emitter) and array LD (four emitters) devices without facet coatings are fabricated. For the single LDs (single emitter) device, the maximum output power under continuous wave (CW) operation is 0.5 W at 10 ℃ with a threshold current density of 150 A/cm2 and a slope efficiency of 0.17 W/A, the output powers under the pulse mode in the 5% duty cycles are much higher, up to 0.98 W. For the array LD devices, the maximum output powers are 1.02 W under the CW mode and 3.03 W under the pulse mode at room temperature.

Key words: laser diodes, arrays, emitters, quantum wells



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]

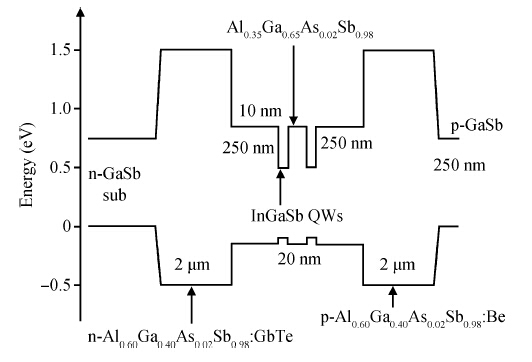

Fig. 1.  Layer design of the 2 $\mu $m GaSb based QWs LD.

DownLoad: Full-Size Img PowerPoint

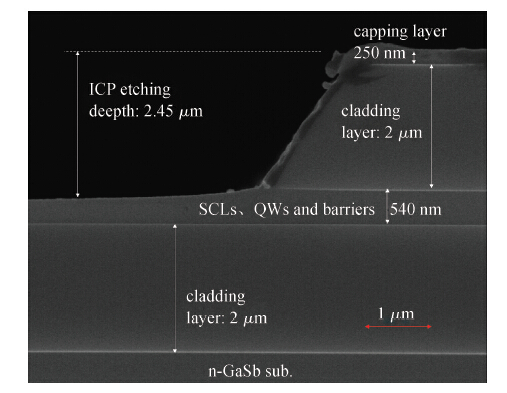

Fig. 2.  An SEM image of the section after ICP etching.

DownLoad: Full-Size Img PowerPoint

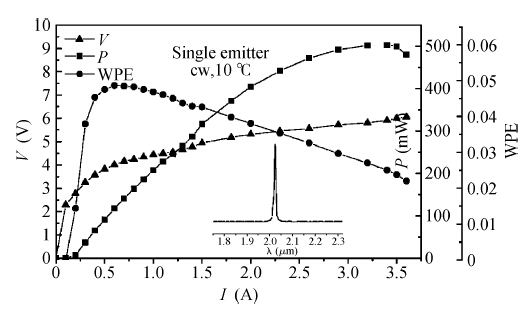

Fig. 3.  The $I$-$V$-$P$ and WPE characteristics of the single emitter in the CW mode at 10 C with facets uncoated.

DownLoad: Full-Size Img PowerPoint

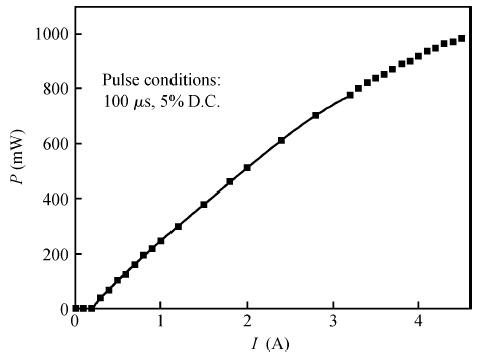

Fig. 4.  The $I$-$P$ characteristics of the single emitter in the pulsed mode.

DownLoad: Full-Size Img PowerPoint

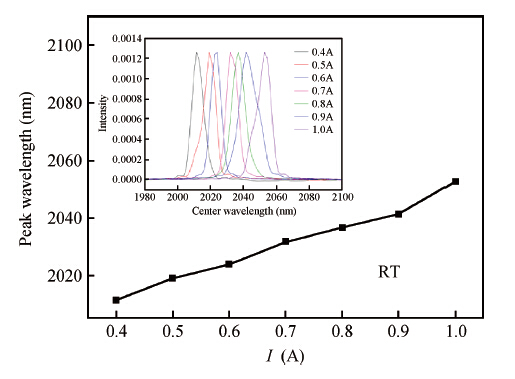

Fig. 5.  (Color online) The emission spectrum when current changed from 0.4 to 1~A at RT.

DownLoad: Full-Size Img PowerPoint
Fig. 6.  The $I$-$V$-$P$ characteristics of linear arrays consisting of (a) two and (b) four broad area emitters, measured in the CW mode at 10 C and RT.

DownLoad: Full-Size Img PowerPoint

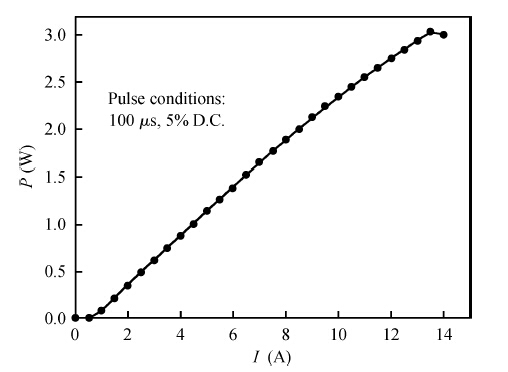

Fig. 7.  The $I$-$P$ characteristics of the four emitter linear arrays measured in the pulsed mode.

DownLoad: Full-Size Img PowerPoint
