Leakage of photocurrent: an alternative view on I-V curves of solar cells

Taofei Zhou, Kanglin Xiong, Min Zhang, Lei Liu, Feifei Tian, Zhiqiang Zhang, Hong Gu, Jun Huang, Jianfeng Wang, Jianrong Dong and Ke Xu

+ Author Affiliations

 Corresponding author: Ke Xu, Email: kxu2006@sinano.ac.cn

DOI: 10.1088/1674-4926/36/6/062002

PDF

Abstract: An alternative way is proposed to interpret I-V characteristics of GaInP single-junction solar cells by position-dependent leakage of photocurrent. With this approach, the I-V curves of solar cells under non-uniform illumination are well analyzed. The effective spreading resistance is also extracted to understand the dynamic behavior of between the open-circuit voltage and short-circuit current points. The conditions under which the one-diode model will fail are addressed in detail. These analyses are also applicable for a characterization of the I-V curves with lateral voltage distribution under uniform illumination.

Key words: GaInP single-junction solar cells, I-V characteristics, open-circuit voltage



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]

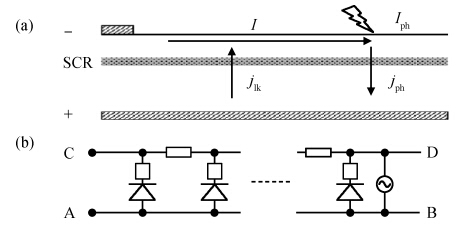

Fig. 1.  (a) Schematic diagram of a solar cell. (b) Equivalent circuit model of the device.

DownLoad: Full-Size Img PowerPoint

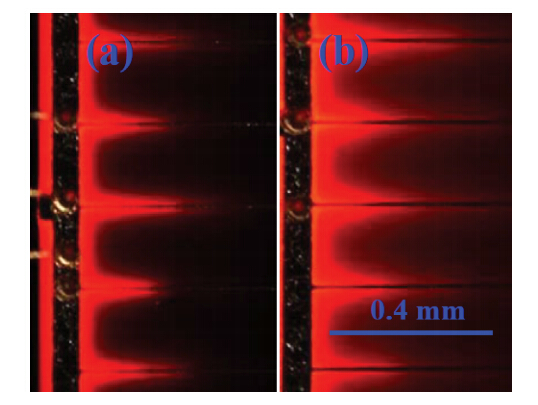

Fig. 2.  Electroluminescence images of samples (a) A and (b) B. The bias current is 50 mA.

DownLoad: Full-Size Img PowerPoint

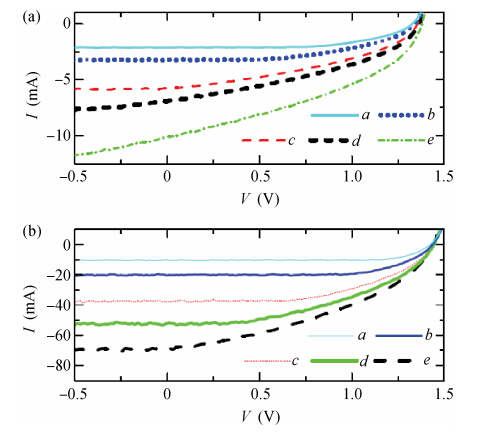

Fig. 3.  Typical $I$-$V$ curves of sample (a) A and (b) B. The illumination distribution remains unchanged while the intensity increases from $a$ to $e$.

DownLoad: Full-Size Img PowerPoint

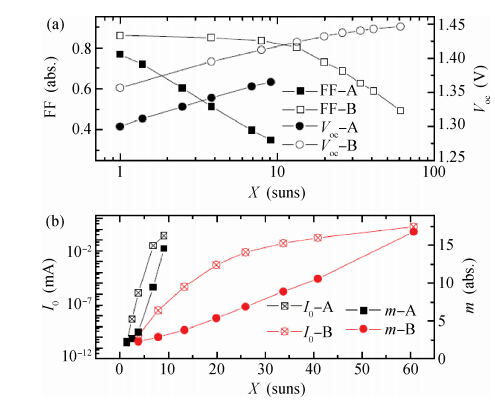

Fig. 4.  Extracted parameters for one-diode model from $I$-$V$ curves. (a) Fill factor and open circuit voltage. (b) Reverse-saturate current and ideal factor.

DownLoad: Full-Size Img PowerPoint

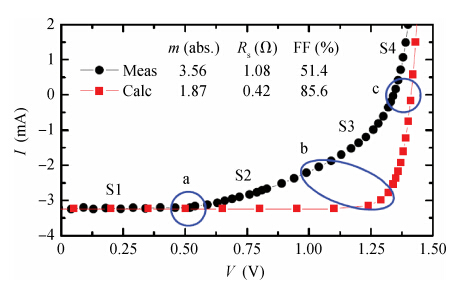

Fig. 5.  Measured $I$-$V$ characteristics of sample A and one calculated using one-diode model with parameters extracted from dark $I$-$V$. Each curve is divided into four sections (S1 to S4) by three transit regions (a,b and c).

DownLoad: Full-Size Img PowerPoint

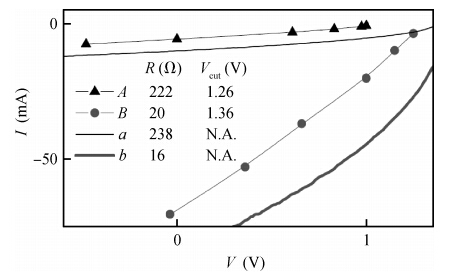

Fig. 6.  Short-circuit current versus the critical terminal voltage (see region a in Figure 5) and $I$-$V$ for samples A ($A,a$) and B ($B,b$).

DownLoad: Full-Size Img PowerPoint

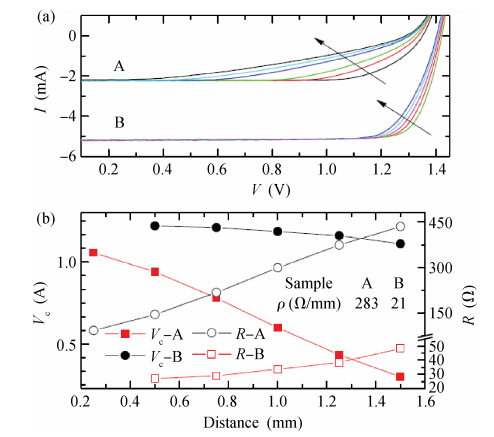

Fig. 7.  (a) Illumination-position-dependent $I$-$V$ curves of samples A and B. The arrows indicate the distances between the light strip and the bus electrode increase for each $I$-$V$ curve. (b) Critical terminal voltage and effective spreading resistance extracted from the $I$-$V$ curves in (a). The resistance per length ($\rho$) is obtained by a linear fitting to the effective spreading resistance.

DownLoad: Full-Size Img PowerPoint
