Optimized geometry and electronic structure of three-dimensional β-graphyne

Yang Pei1, Haibin Wu1 and Jingmin Liu2

+ Author Affiliations
DOI: 10.1088/1674-4926/36/7/072002

PDF

Abstract: β-graphyne, a carbon allotrope, is a gapless semiconductor with hexagonal lattice symmetry, just like graphene. We calculated the optimized structure and electronic structures of some possible three-dimensional β-graphyne stacking arrangements by means of the first-principles frozen-core projector augmented-wave method implemented in the Vienna ab initio simulation package. The optimized lattice constant a of the three-dimensional β-graphyne turns out to be 9.46 Å, which is slightly smaller than its two-dimensional counterpart. The binding energy is about 90% of that of graphite, which suggests that three-dimensional β-graphyne will be stable when it is synthesized. The band structure is calculated via the hybrid functional. We found that the most stable three-dimensional stacking arrangement is an indirect band gap semiconductor with an energy gap of 0.1 eV.

Key words: β-graphyne, optimized geometry, electronic structure, first principles calculations



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[41]
[42]
Fig. 1.  (a) The structure of 2D $\beta $-graphyne. The dashed parallelogram represents a unit cell with the lattice constant $a$. The planar projection of the AAA stacking arrangement structure $\beta_{0}$ is the same. (b) Brillouin zone of all crystal structures.

DownLoad: Full-Size Img PowerPoint

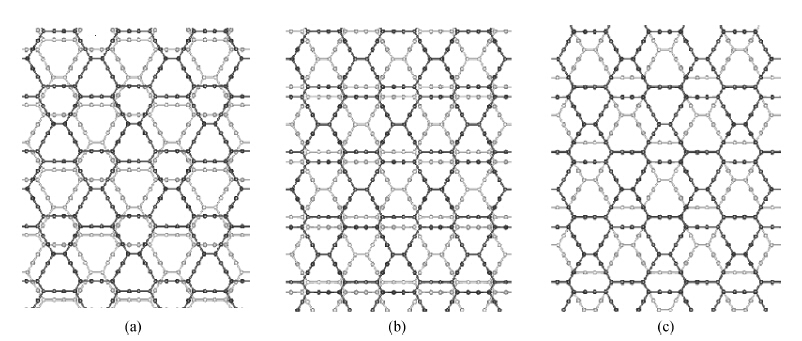

Fig. 2.  Three different ABA stacking arrangement structures (a) $\beta_{1}$, (b) $\beta_{2}$, and (c) $\beta_{3}$. Black: $A$ layer; gray: $B$ layer.

DownLoad: Full-Size Img PowerPoint

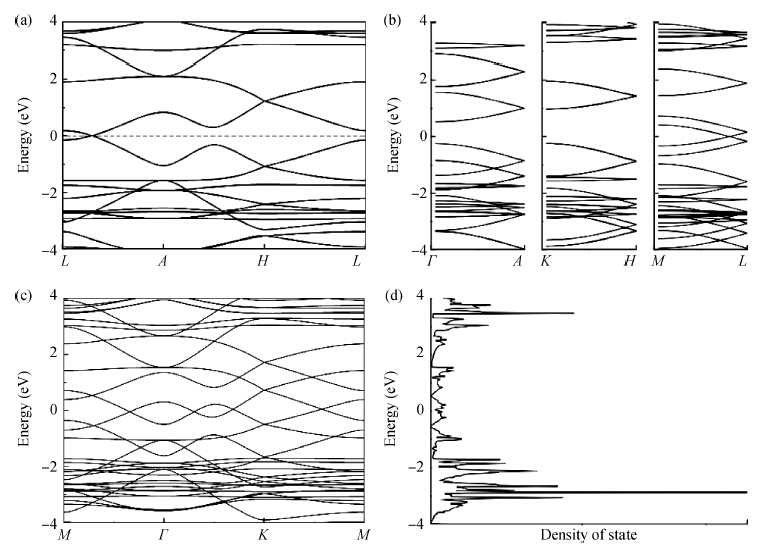

Fig. 3.  (a) The electronic structure on the $LAHL$ plane. (b) The electronic structure along the $\Gamma A$, $KH$, $ML$ line. (c) The electronic structure on the $M \Gamma KM$ plane. (d) Densities of states for 3D layer stacking arrangement structure $\beta_0$. Structure $\beta_0$ exhibits metallic and the density of states at $E_{\rm F}$ are not zero.

DownLoad: Full-Size Img PowerPoint

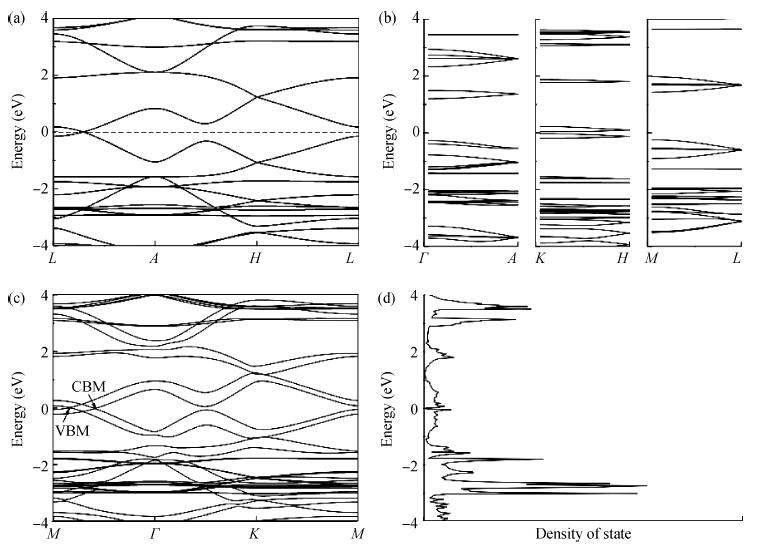

Fig. 4.  (a) The electronic structure on the $LAHL$ plane. (b) The electronic structure along the $\Gamma A$, $KH$, $ML$ line. (c) The electronic structure on the $M \Gamma KM$ plane. (d) Densities of states for 3D layer stacking arrangement structure $\beta_1$. The top of the valence band is $-0.1$ eV and the bottom of the conduction band is $-0.2$ eV, they are indicated by arrows. Structure $\beta_1$ exhibits metallic and the density of states at $E_{\rm F}$ are not zero.

DownLoad: Full-Size Img PowerPoint

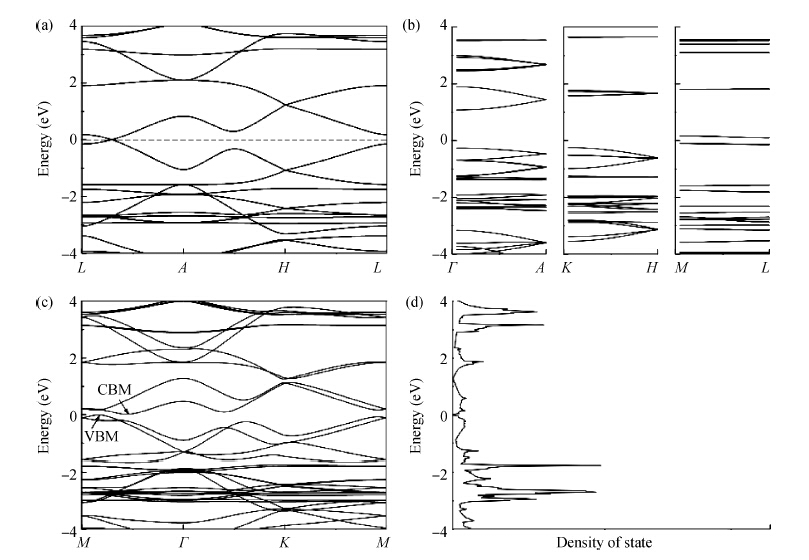

Fig. 5.  (a) The electronic structure on the $LAHL$ plane. (b) The electronic structure along the $\Gamma A$, $KH$, $ML$ line. (c) The electronic structure on the $M \Gamma KM$ plane. (d) Densities of states for 3D layer stacking arrangement structure $\beta_2$. Structure $\beta_2$ exhibits indirect band gap semiconductor. The energy gap of structure $\beta_2$ is 0.1 eV by HSE06.

DownLoad: Full-Size Img PowerPoint

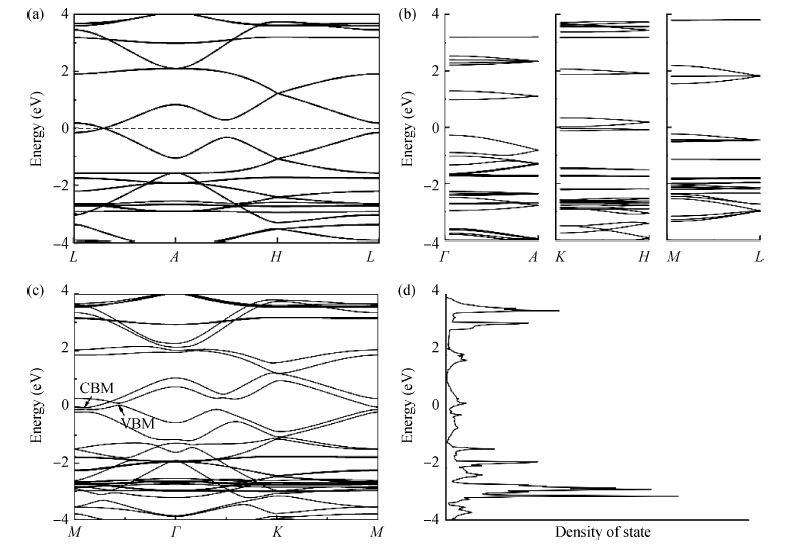

Fig. 6.  (a) The electronic structure on the $LAHL$ plane. (b) The electronic structure along the $\Gamma A$, $KH$, $ML$ line. (c) The electronic structure on the $M \Gamma KM$ plane. (d) Densities of states for 3D layer stacking arrangement structure $\beta_3$.
