A 0.75 dB NF LNA in GaAs pHEMT utilizing gate-drain capacitance and gradual inductor

Shuo Wang, Xinnian Zheng, Hao Yang and Haiying Zhang

+ Author Affiliations

 Corresponding author: Xinnian Zheng, E-mail: zhengxinnian@ime.ac.cn

DOI: 10.1088/1674-4926/36/7/075001

PDF

Abstract: A two-stage monolithic microwave integrated circuit (MMIC) low noise amplifier (LNA) fabricated in 0.5 μm GaAs pHEMT is presented. The Miller effect introduced by the parasitic gate-drain capacitance is utilized to decrease the value of the input inductor. Additionally, the input on-chip inductor is a novel high Q gradual structure. The noise figure is reduced with these two methods. With good input and output matching, the LNA achieves a noise figure of 0.75 dB and a small signal gain of 32.7 dB over 698-806 MHz. The input 1 dB compression point is -21.8 dBm and the input third order interception point is -10 dBm.

Key words: LNA, pHEMT, Miller effect, gradual inductor



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]

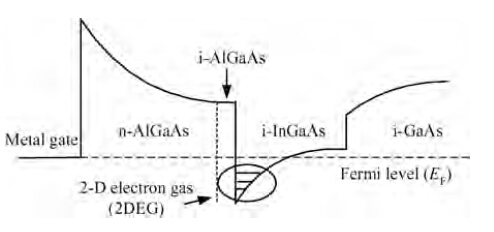

Fig. 1.  The energy band structure of pHEMT.

DownLoad: Full-Size Img PowerPoint

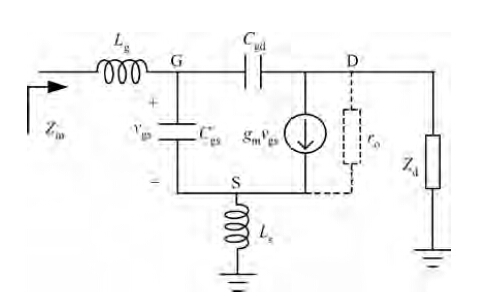

Fig. 2.  The small-signal equivalent circuit of common-source circuit with source degeneration inductor.

DownLoad: Full-Size Img PowerPoint

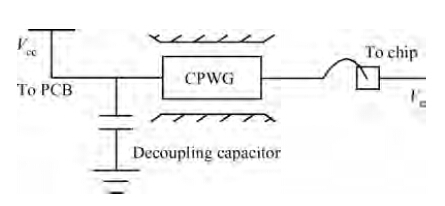

Fig. 3.  The power supply of the test board.

DownLoad: Full-Size Img PowerPoint

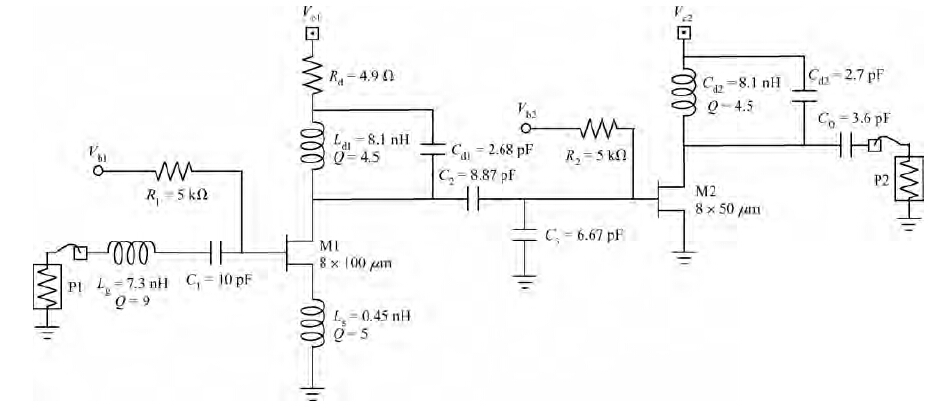

Fig. 4.  The schematic of LNA.

DownLoad: Full-Size Img PowerPoint

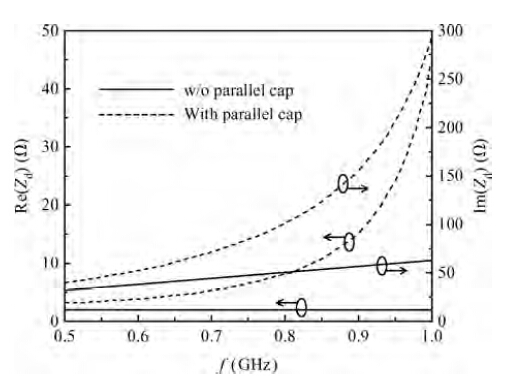

Fig. 5.  The effect of drain parallel capacitor on $Z_{\rm d}$.

DownLoad: Full-Size Img PowerPoint

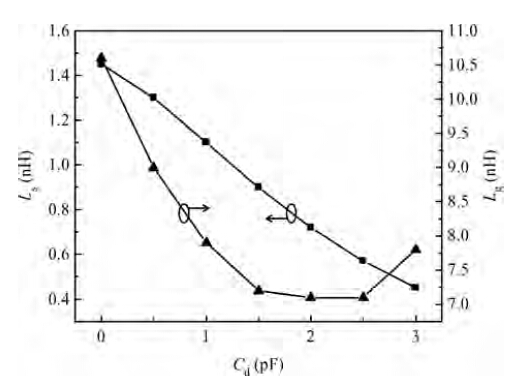

Fig. 6.  The required $L_{\rm g}$ and $L_{\rm s}$ depending on $C_{\rm d}$.

DownLoad: Full-Size Img PowerPoint
Fig. 7.  The noise figure depending on $C_{\rm d}$.

DownLoad: Full-Size Img PowerPoint

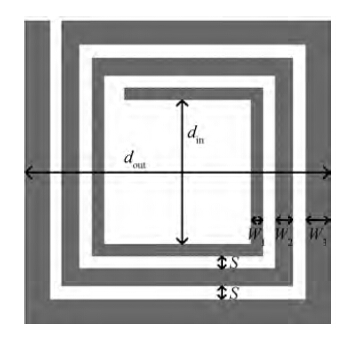

Fig. 8.  The sketch map of the improved inductor.

DownLoad: Full-Size Img PowerPoint

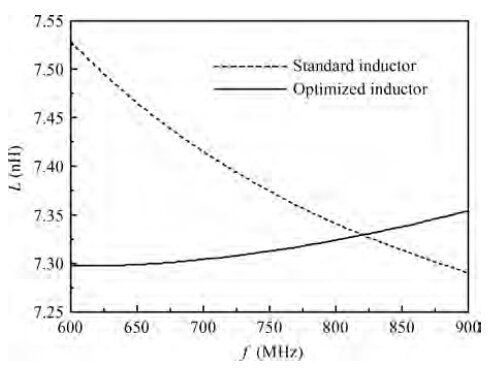

Fig. 9.  The inductance of the standard and optimized inductor.

DownLoad: Full-Size Img PowerPoint
Fig. 10.  The $Q$-factor of the standard and optimized inductor.

DownLoad: Full-Size Img PowerPoint
Fig. 11.  The noise figure of the LNA with the standard and optimized inductor.

DownLoad: Full-Size Img PowerPoint

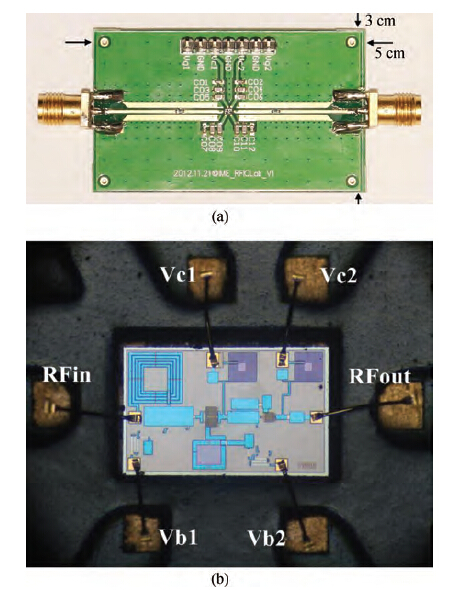

Fig. 12.  (a) The test PCB board. (b) The chip's micro-photograph.

DownLoad: Full-Size Img PowerPoint

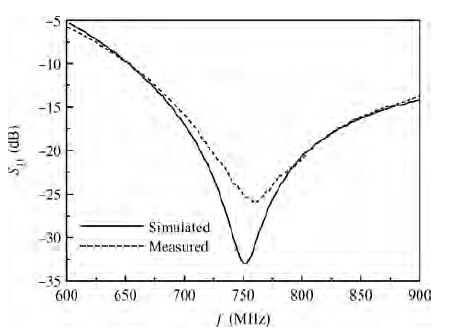

Fig. 13.  Comparison of the measured and simulated input reflection coefficient.

DownLoad: Full-Size Img PowerPoint

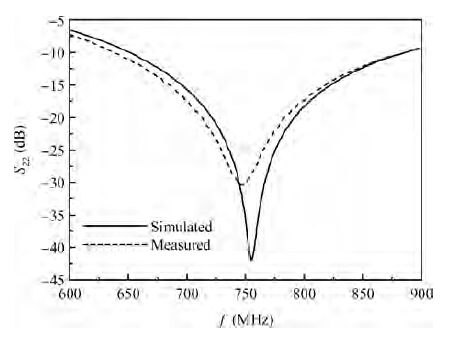

Fig. 14.  Comparison of the measured and simulated output reflection coefficient.

DownLoad: Full-Size Img PowerPoint

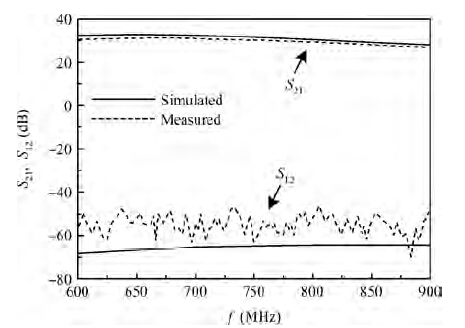

Fig. 15.  Comparison of the measured and simulated small signal gain and reverse isolation.

DownLoad: Full-Size Img PowerPoint

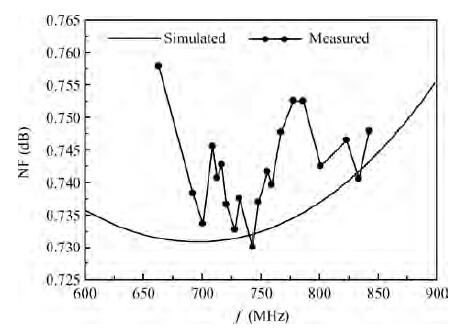

Fig. 16.  Comparison of the measured and simulated noise figure.
