A CMOS analog front-end chip for amperometric electrochemical sensors

Zhichao Li1, Yuntao Liu2, Min Chen1, Jingbo Xiao1 and Jie Chen1,

+ Author Affiliations

 Corresponding author: Jie Chen, E-mail: jchen@ime.ac.cn

DOI: 10.1088/1674-4926/36/7/075004

PDF

Abstract: This paper reports a complimentary metal-oxide-semiconductor (CMOS) analog front-end chip for amperometric electrochemical sensors. The chip includes a digital configuration circuit, which can communicate with an external microcontroller by employing an I2C interface bus, and thus is highly programmable. Digital correlative double samples technique and an incremental sigma-delta analog to digital converter (Σ-Δ ADC) are employed to achieve a new proposed system architecture with double samples. The chip has been fabricated in a standard 0.18-μm CMOS process with high-precision and high-linearity performance occupying an area of 1.3 × 1.9 mm2. Sample solutions with various phosphate concentrations have been detected with a step concentration of 0.01 mg/L.

Key words: CMOS, analog front-end, electrochemical sensors, system-on-chip



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
Fig. 1.  Functional blocks of the proposed chip.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  Schematic and noise dedication in the charge integrator and the PGA.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  Third-order incremental $\Sigma$-$\Delta $ ADC.

DownLoad: Full-Size Img PowerPoint

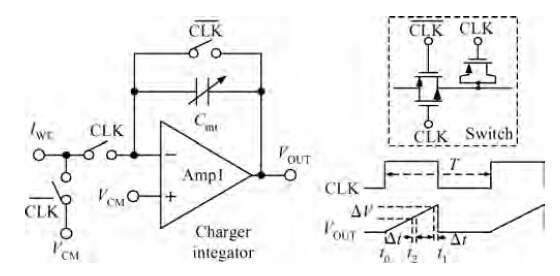

Fig. 4.  Schematic of the charge integrator and proposed sample solution.
