Citation: |
Yidie Ye, Yinshui Xia. A current-mode DAC unit circuit with smooth transition[J]. Journal of Semiconductors, 2015, 36(7): 075006. doi: 10.1088/1674-4926/36/7/075006
****
Y D Ye, Y S Xia. A current-mode DAC unit circuit with smooth transition[J]. J. Semicond., 2015, 36(7): 075006. doi: 10.1088/1674-4926/36/7/075006.
|
A current-mode DAC unit circuit with smooth transition
DOI: 10.1088/1674-4926/36/7/075006
More Information
-
Abstract

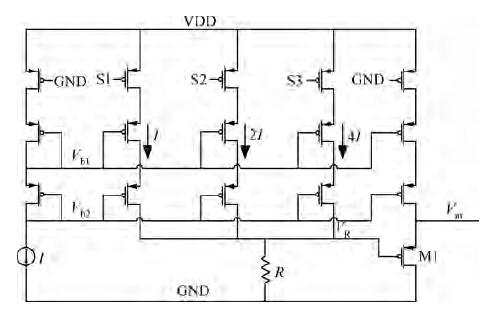

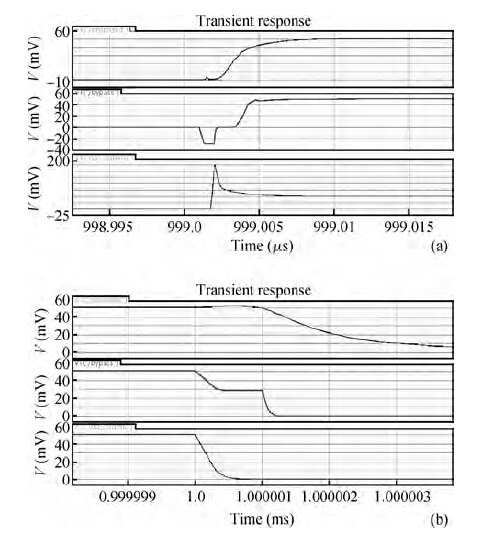

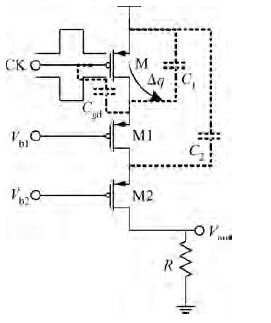

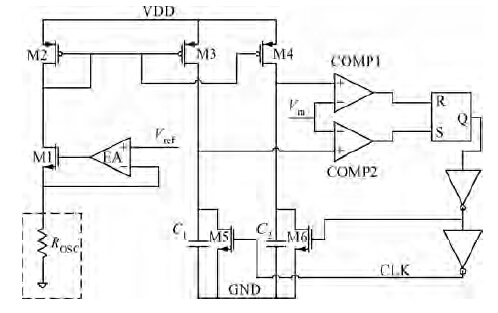

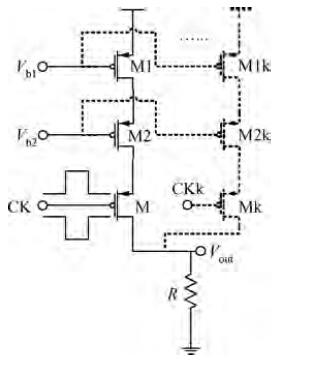

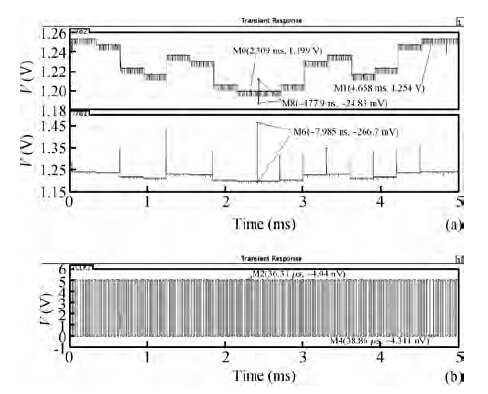

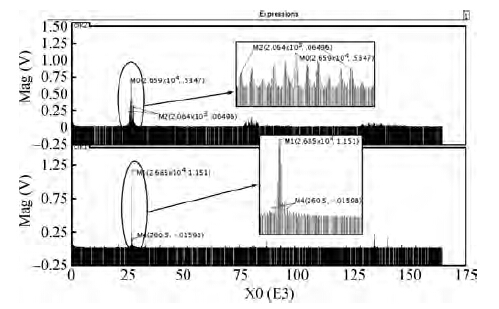

The digital-to-analogue converter (DAC) plays a significant role in modern electronic systems, and current-mode DACs are widely used due to their excellent properties. However, the non-ideal transition at switching instants of the unit circuit will directly affect the performance of the current-mode DAC. The parasitic effects resulting in non-ideal transition are analyzed in this paper. A simple structure unit circuit is proposed to diminish the non-ideal transition. The simulation results show that the parasitic effects are suppressed effectively, and a smoother output transition is achieved. The feasibility of the proposed current-mode DAC unit circuit is verified by the application in a frequency jitter circuit. -
