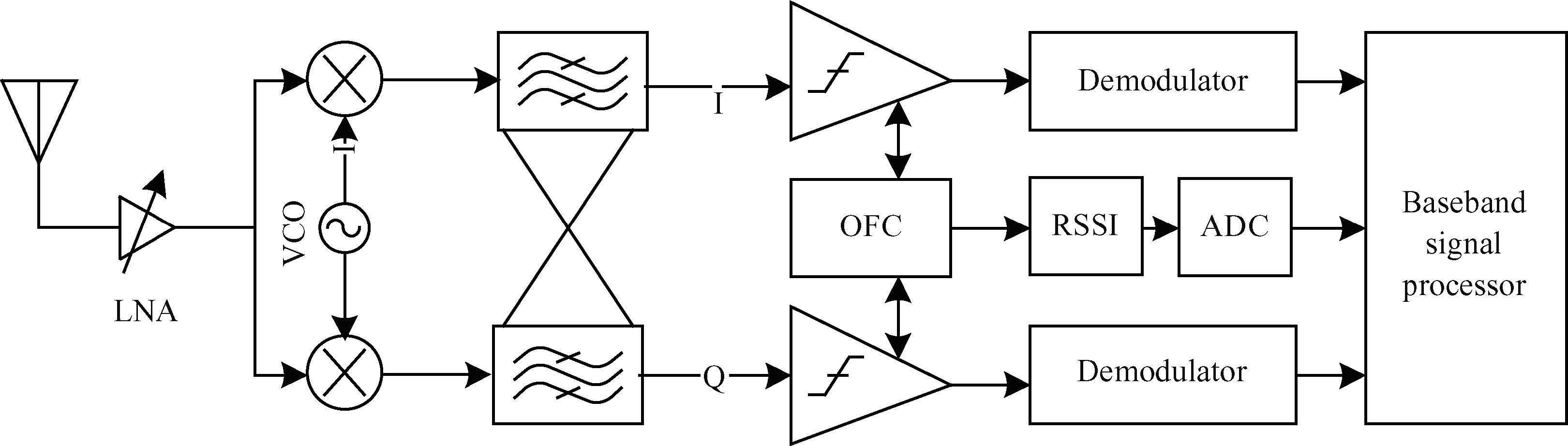

Fig1.
Block diagram of a typical low-IF wireless receiver.
DownLoad:
| Citation: |
Tao Yang, Yu Jiang, Jie Li, Jiangfei Guo, Hua Chen, Jingyu Han, Guiliang Guo, Yuepeng Yan. A CMOS high resolution, process/temperature variation tolerant RSSI for WIA-PA transceiver[J]. Journal of Semiconductors, 2015, 36(8): 085005. doi: 10.1088/1674-4926/36/8/085005
****
T Yang, Y Jiang, J Li, J F Guo, H Chen, J Y Han, G L Guo, Y P Yan. A CMOS high resolution, process/temperature variation tolerant RSSI for WIA-PA transceiver[J]. J. Semicond., 2015, 36(8): 085005. doi: 10.1088/1674-4926/36/8/085005.
|

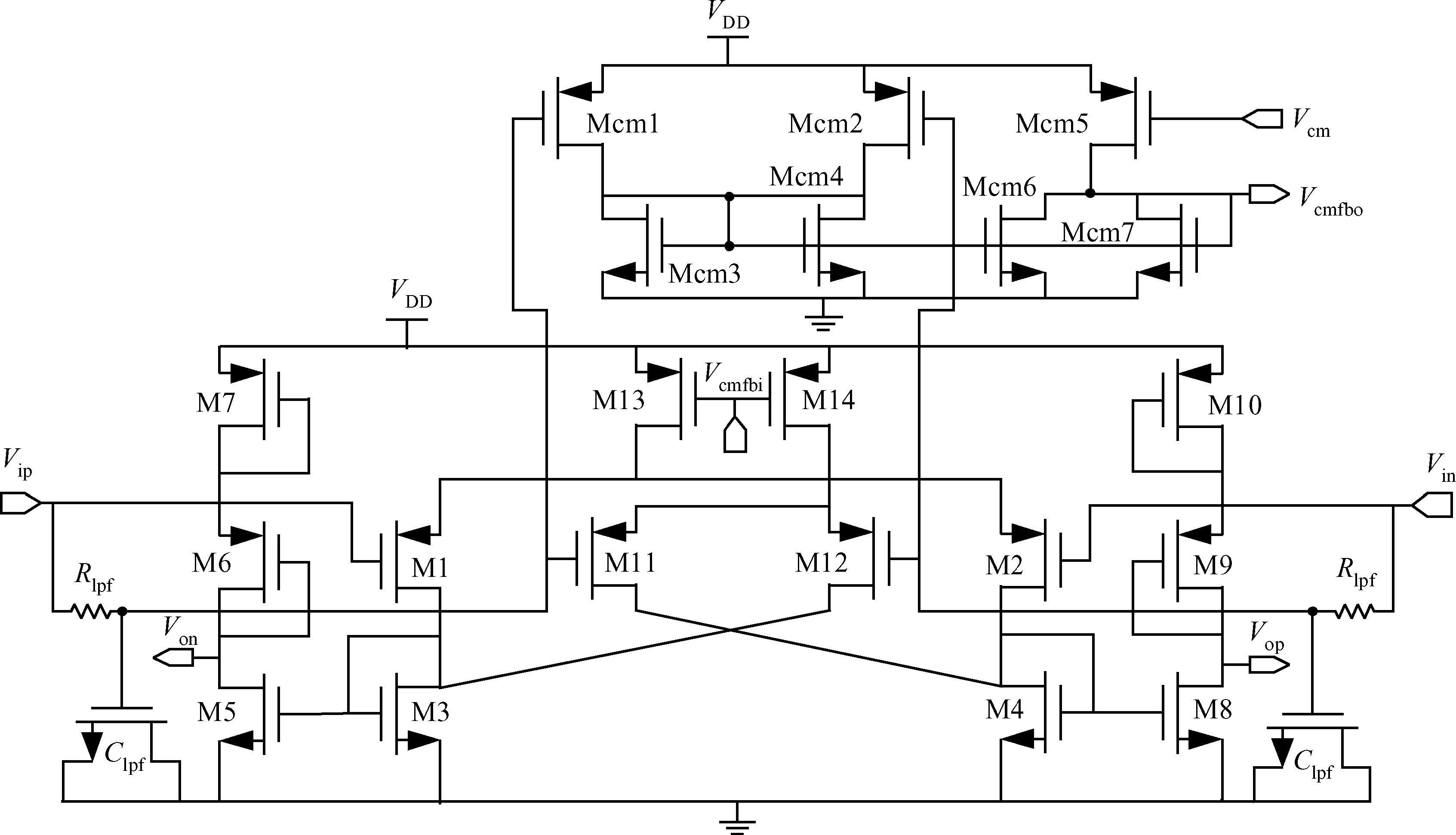

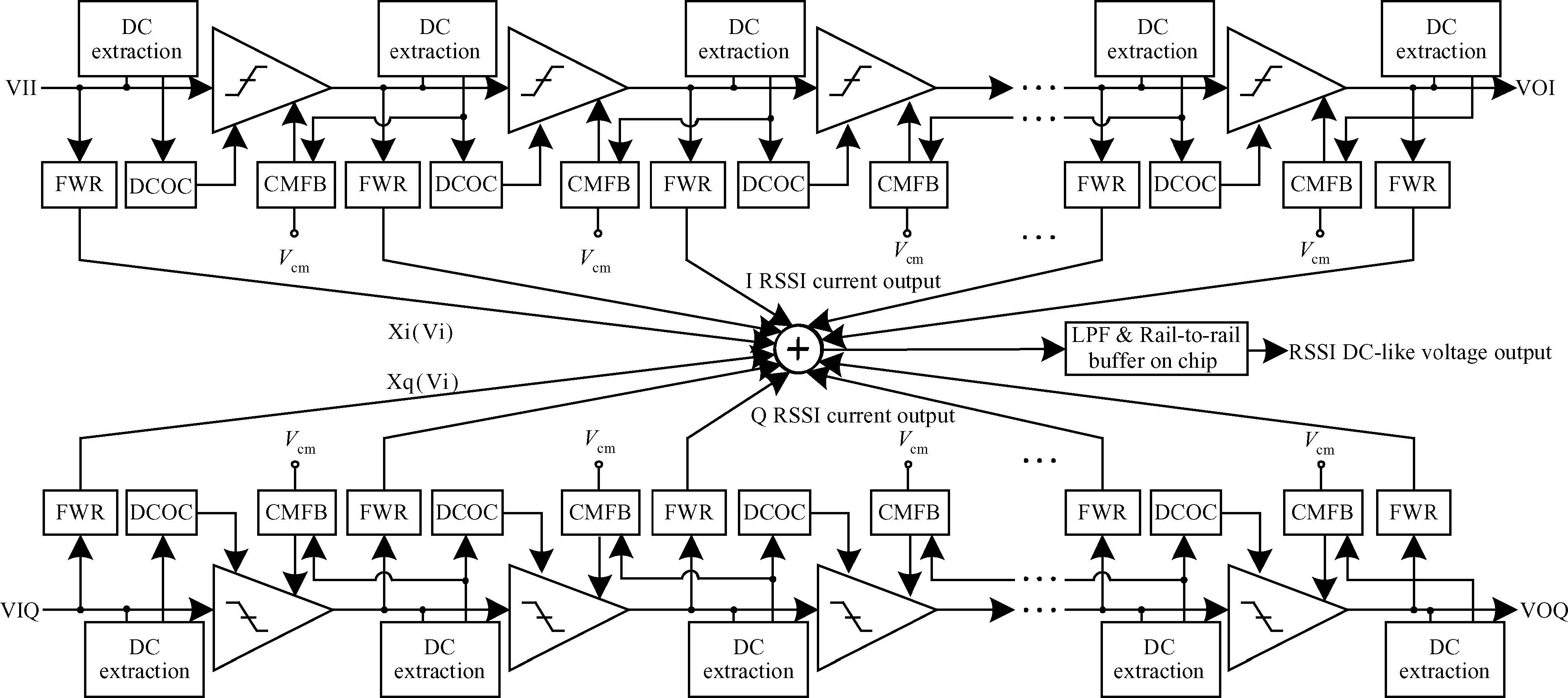

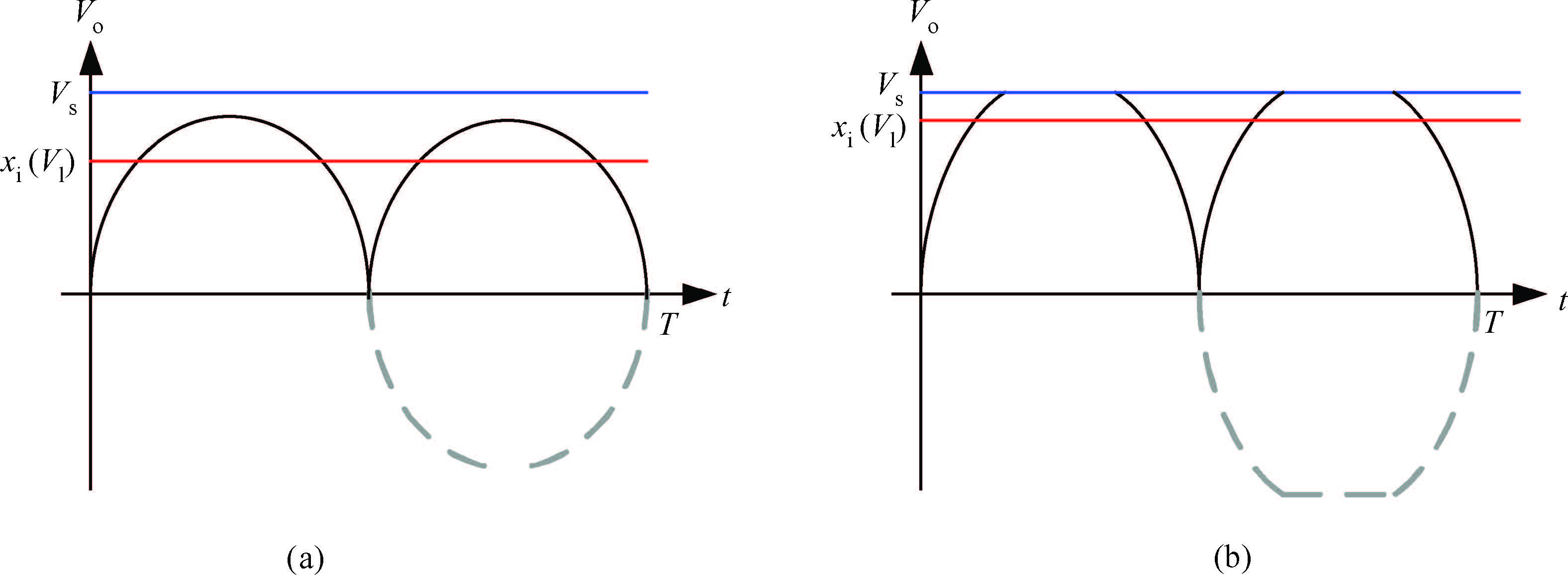

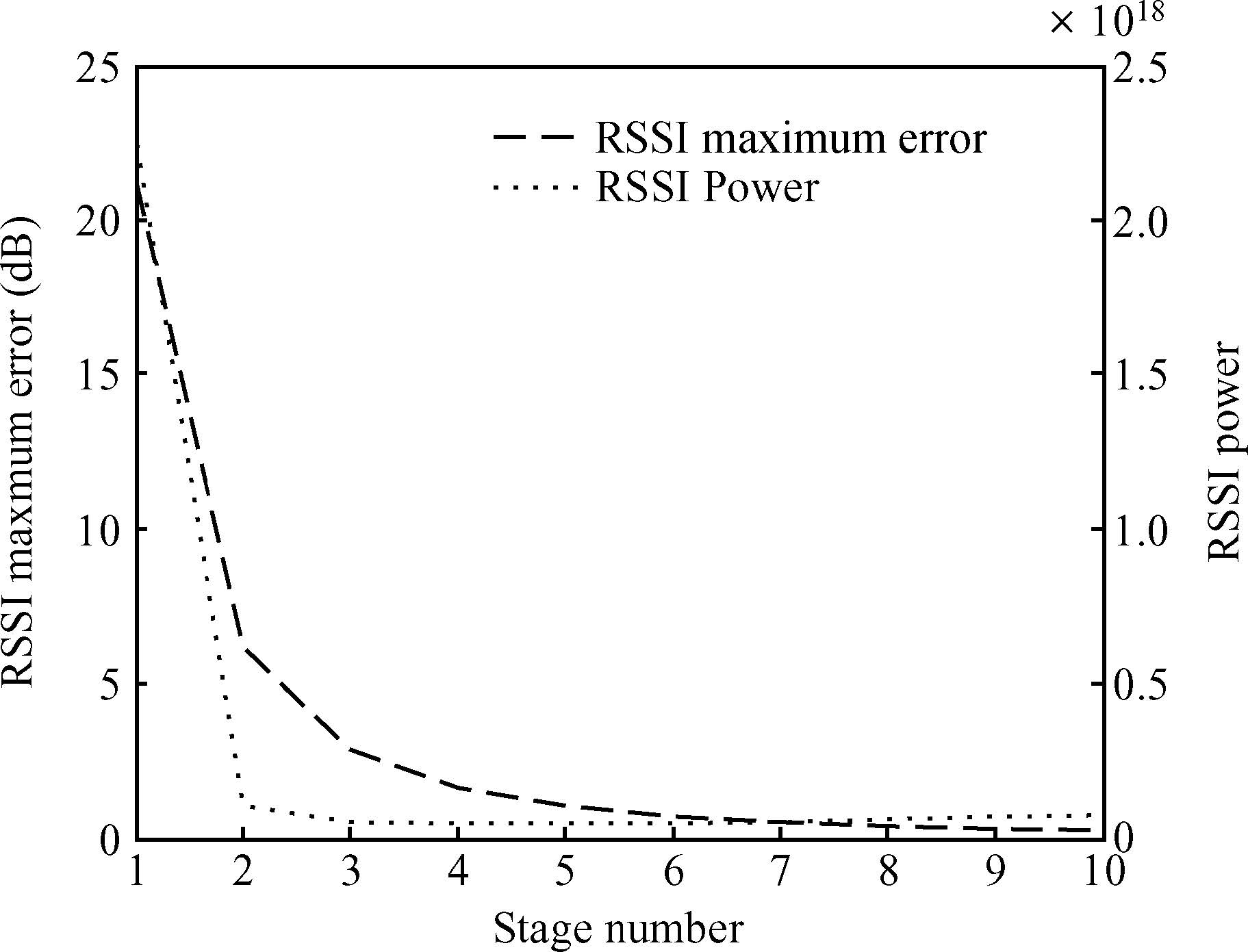

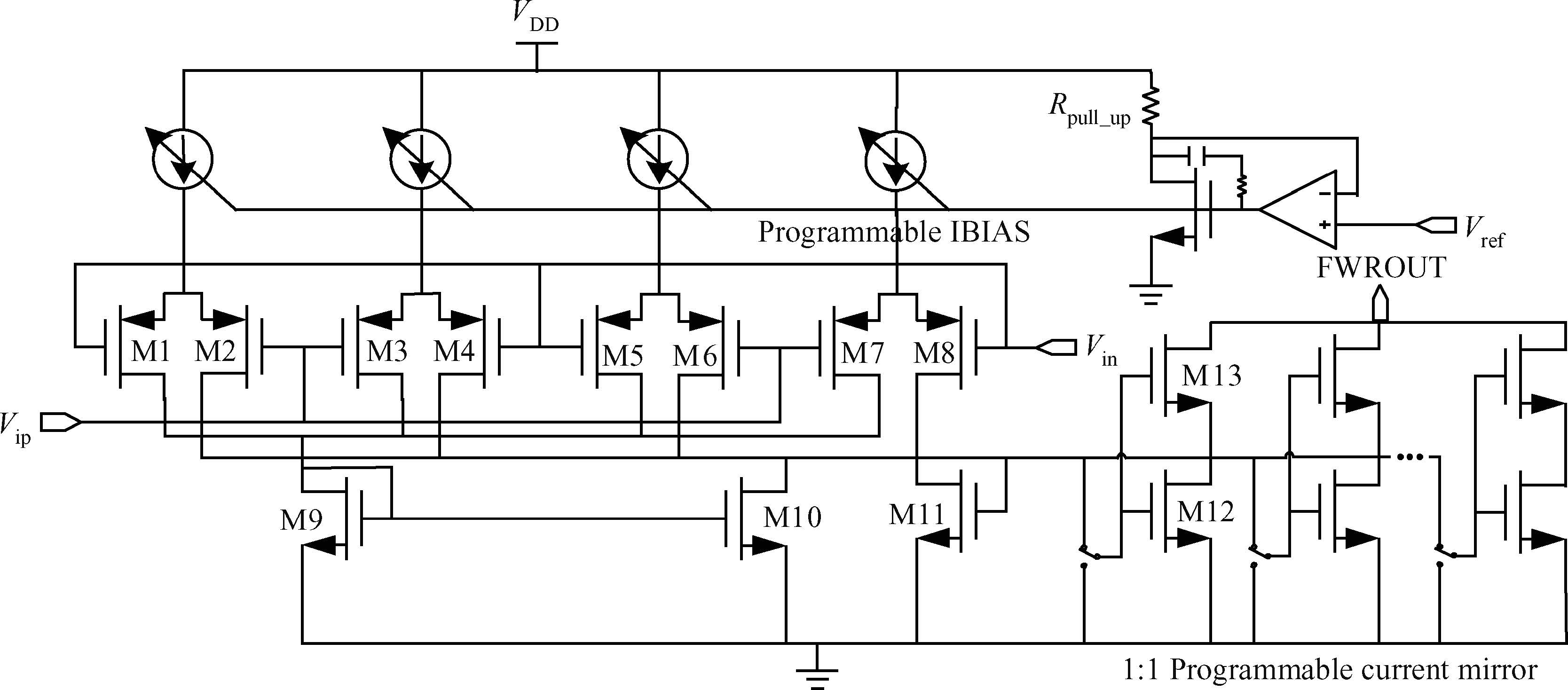

A CMOS high resolution, process/temperature variation tolerant RSSI for WIA-PA transceiver
DOI: 10.1088/1674-4926/36/8/085005
More Information
-
Abstract

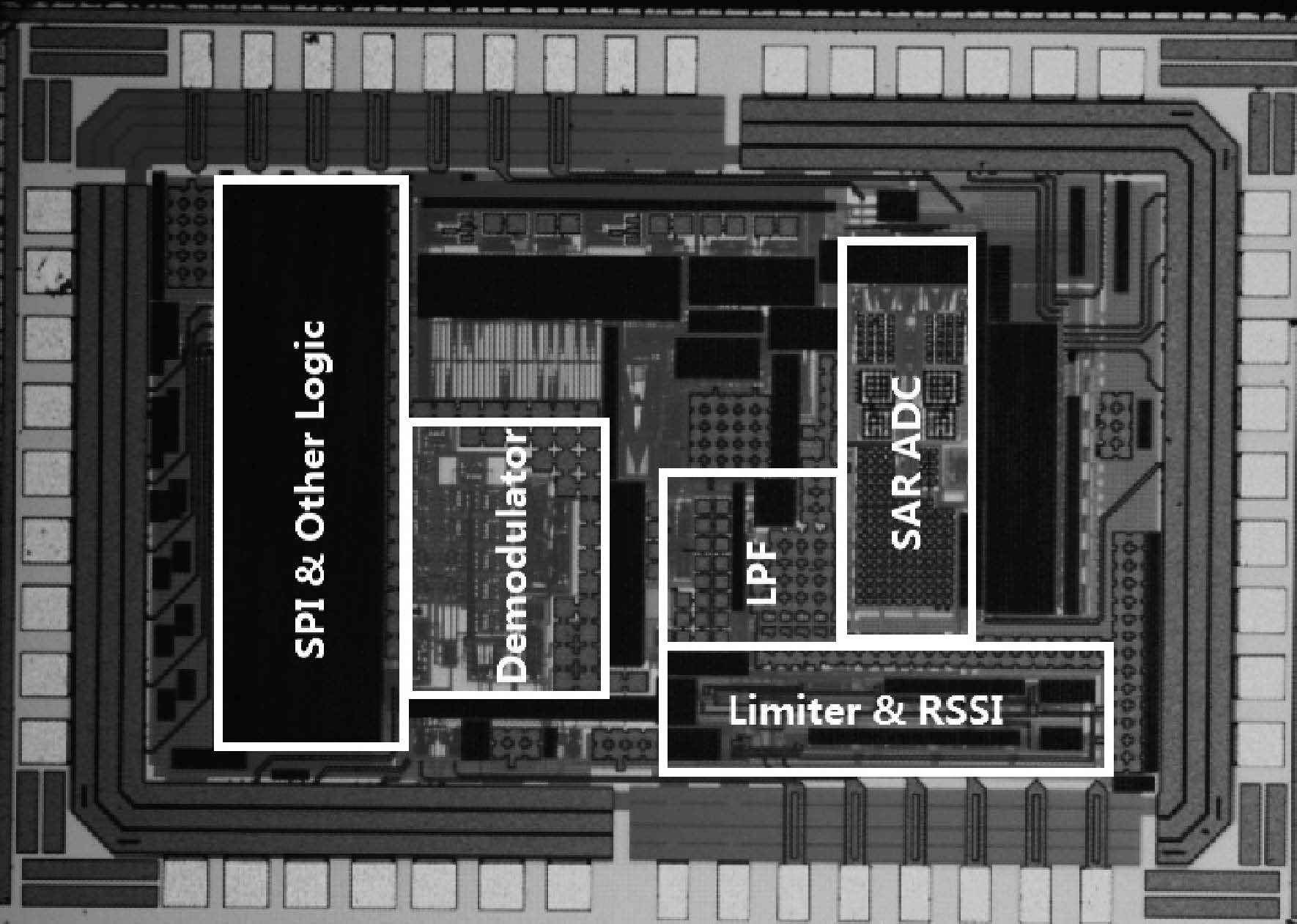

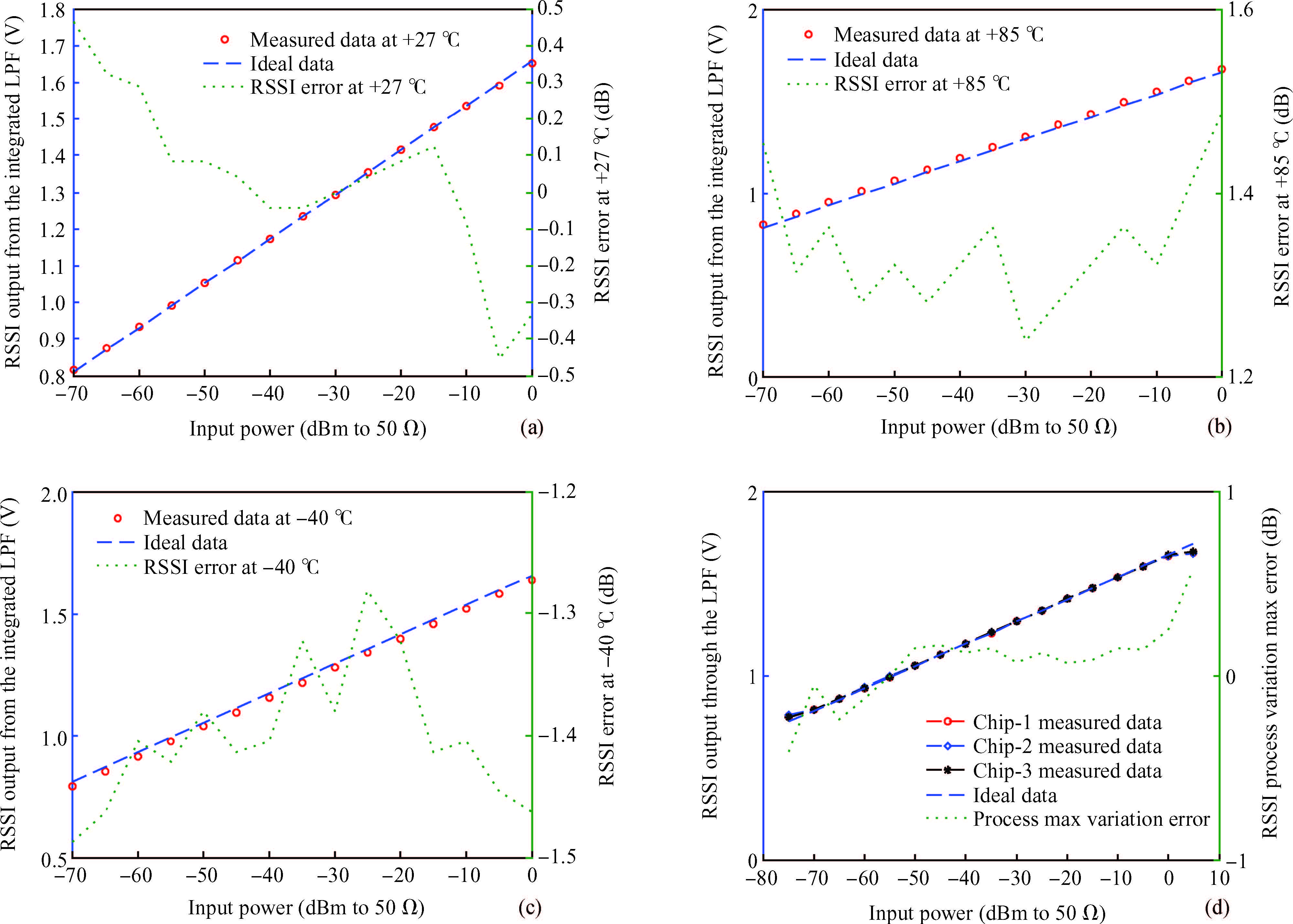

This paper presents a high resolution, process/temperature variation tolerant received signal strength indicator (RSSI) for wireless networks for industrial automation process automation (WIA-PA) transceiver fabricated in 0.18μm CMOS technology. The active area of the RSSI is 0.24 mm2. Measurement results show that the proposed RSSI has a dynamic range more than 70 dB and the linearity error is within ± 0.5 dB for an input power from -70 to 0 dBm (dBm to 50 Ω ), the corresponding output voltage is from 0.81 to 1.657 V and the RSSI slope is 12.1 mV/dB while consuming all of 2 mA from a 1.8 V power supply. Furthermore, by the help of the integrated compensation circuit, the proposed RSSI shows the temperature error within ± 1.5 dB from -40 to 85 ℃, and process variation error within ± 0.25 dB, which exhibits good temperature-independence and excellent robustness against process variation characteristics.-
Keywords:
- limiter,
- RSSI,
- high resolution,
- dynamic range,
- detection sensitivity,

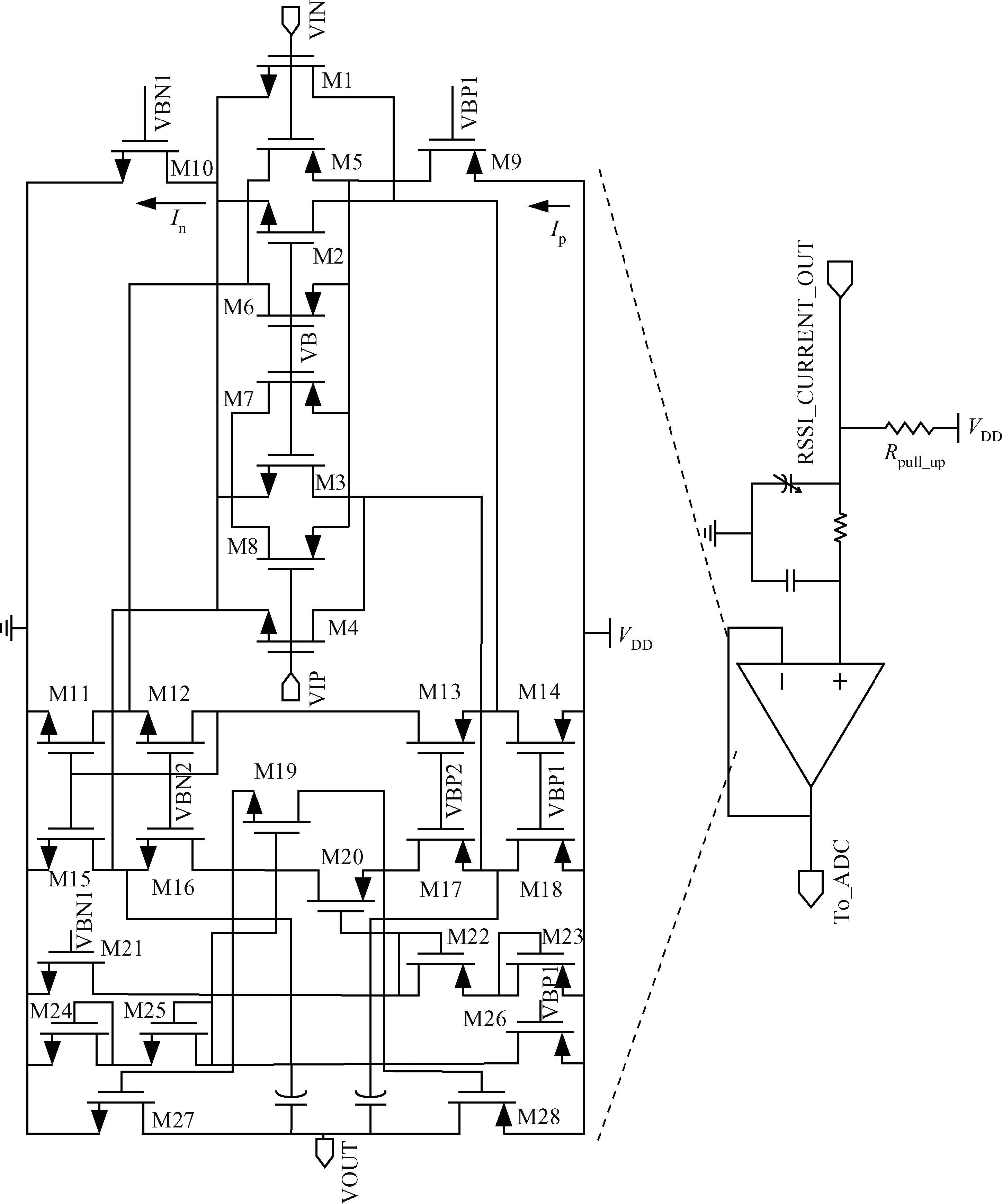

- rail-to-rail buffer
-
