Fabrication of a novel RF switch device with high performance using In0.4Ga0.6As MOSFET technology

Jiahui Zhou1, 2, Hudong Chang2, Xufang Zhang1, Jingzhi Yang1, Guiming Liu1, Haiou Li2, and Honggang Liu1,

+ Author Affiliations

 Corresponding author: Haiou Li, seagull_1228@163.com; Corresponding author. Email: liuhonggang@ime.ac.cn

DOI: 10.1088/1674-4926/37/2/024005

PDF

Abstract: A novel radio frequency (RF) switch device has been successfully fabricated using InGaAs metal-oxide-semiconductor field-effect transistor (MOSFET) technology. The device showed drain saturation currents of 250 mA/mm, a maximum transconductance of 370 mS/mm, a turn-on resistance of 0.72 mΩ · mm2 and a drain current on-off (Ion/Ioff) ratio of 1 × 106. The maximum handling power of on-state of 533 mW/mm and off-state of 3667 mW/mm is obtained. The proposed In0.4Ga0.6As MOSFET RF switch showed an insertion loss of less than 1.8 dB and an isolation of better than 20 dB in the frequency range from 0.1 to 7.5 GHz. The lowest insertion loss and the highest isolation can reach 0.27 dB and more than 68 dB respectively. This study demonstrates that the InGaAs MOSFET technology has a great potential for RF switch application.

Key words: RF switch, InGaAs, MOSFET, III-V CMOS



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]

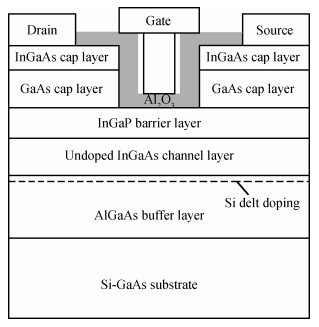

Fig. 1.  Schematic cross section of the In$_{0.4}$Ga$_{0.6}$As MOSFET with 10-nm Al$_{2}$O$_{3}$.

DownLoad: Full-Size Img PowerPoint

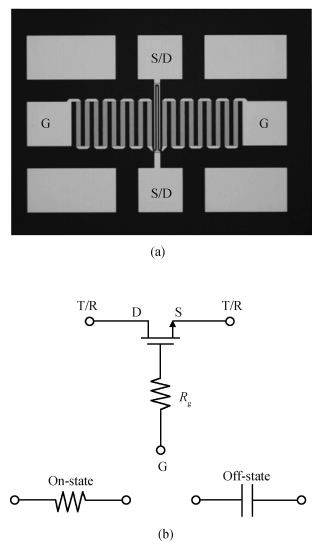

Fig. 2.  (a) The micrograph of RF switch device. (b) The device equivalent circuit.

DownLoad: Full-Size Img PowerPoint

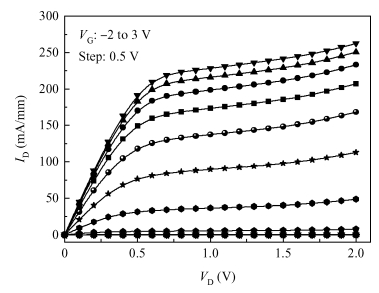

Fig. 3.  DC $I$-$V$ characteristics of the In$_{0.4}$Ga$_{0.6}$As MOSFET switch.

DownLoad: Full-Size Img PowerPoint

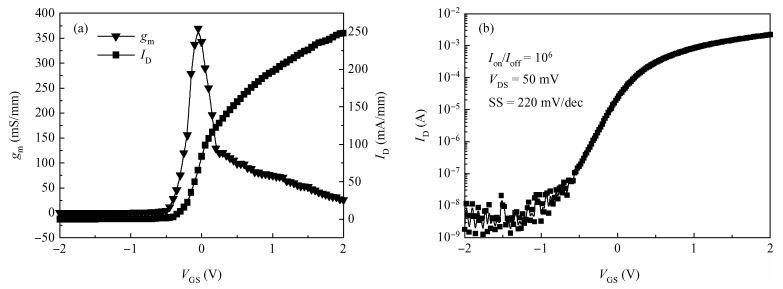

Fig. 4.  (a) The drain current and extrinsic transconductance versus gate bias for In$_{0.4}$Ga$_{0.6}$As MOSFET with 10-nm Al$_{2}$O$_{3}$ at $V_{\rm DS}$ $=$ 2 V. (b) The $I_{\rm on}/I_{\rm off}$ ratio for In$_{0.4}$Ga$_{0.6}$As MOSFETs at $V_{\rm DS}$ $=$ 50 mV.

DownLoad: Full-Size Img PowerPoint

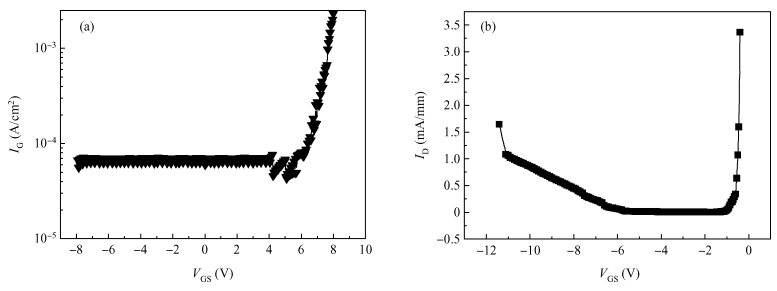

Fig. 5.  (a) Gate leakage characteristics of the switch with both source and drain grounded. (b) The drain current gate bias for In$_{0.4}$Ga$_{0.6}$As MOSFET at $V_{\rm DS}$ $=$ 1 V.

DownLoad: Full-Size Img PowerPoint

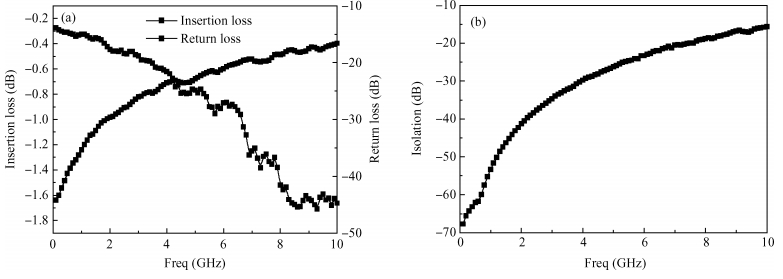

Fig. 6.  (a) Insertion loss and Return loss of device in the on-state at 2 V gate bias. (b) Isolation of device in the off-state at $-2$ V gate bias.

DownLoad: Full-Size Img PowerPoint
DownLoad: CSV
DownLoad: CSV
DownLoad: CSV

Table 1.   The comparison between proposed MOSFET switches and conventional GaAs HEMT switches in the range from 0.1 to 3 GHz.

DownLoad: CSV
