J. Semicond. > 2016, Volume 37 > Issue 5 > 054008
|

SEMICONDUCTOR DEVICES

Novel trench gate field stop IGBT with trench shorted anode

Xudong Chen1, , Jianbing Cheng1, 2, Guobing Teng1 and Houdong Guo1

+ Author Affiliations

 Corresponding author: Corresponding author. Email: xdcnjupt@163.com

DOI: 10.1088/1674-4926/37/5/054008

PDF

Abstract: A novel trench field stop (FS) insulated gate bipolar transistor (IGBT) with a trench shorted anode (TSA) is proposed. By introducing a trench shorted anode, the TSA-FS-IGBT can obviously improve the breakdown voltage. As the simulation results show, the breakdown voltage is improved by a factor of 19.5% with a lower leakage current compared with the conventional FS-IGBT. The turn off time of the proposed structure is 50% lower than the conventional one with less than 9% voltage drop increased at a current density of 150 A/cm2. Additionally, there is no snapback observed. As a result, the TSA-FS-IGBT has a better trade-off relationship between the turn off loss and forward drop.

Key words: FS-IGBT, trench shorted anode, breakdown voltage, turn off loss, tradeoff



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]

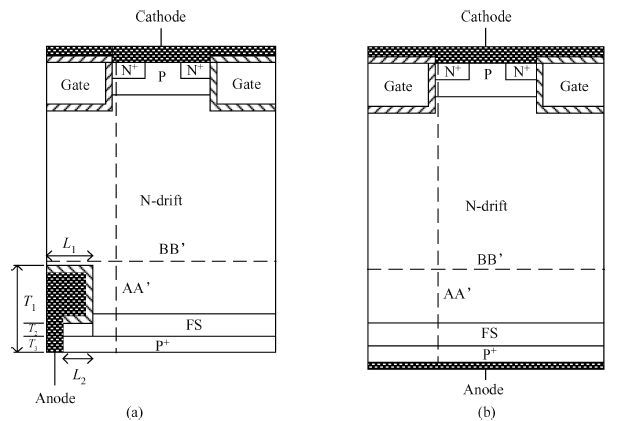

Fig. 1.  Schematic cross-section of (a) the proposed TSA-FS-IGBT and (b) conventional FS-IGBT.

DownLoad: Full-Size Img PowerPoint

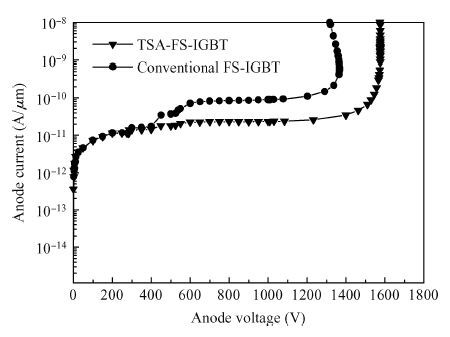

Fig. 2.  Blocking characteristics of different structures. $T_{2}$ $=$ 0.7 $\mu$m, $L_{2}$ $=$ 2 $\mu$m and $T_{1}$ $=$ 5 $\mu$m for the TSA-FS-IGBT.

DownLoad: Full-Size Img PowerPoint

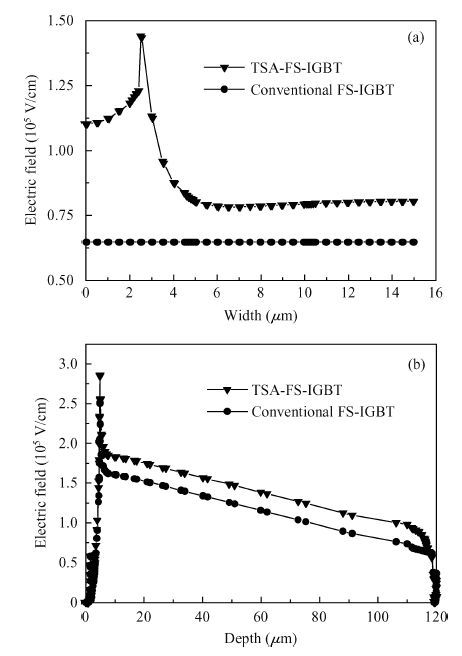

Fig. 3.  (a) Lateral electric field along BB' and (b) vertical electric field along AA' of TSA-FS-IGBT (T1 = 0.7 μm, L2 = 2 μm and T1 = 5 μm) and conventional FS-IGBT.

DownLoad: Full-Size Img PowerPoint

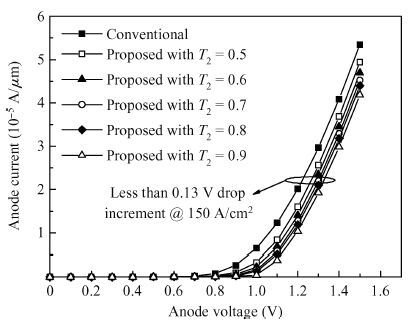

Fig. 4.  \caption{$I$-$V$ characteristics of the TSA-FS-IGBT by varying $T_{2}\, (L_{2}$ $=$ 3 $\mu$m and $T_{1}$ $=$ 5 $\mu$m) and conventional FS-IGBT.

DownLoad: Full-Size Img PowerPoint

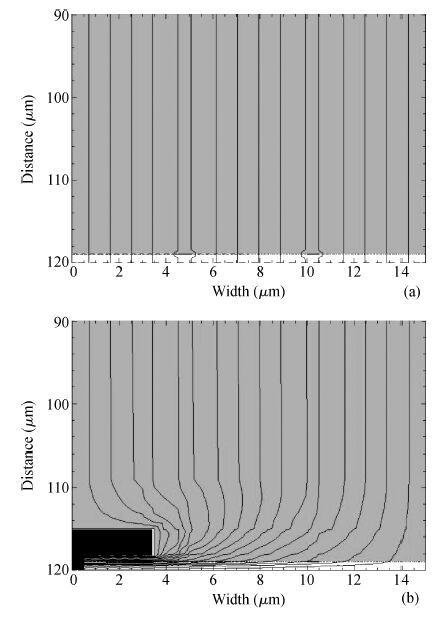

Fig. 5.  Current flow lines of different structure in conduction mode. (a) Conventional FS-IGBT and (b) proposed with $T_{1}$ $=$ 5 $\mu$m, $T_{2}$ $=$ 0.9 $\mu$m and $L_{2}$ $=$ 3 $\mu$m.

DownLoad: Full-Size Img PowerPoint

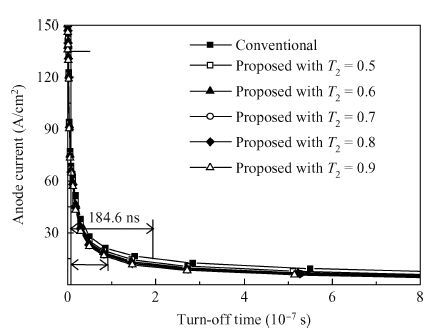

Fig. 6.  Turn off times of the TSA-FS-IGBT ($L_{1}$ $=$ 3.5 $\mu$m, and $T_{1}$ $=$ 5 $\mu$m) and the conventional FS-IGBT. The anode doping is 5 × 10$^{18}$ cm$^{-3}$.

DownLoad: Full-Size Img PowerPoint

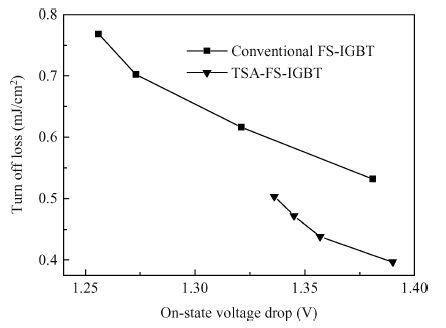

Fig. 7.  Forward drop and turn off loss trade-off curve of different structures by varying P$^{+}$ doping. Simulated current density is 150 A/cm$^{2}$ under resistive load and gate voltage is from 15 to 0 V.

DownLoad: Full-Size Img PowerPoint

Table 1.   Device specification.

DownLoad: CSV
DownLoad: CSV
