Electrical properties of Ge metal-oxide-semiconductor capacitors with high-k La2O3 gate dielectric incorporated by N or/and Ti

Huoxi Xu; Jingping Xu

doi:10.1088/1674-4926/37/6/064006

J. Semicond. > 2016, Volume 37 > Issue 6 > 064006

SEMICONDUCTOR DEVICES

Electrical properties of Ge metal-oxide-semiconductor capacitors with high-k La₂O₃ gate dielectric incorporated by N or/and Ti

Huoxi Xu¹ and Jingping Xu^2,

+ Author Affiliations

Corresponding author: Jingping Xu, Email: 799904108@qq.com

DOI: 10.1088/1674-4926/37/6/064006

Abstract: LaON, LaTiO and LaTiON films are deposited as gate dielectrics by incorporating N or/and Ti into La₂O₃ using the sputtering method to fabricate Ge MOS capacitors, and the electrical properties of the devices are carefully examined. LaON/Ge capacitors exhibit the best interface quality, gate leakage property and device reliability, but a smaller k value (14.9). LaTiO/Ge capacitors exhibit a higher k value (22.7), but a deteriorated interface quality, gate leakage property and device reliability. LaTiON/Ge capacitors exhibit the highest k value (24.6), and a relatively better interface quality (3.1×10¹¹ eV^-1cm^-2), gate leakage property (3.6×10^-3 A/cm² at V_g=1 V+V_fb) and device reliability. Therefore, LaTiON is more suitable for high performance Ge MOS devices as a gate dielectric than LaON and LaTiO materials.

Key words: Ge MOS capacitor, La₂O₃, N or/and Ti incorporation, interface properties, k value

References

[1]	Robertson J, Wallace R M. High-k materials and metal gates for CMOS applications. Mater Sci Eng R, 2015, 88:1
[2]	Oh I K, Kim M K, Lee J S, et al. The effect of La₂O₃-incorporation in HfO₂ dielectrics on Ge substrate by atomic layer deposition. Appl Surf Sci, 2013, 287:349
[3]	Liu Chen, Zhang Yuming, Zhang Yimen, et al. Temperature dependent interfacial and electrical characteristics during atomic layer deposition and annealing of HfO₂ films in p-GaAs metal-oxide-semiconductor capacitors. Journal of Semiconductors, 2015, 36:124003
[4]	Bethge O, Henkel C, Abermann S, et al. Stability of La₂O₃ and GeO₂ passivated Ge surfaces during ALD of ZrO₂ high-k dielectric. Appl Surf Sci, 2012, 258:3444
[5]	Bom N M, Soares G V, Krug C, et al. Evolution of the Al₂O₃/Ge (100) interface for reactively sputter-deposited films submitted to postdeposition anneals. Appl Surf Sci, 2012, 258:5707
[6]	Zhou Jiahui, Chang Hudong, Liu Honggang, et al. MIM capacitors with various Al₂O₃ thicknesses for GaAs RFIC application. Journal of Semiconductors, 2015, 36:054004
[7]	Xie Q, Deduytsche D, Schaekers M, et al. Implementing TiO₂ as gate dielectric for Ge-channel complementary metal-oxide-semiconductor devices by using HfO₂/GeO₂ interlayer. Appl Phys Lett, 2010, 97:112905
[8]	Fu C H, Chang-Liao K S, Liu L J, et al. An ultralow EOT Ge MOS device with tetragonal HfO₂ and high quality Hf_xGe_yO interfacial layer. IEEE Trans Electron Devices, 2014, 61:2662
[9]	Sun Q Q, Shi Y, Dong L, et al. Impact of germanium related defects on electrical performance of hafnium oxide. Appl Phys Lett, 2008, 92:102908
[10]	Mirovic I Z, Althobaiti M, Weerakkody A, et al. Ge interface engineering using ultra-thin La₂O₃ and Y₂O₃ films:a study into the effect of deposition temperature. J Appl Phys, 2014, 115:114102
[11]	Lamagna L, Wiemer C, Perego M, et al. O₃-based atomic layer deposition of hexagonal La₂O₃ films on Si (100) and Ge (100) substrates. J Appl Phys, 2010, 108:084108
[12]	Galata S F, Mavrou G, Tsipas P, et al. Metal-oxide-semiconductor devices on p-type Ge with La₂O₃ and ZrO₂/La₂O₃ as gate dielectric and the effect of postmetallization anneal. J Vac Sci Technol B, 2009, 27:246
[13]	Xu H X, Xu J P, Li C X, et al. Impacts of Ti on electrical properties of Ge metal-oxide-semiconductor capacitors with ultrathin high-k LaTiON gate dielectric. Appl Phys A, 2010, 99:903
[14]	Cheng C L, Horng J H, Wu Y Z. Electrical and reliability characteristics of HfLaTiO-gated metal-oxide-semiconductor capacitors with various Ti concentrations. Device Mater Reliab, 2012, 12:399
[15]	Li C X, Zou X, Lai P T, et al. Effects of Ti content and wet-N₂ anneal on Ge MOS capacitors with HfTiO gate dielectric. Microelectron Reliab, 2008, 48:526
[16]	He G, Sun Z Q, Liu M, et al. Nitrogen dependence of band alignment and electrical properties of HfTiON gate dielectrics metal-oxide-semiconductor capacitor. Appl Phys Lett, 2010, 97:192902
[17]	Kawada N, Ito M, Saito Y. Thermal stability of lanthanum oxynitride ultrathin films deposited on silicon substrates. Jpn J Appl Phys, 2006, 45:9197
[18]	He G, Liu J W, Chen H S, et al. Interface control and modification of band alignment and electrical properties of HfTiO/GaAs gate stacks by nitrogen incorporation. J Mater Chem C, 2014, 2:5299
[19]	Terman L M. An investigation of surface states at a silicon/silicon oxide interface employing metal-oxide-silicon diodes. Solid State Electron, 1962, 5:285
[20]	Ji F, Xu J P, Lai P T, et al. Improved interfacial properties of Ge MOS capacitor with high-k dielectric by using TaON/GeON dual interlayer. Electron Device Lett, 2011, 32:122

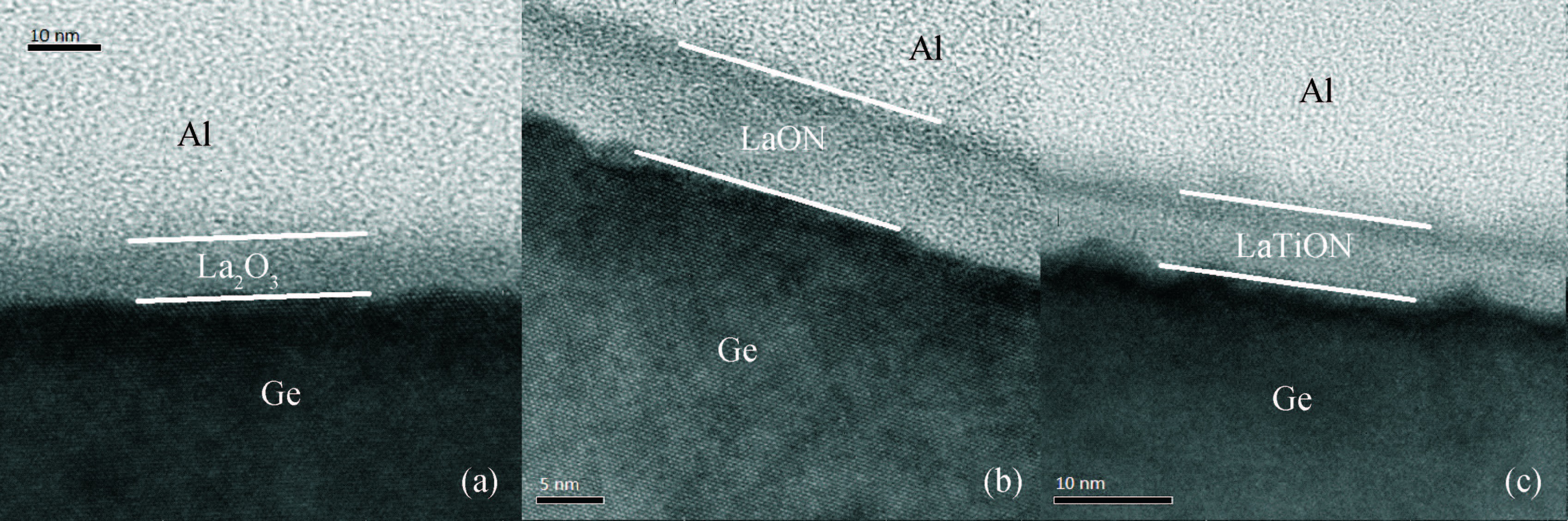

Fig. 1. TEM pictures of (a) La₂O₃/Ge MOS, (b) LaON/Ge MOS and (c) LaTiON/Ge MOS.

DownLoad: Full-Size Img PowerPoint

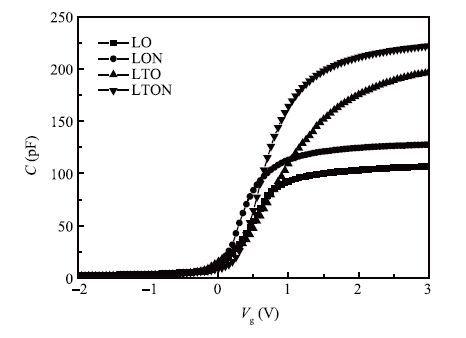

Fig. 2. High-frequency (1-MHz) C-V curves for the LO, LON, LTO and LTON samples.

DownLoad: Full-Size Img PowerPoint

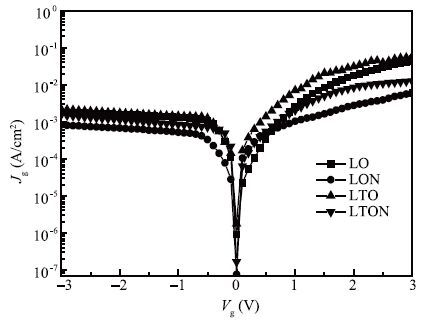

Fig. 3. Gate-leakage current density versus gate voltage for the LO, LON, LTO and LTON samples.

DownLoad: Full-Size Img PowerPoint

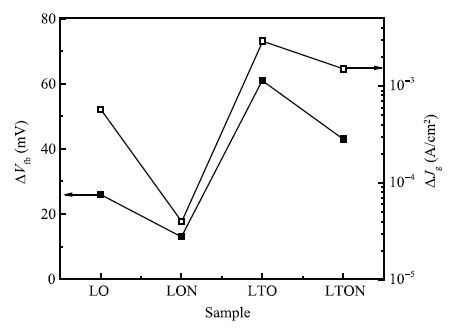

Fig. 4. Flat-band voltage shift (△V_fb) and gate leakage current density increase (△J_g) at V_g=V_fb + 1V for the LO, LON, LTO and LTON samples after a high-field stress (at 10 MV/cm for 3600 s).

DownLoad: Full-Size Img PowerPoint

Table 1. Parameters of the Ge MOS capacitors extracted from HF (1-MHz) C-V curves, and t_ox is the physical thickness of gate dielectric measured by ellipsometry.

Sample	t_ox (nm)	C_ox (pF)	CET (nm)	V_fb (V)	Q_ox (cm^-2)	D_it (eV^-1cm^-2)	k
LO	7.51	108	2.5	0.23	-1.03×10¹²	3.3×10¹¹	11.7
LON	8.05	129	2.1	0.19	-8.5×10¹¹	1.2×10¹¹	14.9
LTO	7.54	209	1.3	0.47	-6.15×10¹²	7.1×10¹¹	22.7
LTON	7.55	227	1.2	0.34	-4.3×10¹²	3.1×10¹¹	24.6

DownLoad: CSV
