Fig. 1.

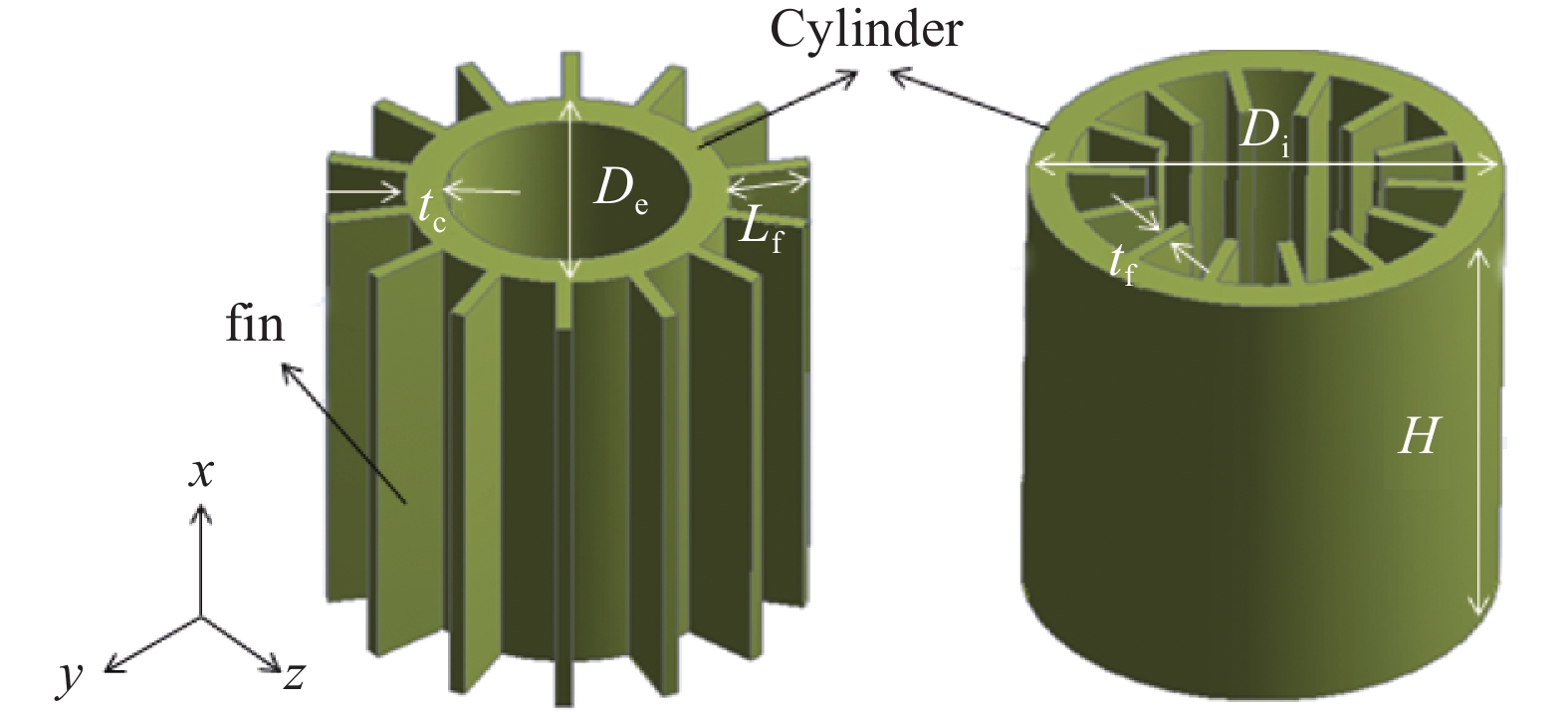

(Color online) (a) Externally and (b) internally finned heat sinks.
DownLoad:
| Citation: |
Bin Li, Lun Xiong, Chuan Lai, Yumei Tang. Investigation of internally finned LED heat sinks[J]. Journal of Semiconductors, 2018, 39(3): 034002. doi: 10.1088/1674-4926/39/3/034002
****
B Li, L Xiong, C Lai, Y M Tang. Investigation of internally finned LED heat sinks[J]. J. Semicond., 2018, 39(3): 034002. doi: 10.1088/1674-4926/39/3/034002.
|
Investigation of internally finned LED heat sinks
DOI: 10.1088/1674-4926/39/3/034002
More Information
-
Abstract

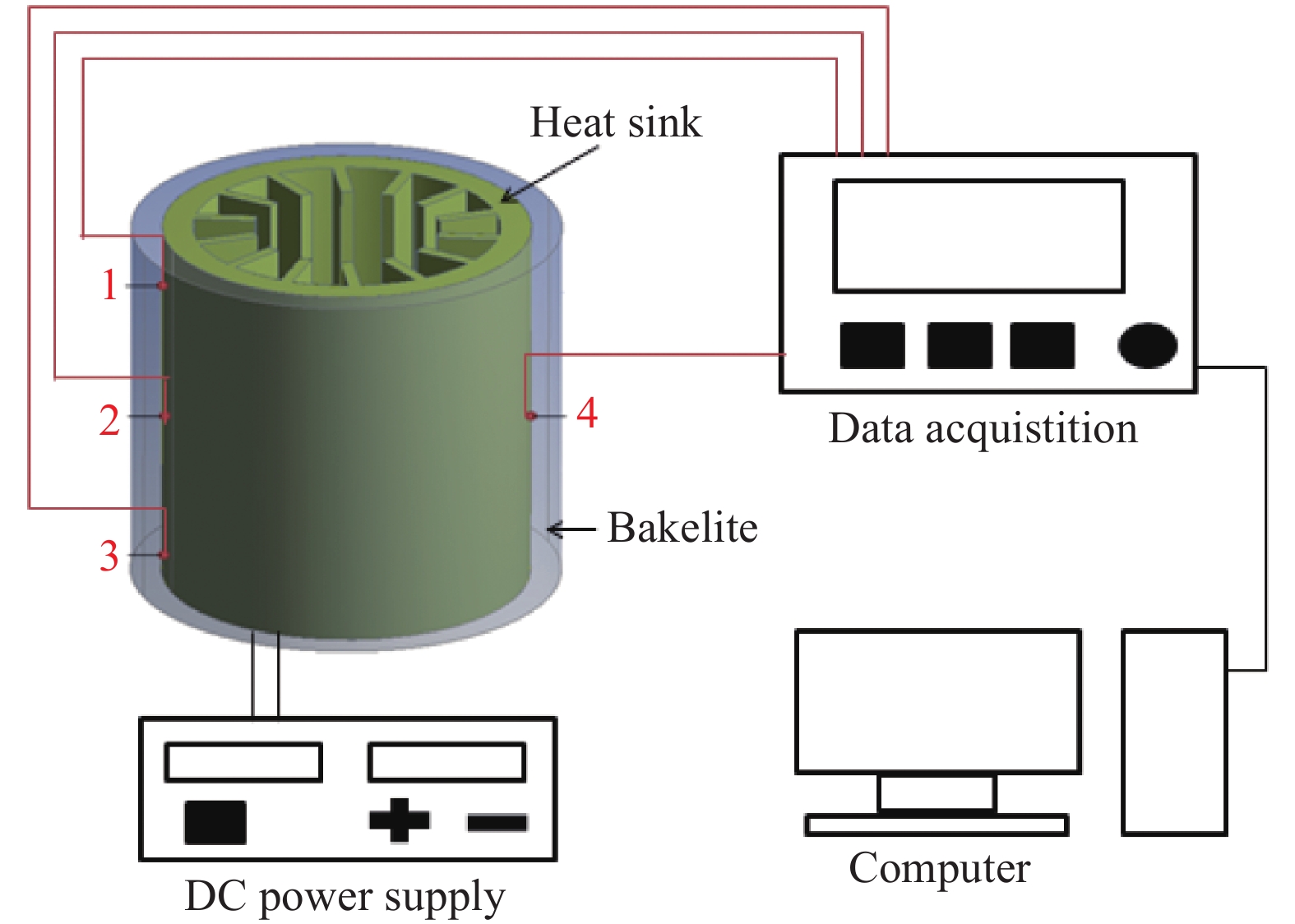

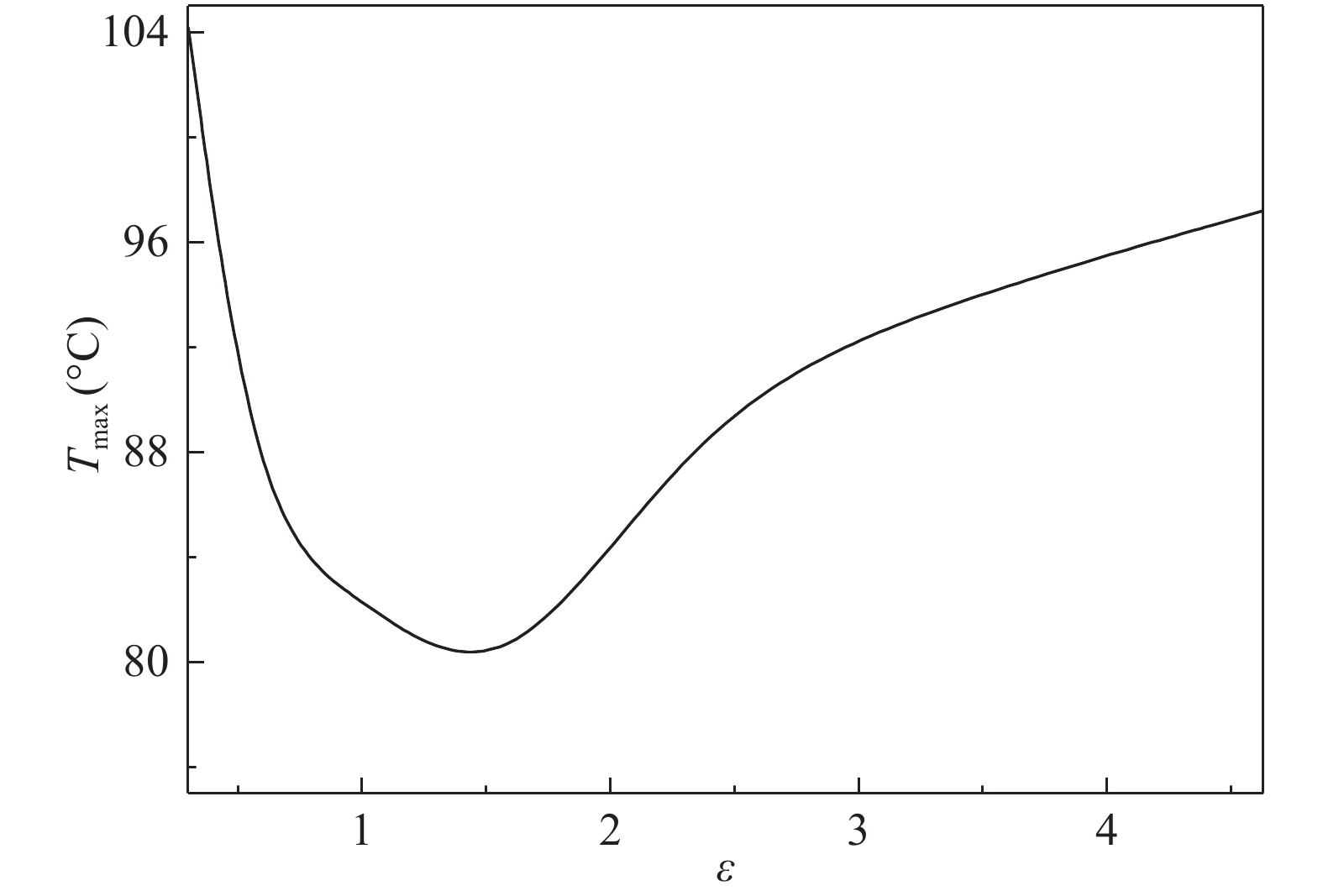

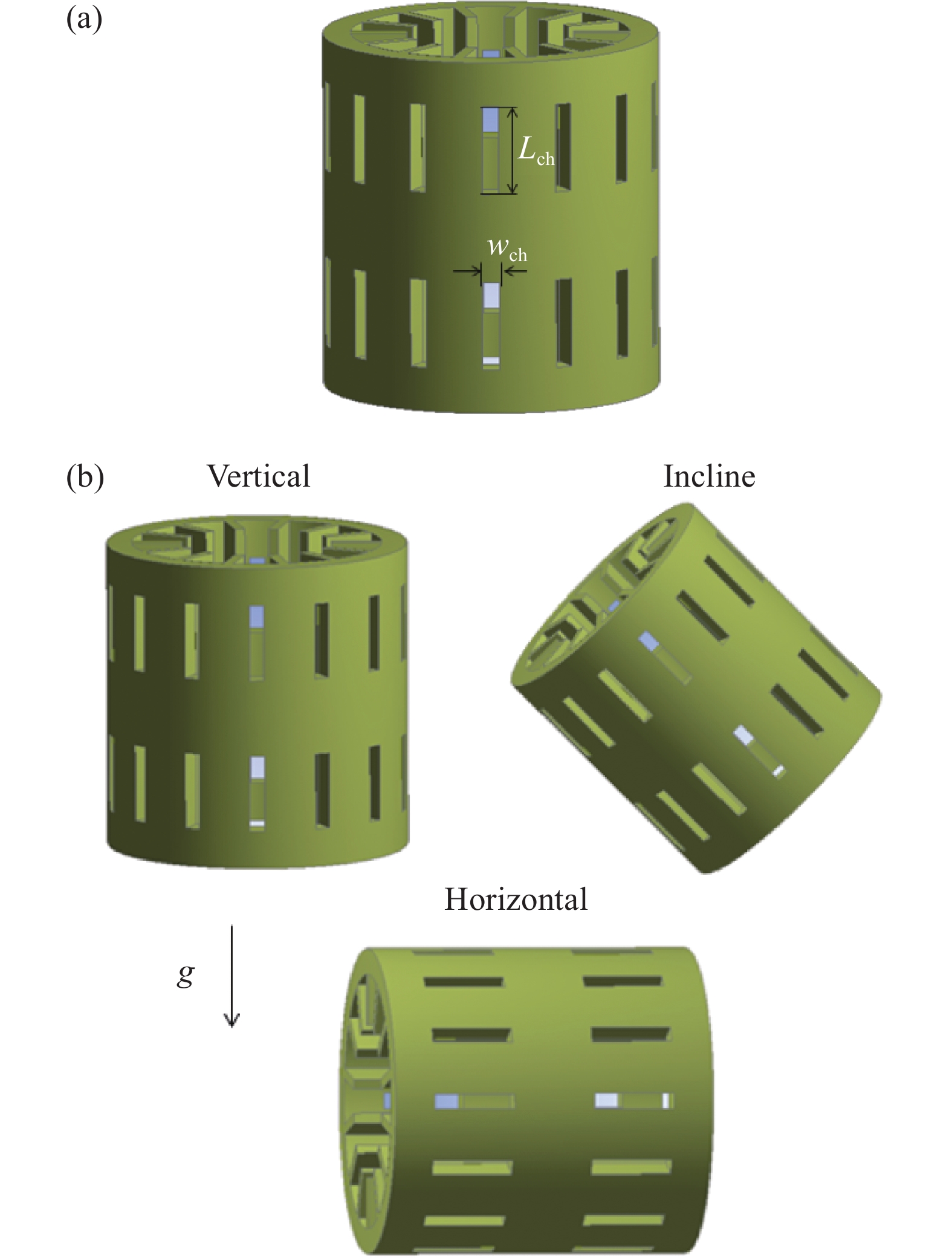

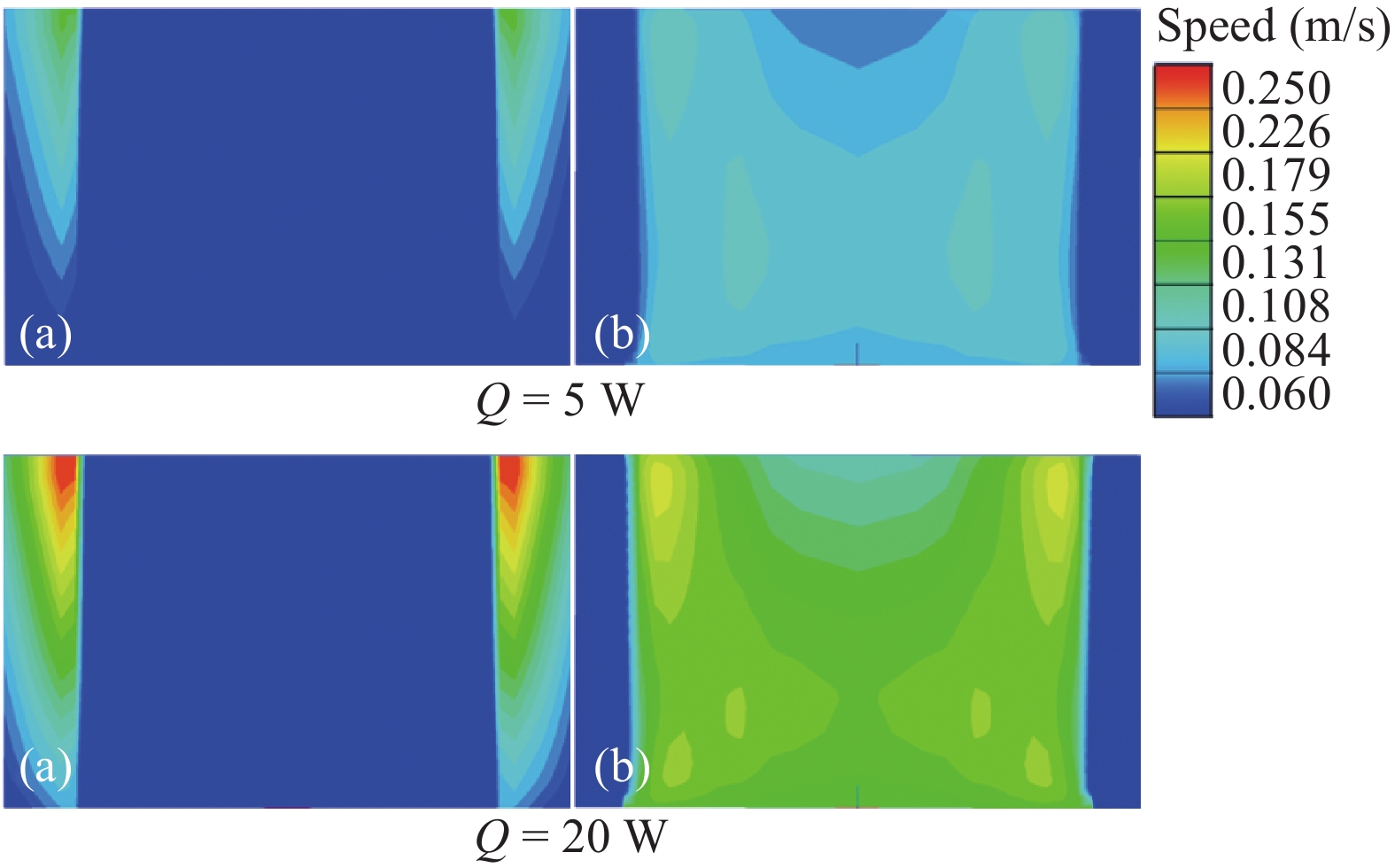

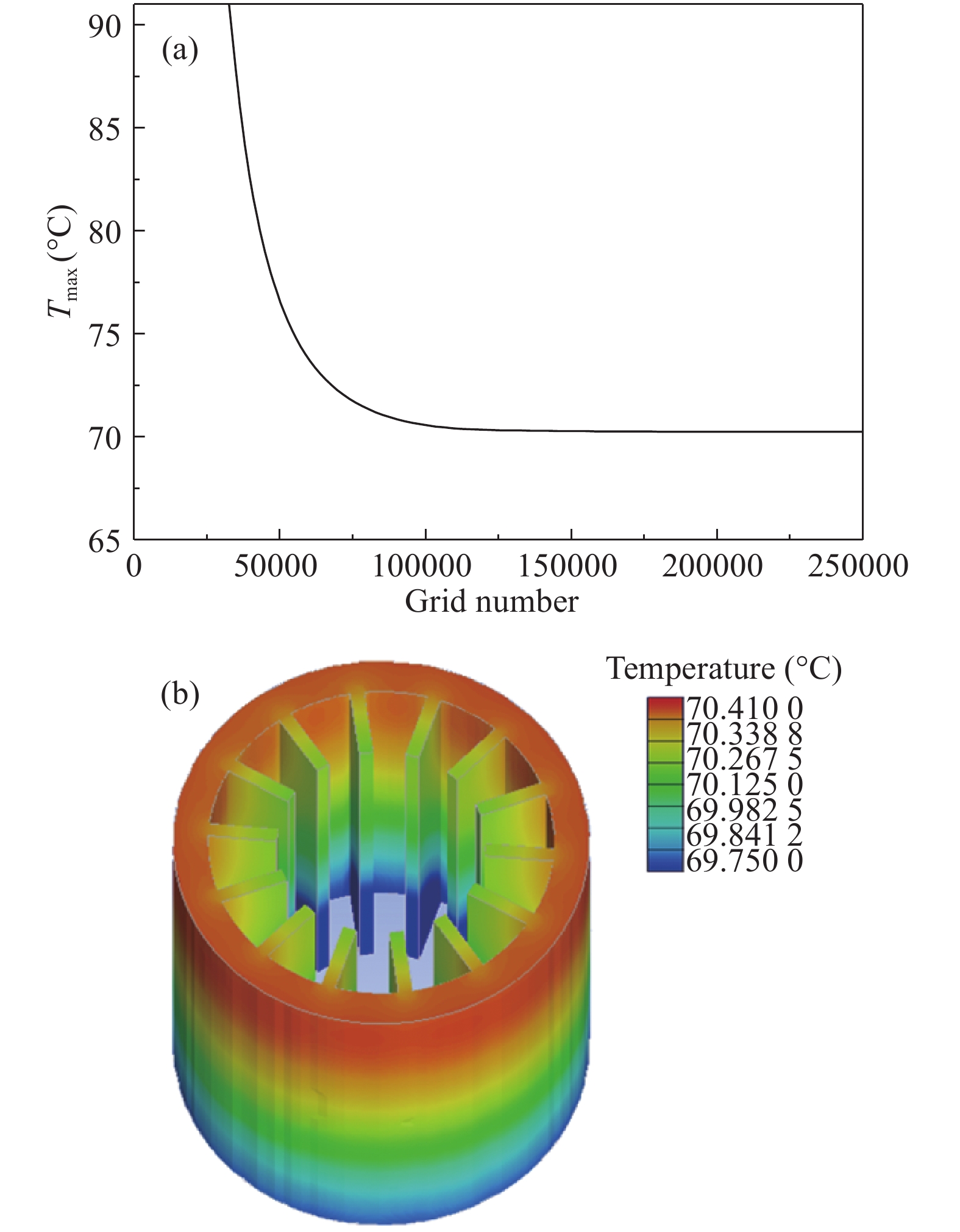

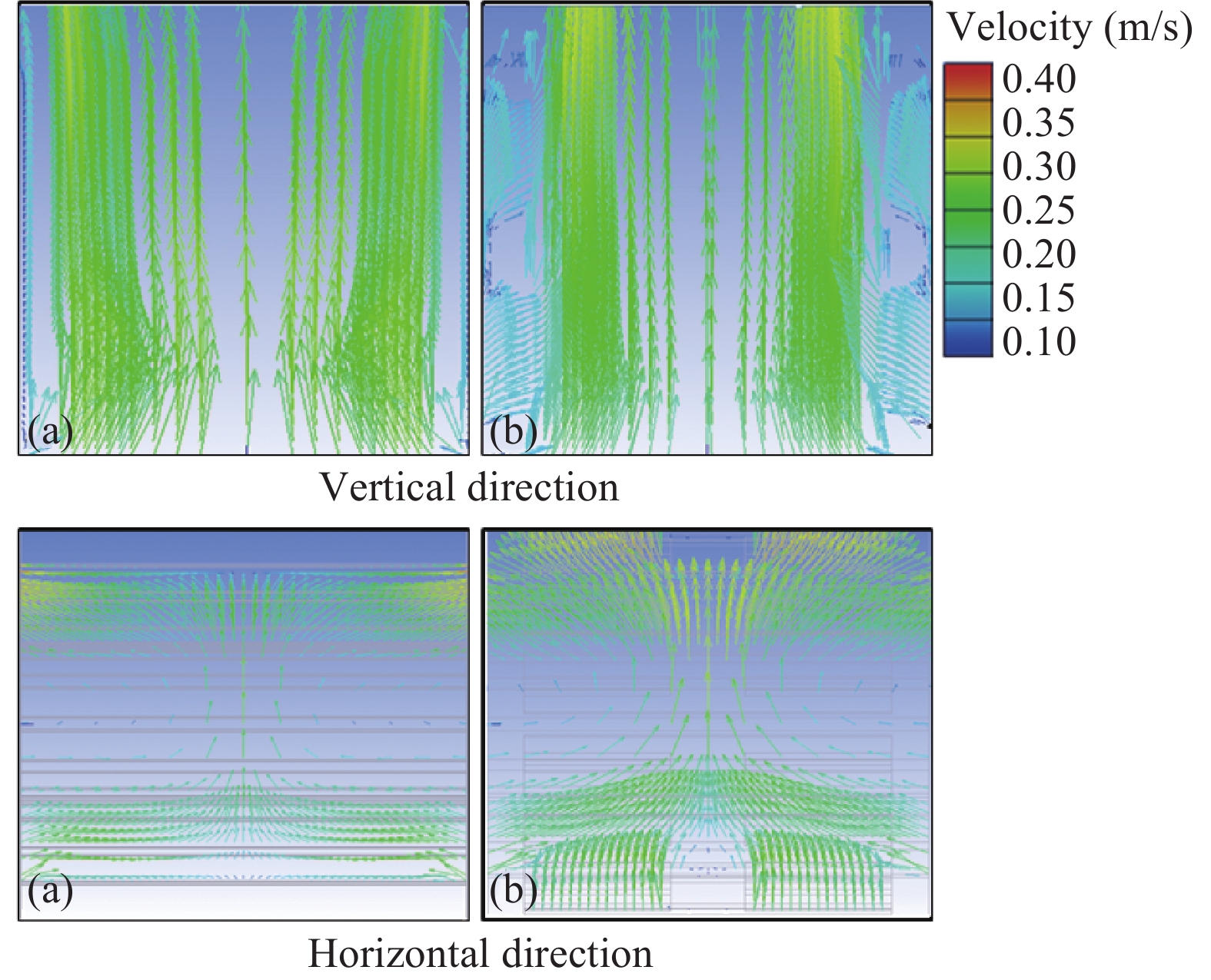

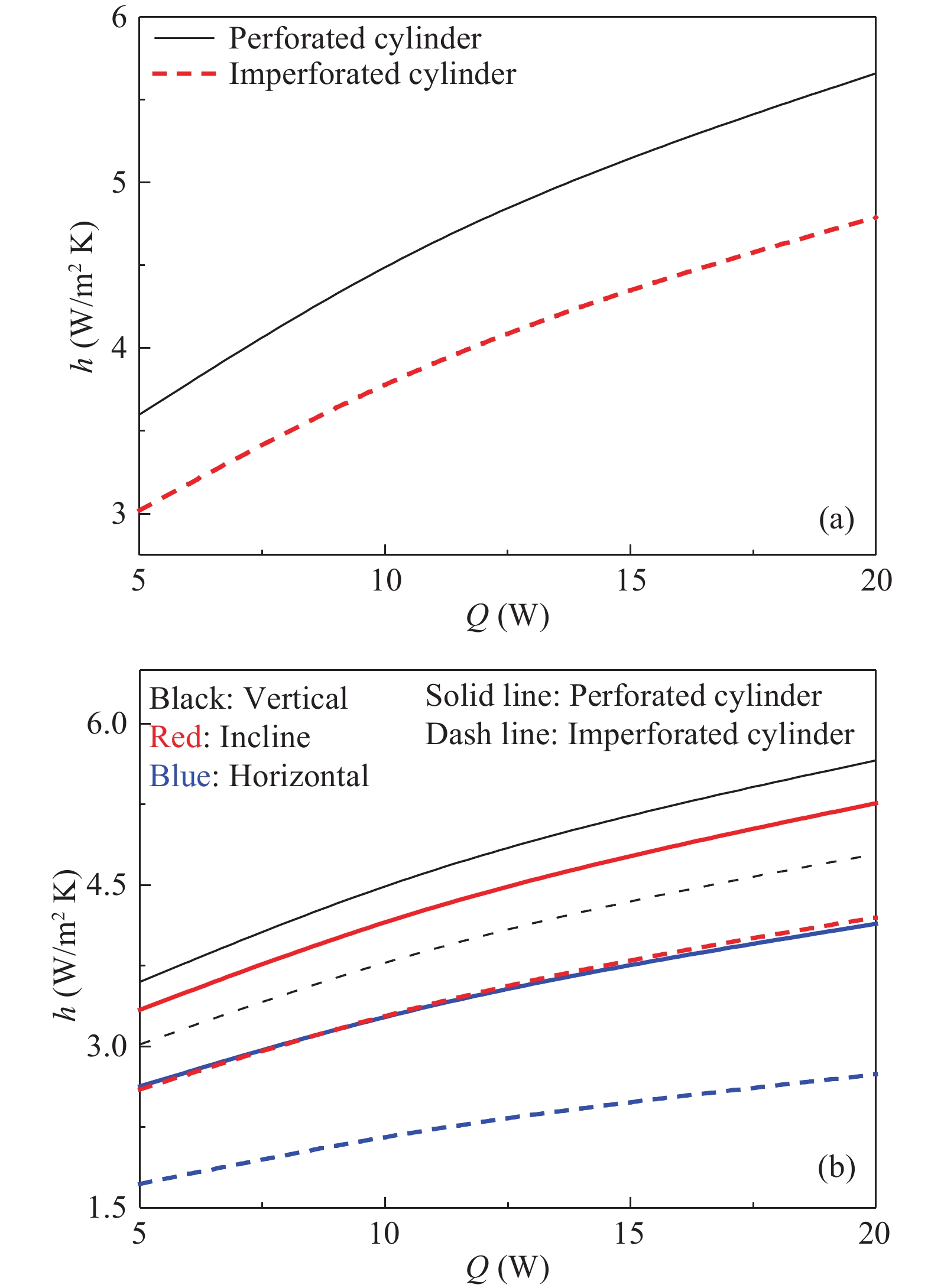

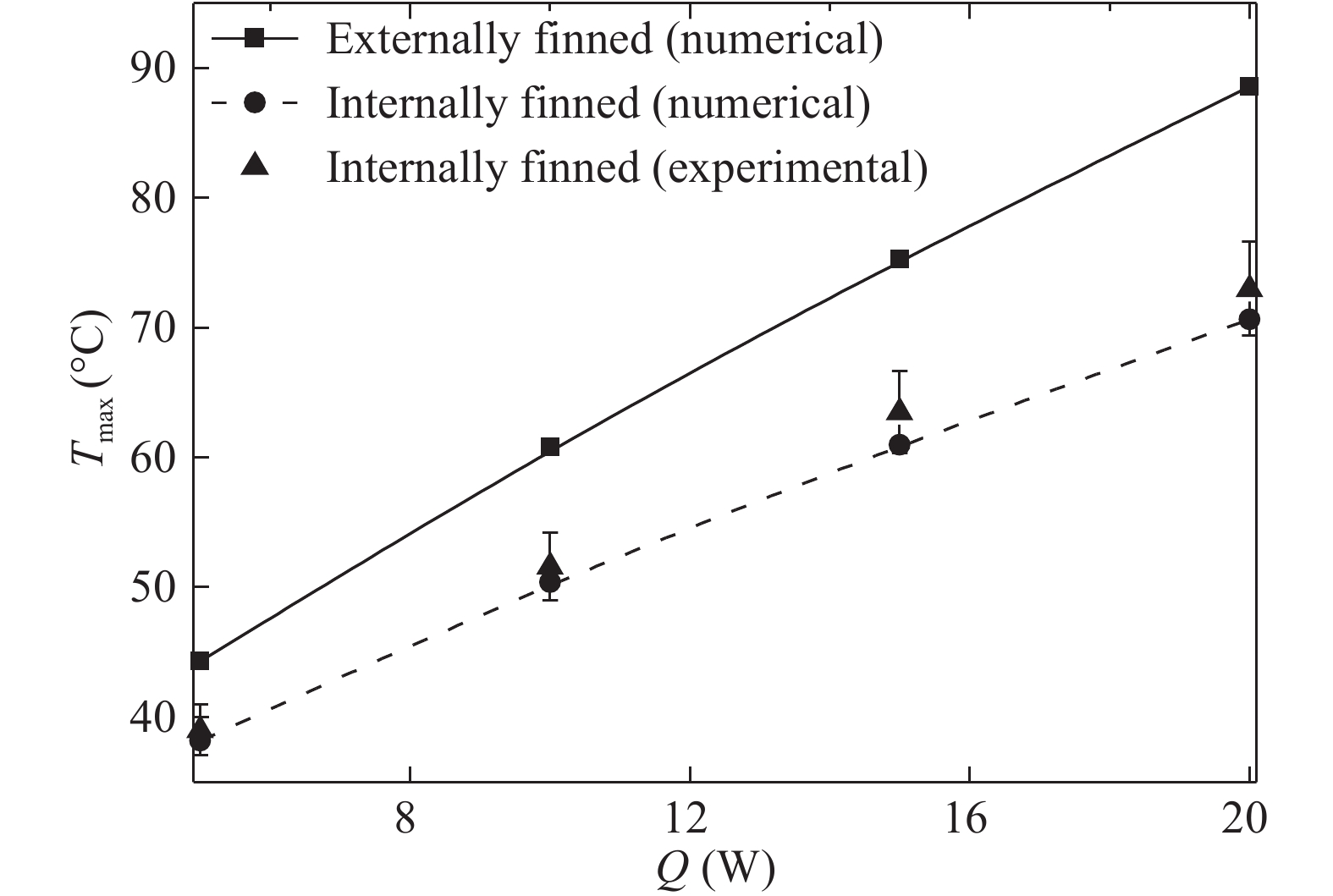

A novel heat sink is proposed, which is composed of a perforated cylinder and internally arranged fins. Numerical studies are performed on the natural convection heat transfer from internally finned heat sinks; experimental studies are carried out to validate the numerical results. To compare the thermal performances of internally finned heat sinks and externally finned heat sinks, the effects of the overall diameter, overall height, and installation direction on maximum temperature, air flow and heat transfer coefficient are investigated. The results demonstrate that internally finned heat sinks show better thermal performance than externally finned heat sinks; the maximum temperature of internally finned heat sinks decreases by up to 20% compared with the externally finned heat sinks. The existence of a perforated cylinder and the installation direction of the heat sink affect the thermal performance significantly; it is shown that the heat transfer coefficient of the heat sink with the perforated cylinder is improved greater than that with the imperforated cylinder by up to 34%, while reducing the mass of the heat sink by up to 13%.-
Keywords:
- radial heat sink,
- natural convection,
- perforated cylinder
-
