Investigation of current collapse and recovery time due to deep level defect traps in β-Ga₂O₃ HEMT

R. Singh¹, T. R. Lenka^1,, R. T. Velpula², B. Jain², H. Q. T. Bui² and H. P. T. Nguyen²

+ Author Affiliations

Corresponding author: T. R. Lenka, Email: trlenka@ieee.org

DOI: 10.1088/1674-4926/41/10/102802

Abstract: In this paper, drain current transient characteristics of β-Ga₂O₃ high electron mobility transistor (HEMT) are studied to access current collapse and recovery time due to dynamic population and de-population of deep level traps and interface traps. An approximately 10 min, and 1 h of recovery time to steady-state drain current value is measured under 1 ms of stress on the gate and drain electrodes due to iron (Fe)–doped β-Ga₂O₃ substrate and germanium (Ge)–doped β-Ga₂O₃ epitaxial layer respectively. On-state current lag is more severe due to widely reported defect trap E_C – 0.82 eV over E_C – 0.78 eV, −0.75 eV present in Iron (Fe)-doped β-Ga₂O₃ bulk crystals. A negligible amount of current degradation is observed in the latter case due to the trap level at E_C – 0.98 eV. It is found that occupancy of ionized trap density varied mostly under the gate and gate–source area. This investigation of reversible current collapse phenomenon and assessment of recovery time in β-Ga₂O₃ HEMT is carried out through 2D device simulations using appropriate velocity and charge transport models. This work can further help in the proper characterization of β-Ga₂O₃ devices to understand temporary and permanent device degradation.

Key words: β-Ga₂O₃, current collapse, degradation, HEMT, recovery time, traps, trapping effects

References

[1]	He H Y, Orlando R, Blanco M A, et al. First-principles study of the structural, electronic, and optical properties of Ga₂O₃in its monoclinic and hexagonal phases. Phys Rev B, 2006, 74, 195123 doi: 10.1103/PhysRevB.74.195123
[2]	Higashiwaki M, Sasaki K, Kuramata A, et al. Gallium oxide (Ga₂O₃) metal–semiconductor field-effect transistors on single-crystal β-Ga₂O₃ (010) substrates. Appl Phys Lett, 2012, 100, 013504 doi: 10.1063/1.3674287
[3]	Ghosh K, Singisetti U. Ab initio velocity-field curves in monoclinic β-Ga₂O₃. J Appl Phys, 2017, 122, 035702 doi: 10.1063/1.4986174
[4]	Varley J B, Weber J R, Janotti A, et al. Oxygen vacancies and donor impurities in β-Ga₂O₃. Appl Phys Lett, 2010, 97, 142106 doi: 10.1063/1.3499306
[5]	Chikoidze E, Fellous A, Perez-Tomas A, et al. P-type β-gallium oxide: A new perspective for power and optoelectronic devices. Mater Today Phys, 2017, 3, 118 doi: 10.1016/j.mtphys.2017.10.002
[6]	Kyrtsos A, Matsubara M, Bellotti E. On the feasibility of p-type Ga₂O₃. Appl Phys Lett, 2018, 112, 032108 doi: 10.1063/1.5009423
[7]	Tomm Y, Reiche P, Klimm D, et al. Czochralski grown Ga₂O₃ crystals. J Cryst Growth, 2000, 220, 510 doi: 10.1016/S0022-0248(00)00851-4
[8]	Aida H, Nishiguchi K, Takeda H, et al. Growth of β-Ga₂O₃ single crystals by the edge-defined, film fed growth method. Jpn J Appl Phys, 2008, 47, 8506 doi: 10.1143/JJAP.47.8506
[9]	Farzana E, Ahmadi E, Speck J S, et al. Deep level defects in Ge-doped (010) β-Ga₂O₃ layers grown by plasma-assisted molecular beam epitaxy. J Appl Phys, 2018, 123, 161410 doi: 10.1063/1.5010608
[10]	Zhang Z, Farzana E, Arehart A R, et al. Erratum: “Deep level defects throughout the bandgap of (010) β-Ga₂O₃ detected by optically and thermally stimulated defect spectroscopy” [Appl. Phys. Lett. 108, 052105 (2016)]. Appl Phys Lett, 2016, 108, 079901 doi: 10.1063/1.4942431
[11]	Irmscher K, Galazka Z, Pietsch M, et al. Electrical properties of β-Ga₂O₃ single crystals grown by the Czochralski method. J Appl Phys, 2011, 110, 063720 doi: 10.1063/1.3642962
[12]	Ingebrigtsen M E, Varley J B, Kuznetsov A Y, et al. Iron and intrinsic deep level states in Ga₂O₃. Appl Phys Lett, 2018, 112, 042104 doi: 10.1063/1.5020134
[13]	Sasaki K, Higashiwaki M, Kuramata A, et al. Ga₂O₃ Schottky barrier diodes fabricated by using single-crystal β-Ga₂O₃ (010) substrates. IEEE Electron Device Lett, 2013, 34, 493 doi: 10.1109/LED.2013.2244057
[14]	Krishnamoorthy S, Xia Z B, Bajaj S, et al. Delta-doped β-gallium oxide field-effect transistor. Appl Phys Express, 2017, 10, 051102 doi: 10.7567/APEX.10.051102
[15]	Zhou H, Maize K, Qiu G, et al. β-Ga₂O₃ on insulator field-effect transistors with drain currents exceeding 1.5 A/mm and their self-heating effect. Appl Phys Lett, 2017, 111, 092102 doi: 10.1063/1.5000735
[16]	Oshima T, Kato Y, Kawano N, et al. Carrier confinement observed at modulation-doped β-(Al_xGa_{1– x})₂O₃/Ga₂O₃ heterojunction interface. Appl Phys Express, 2017, 10, 035701 doi: 10.7567/APEX.10.035701
[17]	Zhang Y W, Neal A, Xia Z B, et al. Demonstration of high mobility and quantum transport in modulation-doped β-(Al_xGa_{1 – x})₂O₃/Ga₂O₃ heterostructures. Appl Phys Lett, 2018, 112, 173502 doi: 10.1063/1.5025704
[18]	McGlone J F, Xia Z B, Zhang Y W, et al. Trapping effects in Si δ-doped β-Ga₂O₃ MESFETs on an Fe-doped β-Ga₂O₃ substrate. IEEE Electron Device Lett, 2018, 39, 1042 doi: 10.1109/LED.2018.2843344
[19]	Polyakov A Y, Smirnov N B, Shchemerov I V, et al. Defect states determining dynamic trapping-detrapping in β-Ga₂O₃ field-effect transistors. ECS J Solid State Sci Technol, 2019, 8, Q3013 doi: 10.1149/2.0031907jss
[20]	Sun H D, Torres Castanedo C G, Liu K K, et al. Valence and conduction band offsets of β-Ga₂O₃/AlN heterojunction. Appl Phys Lett, 2017, 111, 162105 doi: 10.1063/1.5003930
[21]	Mock A, Korlacki R, Briley C, et al. Band-to-band transitions, selection rules, effective mass, and excitonic contributions in monoclinic β-Ga₂O₃. Phys Rev B, 2017, 96, 245205 doi: 10.1103/PhysRevB.96.245205
[22]	Device simulation software, ATLAS user’s manual. Silvaco, Santa Clara, CA, USA, 2009
[23]	Lu Y, Yao H H, Li J, et al. AlN/β-Ga₂O₃ based HEMT: A potential pathway to ultimate high power device. arXiv: 1901.05111, 2019
[24]	Balaz D. Current collapse and device degradation in AlGaN/GaN heterostructure field effect transistors. Ph D Dissertation, University of Glasgow, 2011

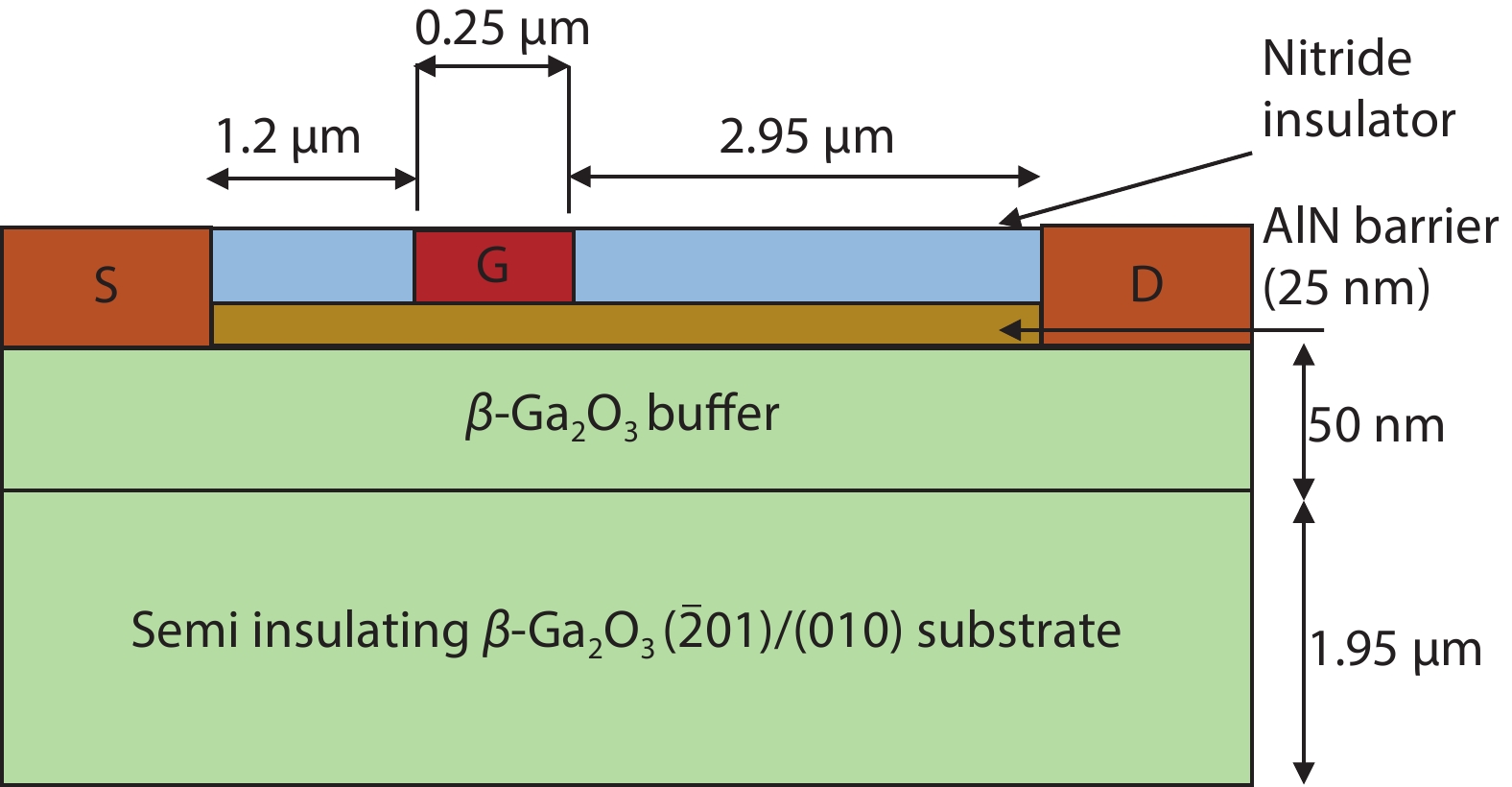

Fig. 1. (Color online) Schematic cross sectional view of the analysed device structure.

DownLoad: Full-Size Img PowerPoint

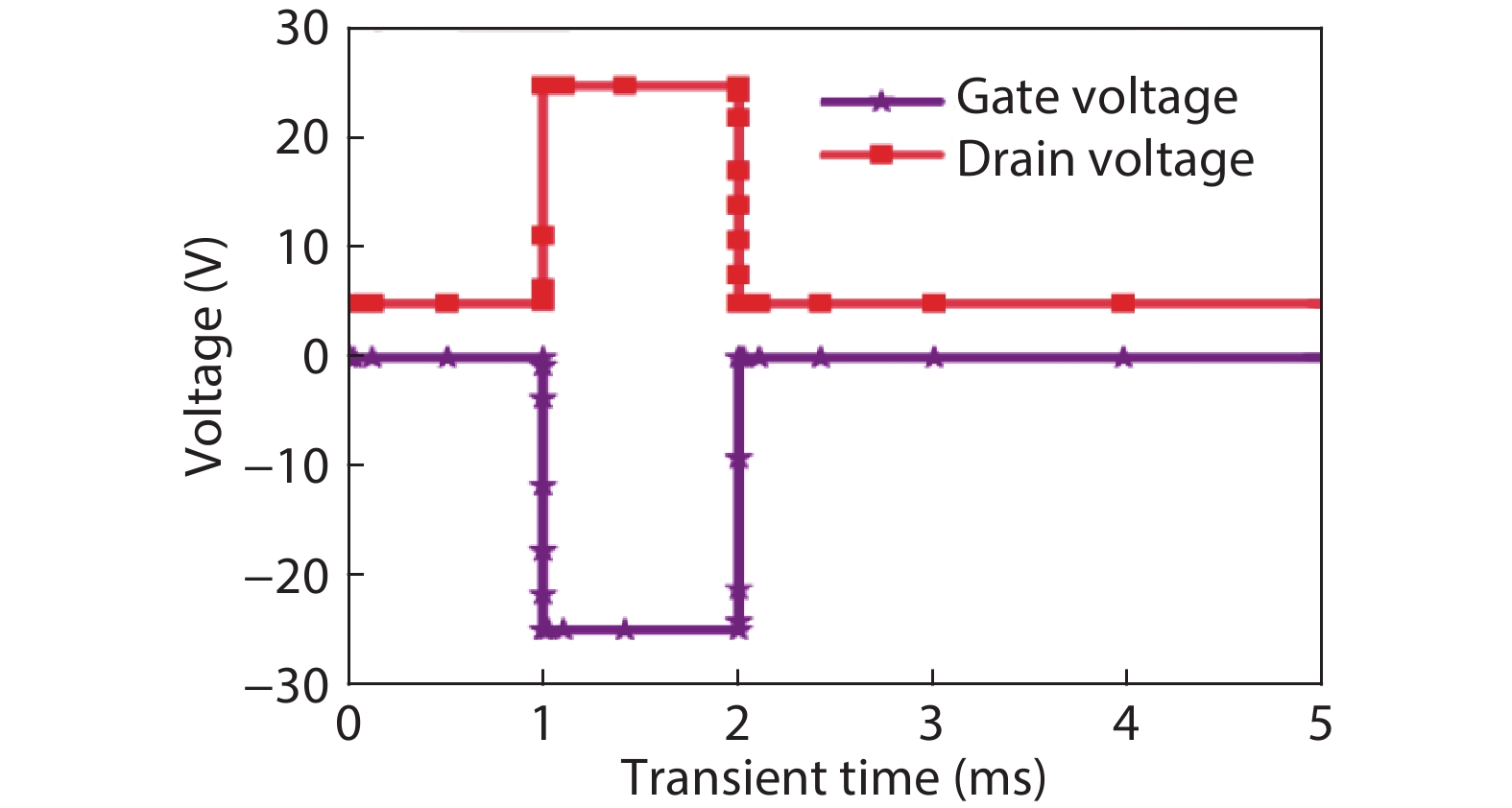

Fig. 2. (Color online) Pre-stress and post-stress bias voltages at gate and drain terminals.

DownLoad: Full-Size Img PowerPoint

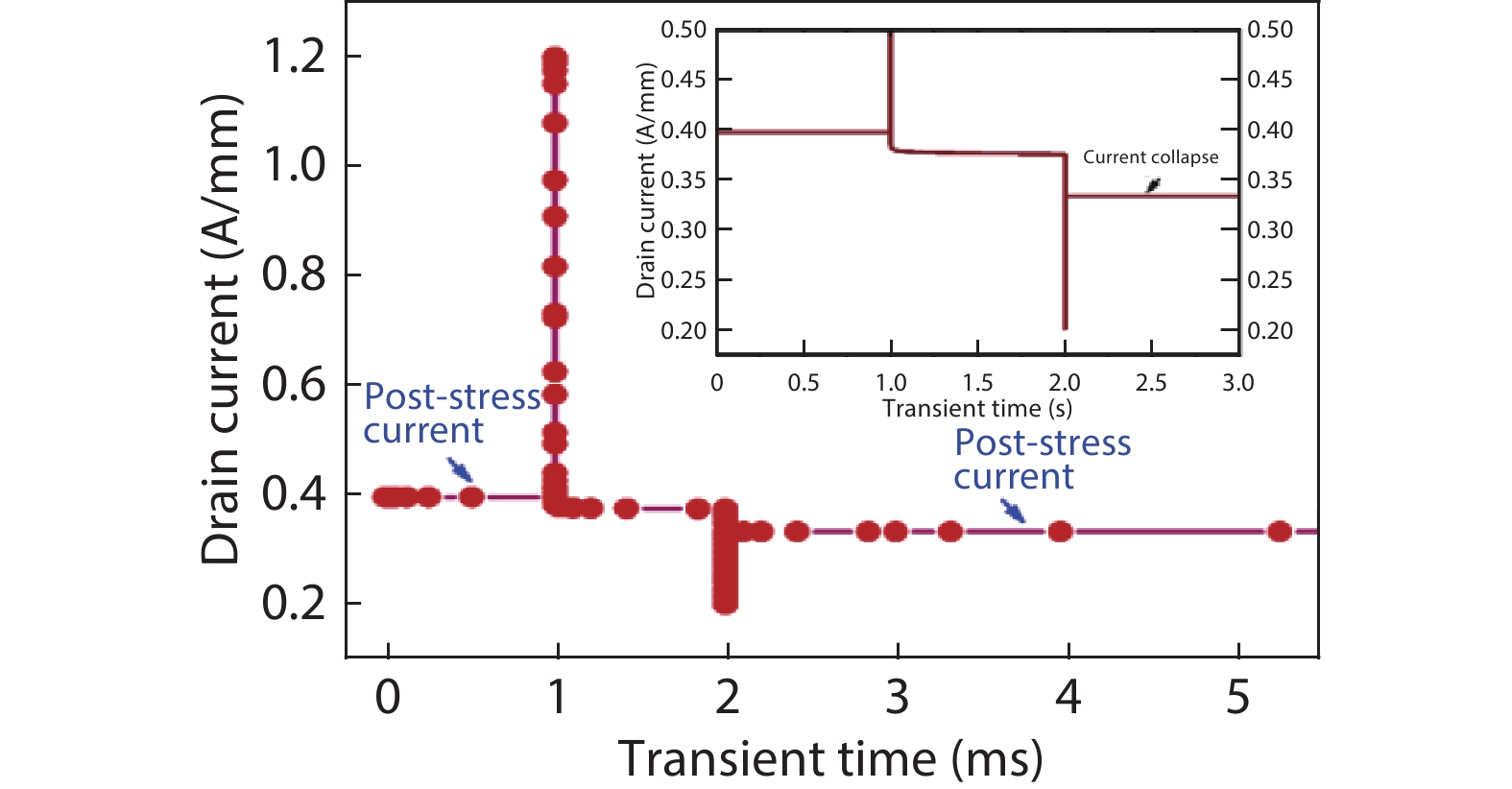

Fig. 3. (Color online) Pre-stress and post-stress drain current. Inset: current collapse.

DownLoad: Full-Size Img PowerPoint

Fig. 4. (Color online) Trapping and de-trapping of defect trap under gate stress.

DownLoad: Full-Size Img PowerPoint

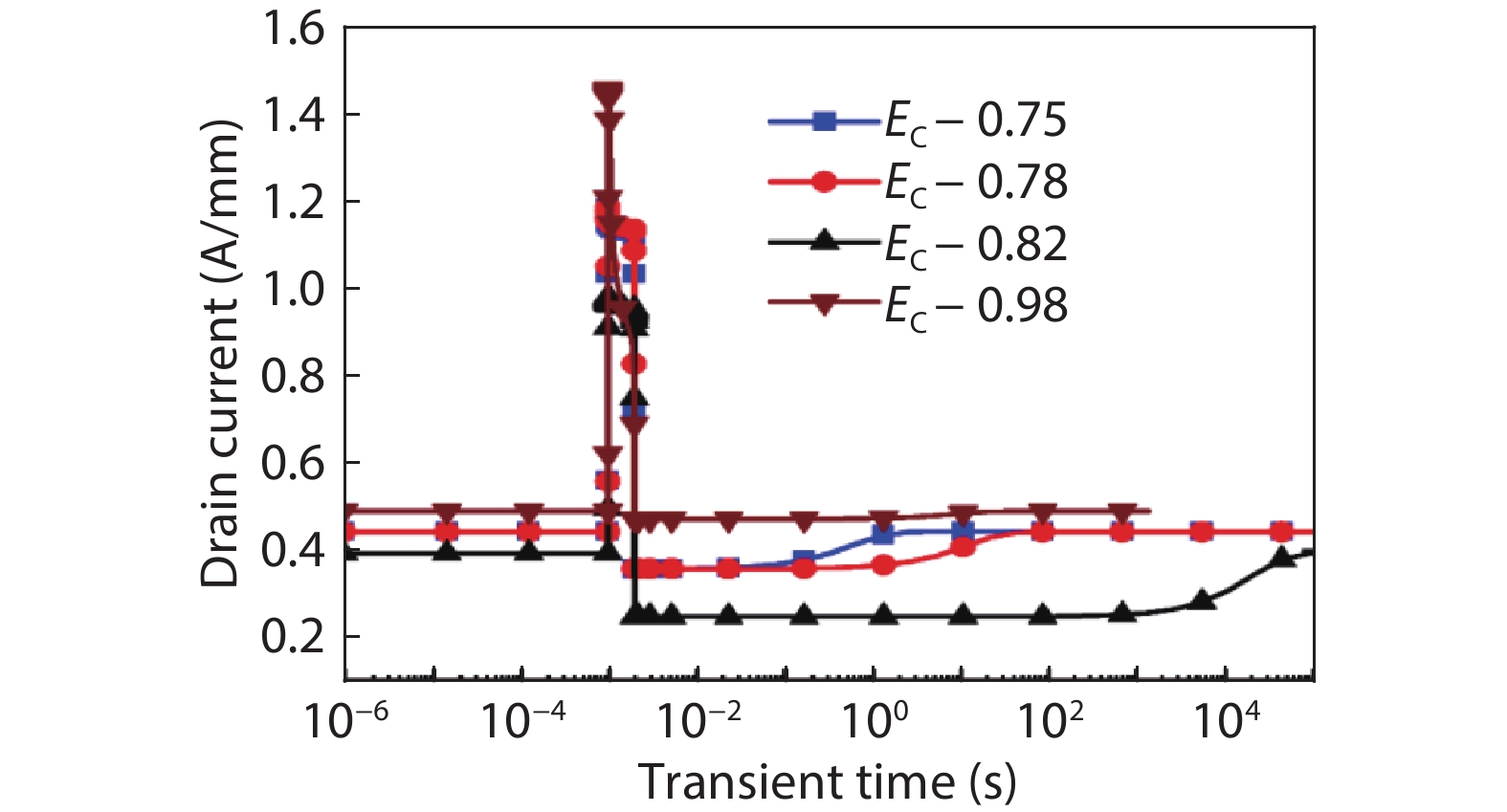

Fig. 5. (Color online) Drain stress and recovery of current recovery due to de-population of traps.

DownLoad: Full-Size Img PowerPoint

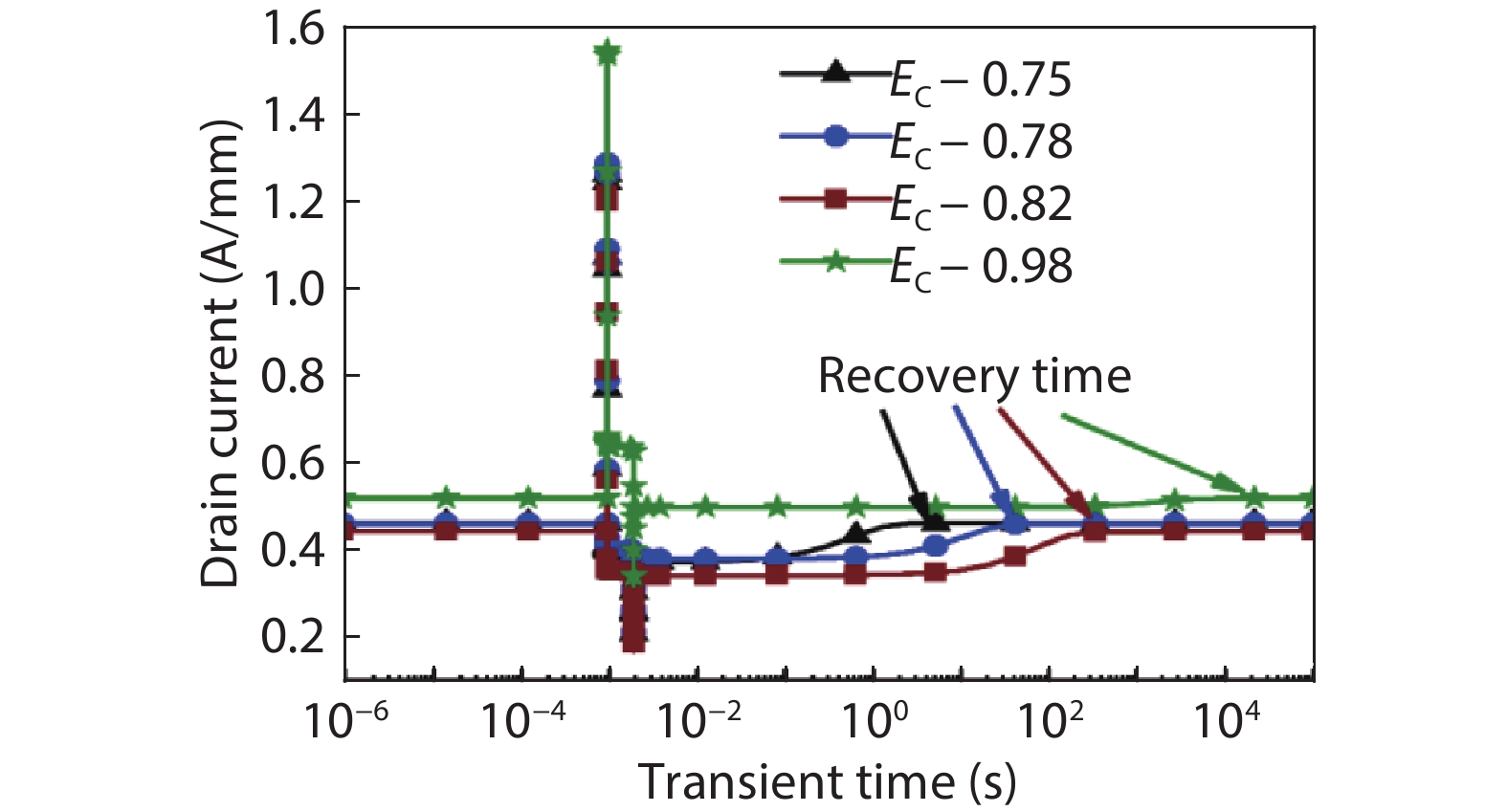

Fig. 6. (Color online) Current collapse and recovery curve, showing intentional doped Fe causes most of the current collapse and Ge doping caused current collapse takes approximately 2 h to attain steady state value.

DownLoad: Full-Size Img PowerPoint

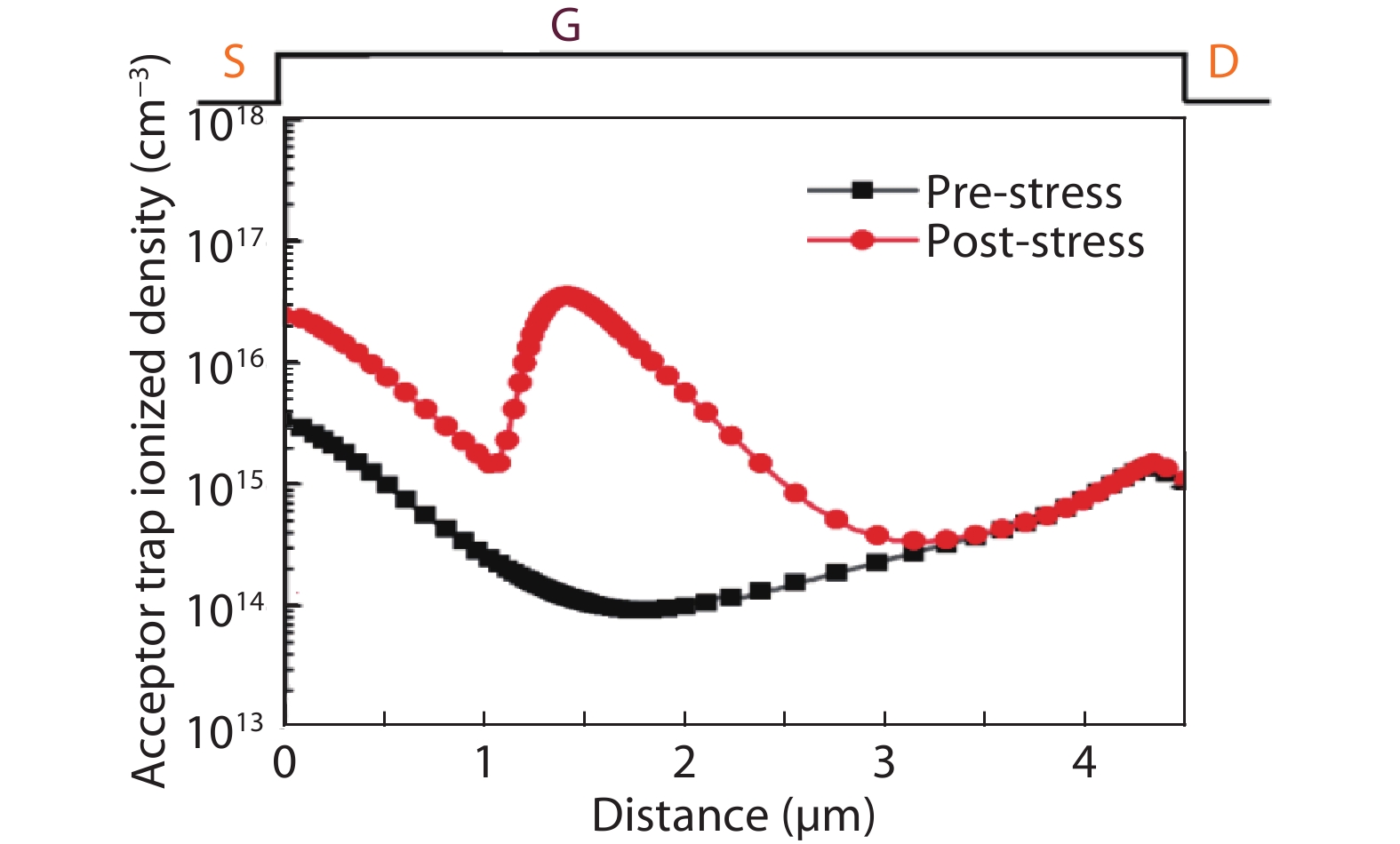

Fig. 7. (Color online) Ionised trap density horizontally at a depth of 0.5 μm in the substrate.
