Study of the influence of virtual guard ring width on the performance of SPAD detectors in 180 nm standard CMOS technology

Danlu Liu; Ming Li; Tang Xu; Jie Dong; Yuming Fang; Yue Xu

doi:10.1088/1674-4926/44/11/114102

J. Semicond. > 2023, Volume 44 > Issue 11 > 114102

ARTICLES

Study of the influence of virtual guard ring width on the performance of SPAD detectors in 180 nm standard CMOS technology

Danlu Liu¹, Ming Li¹, Tang Xu¹, Jie Dong¹, Yuming Fang^{1, 2} and Yue Xu^{1, 2,}

+ Author Affiliations

Corresponding author: Yue Xu, yuex@njupt.edu.cn

DOI: 10.1088/1674-4926/44/11/114102

Abstract: The influence of the virtual guard ring width (GRW) on the performance of the p-well/deep n-well single-photon avalanche diode (SPAD) in a 180 nm standard CMOS process was investigated. TCAD simulation demonstrates that the electric field strength and current density in the guard ring are obviously enhanced when GRW is decreased to 1 μm. It is experimentally found that, compared with an SPAD with GRW = 2 μm, the dark count rate (DCR) and afterpulsing probability (AP) of the SPAD with GRW = 1 μm is significantly increased by 2.7 times and twofold, respectively, meanwhile, its photon detection probability (PDP) is saturated and hard to be promoted at over 2 V excess bias voltage. Although the fill factor (FF) can be enlarged by reducing GRW, the dark noise of devices is negatively affected due to the enhanced trap-assisted tunneling (TAT) effect in the 1 μm guard ring region. By comparison, the SPAD with GRW = 2 μm can achieve a better trade-off between the FF and noise performance. Our study provides a design guideline for guard rings to realize a low-noise SPAD for large-array applications.

Key words: single-photon avalanche diode (SPAD), virtual guard ring, dark count rate (DCR), photon detection probability (PDP), afterpulsing probability (AP)

References

[1]	Henderson R K, Johnston N, Chen H C, et al. A 192 × 128 time correlated single photon counting imager in 40nm CMOS technology. ESSCIRC 2018 - IEEE 44th European Solid State Circuits Conference (ESSCIRC), 2018, 54 doi: 10.1109/ESSCIRC.2018.8494330
[2]	Ma Z Q, Wu Z, Xu Y. Compact SPAD pixels with fast and accurate photon counting in the analog domain. J Semicond, 2021, 42, 052402 doi: 10.1088/1674-4926/42/5/052402
[3]	Dieguez A, Canals J, Franch N, et al. A compact analog histogramming SPAD-based CMOS chip for time-resolved fluorescence. IEEE Trans Biomed Circuits Syst, 2019, 13, 343 doi: 10.1109/TBCAS.2019.2892825
[4]	Moreno-García M, Xu H S, Gasparini L, et al. Low-noise single photon avalanche diodes in a 110nm CIS technology. 2018 48th European Solid-State Device Research Conference (ESSDERC), 2018, 94 doi: 10.1109/ESSDERC.2018.8486883
[5]	Veerappan C, Charbon E. A substrate isolated CMOS SPAD enabling wide spectral response and low electrical crosstalk. IEEE J Sel Top Quantum Electron, 2014, 20, 299 doi: 10.1109/JSTQE.2014.2318436
[6]	Vornicu I, López-Martínez J M, Bandi F N, et al. Design of high-efficiency SPADs for LiDAR applications in 110nm CIS technology. IEEE Sens J, 2021, 21, 4776 doi: 10.1109/JSEN.2020.3032106
[7]	Sanzaro M, Gattari P, Villa F, et al. Single-photon avalanche diodes in a 0.16 μm BCD technology with sharp timing response and red-enhanced sensitivity. IEEE J Sel Top Quantum Electron, 2017, 24, 1 doi: 10.1109/JSTQE.2017.2762464
[8]	Niclass C, Gersbach M, Henderson R, et al. A single photon avalanche diode implemented in 130-nm CMOS technology. IEEE J Sel Top Quantum Electron, 2007, 13, 863 doi: 10.1109/JSTQE.2007.903854
[9]	Lee M J, Sun P F, Pandraud G, et al. First near-ultraviolet- and blue-enhanced backside-illuminated single-photon avalanche diode based on standard SOI CMOS technology. IEEE J Sel Top Quantum Electron, 2019, 25, 1 doi: 10.1109/JSTQE.2019.2918930
[10]	Lu X, Law M K, Jiang Y, et al. A 4-μm diameter SPAD using less-doped N-well guard ring in baseline 65-nm CMOS. IEEE Trans Electron Devices, 2020, 67, 2223 doi: 10.1109/TED.2020.2982701
[11]	Liu Y, Liu M L, Ma R, et al. A wide spectral response single photon avalanche diode for backside-illumination in 55-nm CMOS process. IEEE Trans Electron Devices, 2022, 69, 5041 doi: 10.1109/TED.2022.3194488
[12]	Richardson J A, Webster E A G, Grant L A, et al. Scaleable single-photon avalanche diode structures in nanometer CMOS technology. IEEE Trans Electron Devices, 2011, 58, 2028 doi: 10.1109/TED.2011.2141138
[13]	Jiang W, Chalich Y, Scott R, et al. Time-gated and multi-junction SPADs in standard 65 nm CMOS technology. IEEE Sens J, 2021, 21, 12092 doi: 10.1109/JSEN.2021.3063319
[14]	Sicre M, Agnew M, Buj C, et al. Dark count rate in single-photon avalanche diodes: Characterization and modeling study. ESSDERC 2021-IEEE 51st European Solid-State Device Research Conference (ESSDERC), 2021, 143 doi: 10.1109/ESSDERC53440.2021.9631797
[15]	Kindt W, Zeijl H. Modelling and fabrication of Geiger mode avalanche photodiodes. IEEE Trans Nucl Sci, 1998, 45, 715 doi: 10.1109/23.682621
[16]	Hurkx G A M, Klaassen D, Knuvers M. A new recombination model for device simulation including tunneling. IEEE Trans Electron Devices, 1992, 39, 331 doi: 10.1109/16.121690
[17]	Vornicu I, Bandi F, Carmona-Galán R, et al. Low-noise and high-efficiency near-IR SPADs in 110nm CIS technology. ESSDERC 2019-49th European Solid-State Device Research Conference (ESSDERC), 2019, 250 doi: 10.1109/ESSDERC.2019.8901757
[18]	Palubiak D P, Deen M J. CMOS SPADs: Design issues and research challenges for detectors, circuits, and arrays. IEEE J Sel Top Quantum Electron, 2014, 20, 409 doi: 10.1109/JSTQE.2014.2344034
[19]	Webster E A, Grant L A, Henderson R K. A high-performance single-photon avalanche diode in 130-nm CMOS imaging technology. IEEE Electron Device Lett, 2012, 33, 1589 doi: 10.1109/LED.2012.2214760
[20]	Xu Y, Xiang P, Xie X P, et al. A new modeling and simulation method for important statistical performance prediction of single photon avalanche diode detectors. Semicond Sci Technol, 2016, 31, 065024 doi: 10.1088/0268-1242/31/6/065024
[21]	Mandai S, Fishburn M W, Maruyama Y, et al. A wide spectral range single-photon avalanche diode fabricated in an advanced 180 nm CMOS technology. Opt Express, 2012, 20, 5849 doi: 10.1364/OE.20.005849

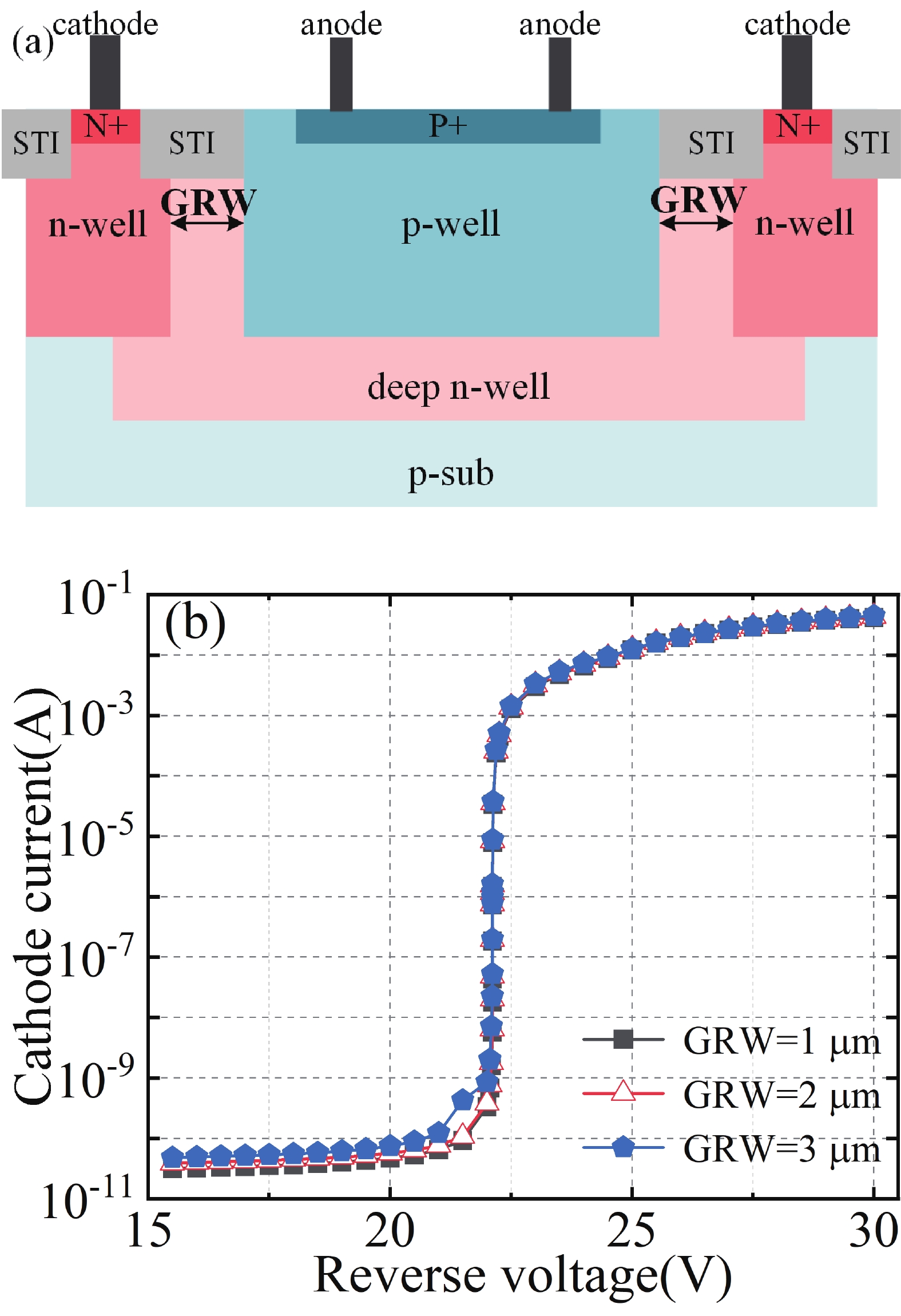

Fig. 1. (Color online) (a) Schematic cross-section of the p-well/deep n-well SPAD. (b) TCAD simulation of the reverse I−V characteristics.

DownLoad: Full-Size Img PowerPoint

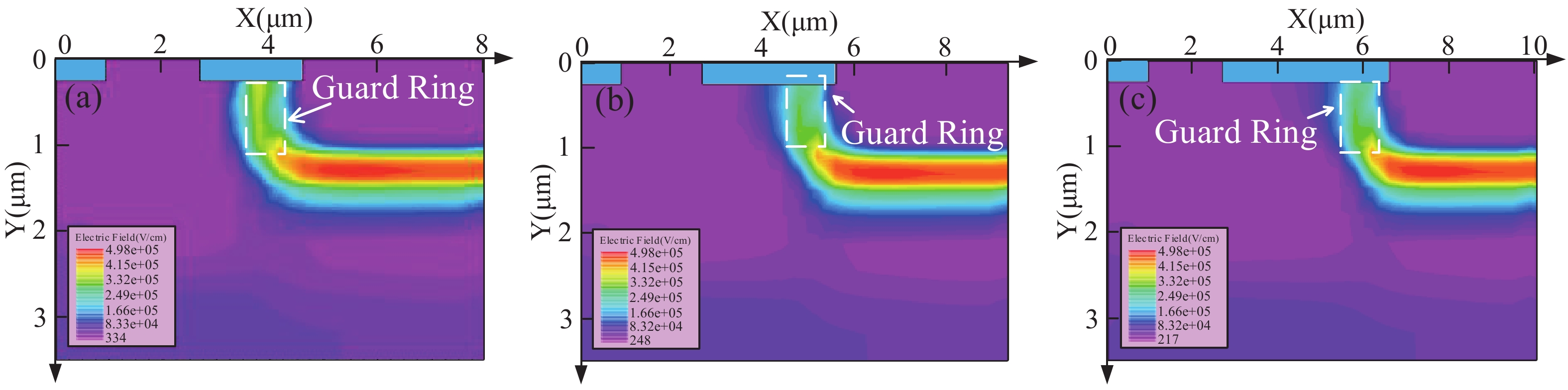

Fig. 2. (Color online) TCAD simulation of the electric field for devices with guard ring width (a–c) GRW = 1, 2, 3 μm.

DownLoad: Full-Size Img PowerPoint

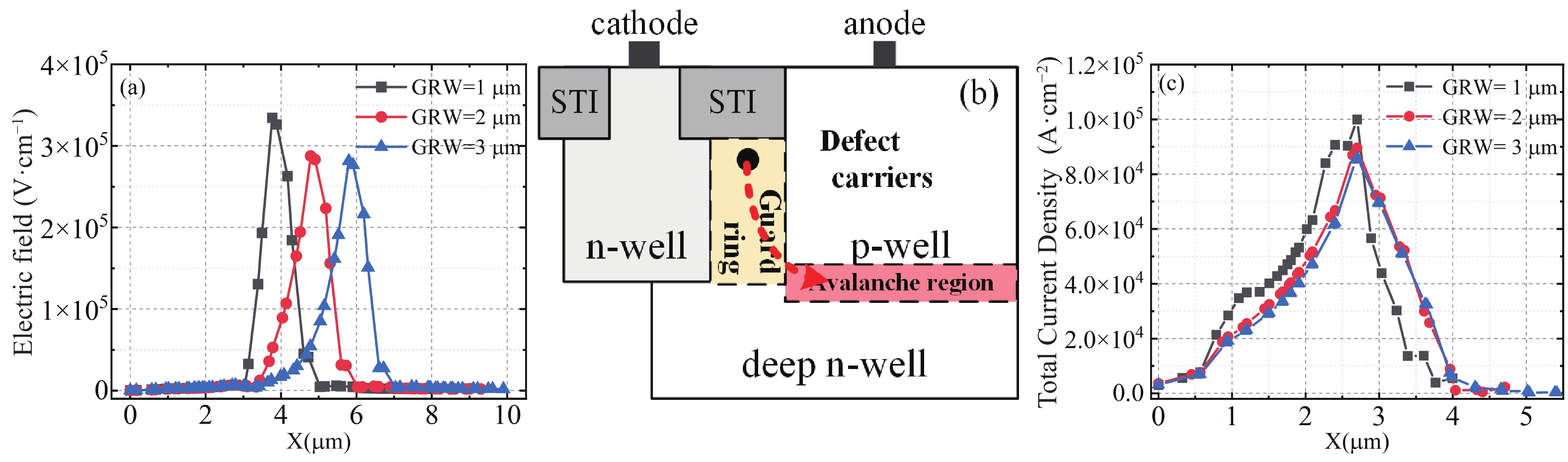

Fig. 3. (Color online) (a) TCAD simulation of electric field strength extracted at Y = 0.52 μm. (b) Drift path of minority electrons in the guard ring. (c) TCAD simulation of total current density extracted at Y = 0.52 μm.

DownLoad: Full-Size Img PowerPoint

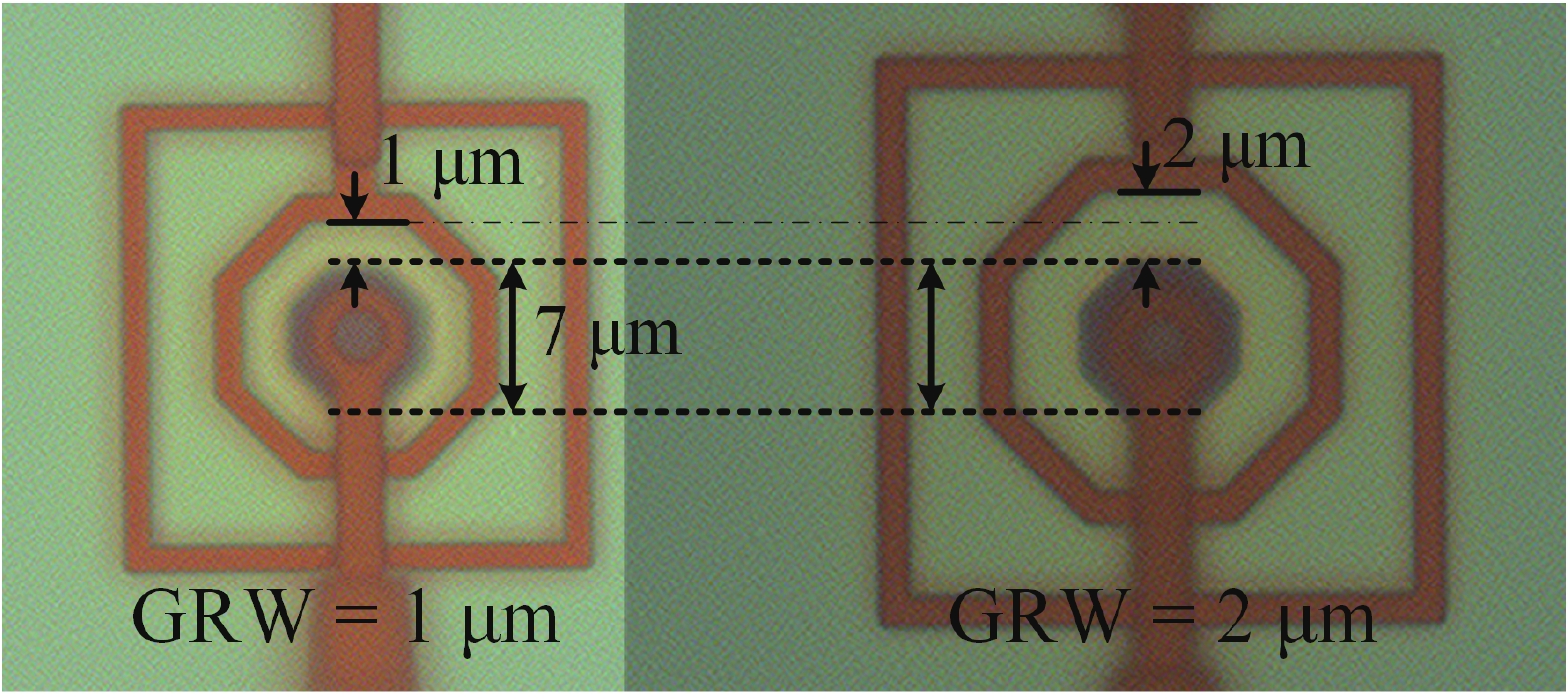

Fig. 4. (Color online) Micrograph of SPADs with GRW = 1 and 2 μm fabricated in a 180 nm standard CMOS technology.

DownLoad: Full-Size Img PowerPoint

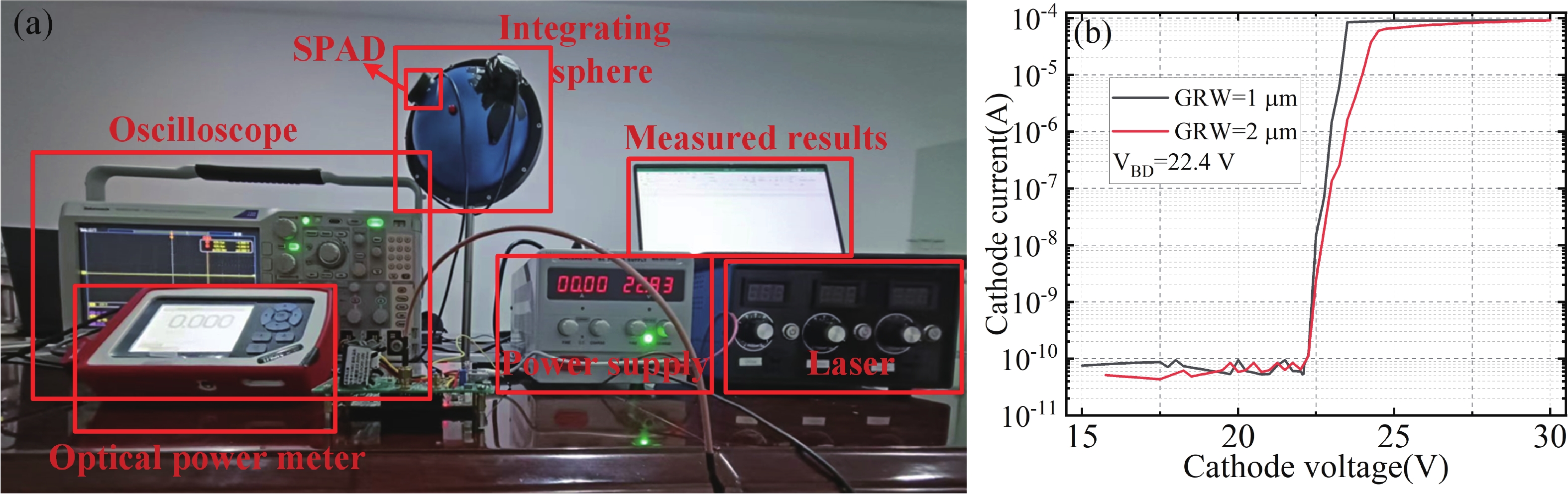

Fig. 5. (Color online) (a) Experimental setup for photon counting. (b) Measured reverse I−V characteristics of SPADs with two guard ring widths.

DownLoad: Full-Size Img PowerPoint

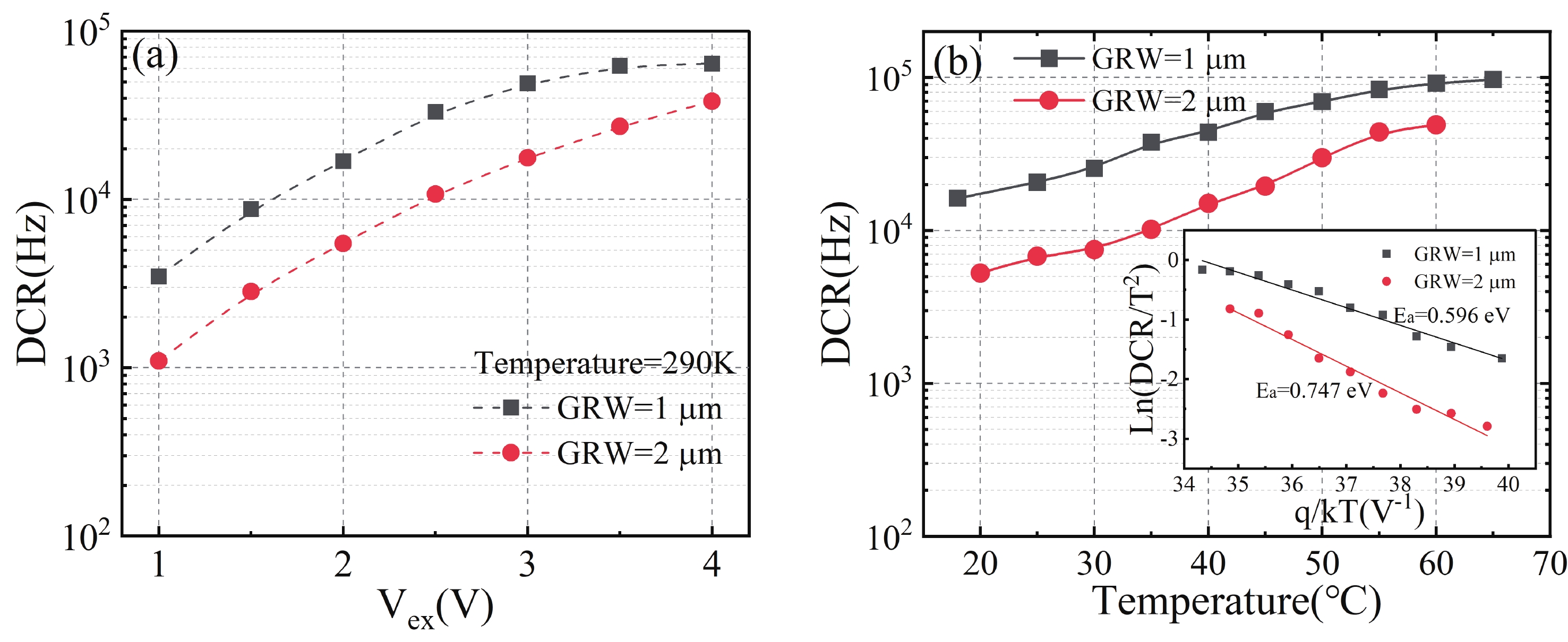

Fig. 6. (Color online) Variations of DCR (a) with V_ex at room temperature (T = 290 K) and (b) with the temperature at the excess bias of 2 V.

DownLoad: Full-Size Img PowerPoint

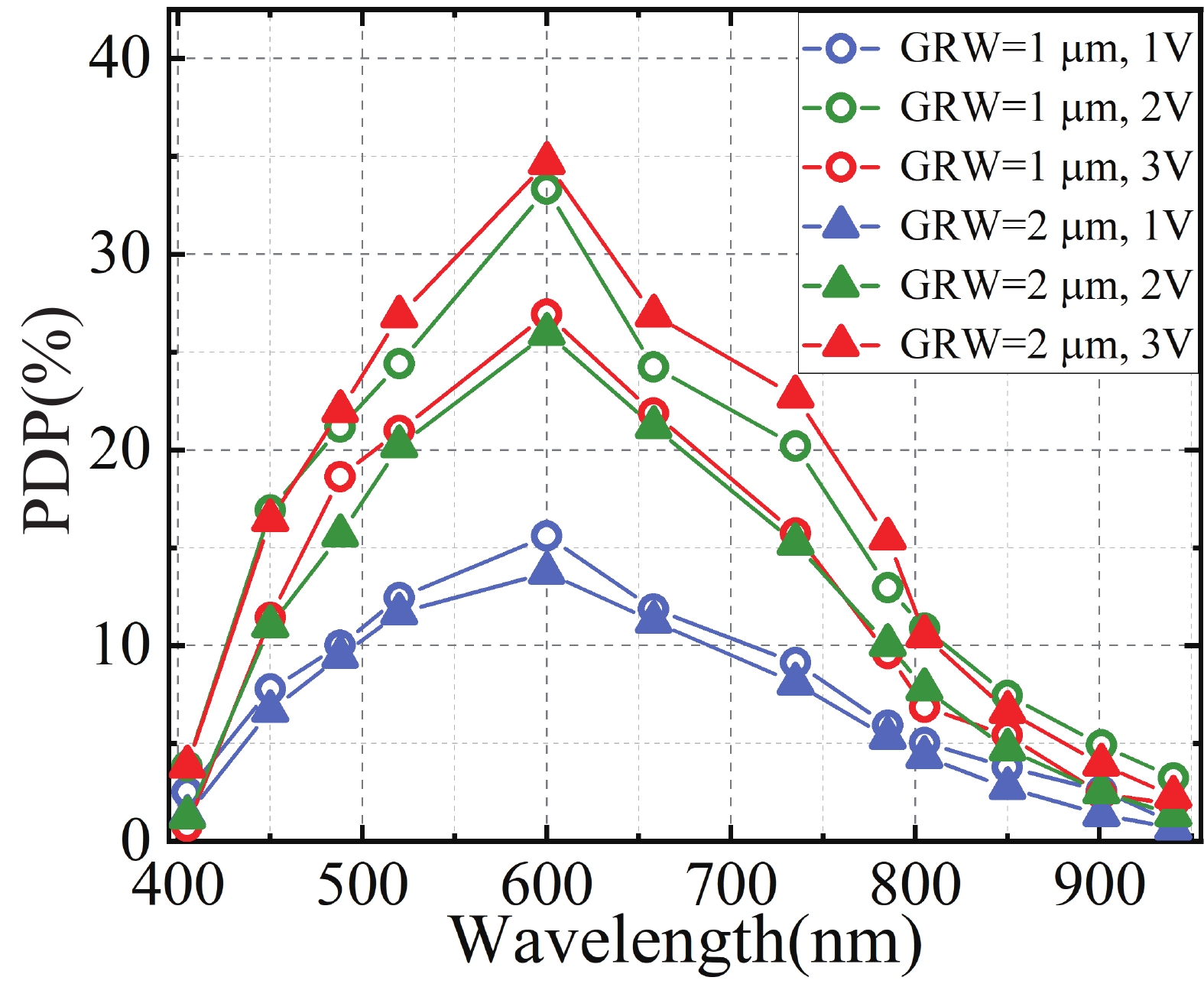

Fig. 7. (Color online) Measured PDP of SPADs at different excess bias voltages.

DownLoad: Full-Size Img PowerPoint

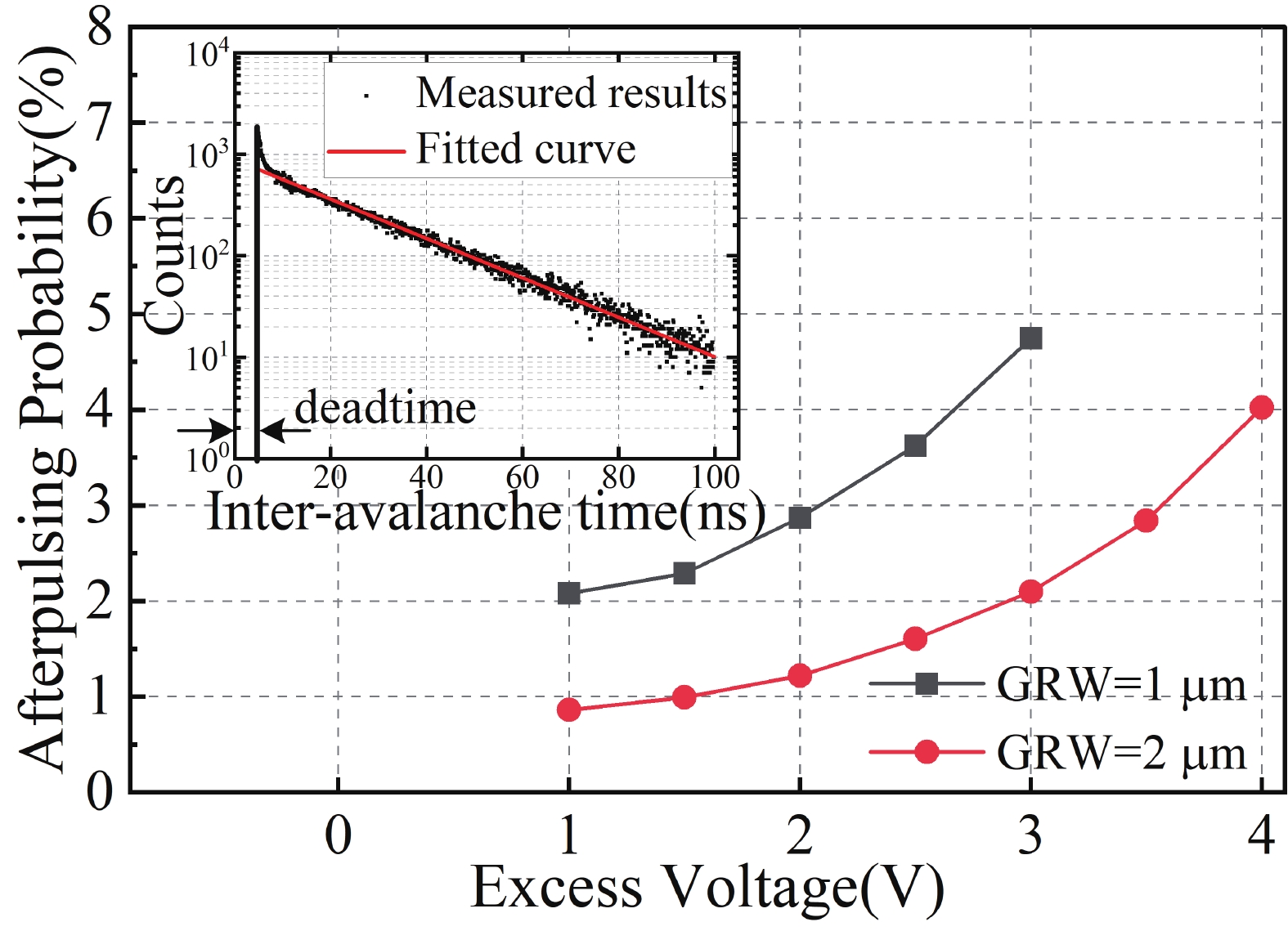

Fig. 8. (Color online) Measured AP of SPADs at different excess bias voltages.

DownLoad: Full-Size Img PowerPoint
