Recent developments in superjunction power devices

Chao Ma, Weizhong Chen, Teng Liu, Wentong Zhang and Bo Zhang

+ Author Affiliations

 Corresponding author: Bo Zhang, zhangbo@uestc.edu.cn

DOI: 10.1088/1674-4926/24050003

PDF

Turn off MathJax

Abstract: Superjunction (SJ) is one of the most innovative concepts in the field of power semiconductor devices and is often referred to as a "milestone" in power MOS. Its balanced charge field modulation mechanism breaks through the strong dependency between the doping concentration in the drift region and the breakdown voltage VB in conventional devices. This results in a reduction of the trade-off relationship between specific on-resistance Ron,sp and VB from the conventional Ron,sp∝VB2.5 to Ron,sp∝W∙VB1.32, and even to Ron,sp∝W·VB1.03. As the exponential term coefficient decreases, Ron,sp decreases with the cell width W, exhibiting a development pattern reminiscent of "Moore’s Law". This paper provides an overview of the latest research developments in SJ power semiconductor devices. Firstly, it introduces the minimum specific on-resistance Ron,min theory of SJ devices, along with its combination with special effects like 3-D depletion and tunneling, discussing the development of Ron,min theory in the wide bandgap SJ field. Subsequently, it discusses the latest advancements in silicon-based and wide bandgap SJ power devices. Finally, it introduces the homogenization field (HOF) and high-K voltage-sustaining layers derived from the concept of SJ charge balance. SJ has made significant progress in device performance, reliability, and integration, and in the future, it will continue to evolve through deeper integration with different materials, processes, and packaging technologies, enhancing the overall performance of semiconductor power devices.

Key words: super junction, silicon limit, power semiconductor device, design theory



[1]
Chenming H. Optimum doping profile for minimum ohmic resistance and high-breakdown voltage. IEEE Trans Electron Devices, 1979, 26(3), 243 doi: 10.1109/T-ED.1979.19416
[2]
Chen X B. Semiconductor power devices with alternating conductivity type high-voltage breakdown regions. USA Patent, US5216275, 1993
[3]
Fujihira T. Theory of Semiconductor Superjunction Devices. Jpn J Appl Phys, 1997, 36(10), 6254 doi: 10.1143/JJAP.36.6254
[4]
Lorenz L, Deboy G, Knapp A, et al. COOLMOS/sup TM/-a new milestone in high voltage power MOS. IEEE 11th International Symposium on Power Semiconductor Devices and ICs, 1999, 3 doi: 10.1109/ISPSD.1999.764028
[5]
Shenoy P M, Bhalla A, Dolny G M. Analysis of the effect of charge imbalance on the static and dynamic characteristics of the super junction MOSFET. IEEE 11th International Symposium on Power Semiconductor Devices and ICs, 1999, 99 doi: 10.1109/ISPSD.1999.764069
[6]
Chen X B, Mawby P A, K Board , et al. Theory of a novel voltage-sustaining layer for power devices. Microelectronics J, 1998, 29(12), 1005 doi: 10.1016/S0026-2692(98)00065-2
[7]
Strollo A G M, Napoli E. Optimal ON-resistance versus breakdown voltage tradeoff in superjunction power devices: a novel analytical model. IEEE Trans Electron Devices, 2001, 48(9), 2161 doi: 10.1109/16.944211
[8]
Zhang W T, Zhang B, Qiao M, et al. Optimization and new structure of super junction with isolator layer. IEEE Trans Electron Devices, 2017, 64(1), 217 doi: 10.1109/TED.2016.2628056
[9]
Zhang W T, Zhang B, Qiao M, et al. The RON, min of Balanced Symmetric Vertical Super Junction Based on R-well Model. IEEE Trans Electron Devices, 2017, 64(1), 224 doi: 10.1109/TED.2016.2632113
[10]
Zhang W, Zhang K, Wu L, et al. The minimum specific on-resistance of 3-D superjunction devices. IEEE Trans Electron Devices, 2023, 70(3), 1206 doi: 10.1109/TED.2023.3238386
[11]
Kang H and Udrea F. Theory of 3-D superjunction MOSFET. IEEE Trans Electron Devices, 2019, 66(12), 5254 doi: 10.1109/TED.2019.2947332
[12]
Chen X B, Yang H, Cheng M. New "silicon limit" of power devices. Solid State Electron, 2002, 46(8), 1185 doi: 10.1016/S0038-1101(02)00010-2
[13]
Disney D, Dolny G. JFET depletion in super junction devices. 2008 20th International Symposium on Power Semiconductor Devices and IC's, 2008, 157
[14]
Chen X. Microelectronic devices. 4th ed. Beijing: Publishing House of Electronics Industry, 2018, 1, 1
[15]
Liu E K, Zhu B S, and Luo J S. Semiconductor physics. 8th ed. Beijing: Publishing House of Electronics Industry, 2023, 1, 1
[16]
Liu E K, Zhu B S, and Luo J S. Semiconductor physics. 7th ed. Beijing: Publishing House of Electronics Industry, 2017, 1, 1
[17]
Wang C, Li X, Li L, et al. Performance limit and design guideline of 4H-SiC superjunction devices considering anisotropy of impact ionization. IEEE Electron Device Lett, 2022, 43(12), 2025 doi: 10.1109/LED.2022.3212465
[18]
Yu L, Sheng K. Modeling and optimal device design for 4H-SiC super-junction devices. IEEE Trans Electron Devices, 2008, 55(8), 1961 doi: 10.1109/TED.2008.926648
[19]
Li X, Li L, Xie K, et al. Charge imbalance tolerance of 4H-SiC superjunction devices featuring breakdown path variation. IEEE Electron Device Lett, 2023, 44(7), 1044 doi: 10.1109/LED.2023.3281328
[20]
Hatakeyama T, Nishio J, Ota C, et al. Physical modeling and scaling properties of 4H-SiC power devices. 2005 International Conference On Simulation of Semiconductor Processes and Devices, 2005, 171 doi: 10.1109/SISPAD.2005.201500
[21]
Platania E, Z Chen, F Chimento, et al. A physics-based model for a SiC JFET accounting for electric-field-dependent mobility. IEEE Trans Industry Applications, 2011, 47(1), 199 doi: 10.1109/TIA.2010.2090843
[22]
He N, Zhang S, Zhu X, et al. A 0. 25μm 700V BCD technology with ultra-low specific on-resistance SJ-LDMOS. 2020 32nd International Symposium on Power Semiconductor Devices and ICs, 2020, 419 doi: 10.1109/ISPSD46842.2020.9170046
[23]
He N, Zhang S, Wang H, et al. Ultra-high voltage BCD technology integrated 1000 V 3-D split-superjunction devices. 2022 IEEE 34th International Symposium on Power Semiconductor Devices and ICs, 2022, 305 doi: 10.1109/ISPSD49238.2022.9813681
[24]
Antoniou M, Udrea F, Bauer F. The superjunction insulated gate bipolar transistor optimization and modeling. IEEE Trans Electron Devices, 2010, 57(3), 594 doi: 10.1109/TED.2009.2039260
[25]
Fujishima N, Yano Y, Tada G, et al. N-ch IGBT with high reverse blocking capability for multipoint differential line drivers. IEEE 3rd International Symposium on Power Semiconductor Devices and ICs, 1991, 70 doi: 10.1109/ISPSD.1991.146069
[26]
Wu Y, Li Z, Pan J, et al. 650 V super-junction insulated gate bipolar transistor based on 45 μm ultrathin wafer technology. IEEE Electron Device Lett, 2022, 43(4), 592 doi: 10.1109/LED.2022.3154782
[27]
Kang H, Udrea F. Material limit of power devices—applied to asymmetric 2-D superjunction MOSFET. IEEE Trans on Electron Devices, 2018, 65(8), 3326 doi: 10.1109/TED.2018.2839180
[28]
iDEAL Semiconductor. SuperQ™ technology. https://idealsemi.com/technology/technology-1/, 2023
[29]
Nassif-khalil S G, Salama C A T. Super junction LDMOST in silicon-on-sapphire technology (SJ-LDMOST). International Symposium on Power Semiconductor Devices & IC's, 2002, 81 doi: 10.1109/ISPSD.2002.1016176
[30]
Zhang B, Zhang W T, Li Z J, et al. Equivalent substrate model for lateral super junction device. IEEE Trans Electron Devices, 2014, 61(2), 525 doi: 10.1109/TED.2013.2295091
[31]
Zhang B, Chen L, Wu J, et al. SLOP-LDMOS-a novel super-junction concept LDMOS and its experimental demonstration. International Conference on Communications, Circuits and Systems, 2005, 1402 doi: 10.1109/ICCCAS.2005.1495367
[32]
Zhang B, Wang W, Chen W, et al. High-voltage LDMOS with charge-balanced surface low on-resistance path layer. IEEE Electron Device Lett, 2009, 30(8), 849 doi: 10.1109/LED.2009.2023541
[33]
Park I Y, Salama C. CMOS compatible super junction LDMOST with n-buffer layer. International Symposium on Power Semiconductor Devices & Ics, 2005, 163 doi: 10.1109/ISPSD.2005.1487976
[34]
Zhang W T, Zhan Z Y, Yu Y, et al. Novel superjunction LDMOS (>950 V) with a thin layer SOI. IEEE Electron Device Lett, 2017, 38(11), 1555 doi: 10.1109/LED.2017.2751571
[35]
Nassif-Khalil S G, Hou Z L, Salama C A T. SJ/RESURF LDMOST. IEEE Trans Electron Devices, 2004, 51(7), 1185 doi: 10.1109/TED.2004.829876
[36]
NG R, UDREA F, SHENG K, et al. Lateral unbalanced super junction (USJ)/3D-RESURF for high breakdown voltage on SOI. International Symposium on Power Semiconductor Devices & IC's, 2001, 395 doi: 10.1109/ISPSD.2001.934637
[37]
Guo Y, Yao J, Zhang B, et al. Variation of lateral width technique in soi high-voltage lateral double-diffused metal–oxide–semiconductor transistors using high-K dielectric. IEEE Electron Device Lett, 2015, 36(3), 262 doi: 10.1109/LED.2015.2393913
[38]
Zhang W, Tian F, Liu Y, et al. Experiments of sub-micron superjunction devices with ultra-low specific on-resistance. IEEE Electron Device Lett, 2023, 44(7), 1160 doi: 10.1109/LED.2023.3274514
[39]
Zhong X, Wang B, Wang J, et al. Experimental demonstration and analysis of a 1.35-kV 0.92·mΩ∙cm2 SiC superjunction schottky diode. IEEE Trans Electron Devices, 2018, 65(4), 1458 doi: 10.1109/TED.2018.2809475
[40]
Harada S, Kobayashi Y, Kyogoku S, et al. First demonstration of dynamic characteristics for SiC superjunction MOSFET realized using multi-epitaxial growth method. International Electron Devices Meeting, 2018, 821 doi: 10.1109/IEDM.2018.8614670
[41]
Baba M, Tawara T, Morimoto T, et al. Ultra-low specific on-resistance achieved in 3.3 kV-class SiC superjunction MOSFET. International Symposium on Power Semiconductor Devices and ICs, 2021, 83 doi: 10.23919/ISPSD50666.2021.9452273
[42]
Ghandi R, Hitchcock C, Kennerly S, et al. Demonstration of 3.5kV SiC deep-implanted superjunction didoes. 2023 35th International Symposium on Power Semiconductor Devices and ICs, 2023, 13 doi: 10.1109/ISPSD57135.2023.10147432
[43]
Kosugi R, Ji S, Mochizuki K, et al. Breaking the theoretical limit of 6.5 kV-Class 4H-SiC super-junction (SJ) MOSFETs by trench-filling epitaxial growth. International Symposium on Power Semiconductor Devices and ICs, 2019, 39 doi: 10.1109/ISPSD.2019.8757632
[44]
Knoll J, Shawky M, Yen S H, et al. Characterization of 4.5 kV charge-balanced SiC MOSFETs. 2021 IEEE Applied Power Electronics Conference and Exposition, 2021, 2217 doi: 10.1109/APEC42165.2021.9487454
[45]
Ghandi R, Bolotnikov A, Lilienfeld D, et al. 3kV SiC charge-balanced diodes breaking unipolar limit. 2019 31st International Symposium on Power Semiconductor Devices and ICs, 2019, 179 doi: 10.1109/ISPSD.2019.8757568
[46]
Ghandi R, Bolotnikov A, Kennerly S, et al. 4.5kV SiC charge-balanced MOSFETs with ultra-low on-resistance. 2020 32nd International Symposium on Power Semiconductor Devices and ICs, 2020, 126 doi: 10.1109/ISPSD46842.2020.9170171
[47]
Ghandi R, Hitchcock C, Kennerly S, et al. Scalable ultrahigh voltage SiC superjunction device technologies for power electronics applications. 2022 International Electron Devices Meeting, 2022, 911 doi: 10.1109/IEDM45625.2022.10019368
[48]
Masuda T, Saito Y, Kumazawa T, et al. 0.63 mΩ·cm2/1170 V 4H-SiC super junction V-groove trench MOSFET. 2018 IEEE International Electron Devices Meeting, 2018, 811 doi: 10.1109/IEDM.2018.8614610
[49]
Ishida H, Shibata D, Matsuo H, et al. GaN-based natural super junction diodes with multi-channel structures. IEEE International Electron Devices Meeting, 2018, 1 doi: 10.1109/IEDM.2008.4796636
[50]
Nakajima A, Sumida Y, Dhyani M H, et al. GaN-based super heterojunction field effect transistors using the polarization junction concept. IEEE Electron Device Lett, 2011, 32(4), 542 doi: 10.1109/LED.2011.2105242
[51]
Li Z, Chow T P. Design and simulation of 5–20-kV GaN enhancement-mode vertical superjunction HEMT. IEEE Transactions on Electron Devices, 2013, 60(10), 3230 doi: 10.1109/TED.2013.2266544
[52]
Inni V, Hong L, SWEET M, et al. 2.4kV GaN polarization superjunction schottky barrier diodes on semi-insulating 6H-SiC substrate. IEEE International Symposium on Power Semiconductor Devices & IC's, 2014, 245 doi: 10.1109/ISPSD.2014.6856022
[53]
Hahn H, Reuters B, Geipel S, et al. Charge balancing in GaN-based 2-D electron gas devices employing an additional 2-D hole gas and its influence on dynamic behaviour of GaN-based heterostructure field effect transistors. J Appl Phys, 2015, 117(10), 151 doi: 10.1063/1.4913857
[54]
Napoli E. Superjunction. Wiley encyclopedia of electrical and electronics engineering. John Wiley: Sons, 2014
[55]
Shankar B, Soni A, Gupta S D, et al. Safe operating area (SOA) reliability of polarization super junction (PSJ) GaN FETs. IEEE International Reliability Physics Symposium, 2018, 1 doi: 10.1109/IRPS.2018.8353595
[56]
Zhang A, Qi Z, Chao Y, et al. Novel AlGaN/GaN SBDs with nanoscale multi-channel for gradient 2DEG modulation. 2018 IEEE 30th International Symposium on Power Semiconductor Devices and ICs, 2018, 204 doi: 10.1109/ISPSD.2018.8393638
[57]
Han S, Song J, Sadek M, et al. 12.5 kV GaN super-heterojunction schottky barrier diodes. IEEE Trans Electron Devices, 2021, 68(11), 5736 doi: 10.1109/TED.2021.3111543
[58]
Li Z, Naik H, Chow T P. Design of GaN and SiC 5–20kV vertical superjunction structures. Lester Eastman Conference on High Performance Devices, 2012, 1 doi: 10.1109/lec.2012.6410985
[59]
Zhang M, Guo Z, Huang Y, et al. Study of AlGaN/GaN vertical superjunction HEMT for improvement of breakdown voltage and specific on-resistance. IEEE Access, 2021, PP(99), 9895 doi: 10.1109/ACCESS.2021.3049374
[60]
Xiao M, Ma Y, Du Z, et al. First demonstration of vertical superjunction diode in GaN. 2022 International Electron Devices Meeting, 2022, 35.6.1 doi: 10.1109/IEDM45625.2022.10019405
[61]
Qin Y, Porter M, Xiao M, et al. 2 kV, 0.7 mΩ·cm2 vertical Ga2O3 superjunction schottky rectifier with dynamic robustness. 2023 International Electron Devices Meeting (IEDM), 2023, 1
[62]
Zhang B, Zhang W, Zu J, et al. Novel homogenization field technology in lateral power devices. IEEE Electron Device Lett, 2020, 41(11), 1677 doi: 10.1109/LED.2020.3023688
[63]
Zhang W T, Li Z J, Zhang B. A new type of homogenization field power semiconductor devices. 2022 IEEE 16th International Conference on Solid-State & Integrated Circuit Technology, 2022, 1 doi: 10.1109/ICSICT55466.2022.9963179
[64]
Zhang G, Zhang W, He J, et al. Experiments of a novel low on-resistance LDMOS with 3-D floating vertical field plate. 2019 31st International Symposium on Power Semiconductor Devices and ICs, 2019, 507 doi: 10.1109/ISPSD.2019.8757659
[65]
Zhang W, Wu Y, Zhang K, et al. Experiments of a lateral power device with complementary homogenization field structure. IEEE Electron Device Lett, 2021, 42(11), 1638 doi: 10.1109/LED.2021.3115134
[66]
Zhang W, He J, Wu Q, et al. A new multi-dimensional depletion concept of homogenization field devices. IEEE Electron Device Lett, 2023, 44(10), 1708 doi: 10.1109/LED.2023.3309917
[67]
Zhang W, Zu J, Zhu X, et al. Mechanism and experiments of a novel dielectric termination technology based on equal-potential principle. 32nd International Symposium on Power Semiconductor Devices and ICs, 2020, 38 doi: 10.1109/ISPSD46842.2020.9170124
[68]
Chen X B. Super-junction voltage sustaining layer with alternating semiconductor and high-K dielectric regions. USA Patent, US7230310, 2007
[69]
Chen X B, Huang M. A vertical power MOSFET with an interdigitated drift region using high-K insulator. IEEE Trans Electron Devices, 2012, 59(9), 2430 doi: 10.1109/TED.2012.2204890
[70]
Lyu X, Chen X. Vertical power high-K MOSFET of hexagonal layout. IEEE Trans Electron Devices, 2013, 60(5), 1709 doi: 10.1109/TED.2013.2249068
[71]
Luo X R, Cai J Y, Fan Y, et al. Novel low-resistance current path UMOS with high-K dielectric pillars. IEEE Trans Electron Devices, 2013, 60(9), 2840 doi: 10.1109/TED.2013.2272086
[72]
Chen W, Cheng, Chen X B. A novel IGBT with high-K dielectric modulation achieving ultralow turn-off loss. IEEE Trans Electron Devices, 2020, 67(3), 1066 doi: 10.1109/TED.2020.2964879
[73]
Deng J, Cheng J, Chen X B. An improved SOI p-channel LDMOS with high-K gate dielectric and dual hole-conductive paths. IEEE Electron Device Lett, 2017, 38(12), 1712 doi: 10.1109/LED.2017.2768159
[74]
Luo X, Lv M, Yin C, et al. Ultralow on-resistance SOI LDMOS with three separated gates and high-K dielectric. IEEE Trans Electron Devices, 2016, 63(9), 3804 doi: 10.1109/TED.2016.2589322
[75]
Cao Z, Duan B, Song H, et al. Novel superjunction LDMOS with a high-K dielectric trench by TCAD simulation study. IEEE Trans Electron Devices, 2019, 66(5), 2327 doi: 10.1109/TED.2019.2906911
[76]
Cheng J, Chen W, Lin J, et al. Potential of utilizing high-K film to improve the cost performance of trench LDMOS. IEEE Trans Electron Devices, 2019, 66(7), 3049 doi: 10.1109/TED.2019.2913780
[77]
Masuda T, Kosugi R, Hiyoshi T. 0.97 mΩ·cm2/820 V 4H-SiC super junction V-groove trench MOSFET. 2016 European Conference on Silicon Carbide & Related Materials, 2016, 1 doi: 10.4028/www.scientific.net/MSF.897.483
[78]
Kemmerling J, Guan R, Sadek M, et al. GaN super-heterojunction FETs with 10-kV blocking and 3-kV dynamic switching. IEEE Trans Electron Devices, 2024, 71(2), 1153 doi: 10.1109/TED.2023.3346356
[79]
Ma Y, Poter M, Qin Y, et al. 1 kV self-aligned vertical GaN superjunction diode. IEEE Electron Device Lett, 2024, 45(1), 12 doi: 10.1109/LED.2023.3332855
[80]
Qin Y, Poter M, Xiao M, et al. 2 kV, 0.7 mΩ·cm2 vertical Ga2O3 superjunction schottky rectifier with dynamic robustness. 2023 International Electron Devices Meeting, 2023, 1 doi: 10.1109/IEDM45741.2023.10413795
[81]
Lee S, Oh K, Kim S, et al. 650V superjunction MOSFET using universal charge balance concept through drift region. 2014 IEEE 26th International Symposium on Power Semiconductor Devices and IC's, 2014, 83 doi: 10.1109/ISPSD.2014.6855981
[82]
Wang Y, Qiao M, Li J, et al. Optimization of reverse recovery characteristics based on termination structure for 700V super-junction VDMOS. 2023 35th International Symposium on Power Semiconductor Devices and ICs, 2023, 171 doi: 10.1109/ISPSD57135.2023.10147399
[83]
Sakakibara J, Noda Y, Shibata T, et al. 600V-class super junction MOSFET with high aspect ratio P/N columns structure. 2008 20th International Symposium on Power Semiconductor Devices and IC's, 2008, 299 doi: 10.1109/ISPSD.2008.4538958
[84]
Yamauchi S, Shibata T, Nogami S, et al. 200V super junction MOSFET fabricated by high aspect ratio trench filling. 2006 IEEE International Symposium on Power Semiconductor Devices and IC's, 2006, 1 doi: 10.1109/ISPSD.2006.1666072
[85]
Hattori Y, Nakashima K, Kuwahara M, et al. Design of a 200V super junction MOSFET with n-buffer regions and its fabrication by trench filling. IEEE International Symposium on Power Semiconductor Devices & IC's, 2004, 189 doi: 10.1109/WCT.2004.239903
[86]
Nitta T, Minato T, Yano M, et al. Experimental results and simulation analysis of 250 V super trench power MOSFET (STM). IEEE International Symposium on Power Semiconductor Devices & IC's, 2000, 77 doi: 10.1109/ISPSD.2000.856777
Fig. 1.  (Color online) Typical product performance of 600 V class super junction MOSFET for 25 years.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  (Color online) (a) Structure of SJ and electric field dissertation along the avalanche breakdown path; three-dimensional distribution of bulk electric field in (b) SJ and non-SJ (c) devices.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  (Color online) R-well distribution and Ron,min of SJ.

DownLoad: Full-Size Img PowerPoint
Fig. 4.  (Color online) Avalanche breakdown path and its electric field of 3-D SJ.

DownLoad: Full-Size Img PowerPoint
Fig. 5.  (Color online) Double R-well distributions of 3-D SJ.

DownLoad: Full-Size Img PowerPoint

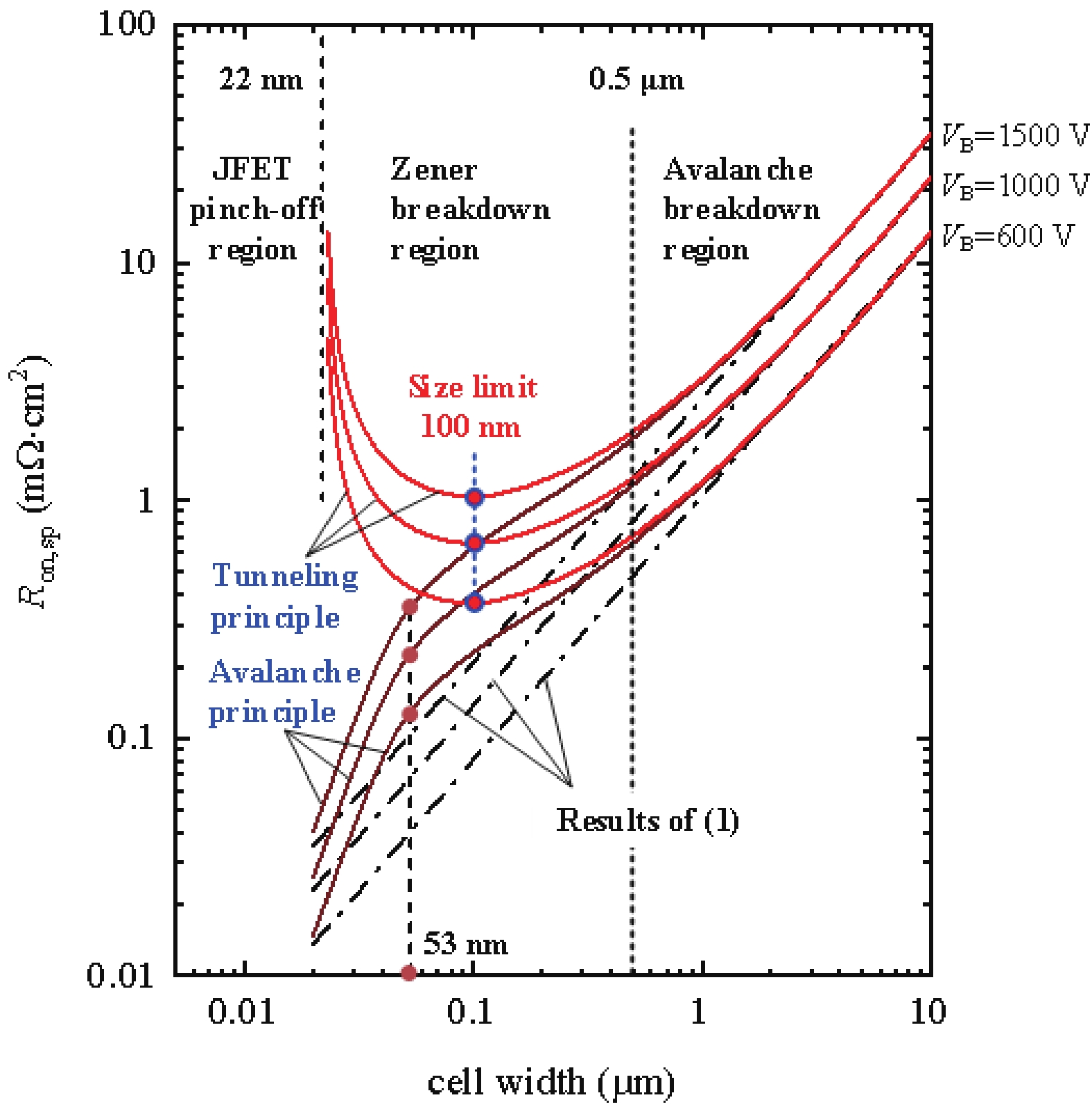

Fig. 6.  (Color online) Ron,sp versus W functions of SJ.

DownLoad: Full-Size Img PowerPoint
Fig. 7.  (Color online) R-well distribution a of SiC SJ.

DownLoad: Full-Size Img PowerPoint
Fig. 8.  (Color online) Typical structures of SJ IGBT with (a) P-pillar connected to P-body and (b) P-pillar separated from P-body can achieve lower turn-off losses under different SJ doping concentrations. Reproduced with permission from Refs. [25, 26].

DownLoad: Full-Size Img PowerPoint
Fig. 9.  (Color online) (a) Structure and (b) SEM of SJ IGBT with ultra-thin wafer thickness; compared with thin SJ-IGBT both at 650 A/cm2 and at room temperature, the on-state voltage of the ultrathin SJ-IGBT could be decreased by about 160 mV, turn-off energy loss could be decreased by 22%. Reproduced with permission from Ref. [26].

DownLoad: Full-Size Img PowerPoint
Fig. 10.  (Color online) Super-Q devices. (a) Concept and (b) SEM picture. Reproduced with permission from Ref. [28].

DownLoad: Full-Size Img PowerPoint
Fig. 11.  (Color online) Integrated SJ device with optimized ES.

DownLoad: Full-Size Img PowerPoint
Fig. 12.  (Color online) Integrated sub-micron SJ device; a measured low Ron,sp of 27.8 mΩ· cm2 was observed under a VB of 622.6 V.

DownLoad: Full-Size Img PowerPoint
Fig. 13.  (Color online) (a) SiC SJ based on deep trend etching and tilted implantation. (b) The experiment verifies that the device achieves a Ron,sp of 80 mΩ·cm² while withstanding a VB of 1200 V. Reproduced with permission from Ref. [39].

DownLoad: Full-Size Img PowerPoint
Fig. 14.  SiC SJ based on multiple epitaxy and repeated implantations. A 1.2 kV-class superjunction (SJ) UMOSFET was realized using a multi-epitaxial growth method. Reproduced with permission from Ref. [40].

DownLoad: Full-Size Img PowerPoint
Fig. 15.  (Color online) Deep trench etching and epitaxial filling process for SiC SJ. The measured Ron,sp of a 7.8 kV SJ MOSFET was 17.8 mΩ·cm2, which is less than half the Ron,sp of the state-of-the-art 6.5 kV-class SiC MOSFET with an n-type drift layer. Reproduced with permission from Ref. [43].

DownLoad: Full-Size Img PowerPoint
Fig. 16.  (Color online) (a) Schematic view and (b) SEM of SiC charge-balanced (CB) MOSFET. Reproduced with permission from Ref. [44].

DownLoad: Full-Size Img PowerPoint
Fig. 17.  (Color online) GaN SJ with multiple current paths. It has been reported that GaN SJ has achieved a Ron,sp reduction to 100.8 mΩ·cm2 at a VB of 12.5 kV.

DownLoad: Full-Size Img PowerPoint
Fig. 18.  (Color online) Vertical GaN SJ device structure. (a) SJ GaN diode; (b) SJ high electron mobility transistor. Reproduced with permission from Ref. [58, 59].

DownLoad: Full-Size Img PowerPoint
Fig. 19.  (Color online) SEM image of vertical GaN SJ device. (a) Side-view SEM images of GaN pillars; (b) cross-section FIB-SEM images of the SJ region. GaN SJ-PNDs on GaN and sapphire both show a VB of 1100 V, with the Ron,sp extracted to be mΩ·cm. Reproduced with permission from Ref. [60].

DownLoad: Full-Size Img PowerPoint
Fig. 20.  (Color online) HOF structure and electric field. (a) Schematic structure; (b) 3D electric field distribution.

DownLoad: Full-Size Img PowerPoint
Fig. 21.  (Color online) New structures of HOF devices; (a) S-HOF device; (b) C-HOF device; (c) M-HOF device; it has been demonstrated experimentally that the M-HOF device achieved a Ron,sp of only 15.5 mΩ·cm2 at a breakdown voltage VB of 436 V.

DownLoad: Full-Size Img PowerPoint
Fig. 22.  (Color online) Dielectric termination technology; continuous MIS trenchs are introduced at the terminal curvature junction, which intercepts the electric field lines directed towards the region with smaller curvature.

DownLoad: Full-Size Img PowerPoint
Fig. 23.  (Color online) Measured results of HOF devices. (a) VB and Ron,sp as functions of Dn. (b) On-state Id versus Vd curves.

DownLoad: Full-Size Img PowerPoint
Fig. 24.  (Color online) (a) VDMOS with high-K dielectric. (b) Two-dimensional electric field vector distribution. Reproduced with permission from Ref. [68].

DownLoad: Full-Size Img PowerPoint
Fig. 25.  (a) Mechanism of high-K device. (b) Hexagonal cell structure of high-K device. Reproduced with permission from Ref. [69, 70].

DownLoad: Full-Size Img PowerPoint
Fig. 26.  (Color online) Discrete high-K devices. (a) High-K dielectric UMOS structure with a low-resistance channel. (b) High-K trench gate IGBT.

DownLoad: Full-Size Img PowerPoint
Fig. 27.  (Color online) Integrated high-K devices. (a) PLDMOS. (b) Three-gate LDMOS. (c) SJ LDMOS. (d) Trench-type LDMOS.

DownLoad: Full-Size Img PowerPoint
Fig. 28.  (Color online) A comparison of the performance of current SJ devices.

DownLoad: Full-Size Img PowerPoint
Fig. 29.  (Color online) Prospects of SJ.
