Nucleation control for the growth of two-dimensional single crystals

Jinxia Bai1, 2, §, Chi Zhang1, 2, §, Fankai Zeng1, 2, Jinzong Kou1, 2, Jinhuan Wang1, 2, and Xiaozhi Xu1, 2,

+ Author Affiliations

 Corresponding author: Jinhuan Wang, jinhuanwang@scnu.edu.cn; Xiaozhi Xu, xiaozhixu@scnu.edu.cn

DOI: 10.1088/1674-4926/25030023CSTR: 32376.14.1674-4926.25030023

PDF

Turn off MathJax

Abstract: The unique structure and exceptional properties of two-dimensional (2D) materials offer significant potential for transformative advancements in semiconductor industry. Similar to the reliance on wafer-scale single-crystal ingots for silicon-based chips, practical applications of 2D materials at the chip level needs large-scale, high-quality production of 2D single crystals. Over the past two decades, the size of 2D single-crystals has been improved to wafer or meter scale, where the nucleation control during the growth process is particularly important. Therefore, it is essential to conduct a comprehensive review of nucleation control in 2D materials to gain fundamental insights into the growth of 2D single-crystal materials. This review mainly focuses on two aspects: controlling nucleation density to enable the growth from a single nucleus, and controlling nucleation position to achieve the unidirectionally aligned islands and subsequent seamless stitching. Finally, we provide an overview and forecast of the strategic pathways for emerging 2D materials.

Key words: 2D materials, single crystals, nucleation density, nucleation position



[1]
Morton J J L, McCamey D R, Eriksson M A, et al. Embracing the quantum limit in silicon computing. Nature, 2011, 479(7373), 345 doi: 10.1038/nature10681
[2]
Ferain I, Colinge C A and Colinge J P. Multigate transistors as the future of classical metal-oxide-semiconductor field-effect transistors. Nature, 2011, 479(7373), 310 doi: 10.1038/nature10676
[3]
Ionescu A M and Riel H. Tunnel field-effect transistors as energy-efficient electronic switches. Nature, 2011, 479(7373), 329 doi: 10.1038/nature10679
[4]
Theis T N and Solomon P M. It's time to reinvent the transistor! Science, 2010, 327(5973), 1600
[5]
Lundstrom M. Moore's law forever? Science, 2003, 299(5604), 210
[6]
Castellanos-Gomez A. Why all the fuss about 2D semiconductors? Nature Photonics, 2016, 10(4), 202
[7]
Mounet N, Gibertini M, Schwaller P, et al. Two-dimensional materials from high-throughput computational exfoliation of experimentally known compounds. Nature Nanotechnology, 2018, 13(3), 246 doi: 10.1038/s41565-017-0035-5
[8]
Novoselov K S, Geim A K, Morozov S V, et al. Electric field effect in atomically thin carbon films. Science, 2004, 306(5696), 666 doi: 10.1126/science.1102896
[9]
Li X, Cai W, An J, et al. Large-area synthesis of high-quality and uniform graphene films on copper foils. Science, 2009, 324(5932), 1312 doi: 10.1126/science.1171245
[10]
Desai S B, Madhvapathy S R, Sachid A B, et al. MoS2 transistors with 1-nanometer gate lengths. Science, 2016, 354(6308), 99 doi: 10.1126/science.aah4698
[11]
Chhowalla M, Shin H S, Eda G, et al. The chemistry of two-dimensional layered transition metal dichalcogenide nanosheets. Nature Chemistry, 2013, 5(4), 263 doi: 10.1038/nchem.1589
[12]
Song L, Ci L J, Lu H, et al. Large scale growth and characterization of atomic hexagonal boron nitride layers. Nano Letters, 2010, 10(8), 3209 doi: 10.1021/nl1022139
[13]
Shi Y, Hamsen C, Jia X, et al. Synthesis of few-layer hexagonal boron nitride thin film by chemical vapor deposition. Nano Letters, 2010, 10(10), 4134 doi: 10.1021/nl1023707
[14]
Wu R T, Drozdov I K, Eltinge S, et al. Large-area single-crystal sheets of borophene on Cu(111) surfaces. Nature Nanotechnology, 2019, 14(1), 44 doi: 10.1038/s41565-018-0317-6
[15]
Chen C, Yin Y L, Zhang R C, et al. Growth of single-crystal black phosphorus and its alloy films through sustained feedstock release. Nature Materials, 2023, 22(6), 717 doi: 10.1038/s41563-023-01516-1
[16]
Zhou Z Q, Shen T, Wang P, et al. Low symmetric sub-wavelength array enhanced lensless polarization- sensitivity photodetector of germanium selenium. Science Bulletin, 2023, 68(2), 173 doi: 10.1016/j.scib.2023.01.013
[17]
Weber B, Fuhrer M S, Sheng X L, et al. 2024 roadmap on 2D topological insulators. Materials Futures, 2024, 7(2), 022501
[18]
Lin Y C, Torsi R, Younas R, et al. Recent advances in 2D material theory, synthesis, properties, and applications. ACS Nano, 2023, 17(11), 9694 doi: 10.1021/acsnano.2c12759
[19]
Barja S, Refaely-Abramson S, Schuler B, et al. Identifying substitutional oxygen as a prolific point defect in monolayer transition metal dichalcogenides. Nature Communications, 2019, 10(1), 3382 doi: 10.1038/s41467-019-11342-2
[20]
Rhodes D, Chae S H, Ribeiro-Palau R, et al. Disorder in van der Waals heterostructures of 2D materials. Nature Materials, 2019, 18(6), 541 doi: 10.1038/s41563-019-0366-8
[21]
Yao W, Wu B and Liu Y. Growth and grain boundaries in 2D materials. ACS Nano, 2020, 14(8), 9320 doi: 10.1021/acsnano.0c03558
[22]
Hämäläinen J, Mattinen M, Mizohata K, et al. Atomic layer deposition of rhenium disulfide. Advanced Materials, 2018, 30(24), 1703622 doi: 10.1002/adma.201703622
[23]
Parker M Oxide dielectrics that grow on 2D materials. Nature Electronics, 2024, 7(7), 513
[24]
Cai J Y, Han X X, Wang X, et al. Atomic layer deposition of two-dimensional layered materials: processes, growth mechanisms, and characteristics. Matter, 2020, 2(3), 587 doi: 10.1016/j.matt.2019.12.026
[25]
Liu Z L, Wu X, Shao Y, et al. Epitaxially grown monolayer VSe2: an air-stable magnetic two-dimensional material with low work function at edges. Science Bulletin, 2018, 63(7), 419 doi: 10.1016/j.scib.2018.03.008
[26]
Poh S M, Zhao X X, Tan S J R, et al. Molecular beam epitaxy of highly crystalline MoSe2 on hexagonal boron nitride. ACS Nano, 2018, 12(8), 7562 doi: 10.1021/acsnano.8b04037
[27]
Chen M W, Ovchinnikov D, Lazar S, et al. Highly oriented atomically thin ambipolar MoSe2 grown by molecular beam epitaxy. ACS Nano, 2017, 11(6), 6355 doi: 10.1021/acsnano.7b02726
[28]
Ma K Y, Zhang L, Jin S, et al. Epitaxial single-crystal hexagonal boron nitride multilayers on Ni (111). Nature, 2022, 606(7912), 88 doi: 10.1038/s41586-022-04745-7
[29]
Dai Z H, Liu L Q and Zhang Z. Strain engineering of 2D materials: Issues and opportunities at the interface. Advanced Materials, 2019, 31(45), 1805417 doi: 10.1002/adma.201805417
[30]
Aljarb A, Cao Z, Tang H L, et al. Substrate lattice-guided seed formation controls the orientation of 2D transition-metal dichalcogenides. ACS Nano, 2017, 11(9), 9215 doi: 10.1021/acsnano.7b04323
[31]
Li P F, Kang Z, Zhang Z, et al. In situ microscopy techniques for characterizing the mechanical properties and deformation behavior of two-dimensional (2D) materials. Materials Today, 2021, 51, 247 doi: 10.1016/j.mattod.2021.10.009
[32]
Ismach A, Druzgalski C, Penwell S, et al. Direct chemical vapor deposition of graphene on dielectric surfaces. Nano Letters, 2010, 10(5), 1542 doi: 10.1021/nl9037714
[33]
Pang J B, Mendes R G, Wrobel P S, et al. Self-terminating confinement approach for large-area uniform monolayer graphene directly over Si/SiOX by chemical vapor deposition. ACS Nano, 2017, 11(2), 1946 doi: 10.1021/acsnano.6b08069
[34]
Tang S J, Wang H M, Wang H S, et al. Silane-catalysed fast growth of large single-crystalline graphene on hexagonal boron nitride. Nature Communications, 2015, 6(1), 6499 doi: 10.1038/ncomms7499
[35]
Kato T and Hatakeyama R. Direct growth of doping-density-controlled hexagonal graphene on SiO2 substrate by rapid-heating plasma CVD. ACS Nano, 2012, 6(10), 8508 doi: 10.1021/nn302290z
[36]
Jang A R, Hong S, Hyun C, et al. Wafer-scale and wrinkle-free epitaxial growth of single-orientated multilayer hexagonal boron nitride on sapphire. Nano Letters, 2016, 16(5), 3360 doi: 10.1021/acs.nanolett.6b01051
[37]
Shi Z Y, Wang X J, Li Q T, et al. Vapor-liquid-solid growth of large-area multilayer hexagonal boron nitride on dielectric substrates. Nature Communications, 2020, 11(1), 8 doi: 10.1038/s41467-019-13858-z
[38]
Zhou J D, Lin J H, Huang X W, et al. A library of atomically thin metal chalcogenides. Nature, 2018, 556(7701), 355 doi: 10.1038/s41586-018-0008-3
[39]
Wu T R, Zhang X F, Yuan Q H, et al. Fast growth of inch-sized single-crystalline graphene from a controlled single nucleus on Cu-Ni alloys. Nature Materials, 2016, 15(1), 43 doi: 10.1038/nmat4477
[40]
Xu X Z, Zhang Z H, Dong J C, et al. Ultrafast epitaxial growth of metre-sized single-crystal graphene on industrial Cu foil. Science Bulletin, 2017, 62(15), 1074 doi: 10.1016/j.scib.2017.07.005
[41]
Deng B, Xin Z W, Xue R W, et al. Scalable and ultrafast epitaxial growth of single-crystal graphene wafers for electrically tunable liquid-crystal microlens arrays. Science Bulletin, 2019, 64(10), 659 doi: 10.1016/j.scib.2019.04.030
[42]
Wang L, Xu X Z, Zhang L N, et al. Epitaxial growth of a 100-square-centimetre single-crystal hexagonal boron nitride monolayer on copper. Nature, 2019, 570(7759), 91 doi: 10.1038/s41586-019-1226-z
[43]
Yang P F, Zhang S Q, Pan S Y, et al. Epitaxial growth of centimeter-scale single-crystal MoS2 monolayer on Au(111). ACS Nano, 2020, 14(4), 5036 doi: 10.1021/acsnano.0c01478
[44]
Wang J H, Xu X Z, Cheng T, et al. Dual-coupling-guided epitaxial growth of wafer-scale single-crystal WS2 monolayer on vicinal a-plane sapphire. Nature Nanotechnology, 2022, 17(1), 33 doi: 10.1038/s41565-021-01004-0
[45]
Chen T-A, Chuu C-P, Tseng C-C, et al. Wafer-scale single-crystal hexagonal boron nitride monolayers on Cu (111). Nature, 2020, 579(7798), 219 doi: 10.1038/s41586-020-2009-2
[46]
Lin L, Li J Y, Ren H Y, et al. Surface engineering of copper foils for growing centimeter-sized single-crystalline graphene. ACS Nano, 2016, 10(2), 2922 doi: 10.1021/acsnano.6b00041
[47]
Yan Z, Lin J, Peng Z W, et al. Toward the synthesis of wafer-scale single-crystal graphene on copper foils. ACS Nano, 2012, 6(10), 9110 doi: 10.1021/nn303352k
[48]
Ding D, Solís-Fernández P, Hibino H, et al. Spatially controlled nucleation of single crystal graphene on Cu assisted by stacked Ni. ACS Nano, 2016, 10(12), 11196 doi: 10.1021/acsnano.6b06265
[49]
Zhou H L, Yu W J, Liu L X, et al. Chemical vapour deposition growth of large single crystals of monolayer and bilayer graphene. Nature Communications, 2013, 4(1), 2096 doi: 10.1038/ncomms3096
[50]
Li J, Wang X Y, Liu X R, et al. Facile growth of centimeter-sized single-crystal graphene on copper foil at atmospheric pressure. Journal Of Materials Chemistry C, 2015, 3(15), 3530 doi: 10.1039/C5TC00235D
[51]
Mohsin A, Liu L, Liu P Z, et al. Synthesis of millimeter-size hexagon-shaped graphene single crystals on resolidified copper. ACS Nano, 2013, 7(10), 8924 doi: 10.1021/nn4034019
[52]
Hao Y F, Bharathi M S, Wang L, et al. The role of surface oxygen in the growth of large single-crystal graphene on copper. Science, 2013, 342(6159), 720 doi: 10.1126/science.1243879
[53]
Vlassiouk I V, Stehle Y, Pudasaini P R, et al. Evolutionary selection growth of two-dimensional materials on polycrystalline substrates. Nature Materials, 2018, 17(4), 318 doi: 10.1038/s41563-018-0019-3
[54]
Xu X Z, Zhang Z H, Qiu L, et al. Ultrafast growth of single-crystal graphene assisted by a continuous oxygen supply. Nature Nanotechnology, 2016, 11(11), 930 doi: 10.1038/nnano.2016.132
[55]
Chia X Y and Pumera M. Characteristics and performance of two-dimensional materials for electrocatalysis. Nature Catalysis, 2018, 1(12), 909 doi: 10.1038/s41929-018-0181-7
[56]
Daus A, Vaziri S, Chen V, et al. High-performance flexible nanoscale transistors based on transition metal dichalcogenides. Nature Electronics, 2021, 4(7), 495 doi: 10.1038/s41928-021-00598-6
[57]
Xing Z, Xiaozong H, Jing Y, et al. 2D layered material-based van der Waals heterostructures for optoelectronics Advanced Functional Materials, 2023, 33(18), 1
[58]
An J R, Zhao X Y, Zhang Y N, et al. Perspectives of 2D materials for optoelectronic integration. Advanced Functional Materials, 2022, 32(14), 24
[59]
Liang G Z, Yu X C, Hu X N, et al. Mid-infrared photonics and optoelectronics in 2D materials. Materials Today, 2021, 51, 294 doi: 10.1016/j.mattod.2021.09.021
[60]
Zhou G, Ji J, Chen Z, et al. Scalable electronic and optoelectronic devices based on 2D TMDs. Materials Futures, 2024, 3(4), 042701 doi: 10.1088/2752-5724/ad7c6c
[61]
Qiu H, Yu Z, Zhao T, et al. Two-dimensional materials for future information technology: status and prospects. Science China Information Sciences, 2024, 67(6), 160400 doi: 10.1007/s11432-024-4033-8
[62]
Xu X L, Pan Y, Liu S, et al. Seeded 2D epitaxy of large-area single-crystal films of the van der Waals semiconductor 2H MoTe2. Science, 2021, 372(6538), 195 doi: 10.1126/science.abf5825
[63]
Suzuki H, Hashimoto R, Misawa M, et al. Surface diffusion-limited growth of large and high-quality monolayer transition metal dichalcogenides in confined space of microreactor. ACS Nano, 2022, 16(7), 11360 doi: 10.1021/acsnano.2c05076
[64]
Zhang Z W, Chen P, Yang X D, et al. Ultrafast growth of large single crystals of monolayer WS2 and WSe2. National Science Review, 2020, 7(4), 737 doi: 10.1093/nsr/nwz223
[65]
Jiang H, Zhang X, Chen K, et al. Two-dimensional Czochralski growth of single-crystal MoS2. Nature Materials, 2025, 24(2), 188 doi: 10.1038/s41563-024-02069-7
[66]
Abbas A, Luo Y J, Ahmad W, et al. Recent progress, challenges, and opportunities in 2D materials for flexible displays. Nano Today, 2024, 56, 102256 doi: 10.1016/j.nantod.2024.102256
[67]
Yang L S, Chen W J, Yu Q M, et al. Mass production of two-dimensional materials beyond graphene and their applications. Nano Research, 2021, 14(6), 1583 doi: 10.1007/s12274-020-2897-3
[68]
Song X J, Gao J F, Nie Y F, et al. Chemical vapor deposition growth of large-scale hexagonal boron nitride with controllable orientation. Nano Research, 2015, 8(10), 3164 doi: 10.1007/s12274-015-0816-9
[69]
Liu L N, Wu J X, Wu L Y, et al. Phase-selective synthesis of 1T′ MoS2 monolayers and heterophase bilayers. Nature Materials, 2018, 17(12), 1108 doi: 10.1038/s41563-018-0187-1
[70]
Ruzmetov D, Zhang K, Stan G, et al. Vertical 2D/3D semiconductor heterostructures based on epitaxial molybdenum disulfide and gallium nitride. ACS Nano, 2016, 10(3), 3580 doi: 10.1021/acsnano.5b08008
[71]
Zhu H, Nayir N, Choudhury T H, et al. Step engineering for nucleation and domain orientation control in WSe2 epitaxy on c-plane sapphire. Nature Nanotechnology, 2023, 18(11), 1295 doi: 10.1038/s41565-023-01456-6
[72]
Yang P, Wang D, Zhao X, et al. Epitaxial growth of inch-scale single-crystal transition metal dichalcogenides through the patching of unidirectionally orientated ribbons. Nature Communications, 2022, 13(1), 3238 doi: 10.1038/s41467-022-30900-9
[73]
Wu M, Zhang Z, Xu X, et al. Seeded growth of large single-crystal copper foils with high-index facets. Nature, 2020, 581(7809), 406 doi: 10.1038/s41586-020-2298-5
[74]
Li Y L Z, Sun L Z, Chang Z H, et al. Large single-crystal cu foils with high-index facets by strain-engineered anomalous grain growth. Advanced Materials, 2020, 32(29), 7
[75]
Hou Y T, Wang B J, Zhan L L, et al. Surface crystallographic structure insensitive growth of oriented graphene domains on Cu substrates. Materials Today, 2020, 36, 10 doi: 10.1016/j.mattod.2019.12.001
[76]
Lee J-H, Lee E K, Joo W-J, et al. Wafer-scale growth of single-crystal monolayer graphene on reusable hydrogen-terminated germanium. Science, 2014, 344(6181), 286 doi: 10.1126/science.1252268
[77]
Li P L, Wei W Y, Zhang M, et al. Wafer-scale growth of single-crystal graphene on vicinal Ge(001) substrate. Nano Today, 2020, 34, 100908 doi: 10.1016/j.nantod.2020.100908
[78]
Kang H, Tang P T, Shu H B, et al. Epitaxial growth of wafer scale antioxidant single-crystal graphene on twinned Pt(111). Carbon, 2021, 181, 225 doi: 10.1016/j.carbon.2021.05.027
[79]
Zhao T E, Guo J X, Li T T, et al. Substrate engineering for wafer-scale two-dimensional material growth: strategies, mechanisms, and perspectives. Chemical Society Reviews, 2023, 52(5), 1650 doi: 10.1039/D2CS00657J
[80]
Nguyen V L, Shin B G, Duong D L, et al. Seamless stitching of graphene domains on polished copper (111) foil. Advanced Materials, 2015, 27(8), 1376 doi: 10.1002/adma.201404541
[81]
Hu B S, Ago H, Ito Y, et al. Epitaxial growth of large-area single-layer graphene over Cu(111)/sapphire by atmospheric pressure CVD. Carbon, 2012, 50(1), 57 doi: 10.1016/j.carbon.2011.08.002
[82]
Nai C T, Xu H, Tan S J R, et al. Analyzing dirac cone and phonon dispersion in highly oriented nanocrystalline graphene. ACS Nano, 2016, 10(1), 1681 doi: 10.1021/acsnano.5b07662
[83]
Gao L B, Xu H, Li L J, et al. Heteroepitaxial growth of wafer scale highly oriented graphene using inductively coupled plasma chemical vapor deposition. 2D Materials, 2016, 3(2), 021001 doi: 10.1088/2053-1583/3/2/021001
[84]
Wang X L, Yuan Q H, Li J, et al. The transition metal surface dependent methane decomposition in graphene chemical vapor deposition growth. Nanoscale, 2017, 9(32), 11584 doi: 10.1039/C7NR02743E
[85]
Liu Y F, Wu T R, Yin Y L, et al. How low nucleation density of graphene on CuNi alloy is achieved. Advanced Science, 2018, 5(6), 8
[86]
Walsh L A and Hinkle C L van der Waals epitaxy: 2D materials and topological insulators. Applied Materials Today, 2017, 9, 504
[87]
Liu C, Liu T Y, Zhang Z B, et al. Understanding epitaxial growth of two-dimensional materials and their homostructures. Nature Nanotechnology, 2024, 19(7), 907 doi: 10.1038/s41565-024-01704-3
[88]
Tay R Y, Griep M H, Mallick G, et al. Growth of large single-crystalline two-dimensional boron nitride hexagons on electropolished copper. Nano Letters, 2014, 14(2), 839 doi: 10.1021/nl404207f
[89]
Liu L X, Gong P L, Liu K L, et al. Van der Waals epitaxial growth of single-crystal molecular film. National Science Review, 2024, 11(11), 9
[90]
Dong J C, Zhang L N, Dai X Y, et al. The epitaxy of 2D materials growth. Nature Communications, 2020, 11(1), 8 doi: 10.1038/s41467-019-13858-z
[91]
Zheng P M, Wei W Y, Liang Z H, et al. Universal epitaxy of non-centrosymmetric two-dimensional single-crystal metal dichalcogenides. Nature Communications, 2023, 14(1), 7 doi: 10.1038/s41467-022-35617-3
[92]
Fu J H, Min J C, Chang C K, et al. Oriented lateral growth of two-dimensional materials on c-plane sapphire. Nature Nanotechnology, 2023, 18(11), 1289 doi: 10.1038/s41565-023-01445-9
[93]
Liu L, Li T T, Ma L, et al. Uniform nucleation and epitaxy of bilayer molybdenum disulfide on sapphire. Nature, 2022, 605(7908), 69 doi: 10.1038/s41586-022-04523-5
[94]
Wang L, Qi J J, Wei W Y, et al. Bevel-edge epitaxy of ferroelectric rhombohedral boron nitride single crystal. Nature, 2024, 629(8010), 18 doi: 10.1038/d41586-024-01052-1
[95]
Manzeli S, Ovchinnikov D, Pasquier D, et al. 2D transition metal dichalcogenides. Nature Reviews Materials, 2017, 2(8), 15
[96]
Li T, Guo W, Ma L, et al. Epitaxial growth of wafer-scale molybdenum disulfide semiconductor single crystals on sapphire. Nature Nanotechnology, 2021, 16(11), 1201 doi: 10.1038/s41565-021-00963-8
[97]
Qin B, Ma C J, Guo Q L, et al. Interfacial epitaxy of multilayer rhombohedral transition-metal dichalcogenide single crystals. Science, 2024, 385(6704), 99 doi: 10.1126/science.ado6038
[98]
Nirmal K A, Kumbhar D D, Kesavan A V, et al. Advancements in 2D layered material memristors: unleashing their potential beyond memory. npj 2D Materials and Applications, 2024, 8(1), 27 doi: 10.1038/s41699-024-00462-z
[99]
Li L, Wang Q Q, Wu F F, et al. Epitaxy of wafer-scale single-crystal MoS2 monolayer via buffer layer control. Nature Communications, 2024, 15(1), 9 doi: 10.1038/s41467-023-44466-7
[100]
Chang C, Zhang X W, Li W X, et al. Remote epitaxy of single-crystal rhombohedral WS2 bilayers. Nature Communications, 2024, 15(1), 7 doi: 10.1038/s41467-023-43978-6

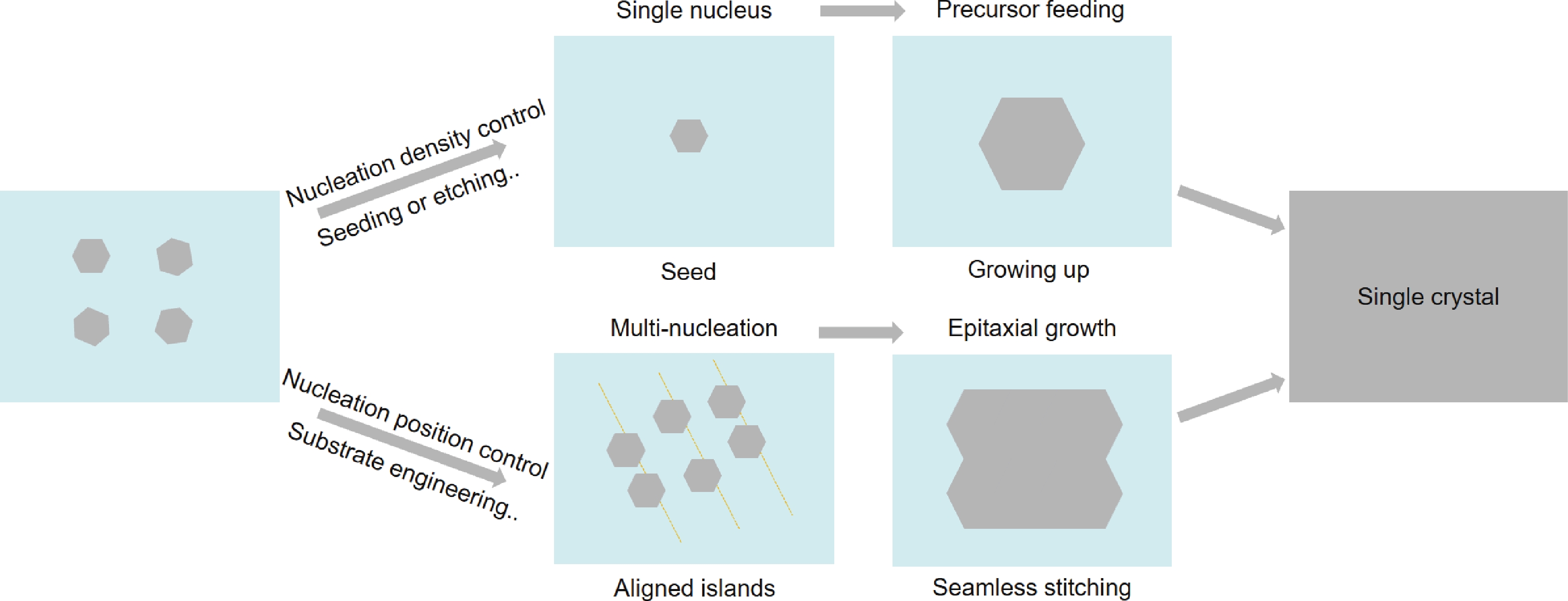

Fig. 1.  (Color online) Schematic diagram of two strategies for the epitaxial growth of single-crystal 2D materials.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  (Color online) Single-nucleus growth through nucleation density control. (a) Schematic diagrams of local feedstock feeding. (b) Synthesis of a ~1.5-inch single crystal graphene on a Cu85Ni15 alloy substrate from a single nucleus[39]. Copyright 2016 Springer Nature. (c) Experimental design of oxygen continuous feeding for optimized graphene synthesis on copper. (d) Large graphene domains formed on the back surfaces of copper foils[54]. Copyright 2016 Springer Nature. (e) Seed crystal growth of single-crystal 2H-MoTe₂ wafers. (f) Optical image of the 2H-MoTe2 wafer[62]. Copyright 2021The American Association for the Advancement of Science. (g) Schematic illustrations of the vapor-liquid-solid (VLS) growth mechanism in confined-space CVD using a substrate-stacked microreactor configuration[63]. Copyright 2022 American Chemical Society. (h) The schematic diagram of the epitaxial growth of large MoS2 domain by the 2DCZ method[65]. Copyright 2025 Springer Nature.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  (Color online) VdW epitaxial growth of single-crystal graphene. (a) The evolution mechanism diagram of a large single-crystal Cu (111) foil. (b) Optical image of randomly distributed holes generated by H2 etching on the graphene film[40]. Copyright 2017 Elsevier B.V. and Science China Press. (c) SEM image of graphene seeds. (d) The synthesis of graphene on a 5.08-cm Ge/Si (110) wafer[76]. Copyright 2014 The American Association for the Advancement of Science. (e) SEM image of graphene domains grown on CuNi (111). (f) A 4-inch CuNi (111) thin film synthesized on a sapphire substrate[41]. Copyright 2019 Elsevier B.V. and Science China Press.

DownLoad: Full-Size Img PowerPoint
Fig. 4.  (Color online) Step-guided epitaxial growth of single-crystal TMD. (a) Schematic diagrams for the growth process of the unidirectional hBN domains on the single-crystal Cu (110) surface. (b) SEM image of unidirectionally arranged hBN domains growing on the surface of Cu (110)[42]. Copyright 2019 Springer Nature. (c) The epitaxial mechanism of Ni (110) bevel-edge steps conforming the formation of rBN with ABC-stacking. (d) SEM image of the multilayer triangular domain on the stepped Ni (520) surface[94]. Copyright 2024 Springer Nature. (e) Schematic illustration of the unidirectionally aligned MoS2 on Au (111). (f) Two kinds of step edges (A-step and B-step) along the <110> direction on the Au (111) surface[43]. Copyright 2020 American Chemical Society. (g) Step orientations along <$11 \bar{2}0 $> and <$ 10\bar{1} 0$> on C/M and C/A sapphire (0001) wafers and the corresponding MoS2 epitaxial growth[96]. Copyright 2021 Springer Nature. (h) Schematic diagram for interfacial epitaxy of multilayer 3R-TMD single crystals[97]. Copyright 2024 The American Association for the Advancement of Science.

DownLoad: Full-Size Img PowerPoint
Fig. 5.  (Color online) Non-step-guided epitaxial growth of single-crystal TMD. (a) Optical image of the aligned arrangement of WS2 islands along the <$11 \bar{0}0 $> direction of a-sapphire. (b) The atomic force microscopy (AFM) image of a WS2 island[44]. Copyright 2022 Springer Nature. (c) Optical image of unidirectionally aligned MoS2 grains on c-Al2O3. (d) The MoS2 grain on three types of step edges[91]. Copyright 2023 Springer Nature. (e) C-plane sapphire terraces with the single-type exposing surface. (f) Unidirectional MoS2 seeds grow on monotype terraces on the surface of c-sapphire[92]. Copyright 2023 Springer Nature. (g) Unidirectionally aligned MoS2 domains enabled by buffer layer control strategy[99]. Copyright 2024 Springer Nature. (h) Optical image of aligned bilayer WS2 islands. (i) Schematic diagrams of the remote sapphire step-TMD interaction[100]. Copyright 2024 Springer Nature.
