Solar-blind UV light-modulated β-Ga2O3 full-wave bridge rectifier

Haifeng Chen1, , Yuduo Zhang1, Xiexin Sun1, Jingguo Zong2, Qin Lu1, Yifan Jia1, Zhenfu Feng1, Zhan Wang1, Lijun Li1, Xiangtai Liu1, Shaoqing Wang1 and Yue Hao3

+ Author Affiliations

 Corresponding author: Haifeng Chen, chenhaifeng@xupt.edu.cn

DOI: 10.1088/1674-4926/25040027CSTR: 32376.14.1674-4926.25040027

PDF

Turn off MathJax

Abstract: A monolithic integrated full-wave bridge rectifier consisted of horizontal Schottky-barrier diodes (SBD) is prepared based on 100 nm ultra-thin β-Ga2O3 and demonstrated the solar-blind UV (SUV) light-modulated characteristics. Under SUV light illumination, the rectifier has the excellent full-wave rectification characteristics for the AC input signals of 5 V, 12 V and 24 V with different frequencies. Further, experimental results confirmed the feasibility of continuously tuning the rectified output through SUV light-encoding. This work provides valuable insights for the development of optically programmable Ga2O3 AC-DC converters.

Key words: β-Ga2O3Schottky-barrier diodefull-wave bridge rectifiersolar-blind UV



[1]
Higashiwaki M, Sasaki K, Kuramata A, Masui T, Yamakoshi S. Gallium oxide (Ga2O3) metal–semiconductor field-effect transistors on single-crystal β-Ga2O3 (010) substrates. Appl Phys Lett, 2012, 100(1), 013504. doi: 10.1063/1.3674287
[2]
Higashiwaki M, Sasaki K, Kamimura T, et al. Depletion-mode Ga2O3 metal–oxide–semiconductor field-effect transistors on β-Ga2O3 (010) substrates and temperature dependence of their device characteristics. Appl Phys Lett, 2013, 103(12), 123511. doi: 10.1063/1.4821858
[3]
Ahmadi E, Oshima Y. Materials issues and devices of α- and β-Ga2O3. J Appl Phys, 2019, 126(16), 160901. doi: 10.1063/1.5123213
[4]
Sasaki K, Kuramata A, Masui T, et al. Device-quality β-Ga2O3 epitaxial films fabricated by ozone molecular beam epitaxy. Appl Phys Express, 2012, 5(3), 035502. doi: 10.1143/APEX.5.035502
[5]
Ji M, Taylor NR, Kravchenko I, et al. Demonstration of large-size vertical Ga2O3 Schottky barrier diodes. IEEE Trans Power Electron, 2020, 36, 41.
[6]
Wang C, Zhang J, Xu S, et al. Progress in state-of-the-art technologies of Ga2O3 devices. J Phys D: Appl Phys, 2021, 54(24), 243001. doi: 10.1088/1361-6463/abe158
[7]
Hu Z, Zhao C, Feng Q, et al. The investigation of β-Ga2O3 Schottky diode with floating field ring termination and the interface states. ECS J Solid State Sci Technol, 2020, 9(2), 025001. doi: 10.1149/2162-8777/ab6162
[8]
Roy S, Bhattacharyya A, Ranga P, et al. High-k oxide field-plated vertical (001) β-Ga2O3 Schottky barrier diode with Baliga’s figure of merit over 1 GW/cm². IEEE Electron Device Lett, 2021, 42(8), 1140-1143. doi: 10.1109/LED.2021.3089945
[9]
Roy S, Batra M, Zhao X, et al. 2.1 kV (001)-β-Ga2O3 vertical Schottky barrier diode with high-k oxide field plate. Appl Phys Lett, 2023, 122(15), 153503.
[10]
Li WS, Nomoto K, Hu ZY, et al. Field-plated Ga2O3 trench Schottky barrier diode with a BV²/Ron, sp of up to 0.95 GW/cm². IEEE Electron Device Lett, 2020, 41, 107-110. doi: 10.1109/LED.2019.2953559
[11]
Gabriel K, Koubar A, El Hajj M, et al. 2.45 GHz low-power diode bridge rectifier design. In: Proc 2023 Int Conf Microelectron (ICM). IEEE, 2023
[12]
Busatto T, Rönnberg SK, Bollen MHJ. Comparison of models of single-phase diode bridge rectifiers for their use in harmonic studies with many devices. Energies, 2021, 15(1), 66. doi: 10.3390/en15010066
[13]
Zhou K, He Q, Jian G, et al. A unified hybrid compact model of β-Ga2O3 Schottky barrier diodes for mixer and rectifier applications. Sci China Inf Sci, 2021, 64, 219403. doi: 10.1007/s11432-021-3224-2
[14]
Hong W, Zhang C, Zhang F, et al. Performance improvement of β-Ga2O3 SBD-based rectifier with embedded microchannels in ceramic substrate. Sci China Inf Sci, 2024, 67, 159404. doi: 10.1007/s11432-024-3992-8
[15]
Liu Z, Zhi YS, Zhang SH, et al. Ultrahigh-performance planar β-Ga2O3 solar-blind Schottky photodiode detectors. Sci China Technol Sci, 2021, 64(1), 59-64. doi: 10.1007/s11431-020-1701-2
[16]
Wu D, Zhao ZH, Lu W, et al. Highly sensitive solar-blind deep ultraviolet photodetector based on graphene/PtSe2/β-Ga2O3 2D/3D Schottky junction with ultrafast speed. Nano Res, 2021, 14, 1973-1979. doi: 10.1007/s12274-021-3346-7
[17]
Orita M, Ohta H, Hirano M, et al. Deep-ultraviolet transparent conductive β-Ga2O3 thin films. Appl Phys Lett, 2000, 77(25), 4166-4168. doi: 10.1063/1.1330559
[18]
Liu Z, Wang X, Liu Y, et al. A high-performance ultraviolet solar-blind photodetector based on a β-Ga2O3 Schottky photodiode. J Mater Chem C, 2019, 7, 13920-13929. doi: 10.1039/C9TC04912F

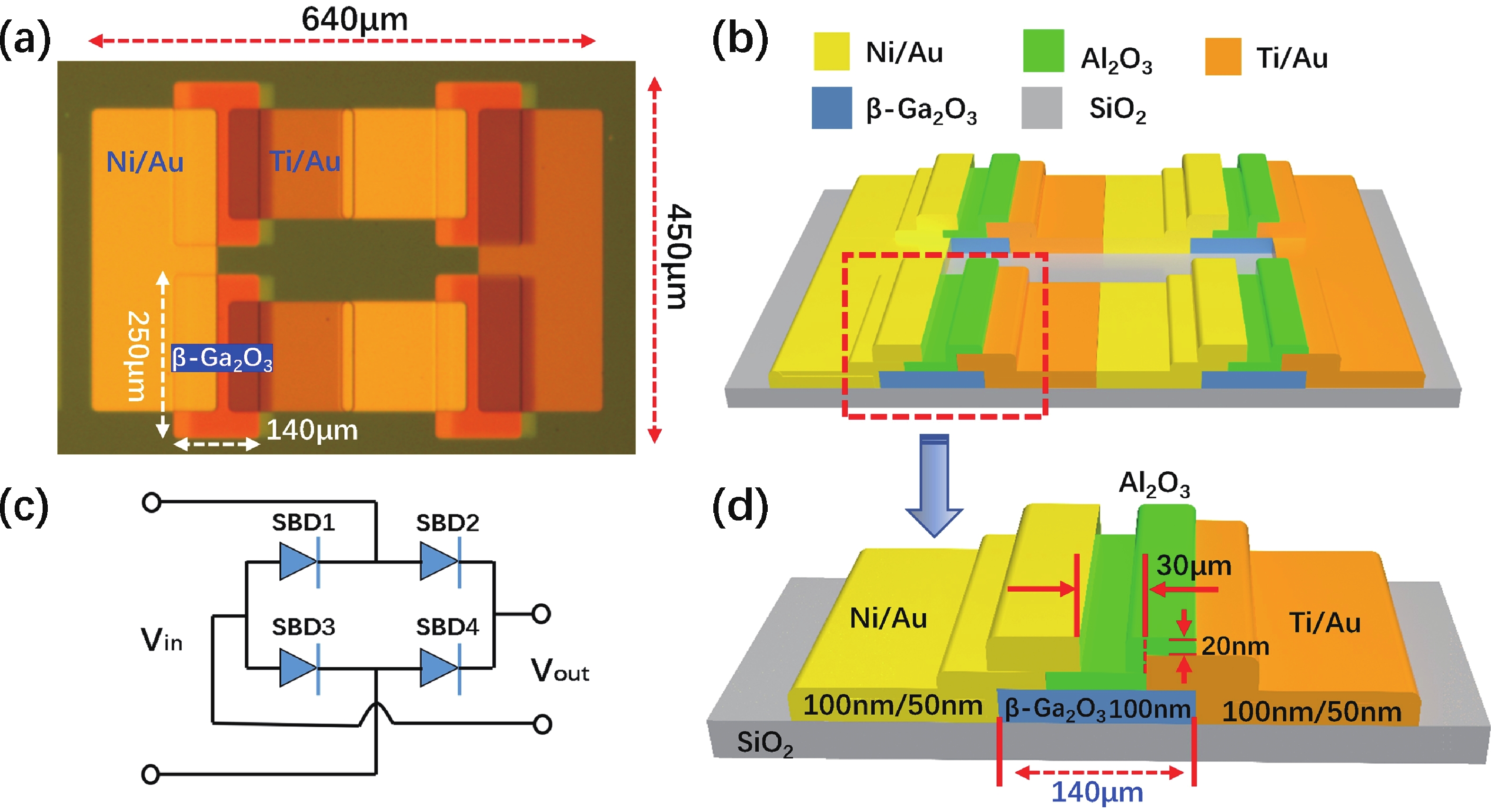

Fig. 1.  (Color online) (a) Image of prepared β-Ga2O3 full-wave bridge rectifier; (b) structure diagram of the rectifier; (c) equivalent circuit diagram; (d) enlarged schematic diagram of SBD.

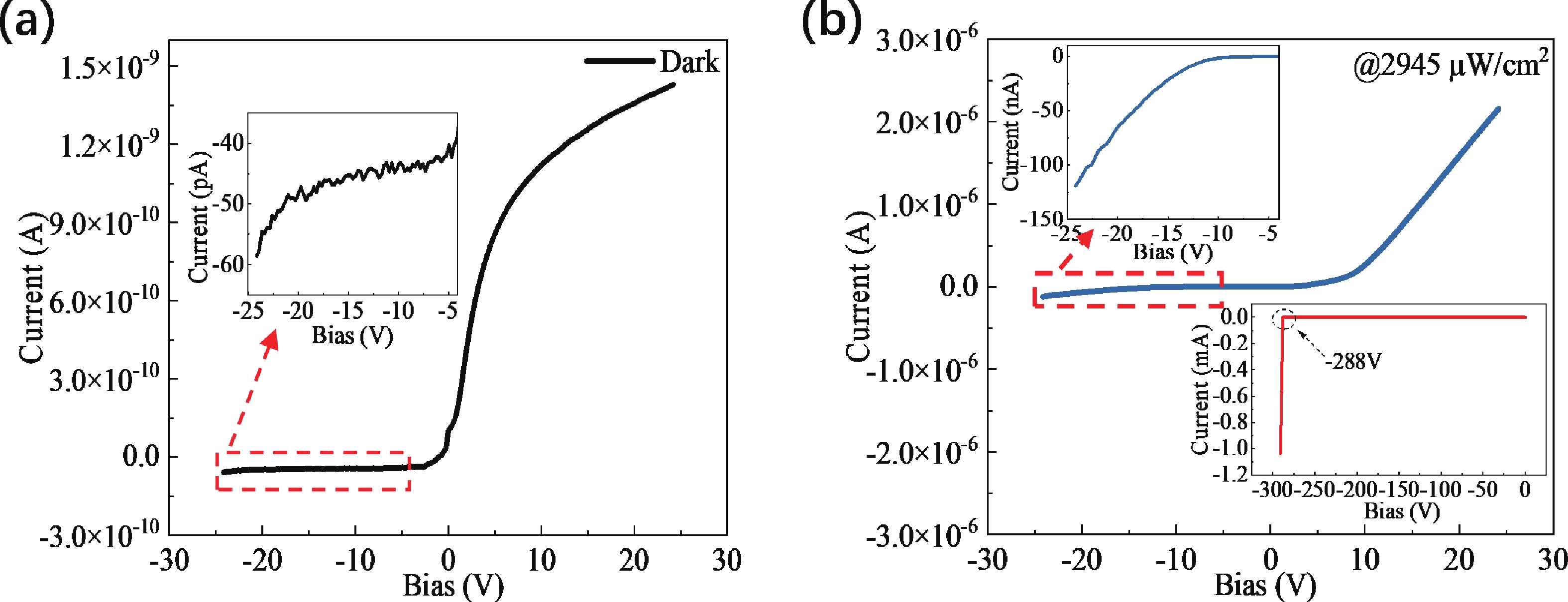

Fig. 2.  (Color online) (a) Currents of SBD under dark condition; (b) Currents of SBD under SUV condition.

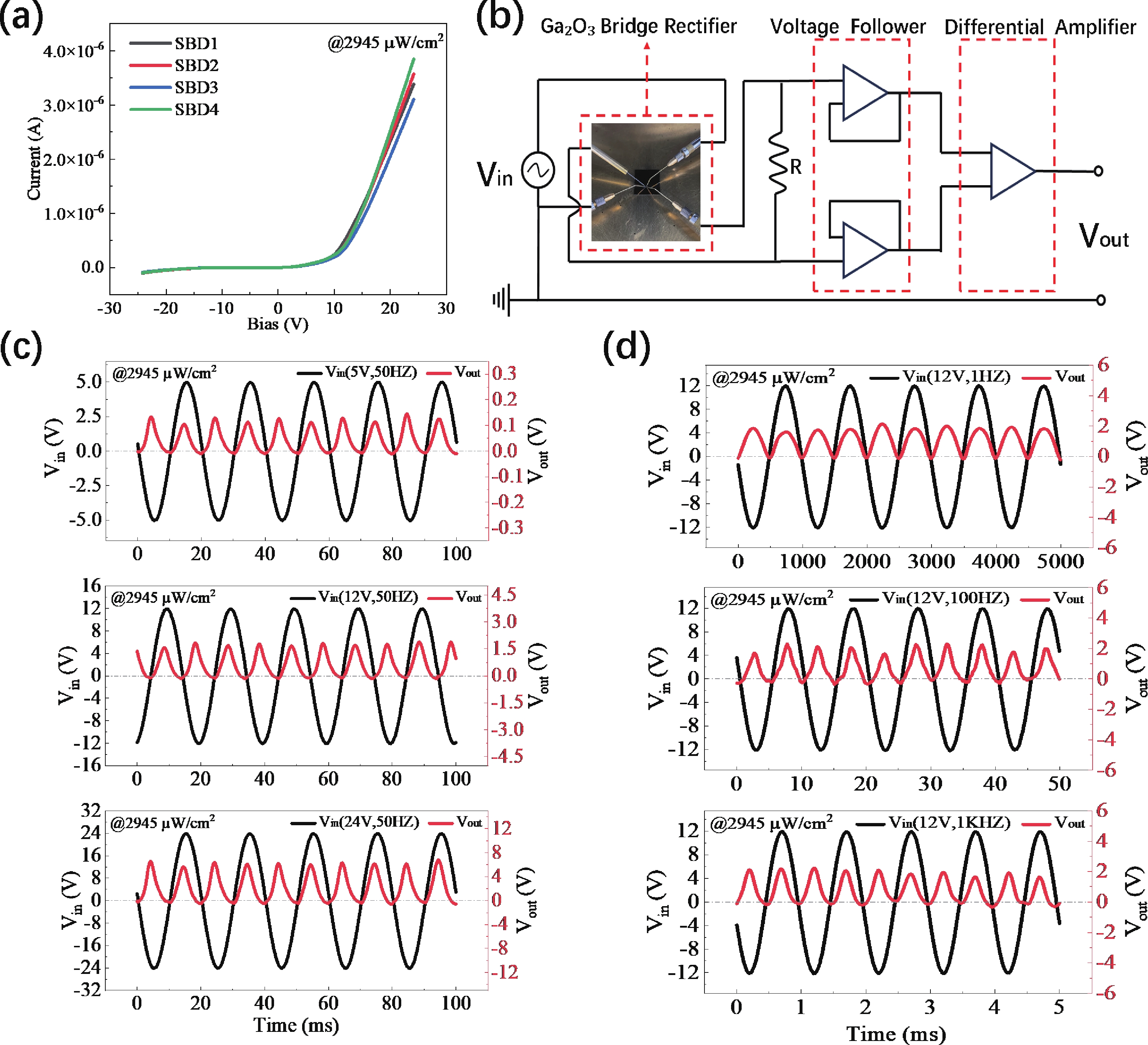

Fig. 3.  (Color online) (a) I-V curves of four SBDs in rectifier; (b) test loop of the rectifier; (c) Vout under 50 Hz Vin signals of 5 V, 12 V and 24 V; (d) Vout under different Vin signals of 12 V with 1 Hz, 100 Hz and 1 kHz.

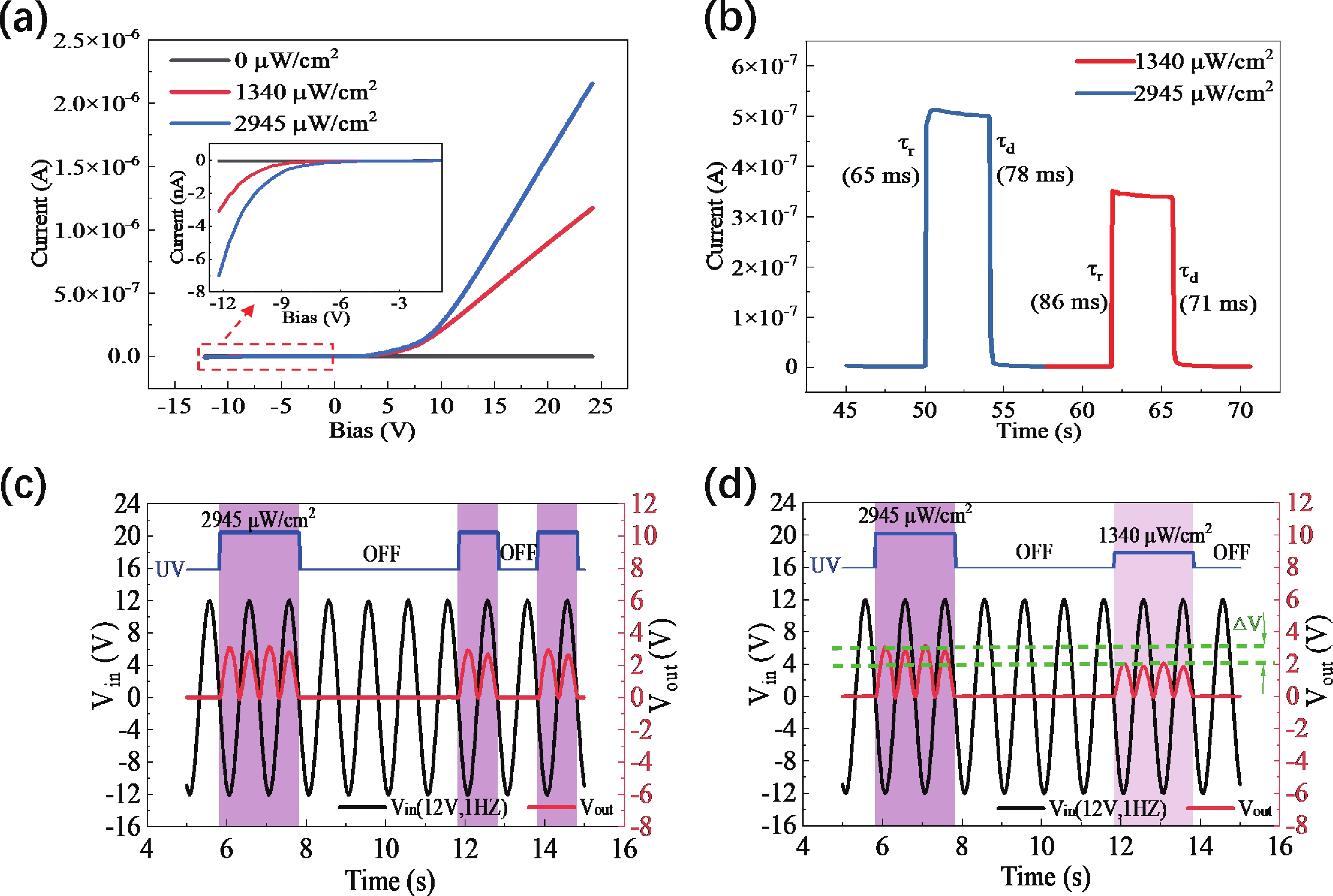

Fig. 4.  (Color online) (a) I-V curves under different SUV illuminations; (b) SBD photoresponse curve; (c) Vout under the single SUV light-signal modulation; (d) Vout under the alternating SUV light-signals modulation.
