Di Zhang is currently a Master's student at the School of Information Science and Engineering, University of jinan. Her current research focuses on the fabrication and optoelectronic properties of memristive devices and their applications in neuromorphic computing.
Yang Li has been a professor of Shandong university, China, since 2022. He received his PhD degree in Electronic Engineering from Kwangwoon University, Korea, in 2015. His research interests include flexible sensing materials and devices, memristive materials and devices, neuromorphic computing applications, RF passive device design, and advanced semiconductor fabrication. He has published over 150 peer reviewed journal and conference papers in the relevant fields.

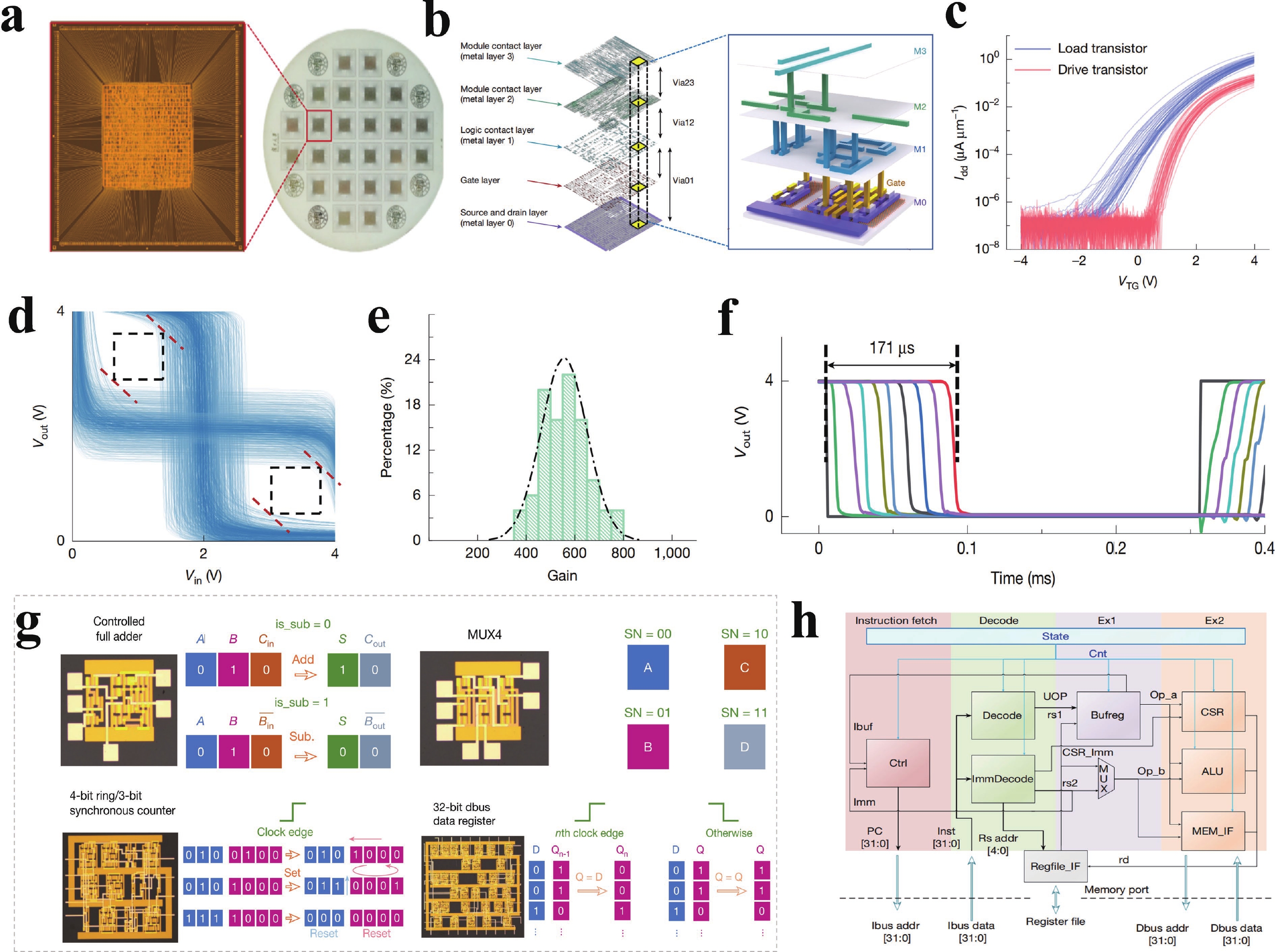

Fig. 1.
(Color online) (a) Left, 24 WUJI chips on a 4-inch sapphire wafer. Right, a close-up optical image of a 6 mm × 6 mm die with 5900 MoS2 transistors and peripheral I/O pads. (b) Scaled schematic of the RV32-WUJI die’s physical layout, with the bottom layer being MoS2 on sapphire. (c) Transfer curves of the inverter’s 50 load and 50 drive transistors. (d) Static voltage transfer traits of 900 inverters with noise tolerance. (e) Gain value distribution of 50 inverters. SS is subthreshold swing; VTG is top-gate voltage. (f) The 17-stage longest logic gate path has a 171 μs max delay. (g) Upper left shows circuit structures like controlled full adders, 4-input multiplexers, counters, and a 32-bit register. Upper right shows their basic logic functions. (h) Data path schematic through the nine modules[11].
