Broadband self-powered photodetector enabled by a MOF/organic heterojunction architecture

Mingke Yu; Huiyan Zheng; Yutao Xiong; Hong Wang; Yanghui Liu; Gang Liu

doi:10.1088/1674-4926/25110031

J. Semicond. > 2026, Volume 47 > Issue 4 > 042802

ARTICLES

Broadband self-powered photodetector enabled by a MOF/organic heterojunction architecture

Mingke Yu, Huiyan Zheng, Yutao Xiong, Hong Wang, Yanghui Liu and Gang Liu

+ Author Affiliations

Corresponding author: Hong Wang, wanghong3@mail.sysu.edu.cn; Yanghui Liu, liuyanghui@mail.sysu.edu.cn; Gang Liu, liugang82@mail.sysu.edu.cn

DOI: 10.1088/1674-4926/25110031CSTR: 32376.14.1674-4926.25110031

Abstract: Broadband, low-power, and solution-processable organic photodetectors are essential for next-generation optoelectronic sensing. Two-dimensional conductive metal−organic frameworks (2D cMOFs) based on zinc tetracarboxyphenyl porphyrin (Zn-TCPP) offer strong light absorption and efficient charge transport, yet their photoresponse remains confined to the ultraviolet−visible (UV−Vis) region. To address this limitation, this study develops a solution-compatible strategy for constructing a well-defined MOF/organic semiconductor type-Ⅱ heterojunction by spin-coating a high-performance Y6 layer onto Zn-TCPP films. The resulting heterostructure provides complementary spectral absorption, promotes efficient exciton dissociation, and enables directional charge carrier transport, thereby achieving self-powered broadband photodetection spanning the ultraviolet to near-infrared (UV−NIR) range. The device demonstrates outstanding performance, including an ultra-low dark current (down to 3.40 × 10⁻¹³ A), high responsivity, and an ultrafast transient response with a rise time of 4.4 ms. This work establishes a generalizable approach for engineering high-efficiency MOF/organic semiconductor heterojunctions and offers a promising platform for low-cost, broadband, and self-powered photodetectors for biomedical and advanced sensing applications.

Keywords: photodetectors, broadband, metal organic framework, organic semiconductor, heterojunction

References

[1]	Li X, Liu K X, Wu D, et al. Van der Waals hybrid integration of 2D semimetals for broadband photodetection. Adv Mater, 2025, 37(48): 2415717 doi: 10.1002/adma.202415717
[2]	Zhao Z J, Xu C Y, Niu L B, et al. Recent progress on broadband organic photodetectors and their applications. Laser Photonics Rev, 2020, 14(11): 2000262 doi: 10.1002/lpor.202000262
[3]	Singh S, Suthar R, Tomimatsu A, et al. Ultrafast highly sensitive self-powered MSIM photodetector based on organic semiconductor/dielectric interfaces for broadband visible to near-infrared communication. Adv Funct Mater, 2025, 35(27): 2425426 doi: 10.1002/adfm.202425426
[4]	Wang Y C, Chiang C H, Chang C M, et al. Two-dimensional Bis(dithiolene)iron(II) self-powered UV photodetectors with ultrahigh air stability. Adv Sci, 2021, 8(14): 2100564 doi: 10.1002/advs.202100564
[5]	Sun J, Gao S Y, Zhang C Y, et al. From rigid to flexible: Ce-BTC-MOF-enabled self-powered photodetectors with record-high responsivity and detectivity. ACS Appl Mater Interfaces, 2025, 17(39): 55143 doi: 10.1021/acsami.5c10446
[6]	Zhang J B, Tian Y B, Gu Z G, et al. Metal–organic framework-based photodetectors. Nano Micro Lett, 2024, 16(1): 253 doi: 10.1007/s40820-024-01465-7
[7]	Wu G D, Huang J H, Zang Y, et al. Porous field-effect transistors based on a semiconductive metal–organic framework. J Am Chem Soc, 2017, 139(4): 1360 doi: 10.1021/jacs.6b08511
[8]	Lu C W, Choi J Y, Check B, et al. Thiatruxene-based conductive MOF: Harnessing sulfur chemistry for enhanced proton transport. J Am Chem Soc, 2024, 146(38): 26313 doi: 10.1021/jacs.4c08659
[9]	Jyoti, Dutta T, Kumar P, et al. Recent advances in metal-organic framework-based fiber optic sensors and photodetectors: Synthesis, properties, and applications. Chem Eng J, 2025, 507: 160543 doi: 10.1016/j.cej.2025.160543
[10]	Li D J, Tian Y B, Lin Q, et al. Optimizing photodetectors in two-dimensional metal-metalloporphyrinic framework thin films. ACS Appl Mater Interfaces, 2022, 14(29): 33548 doi: 10.1021/acsami.2c07686
[11]	Tian Y B, Vankova N, Weidler P, et al. Oriented growth of in-oxo chain based metal-porphyrin framework thin film for high-sensitive photodetector. Adv Sci, 2021, 8(14): 2100548 doi: 10.1002/advs.202100548
[12]	Liu Y X, Wei Y N, Liu M H, et al. Face-to-face growth of wafer-scale 2D semiconducting MOF films on dielectric substrates. Adv Mater, 2021, 33(13): 2007741 doi: 10.1002/adma.202007741
[13]	Xu X, Feng X B, Wang W, et al. Construction of II-type and Z-scheme binding structure in P-doped graphitic carbon nitride loaded with ZnO and ZnTCPP boosting photocatalytic hydrogen evolution. J Colloid Interface Sci, 2023, 651: 669 doi: 10.1016/j.jcis.2023.08.033
[14]	Arora H, Dong R H, Venanzi T, et al. Demonstration of a broadband photodetector based on a two-dimensional metal–organic framework. Adv Mater, 2020, 32(9): 1907063 doi: 10.1002/adma.201907063
[15]	Dou J H, Arguilla M Q, Luo Y, et al. Atomically precise single-crystal structures of electrically conducting 2D metal–organic frameworks. Nat Mater, 2021, 20(2): 222 doi: 10.1038/s41563-020-00847-7
[16]	Huang P Y, Zhang Y Y, Tsai P C, et al. Interfacial engineering of quantum dots–metal–organic framework composite toward efficient charge transport for a short-wave infrared photodetector. Adv Opt Mater, 2024, 12(7): 2302062 doi: 10.1002/adom.202302062
[17]	Ge Y S, Lei D, Zhang C J, et al. Solution-processable van der Waals heterojunctions on silicon for self-powered photodetectors with high responsivity and detectivity. Adv Sci, 2025, 12(23): 2500027 doi: 10.1002/advs.202500027
[18]	Joshi M, Sridhar S R, Verma U K, et al. Enhancing performance of a photomultiplication-based broadband photodetector with porphyrin MOF-ZnO nanocomposite. Org Electron, 2025, 138: 107184 doi: 10.1016/j.orgel.2024.107184
[19]	Wang Y Y, Liu L, Shi Y X, et al. Fast and high-performance self-powered photodetector based on the ZnO/metal–organic framework heterojunction. ACS Appl Mater Interfaces, 2023, 15(14): 18236 doi: 10.1021/acsami.3c01740
[20]	Wang Y, Wu H, Zhu W G, et al. Cocrystal engineering: Toward solution-processed near-infrared 2D organic cocrystals for broadband photodetection. Angew Chem Int Ed, 2021, 60(12): 6344 doi: 10.1002/anie.202015326
[21]	Joshi M, Sridhar S, Sahu A K, et al. Two-dimensional zinc porphyrin metal–organic framework nanosheets for a self-powered organic photodetector. ACS Appl Nano Mater, 2023, 6(24): 22784 doi: 10.1021/acsanm.3c03983
[22]	Tokmoldin N, Deibel C, Neher D, et al. Contemporary impedance analyses of archetypical PM6: Y6 bulk-heterojunction blend. Adv Energy Mater, 2024, 14(27): 2401130 doi: 10.1002/aenm.202401130
[23]	Shoaee S, Luong H M, Song J G, et al. What we have learnt from PM6: Y6. Adv Mater, 2024, 36(20): 2302005 doi: 10.1002/adma.202302005
[24]	Yuan J, Zhang Y Q, Zhou L Y, et al. Single-junction organic solar cell with over 15% efficiency using fused-ring acceptor with electron-deficient core. Joule, 2019, 3(4): 1140 doi: 10.1016/j.joule.2019.01.004
[25]	Wang Q Y, Chen Q, Meng S X, et al. Side-chain engineering of non-fullerene acceptors with trialkylsilyloxy groups for enhanced photovoltaic performance. Chin J Chem, 2024, 42(18): 2153 doi: 10.1002/cjoc.202400083
[26]	Zheng H Y, Xiong Y T, Jiang Z D, et al. Metal–organic framework/organic semiconductor heterostructures for high-speed, low-noise photodetection. ACS Appl Electron Mater, 2025, 7(13): 6207 doi: 10.1021/acsaelm.5c01152
[27]	Sridhar S R, Joshi M, Sahu A K, et al. Enhancing photomultiplication in organic photodetectors with two-dimensional metal–organic framework nanosheets. ACS Appl Electron Mater, 2023, 5(12): 6757 doi: 10.1021/acsaelm.3c01237
[28]	Yu R N, Wu G Z, Tan Z A. Realization of high performance for PM6: Y6 based organic photovoltaic cells. J Energy Chem, 2021, 61: 29 doi: 10.1016/j.jechem.2021.01.027
[29]	Fan C L, Yang H, Zhang Q, et al. Synergistic effect of solvent and solid additives on morphology optimization for high-performance organic solar cells. Sci China Chem, 2021, 64(11): 2017 doi: 10.1007/s11426-021-1114-3
[30]	Tarikhum B H, Ali B, Almyahi F. Role of fullerene ICxA and non-fullerene Y6 in P3HT-based ternary organic photovoltaics. Solid State Commun, 2023, 372: 115319 doi: 10.1016/j.ssc.2023.115319
[31]	Xia Y X, Georgiadou D G. Multiple narrowband bidirectional self-powered organic photodetector with fast response. Laser Photonics Rev, 2025, 19(1): 2401032 doi: 10.1002/lpor.202401032
[32]	Azamat A K, Parkhomenko H P, Kiani M S, et al. Self-powered printed flexible bifacial perovskite photodetector. ACS Appl Opt Mater, 2024, 2(1): 149 doi: 10.1021/acsaom.3c00383
[33]	Xu Z Y, Liu Y D, Chandresh A, et al. Nanographene-based metal-organic framework thin films: Optimized packing and efficient electron-hole separation yielding efficient photodetector. Adv Funct Mater, 2024, 34(4): 2308847 doi: 10.1002/adfm.202308847
[34]	Kang C X, Iqbal M A, Zhang S Y, et al. Cu3(HHTP)2 c-MOF/ZnO ultrafast ultraviolet photodetector for wearable optoelectronics. Chemistry A European J, 2022, 28(64): e202201705 doi: 10.1002/chem.202201705

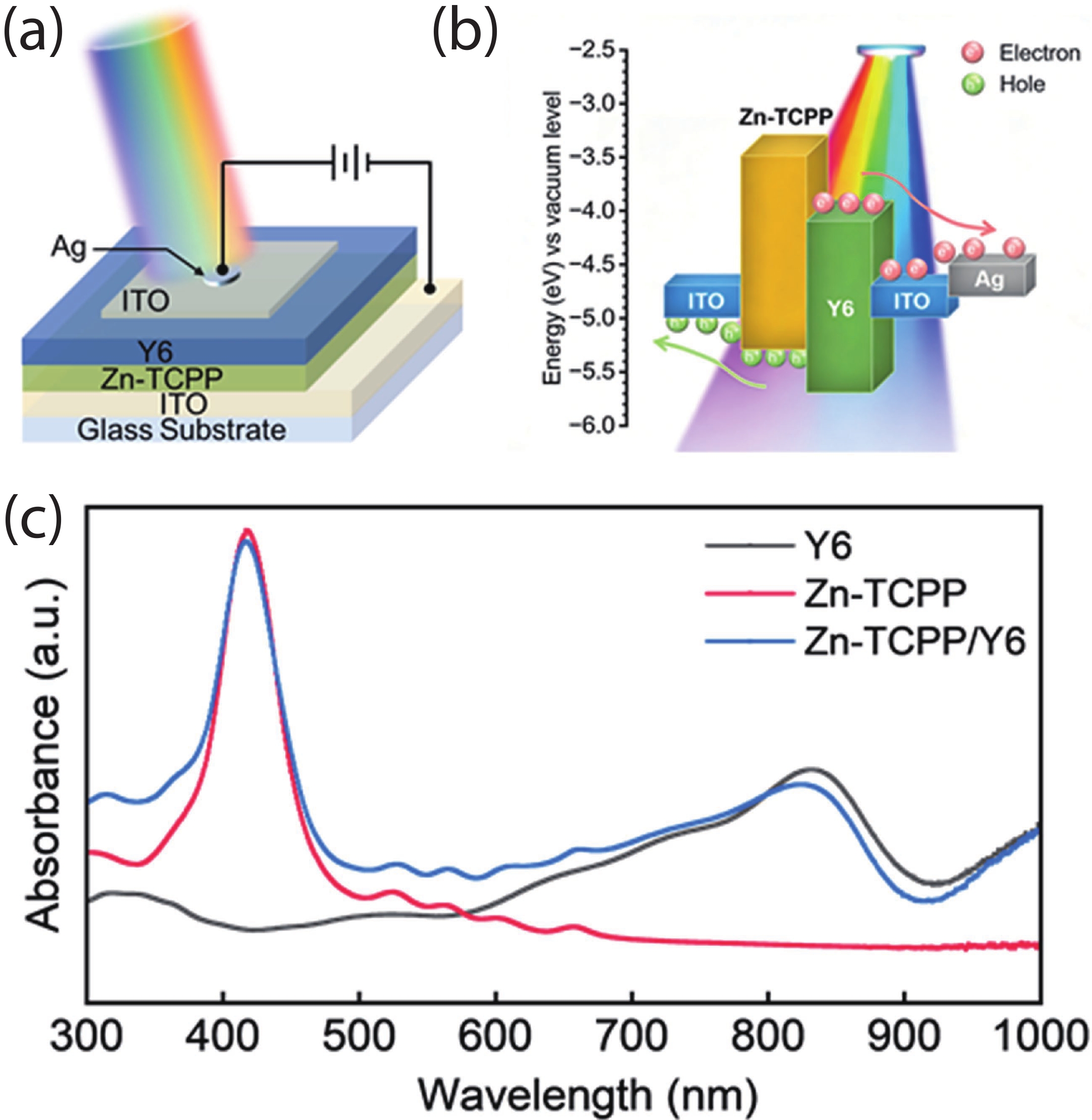

Fig. 1. (Color online) (a) Schematic illustration of the device architecture of the Zn-TCPP/Y6 heterojunction photodetector. (b) Energy band alignment of the device. (c) UV–Vis–NIR absorption spectra of Zn-TCPP, Y6, and their heterojunction.

DownLoad: Full-Size Img PowerPoint

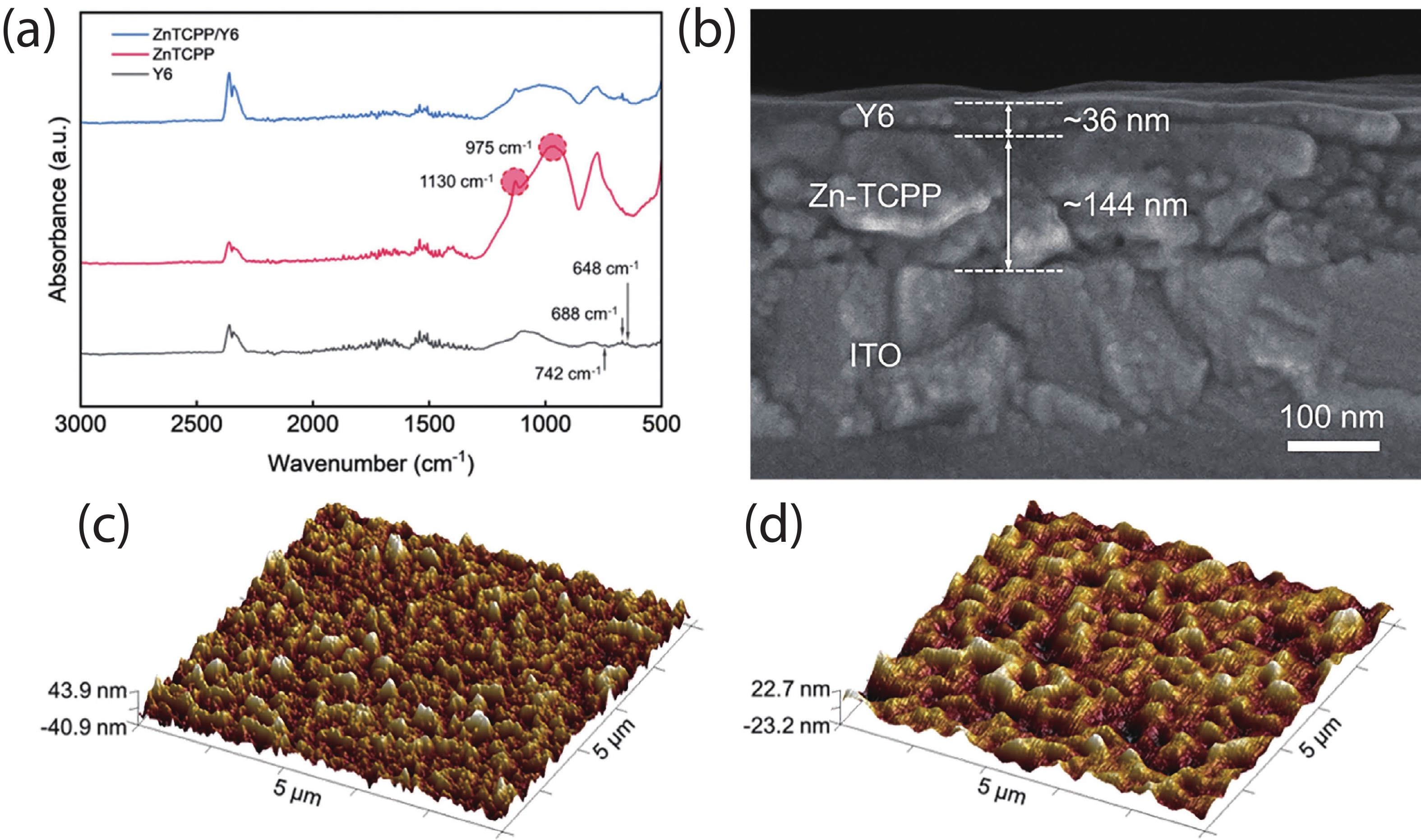

Fig. 2. (Color online) (a) FTIR spectra of Zn-TCPP, Y6, and their heterojunction. (b) Cross-sectional SEM image of the Zn-TCPP/Y6 heterostructure. Three-dimensional AFM surface morphology of the (c) Zn-TCPP film and (d) Zn-TCPP/Y6 heterojunction.

DownLoad: Full-Size Img PowerPoint

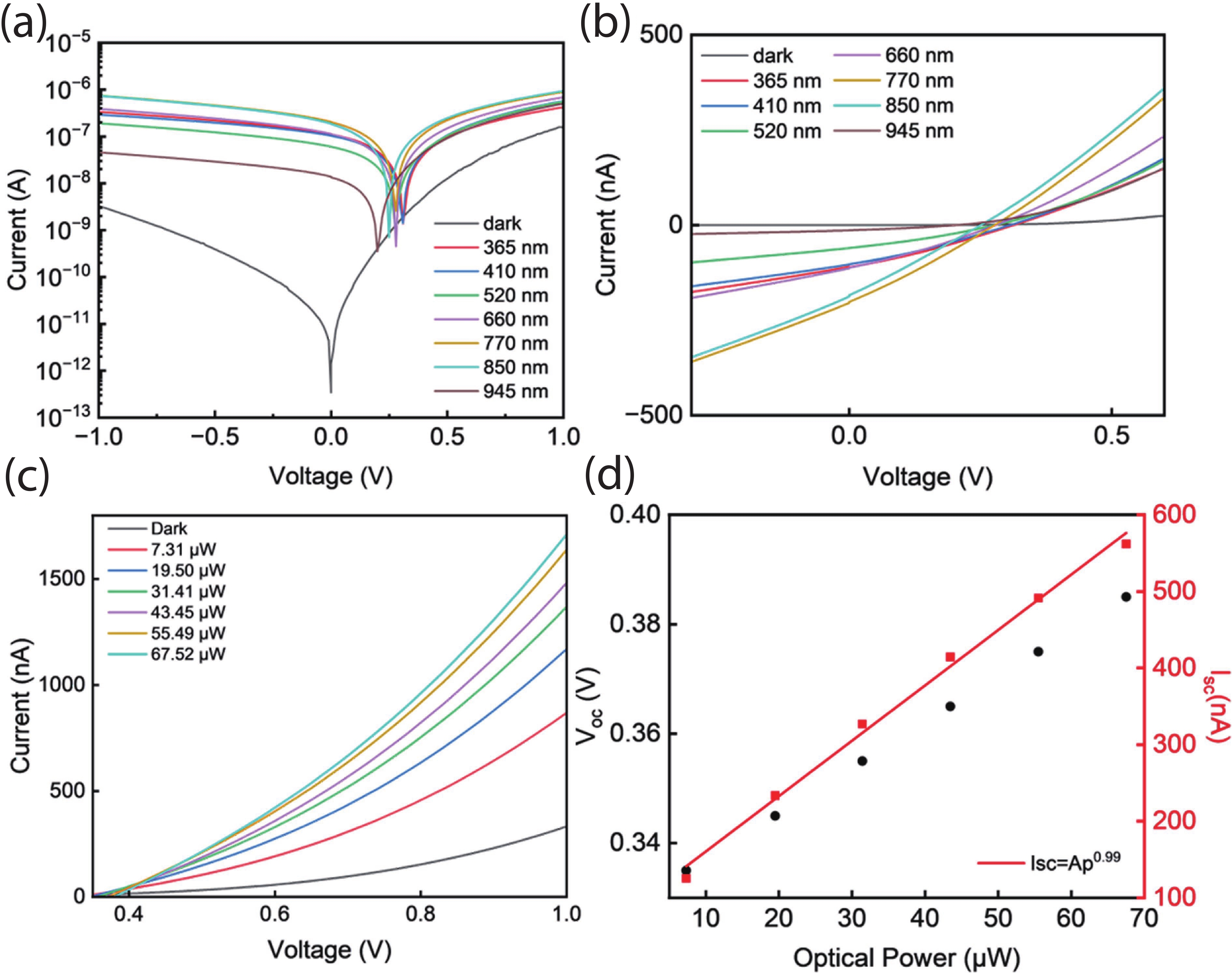

Fig. 3. (Color online) Electrical characteristics of the Zn-TCPP/Y6 heterojunction photodetector. (a) I−V curves measured under monochromatic illumination at different wavelengths with a fixed optical power of 7.31 μW, plotted on a logarithmic current scale. (b) Corresponding I−V curves under the same conditions plotted on a linear current scale. (c) I−V characteristics obtained under 410 nm illumination with varying optical powers. (d) Dependence of V_oc and I_sc on the incident optical power under 410 nm illumination.

DownLoad: Full-Size Img PowerPoint

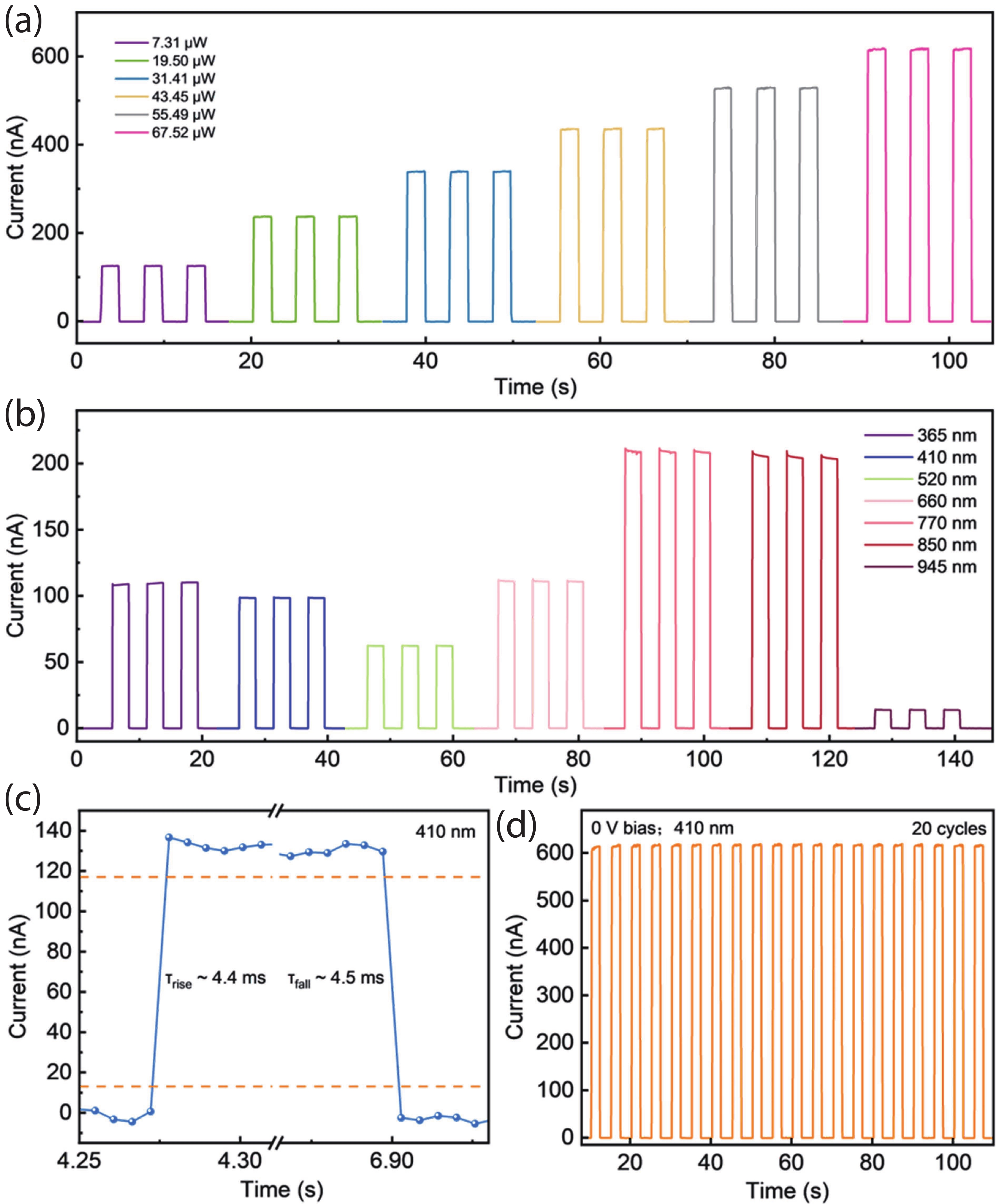

Fig. 4. (Color online) (a) I−t responses of the device under 410 nm illumination with varying optical powers. (b) I−t responses under monochromatic illumination at different wavelengths with a fixed optical power of 7.31 μW. (c) Rise and fall times extracted from a single switching cycle under 410 nm illumination. (d) Stability assessment of the device over 20 on−off switching cycles. All measurements were performed at 0 V bias.

DownLoad: Full-Size Img PowerPoint

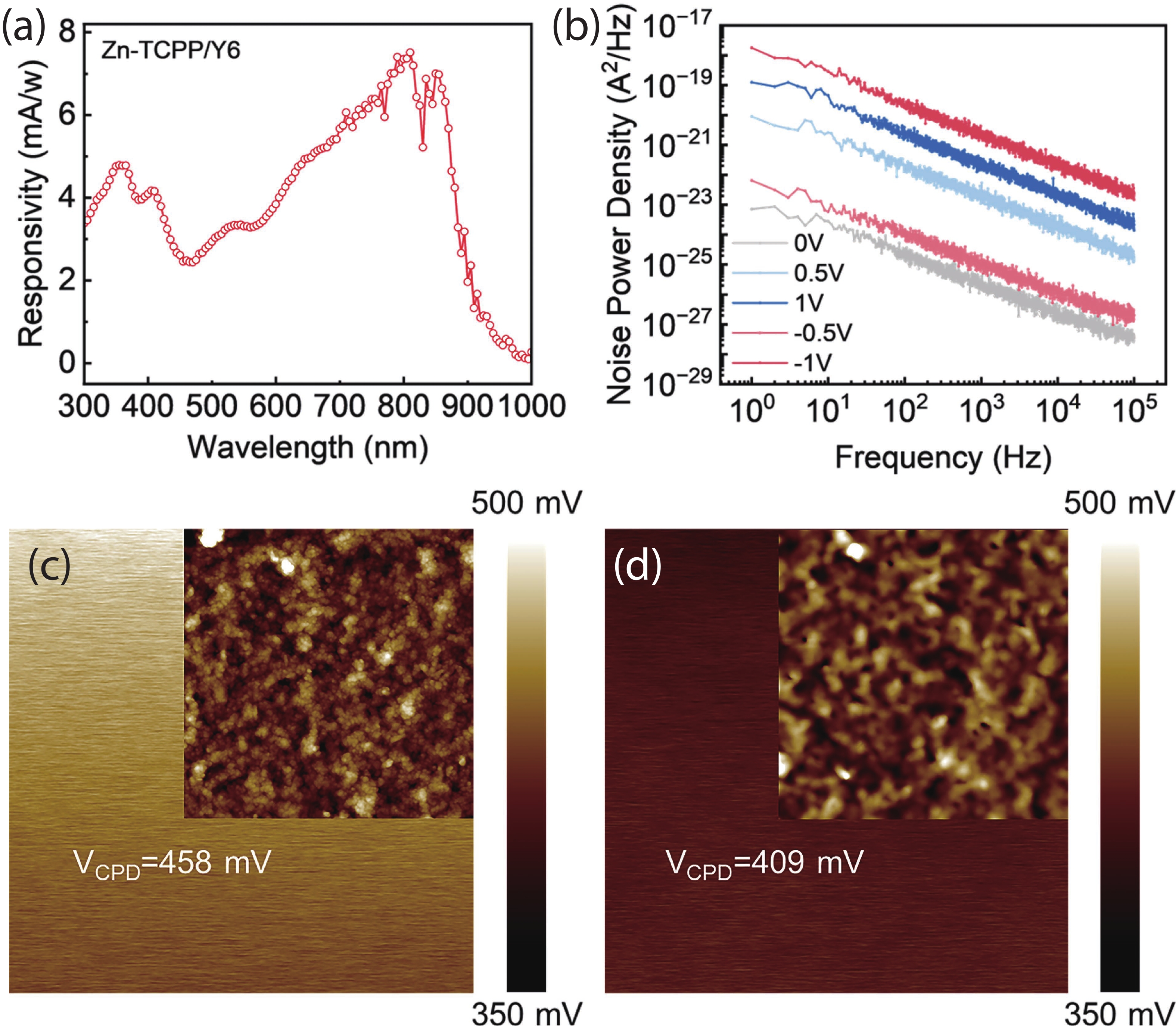

Fig. 5. (Color online) (a) Responsivity as a function of incident wavelength measured at a bias voltage of 0 V. (b) Noise power spectral density of the device under dark conditions at different applied bias voltages. (c) KPFM surface potential image of the Zn-TCPP film. (d) KPFM surface potential image of the Zn-TCPP/Y6 heterojunction.

DownLoad: Full-Size Img PowerPoint

Table 1. Performance comparison of photodetectors based on different OSC.

Device	Abs. (nm)	I_dark (A)	PDCR	D* (Jones)	Rise/fall time	Ref
ZnTPP-C₆₀	400−1000	/	10²	9.94 × 10¹¹	0.6 s/0.7 s	[20]
PM6:Y₁₂	325−930	6.5 × 10⁻¹²	/	4 × 10¹⁰	0.85 μs/1.1 μs	[31]
MAPbI₃	300−800	>1.3 × 10⁻⁹	>10⁴	2 × 10¹¹	3.67 s/41 ms	[32]
Fe₃(THT)₂(NH₄)₃	400−1575	~5 × 10⁻⁸	~6	7 × 10⁸	2.3 s/2.1 5 s	[14]
Cu-HBC	365−640	1.1 × 10⁻¹⁰	4.2 × 10³	/	20 ms/20 ms	[33]
Cu₃(HHTP)₂/ZnO	350−750	/	/	3.8 × 10⁻⁹	4.4 s/7 s	[34]
P3HT:ZnTCPP:PC₆₁BM	350−650	3.85 × 10⁻⁸	10⁴	4.61 × 10¹²	186 ms/83.9 ms	[27]
Zn-TCPP/Y6	360−945	3.40 × 10⁻¹³	6.0 × 10⁵	2.41 × 10¹²	4.4 ms/4.5 ms	This work
