J. Semicond. > 2013, Volume 34 > Issue 10 > 106001
|

SEMICONDUCTOR TECHNOLOGY

Low temperature Sn-rich Au-Sn wafer-level bonding

Zhiqiang Fang1, 2, Xu Mao1, 2, Jinling Yang1, 2, and Fuhua Yang1

+ Author Affiliations

 Corresponding author: Yang Jinling, jlyang@semi.ac.cn

DOI: 10.1088/1674-4926/34/10/106001

PDF

Abstract: Sn-rich Au-Sn solder bonding has been systematically investigated for low cost and low temperature wafer-level packaging of high-end MEMS devices. The AuSn2 phase with the highest Vickers-hardness among the four stable intermetallic compounds of the Au-Sn system makes a major contribution to the high bonding shear strength. The maximum shear strength of 64 MPa and a leak rate lower than 4.9×10-7 atm·cc/s have been obtained for Au46Sn54 solder bonded at 310℃. This wafer-level low cost bonding technique with high bonding strength can be applied to MEMS devices requiring low temperature packaging.

Key words: MEMS packaging, Au-Sn solder, Sn-rich, bonding strength



[1]
McNulty J C. Processing and reliability issues for eutectic AuSn solder joint. 41st Int Symp on Microelectronics, 2008:909
[2]
Oppermann H. The role of Au/Sn solder in packaging engineering materials and processes:materials for information technology devices, interconnects and packaging. London:Springer, 2006:377
[3]
Okamoto H, Massatski T B. Monograph series on alloy phase diagrams:phase diagram of binary gold alloys. Metals Park, OH:ASM International, 1987
[4]
Kim D, Kim J, Wang G L, et al. Nucleation and growth of intermetallics and gold clusters on thick tin layers in electroplating process. Mater Sci Eng A, 2005, 393:315 doi: 10.1016/j.msea.2004.11.022
[5]
Matijasevic G S, Lee C C, Wang C Y. Au-Sn alloy phase diagram and properties related to its use as a bonding medium. Thin Solid Films, 1993, 223:276 doi: 10.1016/0040-6090(93)90533-U
[6]
Lee C C, Chuang R W. Fluxless non-eutectic joints fabricated using gold-tin multilayer composite. IEEE Trans Comp Packag Technol, 2003, 26:416 doi: 10.1109/TCAPT.2003.815109
[7]
Kim J S, Wang P J, Lee C C. Fluxless hermetic lid sealing using electroplated Sn-rich solder. IEEE Trans Comp Packag Technol, 2008, 31:719 doi: 10.1109/TCAPT.2008.922000
[8]
Chromik R R, Wang D N, Shugar A, et al. Mechanical properties of intermetallic compounds in the Au-Sn system. J Mater Res, 2005, 20:2161 doi: 10.1557/JMR.2005.0269
[9]
Buene L, Falkenberg-Arell H, Gjonnes J, et al. A study of evaporated gold-tin films using transmission electron microscopy:Ⅱ. Thin Solid Films, 1980, 67:95 doi: 10.1016/0040-6090(80)90292-8
[10]
Nakahara S, McCoy R J, Buene L, et al. Room temperature interdiffusion studies of Au/Sn thin film couples. Thin Solid Films, 1981, 84:185 doi: 10.1016/0040-6090(81)90468-5

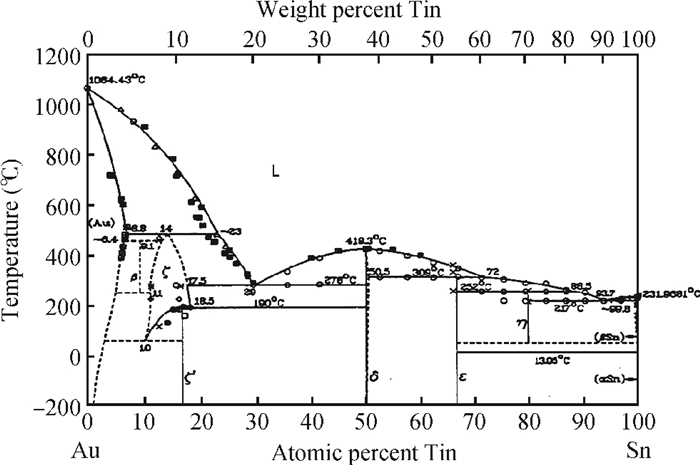

Fig. 1.  Au-Sn binary equilibrium phase diagram[3].

DownLoad: Full-Size Img PowerPoint

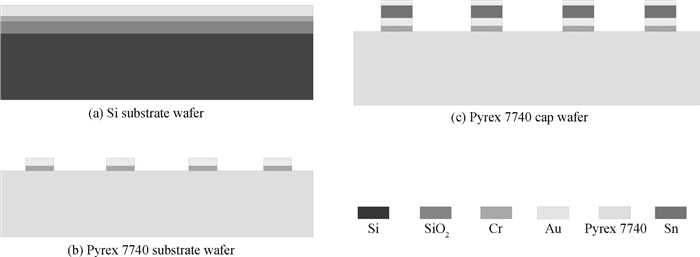

Fig. 2.  Fabrication process flow of the substrate and cap wafers.

DownLoad: Full-Size Img PowerPoint

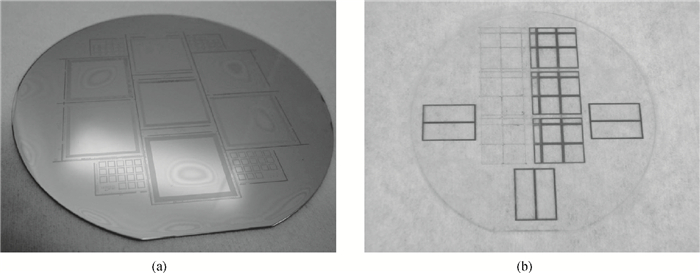

Fig. 3.  Optical images of the bonded (a) glass-silicon wafers and (b) glass-glass wafers with Au-Sn solder.

DownLoad: Full-Size Img PowerPoint

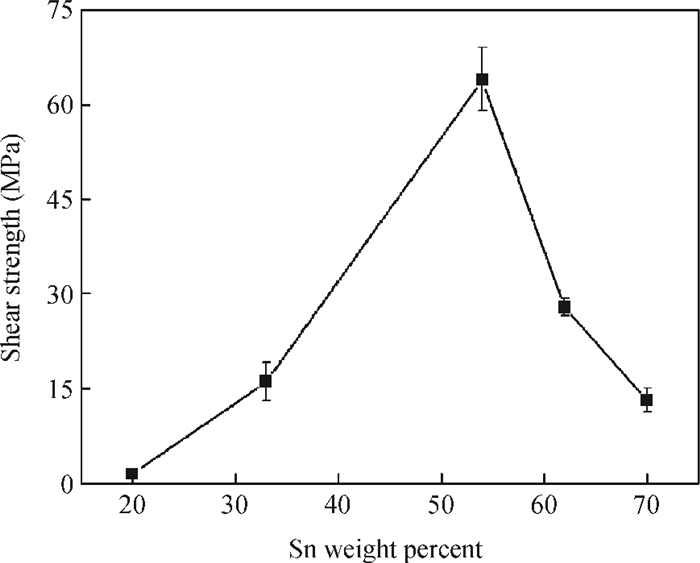

Fig. 4.  Dependence of shear strengths on Sn content for the joints bonded at 310 ℃ for 60 min and under a static pressure of 7 MPa. The average is done for four experimental data.

DownLoad: Full-Size Img PowerPoint

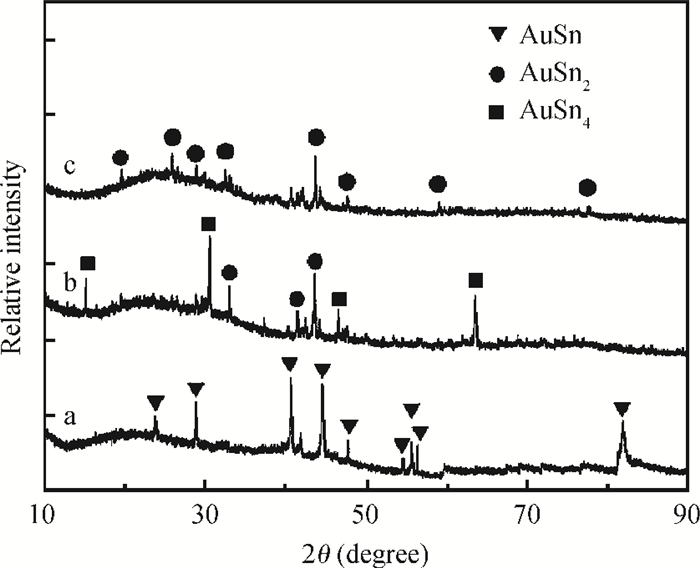

Fig. 5.  XRD spectrums for the interlayer with Au : Sn weight ratio: (a) 80 : 20, (b) 30 : 70, and (c) 46 : 54 bonded at 310 ℃.

DownLoad: Full-Size Img PowerPoint

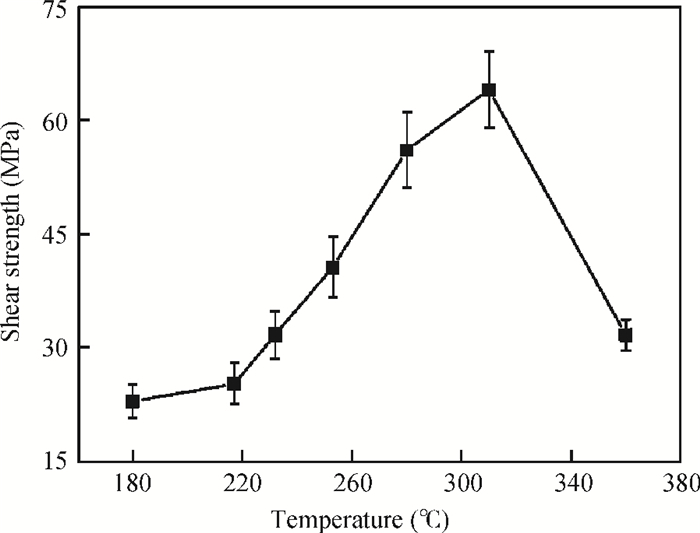

Fig. 6.  Dependence of shear strengths on temperature for the joint with Au : Sn weight ratio of 46 : 54 bonded for 60 min under a static pressure of 7 MPa. The average is done for four experimental data.

DownLoad: Full-Size Img PowerPoint

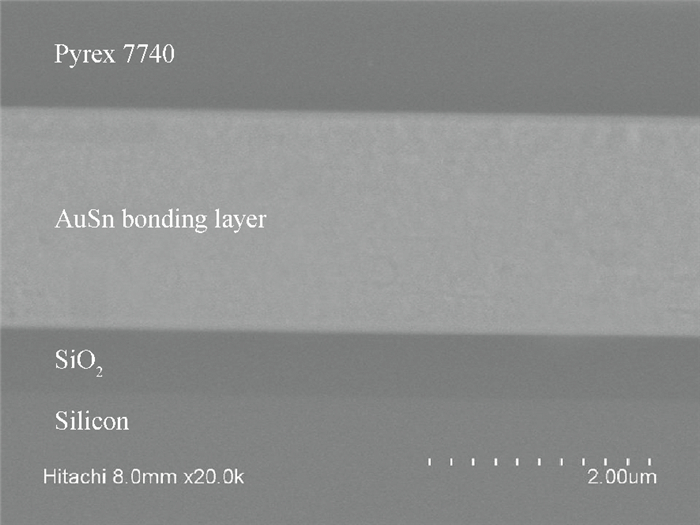

Fig. 7.  SEM image for the cross section of the glass-silicon sample bonded under 7 MPa at 310 ℃ for 60 min.

DownLoad: Full-Size Img PowerPoint

Table 1.   Shear strengths of solder joints bonded at 310 ℃ for 60 min.
