J. Semicond. > 2013, Volume 34 > Issue 11 > 114011
|

SEMICONDUCTOR DEVICES

High power single mode 980 nm AlGaInAs/AlGaAs quantum well lasers with a very low threshold current

Zhen Dong, Cuiluan Wang, Hongqi Jing, Suping Liu and Xiaoyu Ma

+ Author Affiliations

 Corresponding author: Dong Zhen, Email:dongzhen@semi.ac.cn

DOI: 10.1088/1674-4926/34/11/114011

PDF

Abstract: To achieve low threshold current as well as high single mode output power, a graded index separate confinement heterostructure (GRIN-SCH) AlGaInAs/AlGaAs quantum well laser with an optimized ridge waveguide was fabricated. The threshold current was reduced to 8 mA. An output power of 76 mW was achieved at 100 mA current at room temperature, with a slope efficiency of 0.83 W/A and a horizon divergent angle of 6.3°. The maximum single mode output power of the device reached as high as 450 mW.

Key words: semiconductor laser, low threshold, ridge waveguide, single mode



[1]
Chen Y K, Wu M C, Hobson W S, et al. High-power 980nm AlGaAs/InGaAs strained quantum-well laser grown by OMVPE. Photonics Technol Lett, 1991, 3(5):406 doi: 10.1109/68.93860
[2]
Lee J W, Devre M W, Reelfs B H, et al. Advanced selective dry etching of GaAs/AlGaAs in high density inductively coupled plasmas. J Vac SciTechnol A, 2000, 18(4):1220 doi: 10.1116/1.582329
[3]
Li Hui, Qu Yi, Gao Xin, et al. High performance 980nm single mode semiconductor lasers. Acta Armamentarii, 2010, 31(8):1110
[4]
Zhu Xiaopeng, Xu Zuntu, Zhang Jingming, et al. A single mode 980 nm InGaAs/GaAs/AlGaAs large optical cavity quantum well laser with low vertical divergence angle. Journal of Semiconductors, 2002, 23(4):342
[5]
Xu Zuntu, Yang Guowen, Zhang Jingming, et al. High efficiency Al-free 980nm InGaAs/InGaAsP/InGaP strained quantum well lasers. Journal of Semiconductors, 2000, 21(5):417
[6]
Yang GuoWen, Xu Junying, Xu Zuntu, et al. 980nm quantum well laser pumping sources for Er-doped fiber amplifier. Journal of Semiconductors, 1996, 17(12):940
[7]
Cao Sansong. Single-mode ridge-waveguide AIGaAs/GaAs quantum well lasers. Laser Technology, 1996, 20(3):177
[8]
Hocker G B, Burns W K. Mode dispersion in diffused channel waveguides by the effective index method. Appl Opt, 1977, 16(1):113 doi: 10.1364/AO.16.000113
[9]
Major J S, Plano W E, Welch D F, et al. Single-mode InGaAs-GaAs laser diodes operating at 980 nm. Electron Lett, 1991, 27(6):539 doi: 10.1049/el:19910339
[10]
Hobson W S, Chen Y K, Wu M C. InGaAs/AlGaAs ridge waveguide lasers utilizing an InGaP etch-stop layer. Semicond Sci Technol, 1992, 7:1425 doi: 10.1088/0268-1242/7/11/024

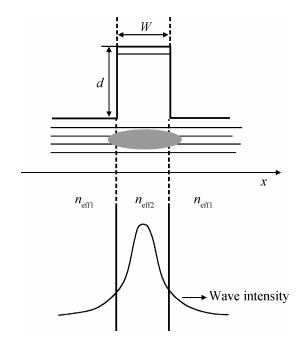

Fig. 1.  The ridge structure was considered as a three-layer planar waveguide

DownLoad: Full-Size Img PowerPoint

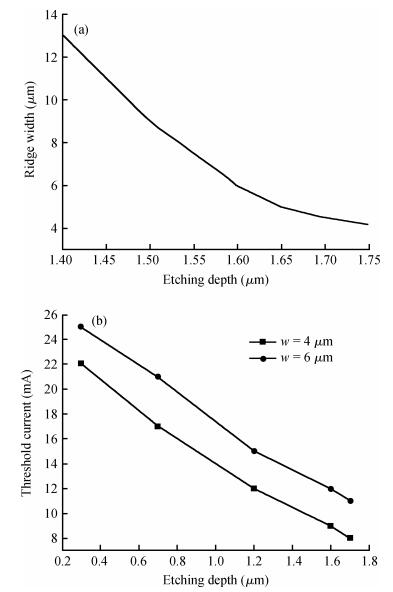

Fig. 2.  (a) Relationship between etching depth and the ridge width which presents the cutoff condition of high order modes. (b) Variation of threshold current versus the etching depth at different ridge widths

DownLoad: Full-Size Img PowerPoint

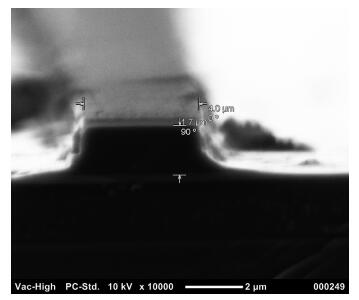

Fig. 3.  SEM image of the ridge waveguide structure

DownLoad: Full-Size Img PowerPoint

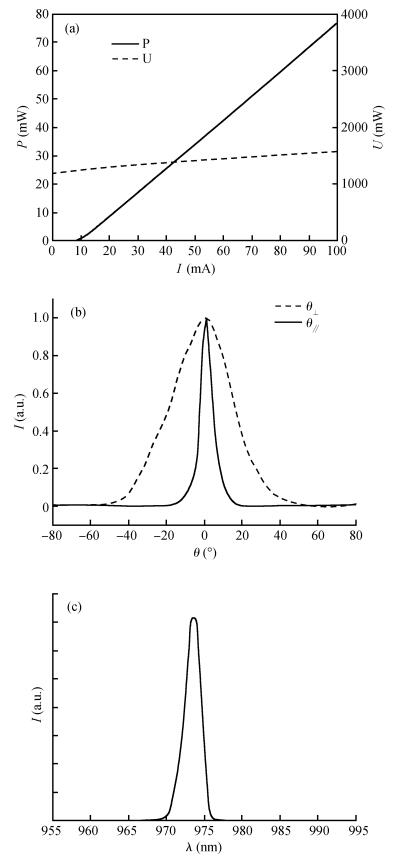

Fig. 4.  (a) Output power-current characteristic of the device. (b) Far-field intensity distribution. (c) Emission spectrum of the device

DownLoad: Full-Size Img PowerPoint

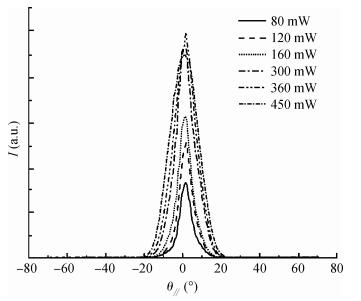

Fig. 5.  The horizontal far-field intensity distribution with different output powers

DownLoad: Full-Size Img PowerPoint

Table 1.   Optimized parameters and simulated result of the designed structure
