Extraction of terahertz emission from a grating-coupled high-electron-mobility transistor

Yu Zhou1, 2, Xinxing Li1, Renbing Tan1, 2, 3, Wei Xue4, Yongdan Huang1, Shitao Lou1, Baoshun Zhang1 and Hua Qin1,

+ Author Affiliations

 Corresponding author: Qin Hua,hqin2007@sinano.ac.cn

DOI: 10.1088/1674-4926/34/2/022002

PDF

Abstract: In a grating-coupled high-electron-mobility transistor, weak terahertz emission with wavelength around 400 μm was observed by using a Fourier-transform spectrometer. The absolute terahertz emission power was extracted from a strong background blackbody emission by using a modulation technique. The power of terahertz emission is proportional to the drain-source current, while the power of blackbody emission has a distinct relation with the electrical power. The dependence on the drain-source bias and the gate voltage suggests that the terahertz emission is induced by accelerated electrons interacting with the grating.

Key words: two-dimensional electron system, Smith-Purcell radiation, grating coupler, high-electron-mobility transistor



[1]
Smith S J, Purcell E M. Visible light from localized surface charges moving across grating. Phys Rev, 1953, 92:1069
[2]
Tsimring S E. Electron beams and microwave vacuum electron-ics. New York:John Wiley & Sons, 2007
[3]
Mikhailov S A. Plasma instability and amplification of electromagnetic waves in low-dimensional electron systems. Phys Rev B, 1998, 58:1517 doi: 10.1103/PhysRevB.58.1517
[4]
Tsui D C, Gornik E, Logan R A. Far infrared emission from plasma oscillations of Si inversion layers. Solid State Commun, 1980, 35:875 doi: 10.1016/0038-1098(80)91043-1
[5]
Gornik E, Christanell R, Weimann G, et al. Analysis of carrier distribution function through Smith-Purcell effect in GaAs/GaAlAs heterostructures. Solid-State Electron, 1988, 31:751 doi: 10.1016/0038-1101(88)90381-4
[6]
Gornik E, Schwarz R, Lindemann G, et al. Emission spectroscopy on two-dimensional systems. Surf Sci, 1980, 98:493 doi: 10.1016/0039-6028(80)90530-0
[7]
Wirner C, Kiener C, Boxleitner W, et al. Direct observation of the hot electron distribution function in GaAs/AlGaAs heterostructures. Phys Rev Lett, 1993, 70:2609 doi: 10.1103/PhysRevLett.70.2609
[8]
Hirakawa K, Yamanaka K, Grayson M, et al. Far-infrared emission spectroscopy of hot two-dimensional plasmons in Al0.3Ga0.7As=GaAs heterojunctions. Appl Phys Lett, 1995, 67:2326 doi: 10.1063/1.114333
[9]
Otsuji T, Meziani Y M, Hanabe M, et al. Grating-bicoupled plasmon-resonant terahertz emitter fabricated with GaAs-based heterostructure material systems. Appl Phys Lett, 2006, 89:263502 doi: 10.1063/1.2410228
[10]
Otsuji T, Watanabe T, El Moutaouaki A, et al. Emission of terahertz radiation from two-dimensional electron systems in semiconductor nano-and hetero-structures. J Infrared Milli Terahz Waves, 2011, 32:629 doi: 10.1007/s10762-010-9714-0
[11]
Meziani Y M, Handa H, Knap W, et al. Room temperature terahertz emission from grating coupled two -dimensional plasmons. Appl Phys Lett, 2008, 92:201108 doi: 10.1063/1.2919097
[12]
Dyakonov M, Shur M. Shallow water analogy for a ballistic field effect transistor:new mechanism of plasma wave generation by dc current. Phys Rev Lett, 1993, 71:2465 doi: 10.1103/PhysRevLett.71.2465
[13]
Mikhailov S A. Design and theory of a graphene-based coherent terahertz emitter. arXiv:1203.3983v1(cond-mat.mes-hall), 2012 https://arxiv.org/abs/1203.3983v1

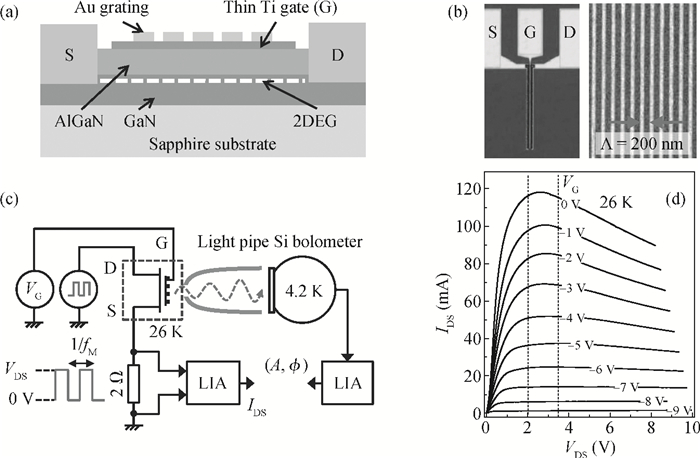

Fig. 1.  (a) A cross-section schematic of the device. (b) The optical photograph of the device and the SEM graph of the grating. (c) A schematic of the measurement setup. (d) The current–voltage characteristic measured at different gate voltages at 26 K.

DownLoad: Full-Size Img PowerPoint

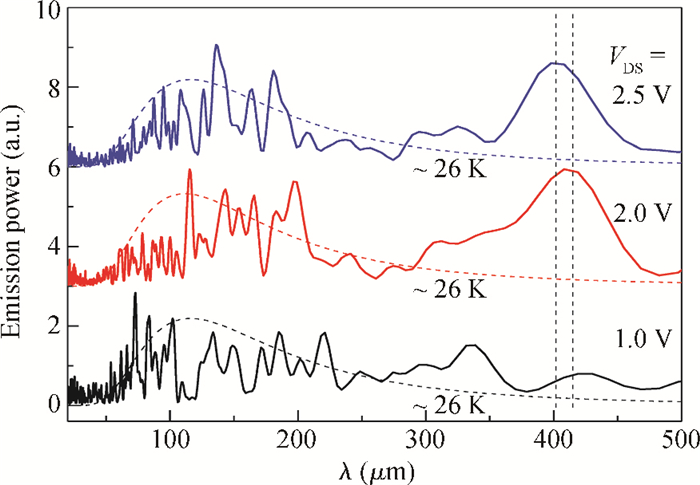

Fig. 2.  The emission spectra obtained at VDS D 1.0, 2.0, 2.5 V, and VG D 8.4 V. The dashed lines indicate the emission spectrum of an ideal blackbody spectrum at 26 K. The curves are offset by 3.0 for clarity

DownLoad: Full-Size Img PowerPoint

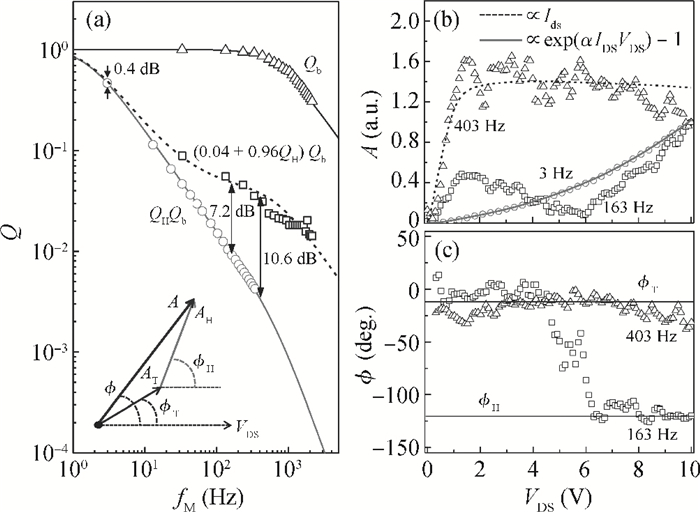

Fig. 3.  (a) Normalized responses of the silicon bolometer sensing a coherent terahertz emission around 900 GHz from the BWO (open triangle), the device biased at VDS D 10 V and VG D 0 V (open circle), the device biased at VDS D 1:0 V and VG D 8:4 V (open square). Curves are fittings based on the time-constant model. The inset illustrates the overall signal consisting of both the background blackbody emission and the terahertz emission. The normalized emission power (b) and the phase (c) as a function of the drain-source bias measured at ${f_{\text{M}}}$ D 3, 163, and 403 Hz. The gate voltage is fixed at VG D 8.4 V for (b) and (c).

DownLoad: Full-Size Img PowerPoint

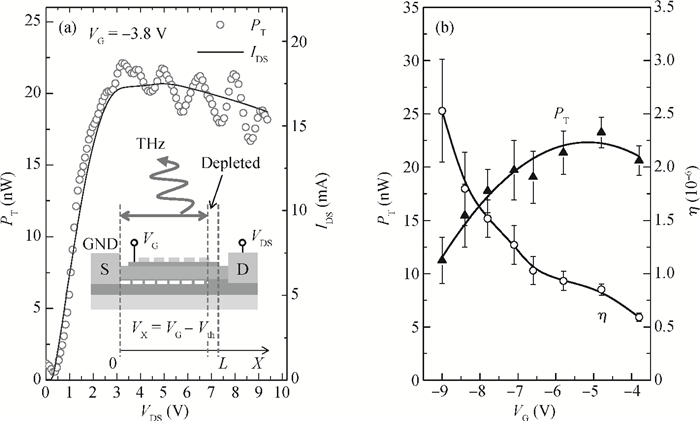

Fig. 4.  (a) The extracted absolute terahertz emission power (open circle) and the corresponding drain–source current (solid curve) as a function of the drain–source bias at VG D 3:8 V. (b) The maximum absolute terahertz emission power and the efficiency as a function of the gate voltage.
