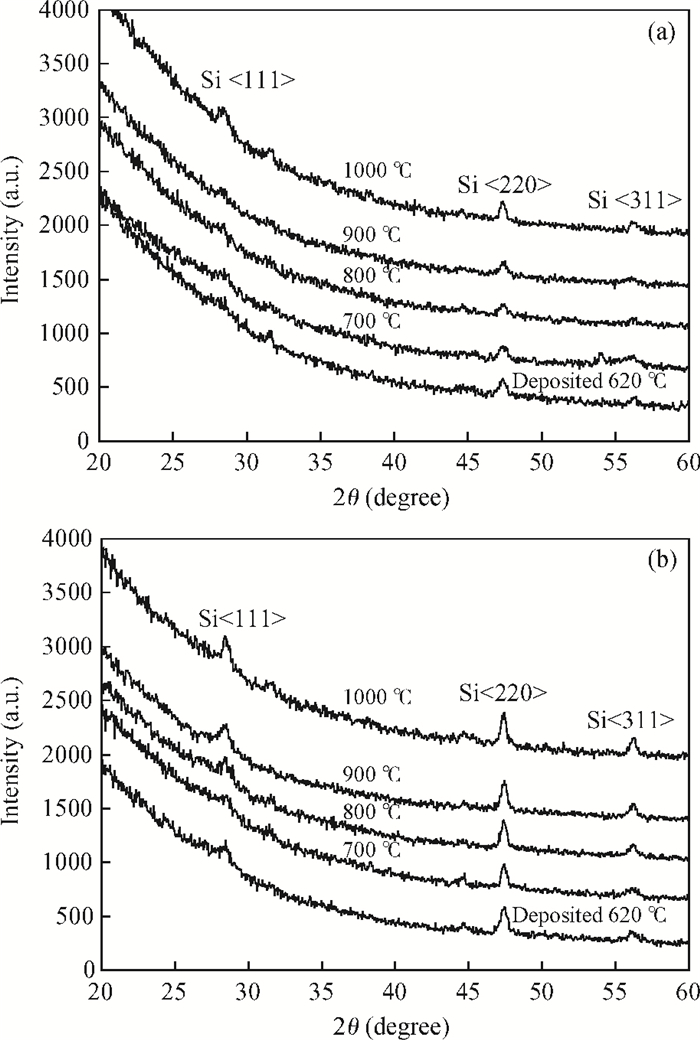

Fig. 1.
XRD spectra of the nano-polysilicon thin films deposited at 620 ℃ and thin films at different annealing temperatures. (a) 55 nm. (b) 90 nm.
DownLoad:
| Citation: |
Xiaofeng Zhao, Dianzhong Wen, Cuicui Zhuang, Jingya Cao, Zhiqiang Wang. Fabrication and characteristics of magnetic field sensors based on nano-polysilicon thin-film transistors[J]. Journal of Semiconductors, 2013, 34(3): 036001. doi: 10.1088/1674-4926/34/3/036001
****
X F Zhao, D Z Wen, C C Zhuang, J Y Cao, Z Q Wang. Fabrication and characteristics of magnetic field sensors based on nano-polysilicon thin-film transistors[J]. J. Semicond., 2013, 34(3): 036001. doi: 10.1088/1674-4926/34/3/036001.
|
Fabrication and characteristics of magnetic field sensors based on nano-polysilicon thin-film transistors
DOI: 10.1088/1674-4926/34/3/036001
More Information
-
Abstract

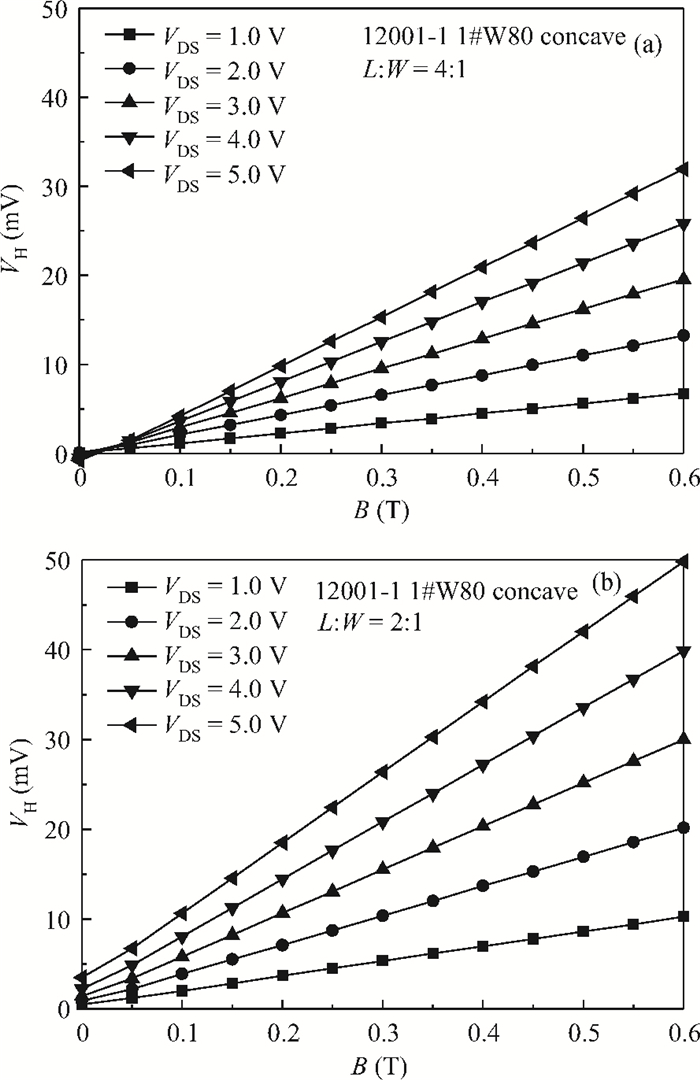

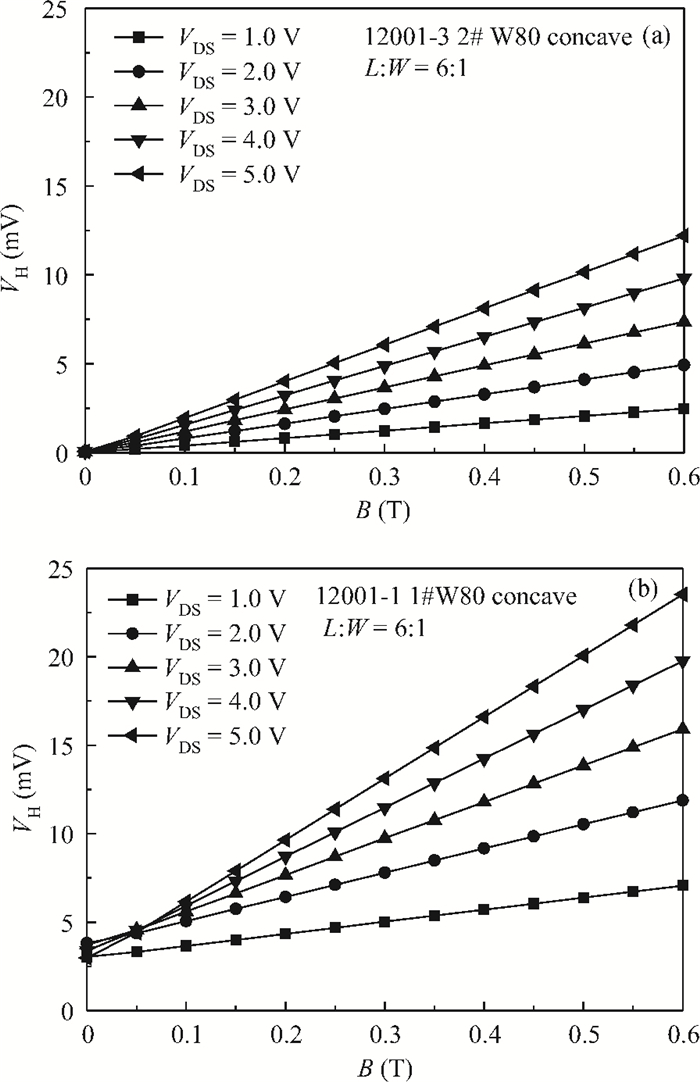

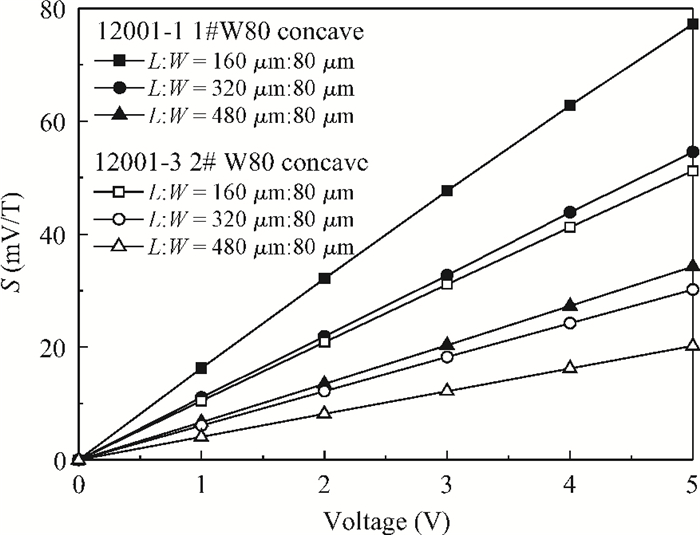

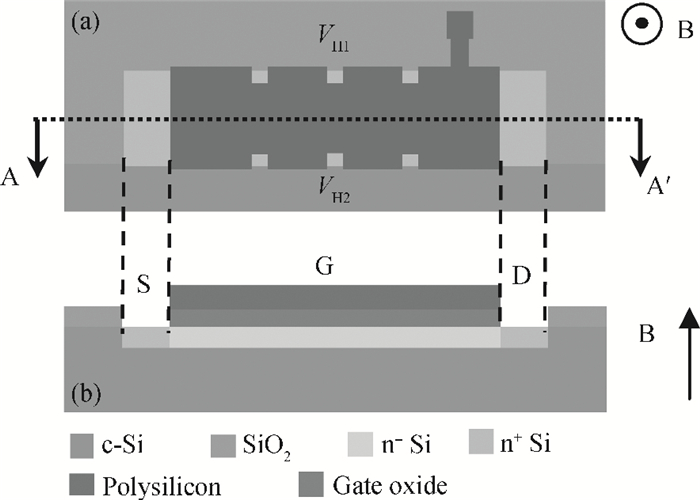

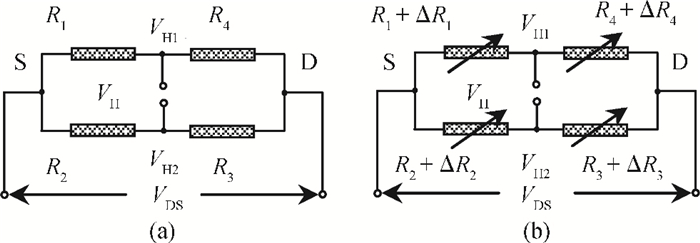

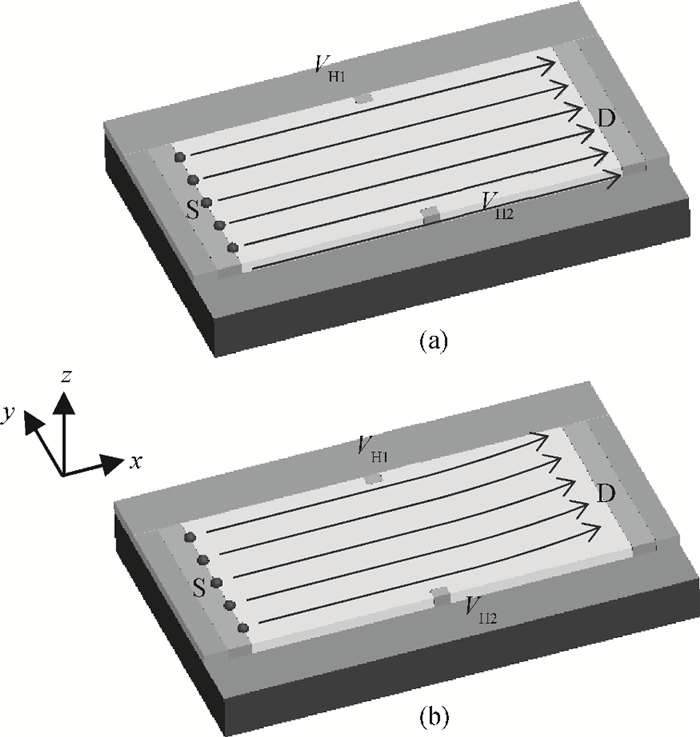

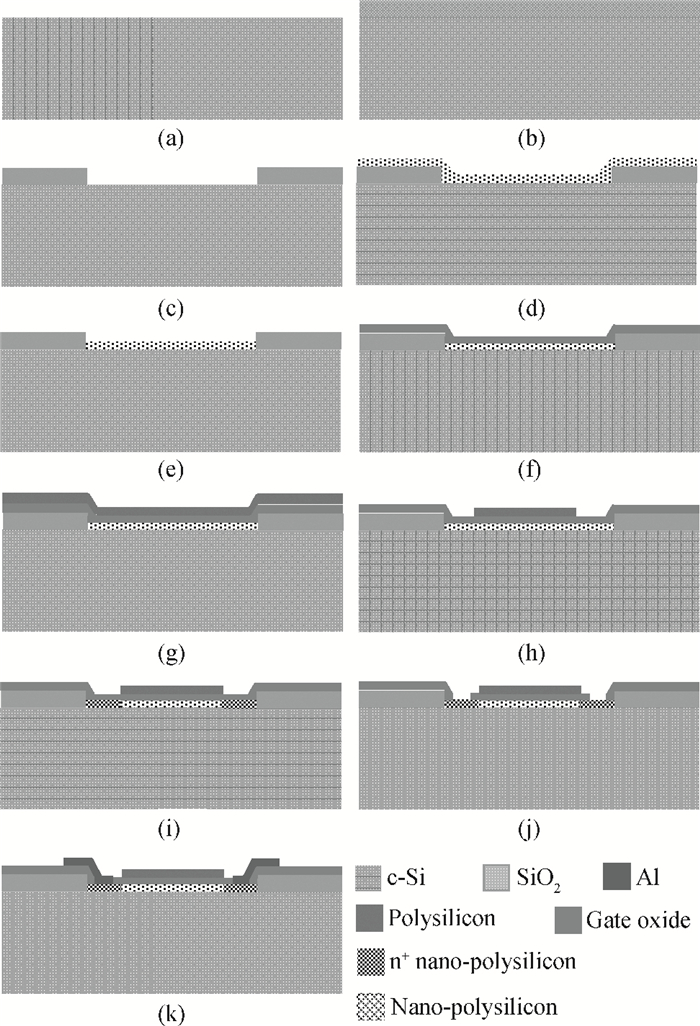

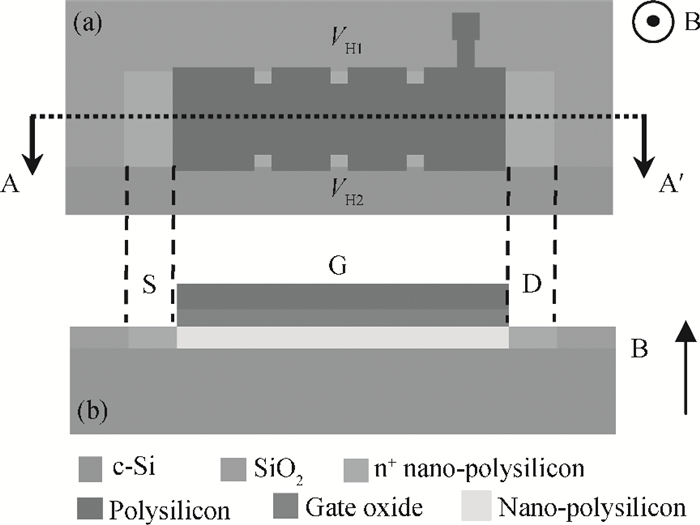

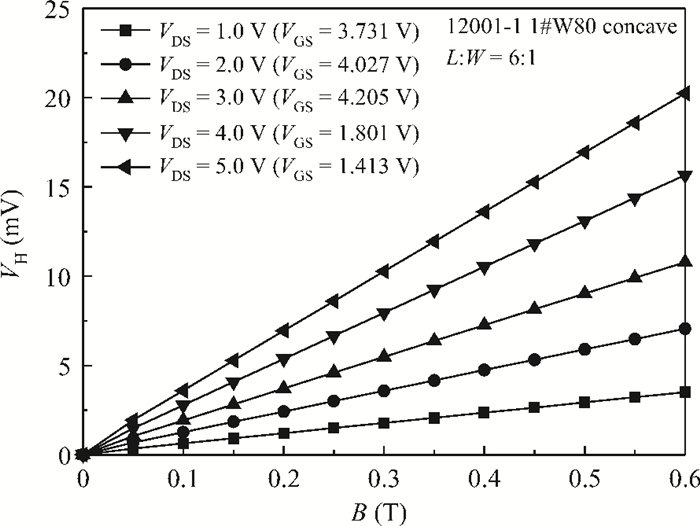

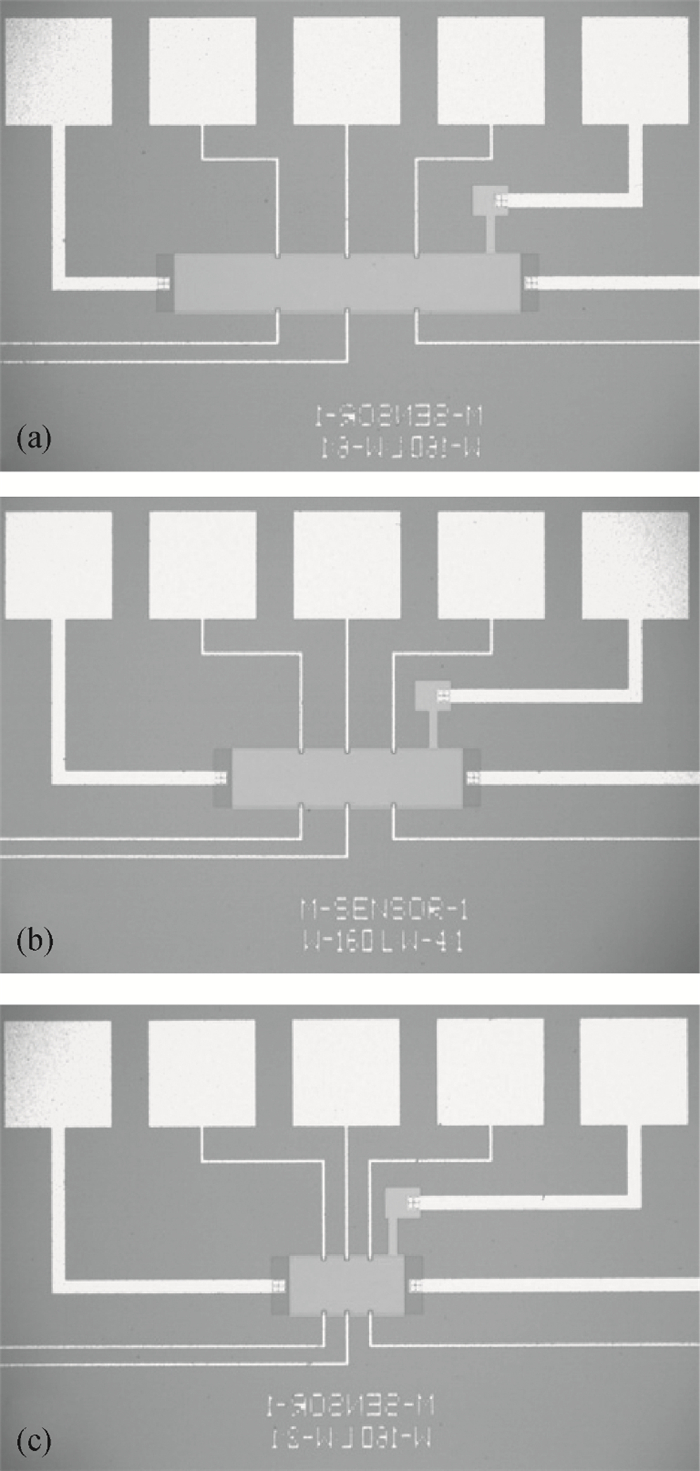

A magnetic field sensor based on nano-polysilicon thin films transistors (TFTs) with Hall probes is proposed. The magnetic field sensors are fabricated on < 100> orientation high resistivity (ρ>500 Ω·cm) silicon substrates by using CMOS technology, which adopt nano-polysilicon thin films with thicknesses of 90 nm and heterojunction interfaces between the nano-polysilicon thin films and the high resistivity silicon substrates as the sensing layers. The experimental results show that when VDS=5.0 V, the magnetic sensitivities of magnetic field sensors based on nano-polysilicon TFTs with length-width ratios of 160 μm/80 μm, 320 μm/80 μm and 480 μm/80 μm are 78 mV/T, 55 mV/T and 34 mV/T, respectively. Under the same conditions, the magnetic sensitivity of the obtained magnetic field sensor is significantly improved in comparison with a Hall magnetic field sensor adopting silicon as the sensing layers. -
References
[1] Gallagher R C, Corak W S. A metal-oxide-semiconductor (MOS) Hall element. Solid-State Electron, 1966, 9:571 doi: 10.1016/0038-1101(66)90172-9[2] Liu T, Zhu D Z. Relative sensitivity of sector split-drain magnetic field-effect transistor based on geometrical correction factor of sector Hall plate. Chinese Journal of Semiconductors, 2006, 27:2155 http://ieeexplore.ieee.org/lpdocs/epic03/wrapper.htm?arnumber=4098379[3] Yao Y R, Zhu D Z. Sector split-drain magnetic MAGFET structure and model based on standard CMOS technology. Chinese Journal of Semiconductors, 2005, 26:2005 http://cn.bing.com/academic/profile?id=b378e9d6fd78617292cef3c24f07a528&encoded=0&v=paper_preview&mkt=zh-cn[4] Bihan F L, Carvou E, Fortin B, et al. Realization of polycrystalline silicon magnetic sensors. Sensors and Actuators A, 2001, 88:133 doi: 10.1016/S0924-4247(00)00506-9[5] Carvou E, Bihan F L, Rogel R, et al. Magnetic sensors with polysilicon TFTs. Sensor Proceedings of IEEE, 2002, 2:804 doi: 10.1109/ICSENS.2002.1037210[6] Carvou E, Bihan F L, Bonnaud O. Hall effect magnetic sensors based on polysilicon TFTs. IEEE Sensors Journal, 2004, 4:597 doi: 10.1109/JSEN.2004.833497[7] Jacques E, Bihan F L, Crand S, et al. Differential amplifier using polysilicon TFTs processed at low temperature to be integrated with TFT Hall sensor. Conference on IEEE Industrial Electronics, 2006:3193 http://ieeexplore.ieee.org/document/4153450/[8] Yamaguchi Y, Hashimoto H, Kimura M, et al. Magnetic-field area sensor using poly-Si micro Hall devices. IEEE Electron Device Lett, 2010, 31:1260 doi: 10.1109/LED.2010.2068271[9] Kimura M, Yamaguchi Y, Hashimoto H, et al. Analysis of Hall voltage in micro poly-Si Hall cells. Electrochemical and Solid-State Lett, 2010, 13:J96[10] Chen X Y, Shen W Z, He Y L. Enhancement of electron mobility in nanocrystalline silicon/crystalline silicon heterostructures. J Appl Phys, 2005, 97:024305 doi: 10.1063/1.1832752[11] Chen X Y, Shen W Z, Chen H, et al. High electron mobility in well ordered and lattice-strained hydrogenated naocrystalline silicon. Nanotechnology, 2006, 17:595 doi: 10.1088/0957-4484/17/2/042[12] Chuai R Y, Wang J, Wu M L, et al. A tunneling piezoresistive model for polysilicon. Journal of Semiconductors, 2012, 33:092003 doi: 10.1088/1674-4926/33/9/092003[13] Zhao X F, Wen D Z. Fabrication and characteristics of a nano-polysilicon thin film pressure sensor. Journal of Semiconductors, 2008, 29:2038 http://www.cqvip.com/QK/94689X/201303/45044683.html[14] Zhao X F, Wen D Z. Fabrication and characteristics of the nc-Si/c-Si heterojunction MAGFET. Journal of Semiconductors, 2009, 30:114002 doi: 10.1088/1674-4926/30/11/114002 -
