Monolithic integration of a silica-based 16-channel VMUX/VDMUX on quartz substrate

Hongqing Dai1, Junming An1, , Yue Wang1, Jiashun Zhang1, Liangliang Wang1, Hongjie Wang1, Jianguang Li1, Yuanda Wu1, Fei Zhong2 and Qiang Zha2

+ Author Affiliations

 Corresponding author: An Junming, Email:junming@semi.ac.cn

DOI: 10.1088/1674-4926/35/10/104010

PDF

Abstract: A monolithic integrated variable attenuator multiplexer/demultiplexer is demonstrated. It is composed of a 16-channel 200 GHz silica-based arrayed waveguide grating and an array of Mach-Zehnder interferometer thermo-optic variable optical attenuators. The integrated device is fabricated on a quartz substrate, which eliminates the process of depositing the undercladding layer and reduces the power consumption compared with a device fabricated on a silicon substrate. The insertion loss and crosstalk of the integrated device are -5 dB and less than -22 dB, respectively. The power consumption is only 110 mW at the attenuation of 20 dB per channel.

Key words: monolithic integration, quartz substrate, VMUX/VDMUX, AWG, thermo-optic VOA



[1]
Nishi H, Tsuchizawa T, Watanabe T, et al. Monolithic integration of a silica-based arrayed waveguide grating filter and silicon variable optical attenuators based on p-i-n carrier-injection structure. Appl Phys Express, 2010, 3(10):100203 http://cn.bing.com/academic/profile?id=fd4958803ad000c5d6591fa81a72e3e7&encoded=0&v=paper_preview&mkt=zh-cn
[2]
Abe M. Silica-based waveguide devices for photonic networks. Journal of the Ceramic Society of Japan, 2008, 116(10):1063 http://cn.bing.com/academic/profile?id=a50670c020402ea9e59e27cc1ee82e93&encoded=0&v=paper_preview&mkt=zh-cn
[3]
Kitoh T, Wakamiya M, Atsugi, et al. Recent progress on arrayed-waveguide grating multi/demultiplexers based on silica planar lightwave circuits. Proc SPIE, 2008, 7135:713503 doi: 10.1117/12.803090
[4]
Pan Pan, An Junming, Wang Liangliang, et al. Design and fabrication of an InP arrayed waveguide grating for monolithic PICs. Journal of Semiconductors, 2012, 33(7):074010 doi: 10.1088/1674-4926/33/7/074010
[5]
Feng D Z, Feng N N, Kung C C, et al. 30 GHz Ge electro-absorption modulator integrated with 3μm silicon-on-insulator waveguide. Opt Express, 2011, 19(8):7062 doi: 10.1364/OE.19.007062
[6]
He Yuejiao, Fang Qing, Xin Hongli, et al. A low power consumption SOI-based thermo-optic variable optical attenuator. Chinese Journal of Semiconductors, 2005, 22(13):204 http://ieeexplore.ieee.org/xpl/articleDetails.jsp?reload=true&arnumber=1435237&filter%3DAND%28p_IS_Number%3A30918%29
[7]
Tsuchizawa T, Yamada K, Watanabe T, et al. Monolithic Integration of silicon-, germanium-, and silica-based optical devices for telecommunications applications. IEEE J Sel Topics Quantum Electron, 2011, 17(3):516 doi: 10.1109/JSTQE.2010.2089430
[8]
Feng D Z, Feng N N, Kung C C, et al. Compact single-chip VMUX/VDMUX on the silicon-on-insulator platform. Opt Express, 2011, 19(7):6125 doi: 10.1364/OE.19.006125
[9]
Yamada K, Tsuchizawa T, Watanabe T, et al. Silicon photonic devices and their integration technology. Optical Fiber Communication Conference, California, 2011
[10]
Fang Q, Chen P, Xin H L, et al. Low power-consumption and high response frequency thermo-optic variable optical attenuators based on silicon-on-insulator materials. Chin Phys Lett, 2005, 22(6):1452 doi: 10.1088/0256-307X/22/6/043
[11]
Qu P F, Chen W Y, Li F M, et al. Analysis and design of thermo-optical variable optical attenuator using three-waveguide directional couplers based on SOI. Opt Express, 2008, 16(25):20334 doi: 10.1364/OE.16.020334

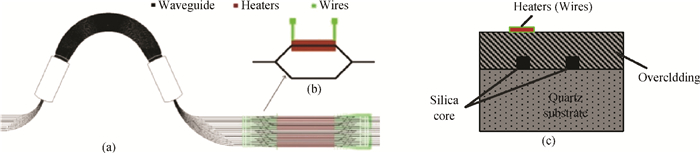

Fig. 1.  (a) Mask layout of the integrated device. (b) Enlargement view of VOA. (c) Cross-section view of VOA.

DownLoad: Full-Size Img PowerPoint

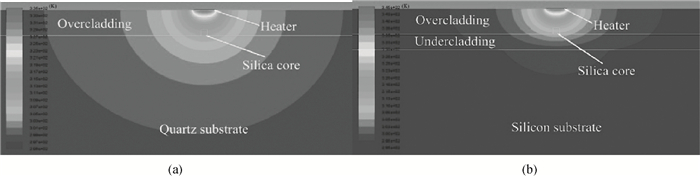

Fig. 2.  Simulation of the steady state heat distribution. (a) Quartz substrate. (b) Silicon substrate.

DownLoad: Full-Size Img PowerPoint

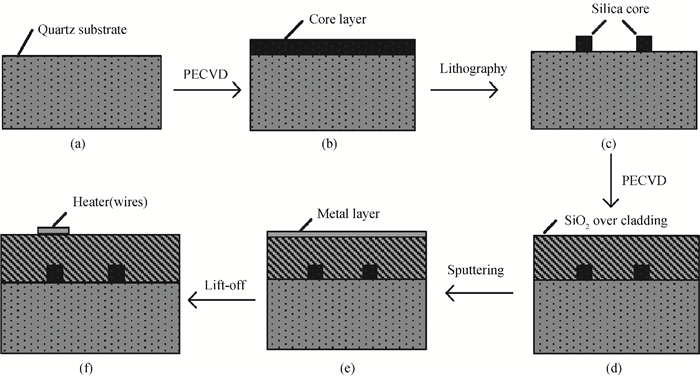

Fig. 3.  The fabrication process.

DownLoad: Full-Size Img PowerPoint

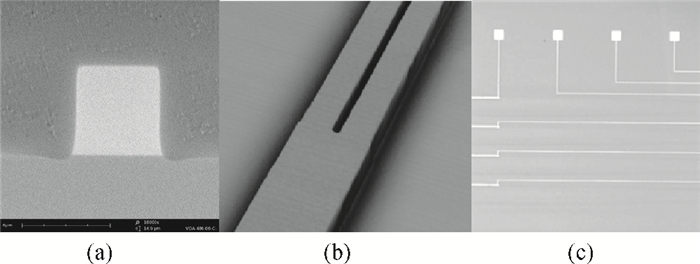

Fig. 4.  Pictures of the fabricated device. (a) Cross-sectional SEM image of the buried single-mode waveguide. (b) Micrograph of the Y-branch area waveguide structure of the VOA. (c) Partial micrograph of the metal heaters and wires.

DownLoad: Full-Size Img PowerPoint

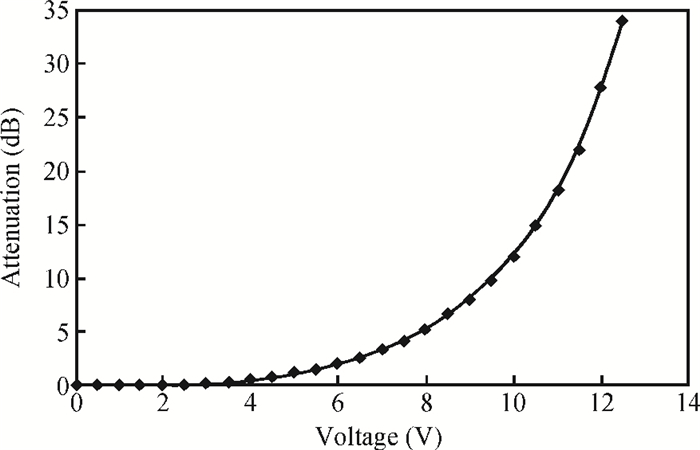

Fig. 5.  The dependence of measured dynamic attenuation on applied voltage.

DownLoad: Full-Size Img PowerPoint

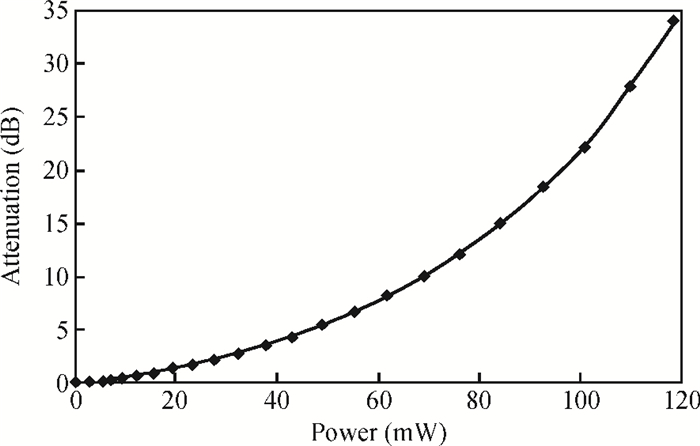

Fig. 6.  The dependence of measured dynamic attenuation on power consumption.

DownLoad: Full-Size Img PowerPoint

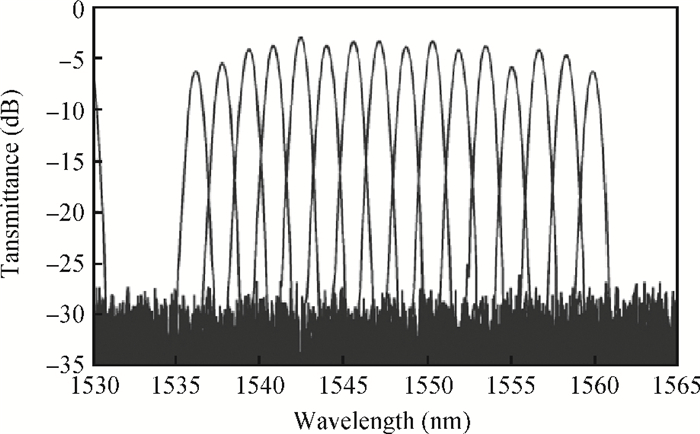

Fig. 7.  VMUX/VDMUX static transmission spectrum.

DownLoad: Full-Size Img PowerPoint

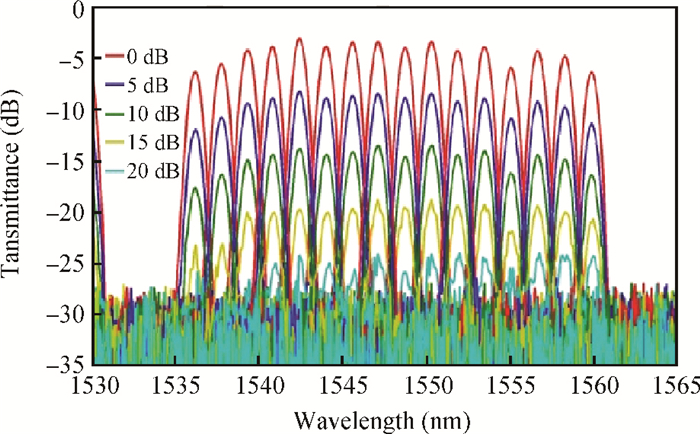

Fig. 8.  VMUX/VDMUX transmission spectrum.

DownLoad: Full-Size Img PowerPoint

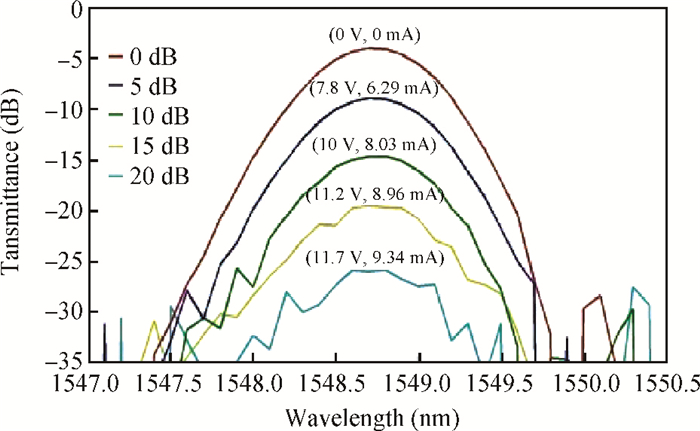

Fig. 9.  (Color online) The voltage and current value with different attenuation.

DownLoad: Full-Size Img PowerPoint

Table 1.   Design parameters of 16-channel AWG.
