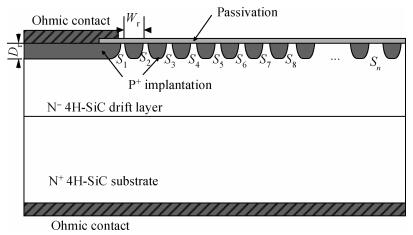

Fig. 1.
P$^+$ implanted PiN diode with floating field ring termination structure.
DownLoad:
| Citation: |
Sizhe Chen, Kuang Sheng, Jue Wang. 1.4 kV 4H-SiC PiN diode with a robust non-uniform floating guard ring termination[J]. Journal of Semiconductors, 2014, 35(5): 054003. doi: 10.1088/1674-4926/35/5/054003
****
S Z Chen, K Sheng, J Wang. 1.4 kV 4H-SiC PiN diode with a robust non-uniform floating guard ring termination[J]. J. Semicond., 2014, 35(5): 054003. doi: 10.1088/1674-4926/35/5/054003.
|
1.4 kV 4H-SiC PiN diode with a robust non-uniform floating guard ring termination
DOI: 10.1088/1674-4926/35/5/054003
More Information
-
Abstract

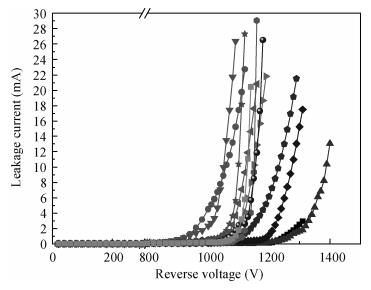

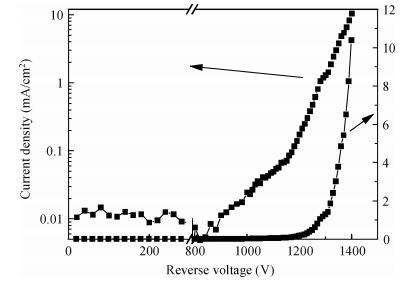

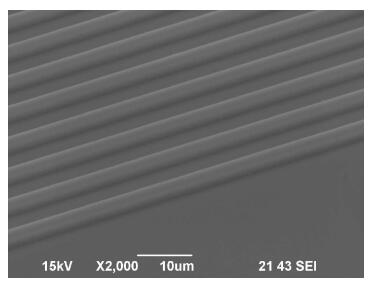

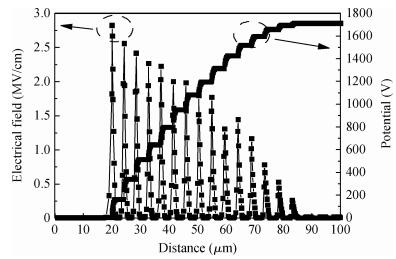

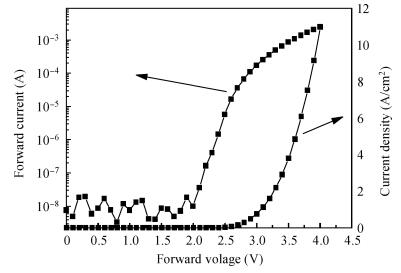

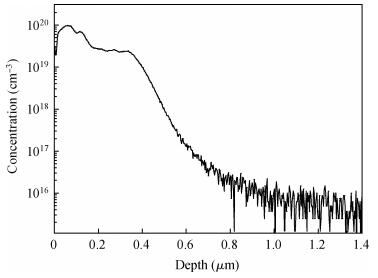

This paper presents the design and fabrication of an effective, robust and process-tolerant floating guard ring termination on high voltage 4H-SiC PiN diodes. Different design factors were studied by numerical simulations and evaluated by device fabrication and measurement. The device fabrication was based on a 12 μm thick drift layer with an N-type doping concentration of 8×1015 cm-3. P+ regions in the termination structure and anode layer were formed by multiple aluminum implantations. The fabricated devices present a highest breakdown voltage of 1.4 kV, which is higher than the simulated value. For the fabricated 15 diodes in one chip, all of them exceeded the breakdown voltage of 1 kV and six of them reached the desired breakdown value of 1.2 kV.-
Keywords:
- silicon carbide,
- PiN diode,
- field guarding rings,
- edge termination
-
References
[1] Cooper J A, Agarwal A. SiC power switching devices-the second electronics revolution. Proc IEEE, 2002, 90(6):956 doi: 10.1109/JPROC.2002.1021561[2] Neudeck P G, Okojie R S, Chen L Y. High-temperature electronics-a role for wide bandgap semiconductors. Proc IEEE, 2002, 90(6):1065 doi: 10.1109/JPROC.2002.1021571[3] Baliga B J. Fundamentals of power semiconductor devices. New York:Springer Science and Business Media, 2008[4] Mahajan A, Skromme B J. Design and optimization of junction termination extension (JTE) for 4H-SiC high voltage Schottky diodes. Solid-State Electron, 2005, 49(6):945 doi: 10.1016/j.sse.2005.03.020[5] Zhang J H, Li X Q, Alexandrov P, et al. Fabrication and characterization of high-current-gain 4H-SiC bipolar junction transistors. IEEE Trans Electron Devices, 2008, 55(8):1899 doi: 10.1109/TED.2008.926670[6] Sheridan D C, Niu G, Merrett J N, et al. Design and fabrication of planar guard ring termination for high-voltage SiC diodes. Solid-State Electron, 2000, 44(8):1367 doi: 10.1016/S0038-1101(00)00081-2[7] Zhang Qian, Zhang Yuming, Zhang Yimen. Characteristics of blocking voltage for power 4H-SiC BJTs with mesa edge termination. Journal of Semiconductors, 2010, 31(7):074007 doi: 10.1088/1674-4926/31/7/074007[8] Sung W, Van Brunt E, Baliga B J, et al. A new edge termination technique for high-voltage devices in 4H-SiC multiple-floating-zone junction termination extension. Electron Device Lett, 2011, 32(7):880 doi: 10.1109/LED.2011.2144561[9] Loh W S, Ng B K, Ng J S, et al. Impact ionization coefficients in 4H-SiC. IEEE Trans Electron Devices, 2008, 55(8):1984 doi: 10.1109/TED.2008.926679 -
