J. Semicond. > 2015, Volume 36 > Issue 10 > 102005
|

SEMICONDUCTOR PHYSICS

Coupling effect of quantum wells on band structure

Jie Chen and Weiyou Zeng

+ Author Affiliations

 Corresponding author: Jie Chen, jiechen2004@126.com; zengwy lx@huat.edu.cn

DOI: 10.1088/1674-4926/36/10/102005

PDF

Abstract: The coupling effects of quantum wells on band structure are numerically investigated by using the Matlab programming language.In a one dimensional finite quantum well with the potential barrier V0, the calculation is performed by increasing the number of inserted barriers with the same height Vb, and by, respectively, varying the thickness ratio of separated wells to inserted barriers and the height ratio of Vb to V0.Our calculations show that coupling is strongly influenced by the above parameters of the inserted barriers and wells.When these variables change, the width of the energy bands and gaps can be tuned.Our investigation shows that it is possible for quantum wells to achieve the desired width of the bands and gaps.

Key words: coupling, quantum wells, band structure



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]

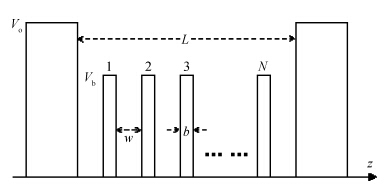

Fig. 1.  The model of QWs.

DownLoad: Full-Size Img PowerPoint

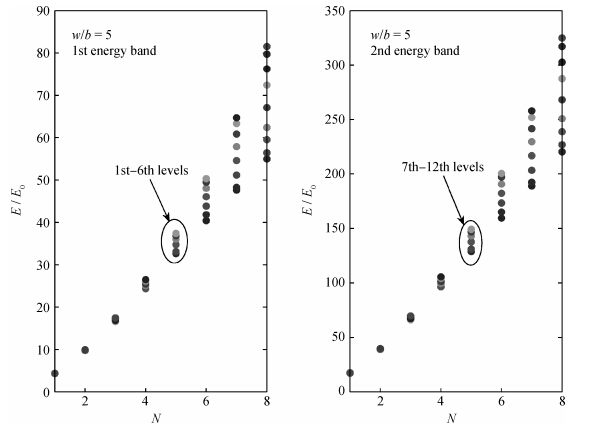

Fig. 2.  Coupled levels with the lower energy as function of the number of inserted barriers ($V_{\rm b}=600E_0$) in a finite single quantum well with $V_{0}=1000E_0$.

DownLoad: Full-Size Img PowerPoint

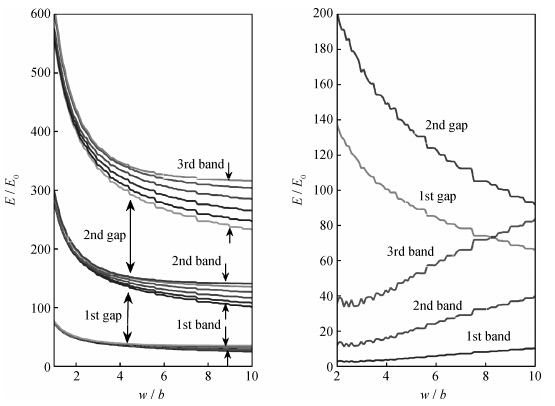

Fig. 3.  First 18 energy levels and formation of three bands in 5-period multiple QWs as function of the ratio $w/b$ for $V_{\rm b}=600E_0$ and $V_{\rm b}=1000E_0$.

DownLoad: Full-Size Img PowerPoint

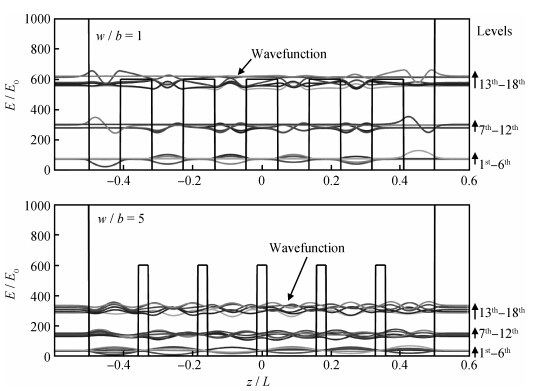

Fig. 4.  First three bands,including 18 energy levels and their corresponding wavefunctions of 5-period multiple QWs as function of the position $z/L$ for $V_{\rm b}=600E_0$ and $V_0=1000E_0$.

DownLoad: Full-Size Img PowerPoint

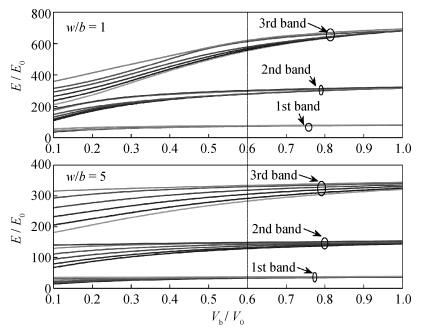

Fig. 5.  First 18 energy levels and formation of three bands in 5-period multiple QWs as function of the ratio $V_{\rm b}/V_0$ for $V_0=1000E_0$.

DownLoad: Full-Size Img PowerPoint
