Analysis and optimization of TSV-TSV coupling in three-dimensional integrated circuits

Yingbo Zhao; Gang Dong; Yintang Yang

doi:10.1088/1674-4926/36/4/045011

J. Semicond. > 2015, Volume 36 > Issue 4 > 045011

SEMICONDUCTOR TECHNOLOGY

Analysis and optimization of TSV-TSV coupling in three-dimensional integrated circuits

Yingbo Zhao, Gang Dong and Yintang Yang

+ Author Affiliations

Corresponding author: Gang Dong, E-mail: gdong@xidian.edu.cn

DOI: 10.1088/1674-4926/36/4/045011

Abstract: Through silicon via (TSV)-TSV coupling is detrimental to the performance of three-dimensional (3D) integrated circuits (ICs) with the major negative effect of introducing coupling noise. In order to obtain an accurate estimation of the coupling level from TSV-TSV in the early design stage, this paper first proposes an impedance-level model of the coupling channel between TSVs based on a two-port network, and then derives the formula of the coupling coefficient to describe the TSV-TSV coupling effect. The accuracy of the formula is validated by comparing the results with 3D full-wave simulations. Furthermore, a design technique for optimizing the coupling between adjacent coupled signal TSVs is proposed. Through SPICE simulations, the proposed technique shows its feasibility to reduce the coupling noise for both a simple TSV-TSV circuit and a complicated circuit with more TSVs, and demonstrates its potential for designers in achieving the goal of improving the electrical performance of 3D ICs.

Key words: 3D integration, though silicon vias (TSVs), two-port network, equivalent impedance, noise coupling reduction

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]

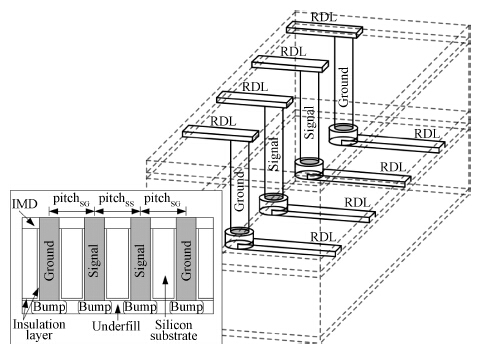

Fig. 1. The physical structure of the GSSG-type TSV in a 3D IC.

DownLoad: Full-Size Img PowerPoint

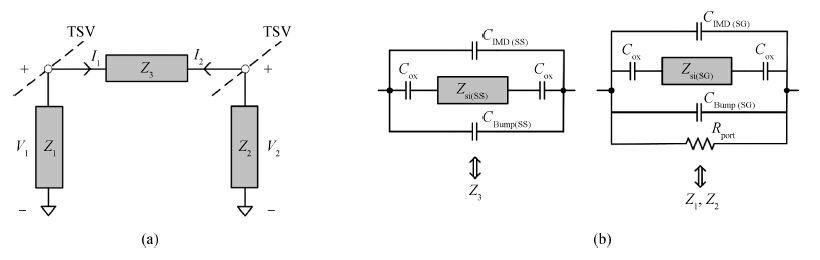

Fig. 2. (a) An impedance-level model of the TSV-TSV coupling channel, and (b) the formation of impedance.

DownLoad: Full-Size Img PowerPoint

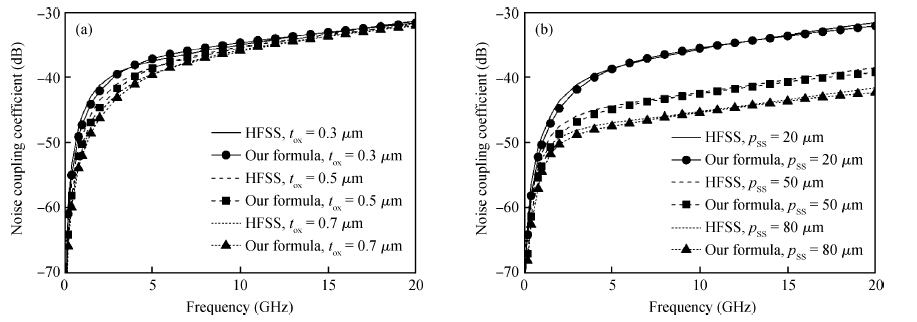

Fig. 3. Comparison of the results of the proposed formula and HFSS (a) with $t_{\rm ox}$ variation, and (b) with $p_{\rm SS}$ variation.

DownLoad: Full-Size Img PowerPoint

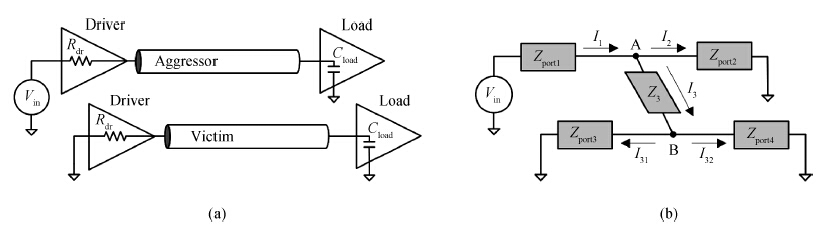

Fig. 4. (a) Two coupled signal TSVs with one aggressor and one victim, and (b) a simplified model for coupling analysis.

DownLoad: Full-Size Img PowerPoint

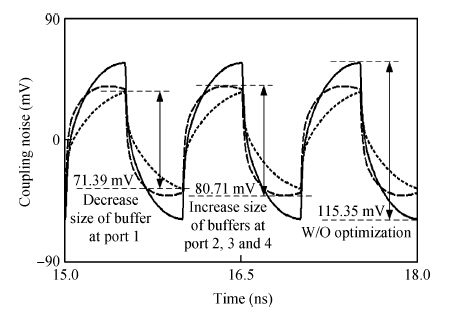

Fig. 5. Coupling noise measured at the load of the victim TSV with a 1 GHz input signal injected into the driving port of the aggressor TSV.

DownLoad: Full-Size Img PowerPoint

Fig. 6. Input signal received at the load of the aggressor TSV.

DownLoad: Full-Size Img PowerPoint

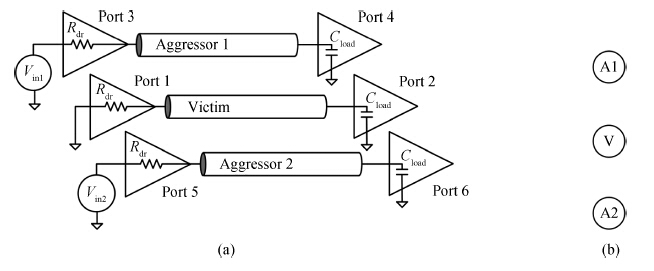

Fig. 7. Adjacent coupled TSVs with two aggressors and one victim. (a) A cross-sectional view and (b) a vertical-sectional view.

DownLoad: Full-Size Img PowerPoint

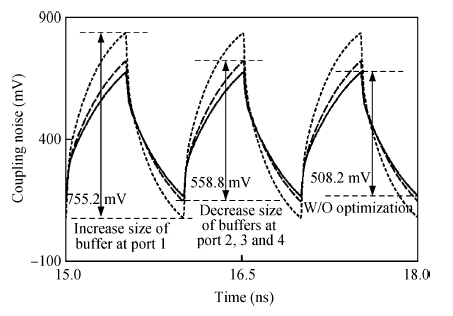

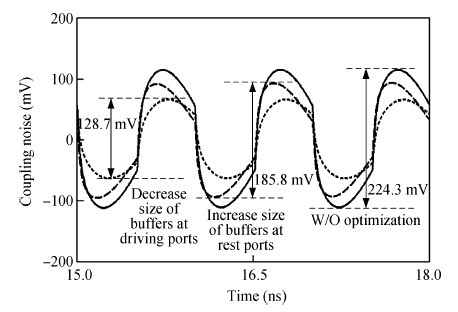

Fig. 8. Coupling noise measured at the load of the victim TSV with two input signals $V_{\rm in1}$ and $V_{\rm in2}$ switching from 0 to 1 V simultaneously.

DownLoad: Full-Size Img PowerPoint

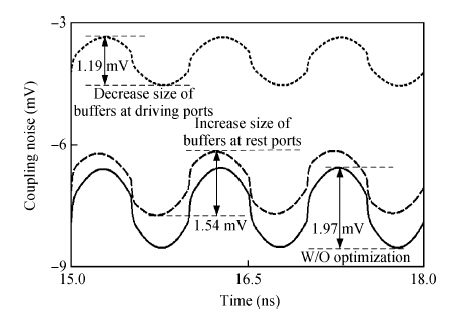

Fig. 9. Coupling noise measured at the load of the victim TSV with two input signals $V_{\rm in1}$ and $V_{\rm in2}$ switching from 1 V to 0 simultaneously.

DownLoad: Full-Size Img PowerPoint

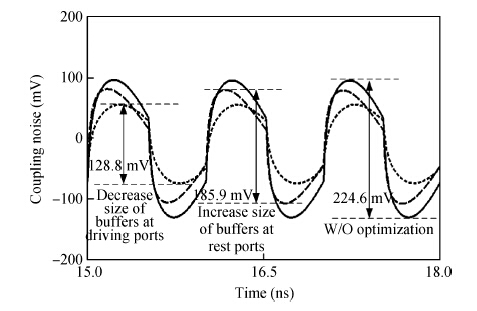

Fig. 10. Coupling noise measured at the load of the victim TSV with two input signals $V_{\rm in1}$ and $V_{\rm in2}$ switching in the opposite direction.

DownLoad: Full-Size Img PowerPoint

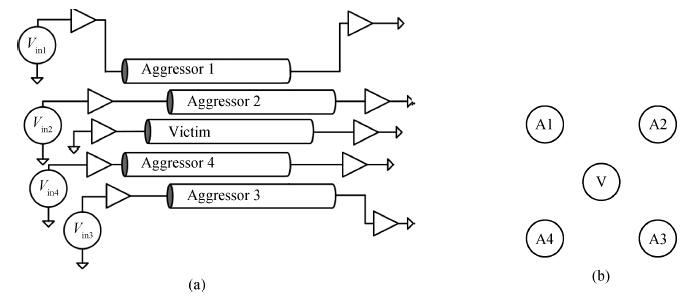

Fig. 11. Adjacent coupled TSVs with four aggressors and one victim. (a) A cross-sectional view and (b) a vertical-sectional view.
