Comparison of on-wafer calibrations for THz InP-based PHEMTs applications

Zhiming Wang1, , Hui Huang2, Zhifu Hu3, Zhuobin Zhao1, Xudong Wang1, 3, Xiaobin Luo1, Jun Liu1 and Songyuan Yang1

+ Author Affiliations

 Corresponding author: Zhiming Wang, Email: wangzhiming872@163.com

DOI: 10.1088/1674-4926/36/6/064006

PDF

Abstract: A quantitative comparison of multiline TRL (thru-reflect-line) and LRM (line-reflect-match) on-wafer calibrations for scattering parameters (S-parameters) measurement of InP-based PHEMTs is presented. The comparison is undertaken for the first time and covers a frequency range from 70 kHz to 110 GHz. It is demonstrated that the accuracy of multiline TRL and LRM calibration is in good agreement. Both methods outperform the conventional SOLT calibration in the full frequency band up to 110 GHz. Then the excellent RF performance is obtained by extrapolation on the basis of inflection point, including a maximum current gain cut-off frequency ft of 247 GHz and a maximum oscillation frequency fmax of 392 GHz. The small-signal model based on LRM calibration is established as well. The S-parameters of the model are consistent with the measured from 1 to 110 GHz.

Key words: on-wafer, calibration, scattering parameters, PHEMTs, small-signal model



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]

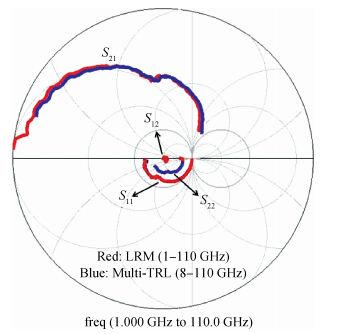

Fig. 1.  (Color online) $S$-parameter comparisons of LRM and multi-TRL.

DownLoad: Full-Size Img PowerPoint

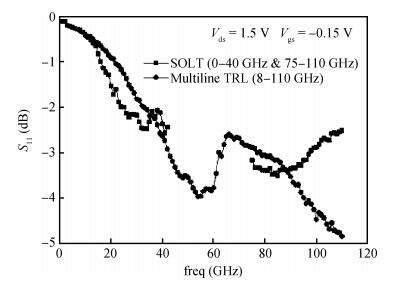

Fig. 2.  $S_{11}$ comparison of SOLT and multi-TRL calibration.

DownLoad: Full-Size Img PowerPoint

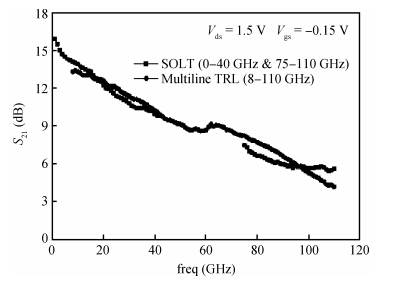

Fig. 3.  $S_{21}$ comparison of SOLT and multi-TRL calibration.

DownLoad: Full-Size Img PowerPoint

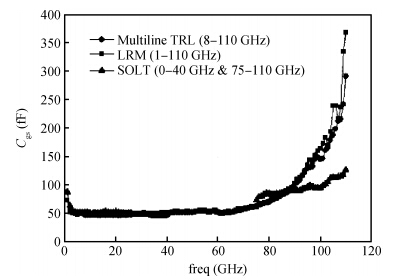

Fig. 4.  Comparison of the extracted device parameters $C_{\rm gs}$.

DownLoad: Full-Size Img PowerPoint

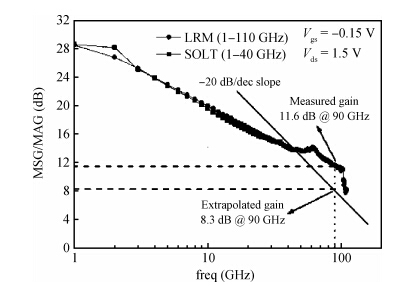

Fig. 5.  Comparison of measured (LRM) and extrapolated (SOLT) gain @ 90 GHz.

DownLoad: Full-Size Img PowerPoint

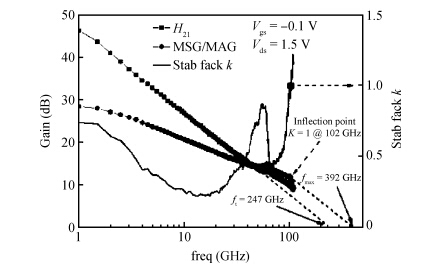

Fig. 6.  $H_{21}$,MAG/MSG and stability factor $k$ versus frequency.

DownLoad: Full-Size Img PowerPoint

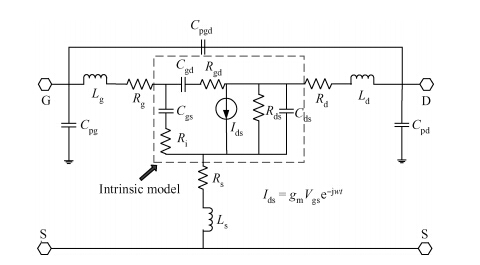

Fig. 7.  Small-signal equivalent circuit model of this PHEMT.

DownLoad: Full-Size Img PowerPoint

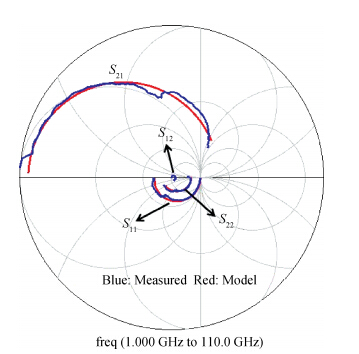

Fig. 8.  (Color online) The $S$-parameters fitting curves.

DownLoad: Full-Size Img PowerPoint

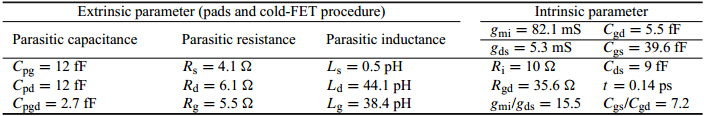

Table 1.   Small-signal equivalent circuit model parameters.

DownLoad: CSV
