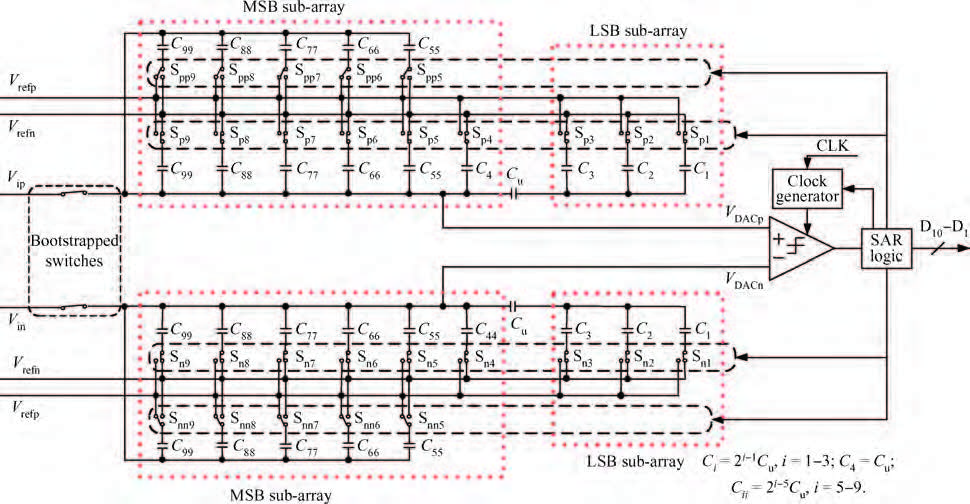

Fig. 1.
Block diagram of the proposed fully differential SAR ADC.
DownLoad:
| Citation: |
Dong Li, Qiao Meng, Fei Li. A 10 bit 50 MS/s SAR ADC with partial split capacitor switching scheme in 0.18 μm CMOS[J]. Journal of Semiconductors, 2016, 37(1): 015004. doi: 10.1088/1674-4926/37/1/015004
****
D Li, Q Meng, F Li. A 10 bit 50 MS/s SAR ADC with partial split capacitor switching scheme in 0.18 μm CMOS[J]. J. Semicond., 2016, 37(1): 015004. doi: 10.1088/1674-4926/37/1/015004.
|

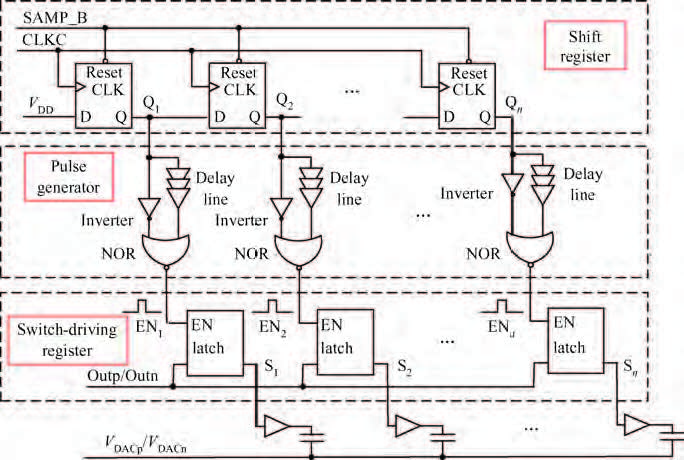

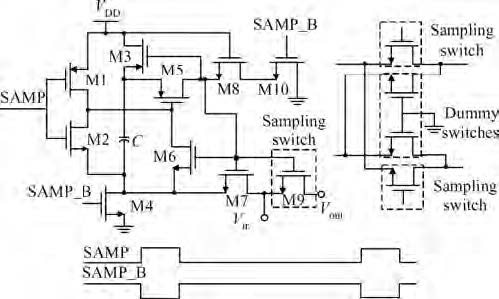

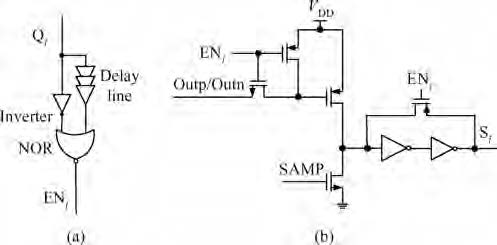

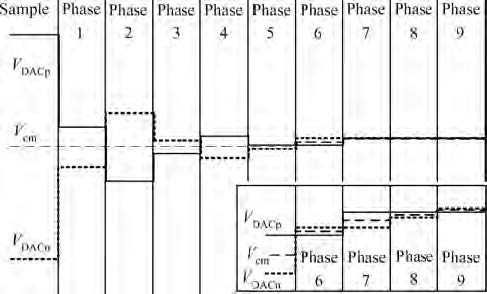

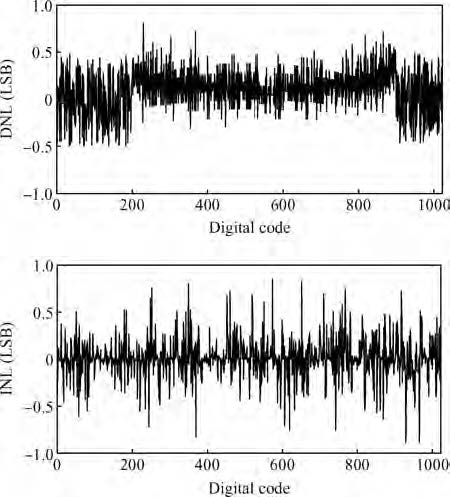

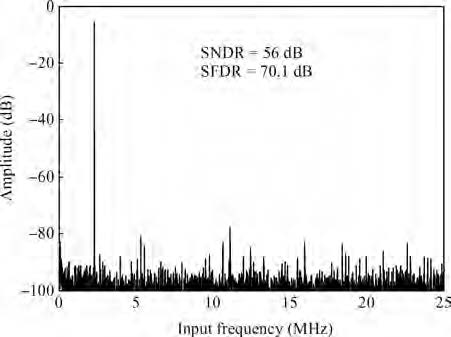

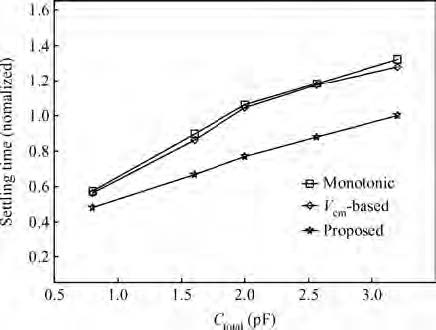

A 10 bit 50 MS/s SAR ADC with partial split capacitor switching scheme in 0.18 μm CMOS
DOI: 10.1088/1674-4926/37/1/015004
More Information
-

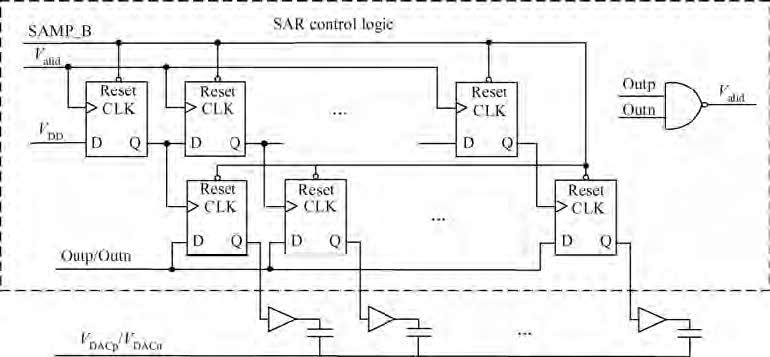

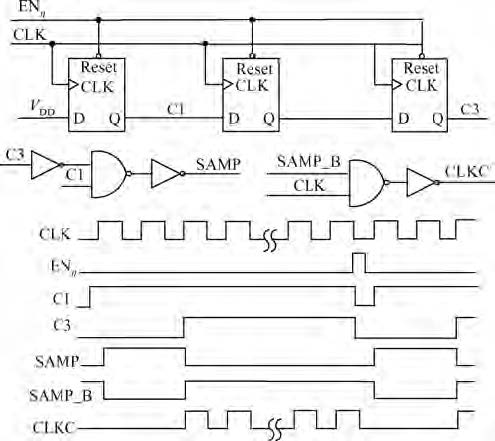

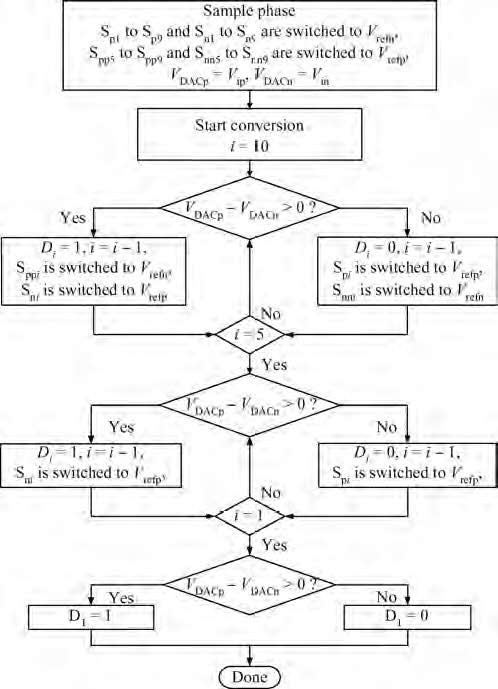

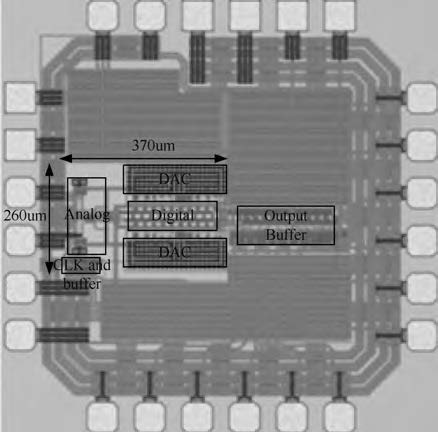

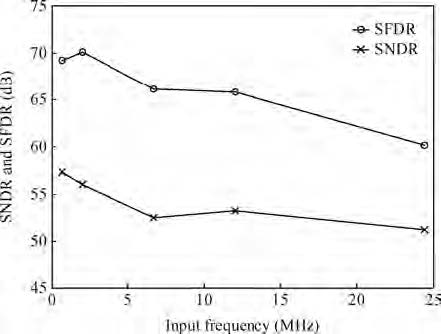

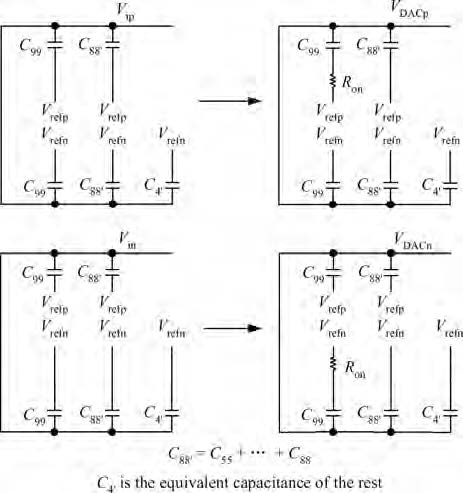

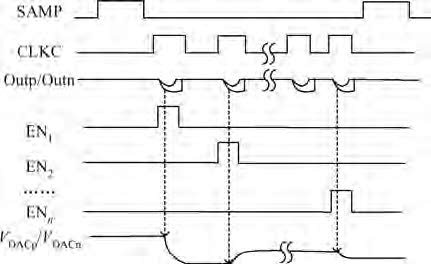

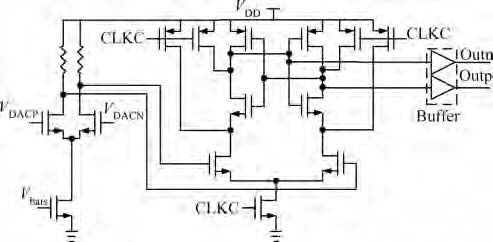

Abstract
This paper presents a 10 bit successive approximation register (SAR) analog-to-digital converter (ADC) in 0.18 μ m 1P6M CMOS technology with a 1.8 V supply voltage. To improve the conversion speed, a partial split capacitor switching scheme is proposed. By reducing the time constant of the bit cycles, the proposed technique shortens the settling time of a capacitive digital-to-analog converter (DAC). In addition, a new SAR control logic is proposed to reduce loop delay to further enhance the conversion speed. At 1.8 V supply voltage and 50 MS/s the SAR ADC achieves a signal-to-noise and distortion ratio (SNDR) of 57.5 dB and spurious-free dynamic range (SFDR) of 69.3 dB. The power consumption is 2.26 mW and the core die area is 0.096 mm2.-
Keywords:
- SAR ADC,
- switching scheme,
- SAR control logic,
- DAC,
- comparator
-
