A 0.9 V PSRR improved voltage reference using a wide-band cascaded current mode differentiator

Fanyang Li

+ Author Affiliations

 Corresponding author: Fanyang Li, t12046@fzu.edu.cn

DOI: 10.1088/1674-4926/39/10/105002

PDF

Turn off MathJax

Abstract: We present a voltage reference using a wide-band cascaded current mode differentiator, for the improved PSRR performance. Compared with the conventional references, the reference with the technique is mainly characterized by a two cascaded stages current mode signal differentiator. In the differentiator, a zero OTA Gm is proposed, to achieve the wide-band differential characteristic. With the technique, the PSRR beyond the pole’s corresponding frequency can be significantly improved with the minimum supply voltage only about VGS_PMOS + (VGS_NMOS − VTH). Fabricated with a 0.18 μm CMOS process, with the 0.9 V supply voltage, the PSRR @ 20 MHz of the reference is achieved at −54 dB. Moreover, the power dissipation is 19 μW.

Key words: reference, current mode, differentiator



[1]
De Vita G, Iannaccone G. A sub-1-V, 10 ppm/C, nanopower voltage reference generator. IEEE J Solid-State Circuits, 2007, 42(7): 1536 doi: 10.1109/JSSC.2007.899077
[2]
Peng L J, Jin X L, Liu M L. Design and optimization of a low-noise voltage reference using chopper stabilization technique. Chin J Electron, 2017, 26(5): 981 doi: 10.1049/cje.2017.03.020
[3]
Ueno K, Hirose T, Asai T, et al. A 300 nW, 15 ppm/C, 20 ppm/V CMOS voltage reference circuit consisting of subthreshold MOSFETs. IEEE Solid-State Circuits, 2009, 44(7): 2047 doi: 10.1109/JSSC.2009.2021922
[4]
Zhou Z, Zhu P S, Shi Y, et al. A CMOS voltage reference based on mutual compensation of Vtn and Vtp. IEEE Trans Circuits Syst II, 2012, 59(6): 341 doi: 10.1109/TCSII.2012.2195065
[5]
Chahardori M, Atarodi M, Sharifkhani M. A sub 1 V high PSRR CMOS bandgap voltage reference. J Microelectron, 2011, 42: 1057 doi: 10.1016/j.mejo.2011.06.010
[6]
Zhang W J, Zhao Y, Wang J, et al. A band-gap voltage reference for LDO circuit. Appl Mechan Mater, 2014, 599(6): 626
[7]
Zhang B, Feng Q Y. A high PSRR bandgap reference circuit. Microelectronics, 2010, 40(1): 58
[8]
Zhu Y M, Liu F, Yang Y J, et al. A –115 dB PSRR CMOS band gap reference with a novel voltage self-regulating technique. IEEE Trans Circuits Syst II, 2012, 59(6): 341 doi: 10.1109/TCSII.2012.2195065
[9]
Li F Y, Jiang H. A high-PSRR low dropout regulator in lnb using first–stage reference-included coarse-filtering technique. J Circuits Syst Comput, 2015, 24(2): 1550022 doi: 10.1142/S021812661550022X
[10]
Qu Y, Peng X H, Hou L G, et al. A 0.662 ppm/°C high PSRR CMOS bandgap voltage reference. 13th IEEE International Conference on Solid-State and Integrated Circuit Technology (ICSICT), 2016: 1363
[11]
Wang L D, Zhan C C, Zhao S X, et al. Design of high-PSRR current-mode bandgap reference with improved frequency compensation. IEEE International Conference on Electron Devices and Solid-State Circuits (EDSSC), 2016: 410
[12]
Ardalan S, Chen D, Sachdev M, et al. Current mode sense amplifier. 48th IEEE Midw Symp Circuits Syst, 2005: 17
[13]
Park C J, Onabajo M, Silva-Martinaz J. External capacitor-lesss low drop-out regulator with 25 dB superior power supply rejection in the 0.4–4 MHz range. IEEE J Solid-State Circuits, 2014, 49(2): 486 doi: 10.1109/JSSC.2013.2289897
[14]
Zhao J, Peng X H, Hou L G, et al. A 12.42 μA 0.192 ppm/°C high PSRR curvature-compensated CMOS bandgap voltage reference. 2nd IEEE International Conference on Integrated Circuits and Microsystems (ICICM), 2017: 191
[15]
Liu Y, Zhan C C, Wang L D, et al. A 0.4-V wide temperature range all-MOSFET subthreshold voltage reference with 0.027%/v line sensitivity. IEEE Trans Circuits Syst II, 2018, 99: 1
[16]
Kushwaha D, Mishra D K. A nano power voltage reference generator using of sub threshold MOSFETs. International Conference on Information, Communication, Instrumentation and Control (ICICIC), 2017: 1
[17]
Kushwaha D, Mishra D K. A 415 nW 0.8 V voltage reference circuit using MOSFETs in saturation and sub-threshold regions. 11th International Conference on Industrial and Information Systems (ICIIS), 2016: 149
[18]
Zeng Y H, Li Y A, Zhang X, et al. Ultra-low-power, high PSRR CMOS voltage reference with negative feedback. IET Circuits, Devices & Systems, 2017, 11(6): 535

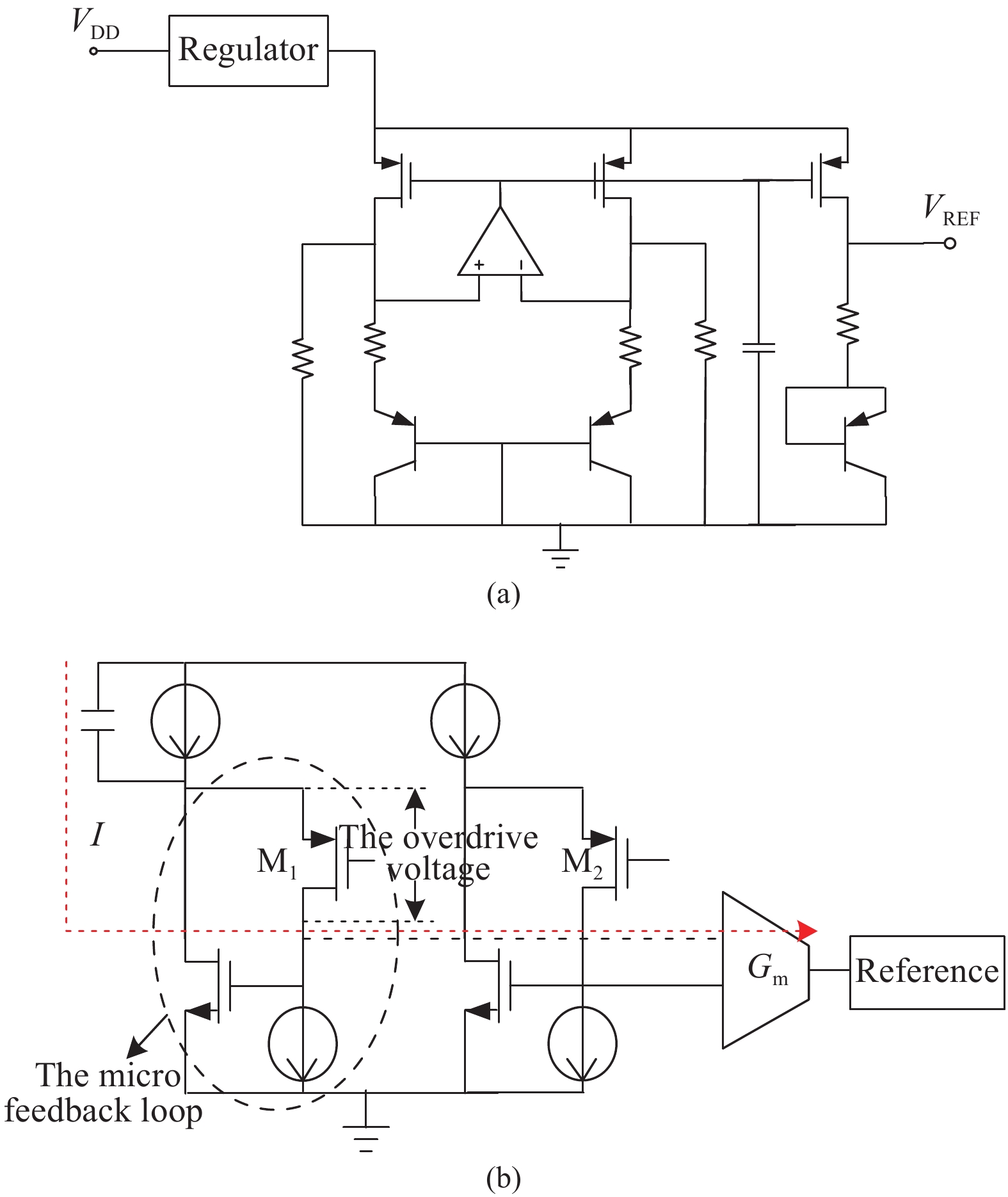

Fig. 1.  (a) The typical reference with the cascaded topology. (b) The reference with the current mode feedforward path.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  The topology of the proposed reference’s core.

DownLoad: Full-Size Img PowerPoint

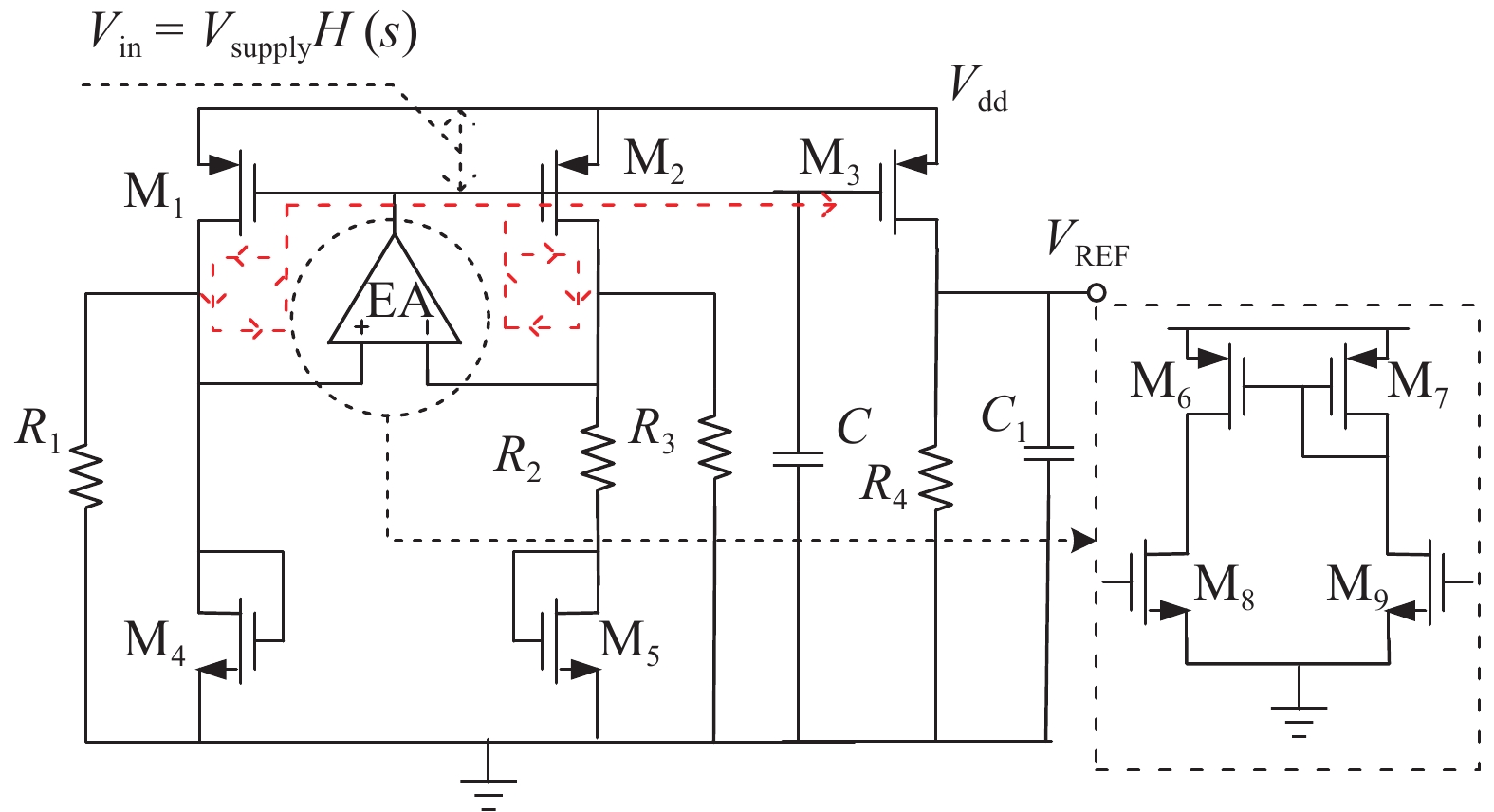

Fig. 3.  (a) The supply voltage noise transferring circuit. (b) The current generator. (c) The error amplifier. (d) The voltage generator.

DownLoad: Full-Size Img PowerPoint

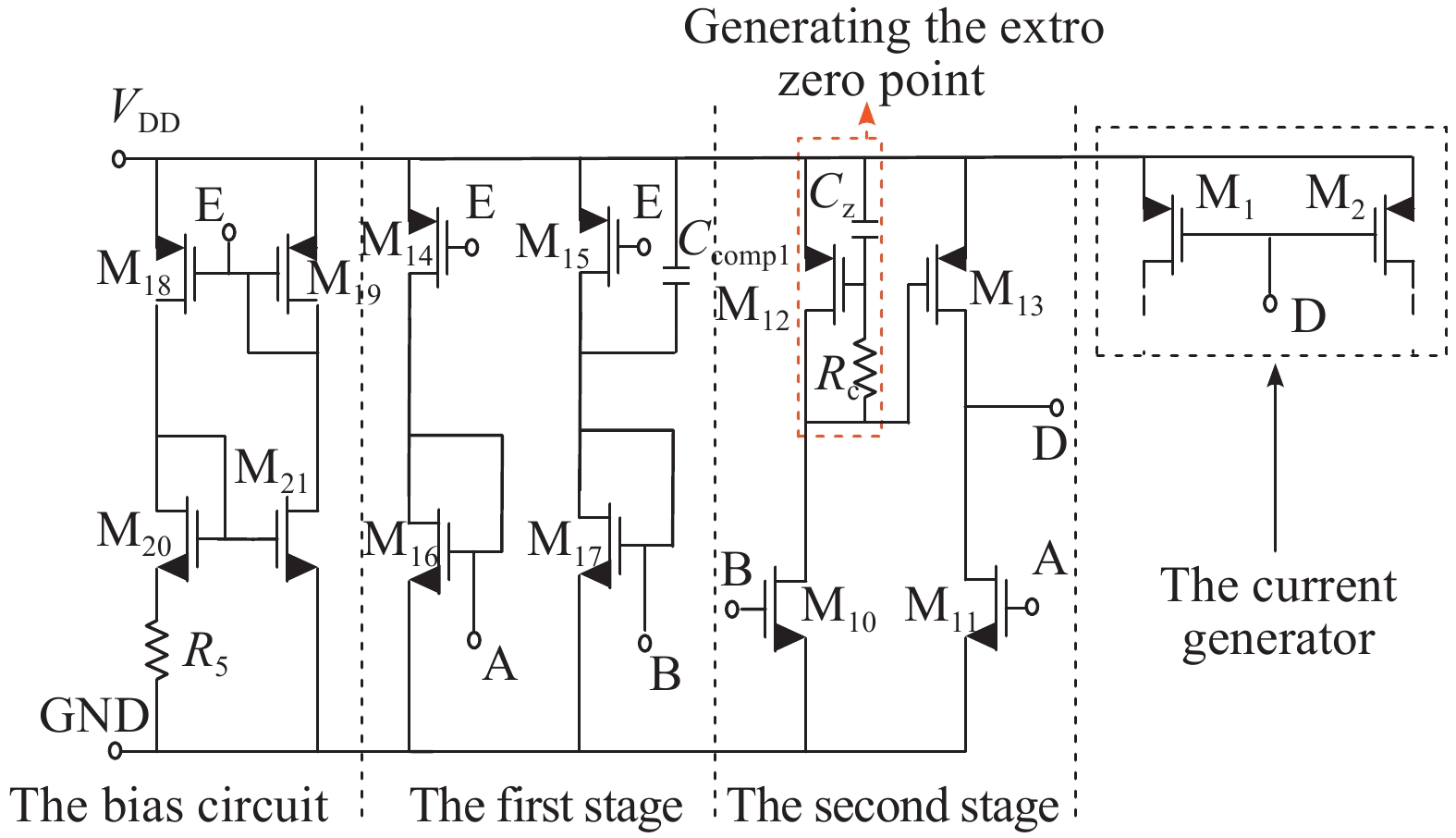

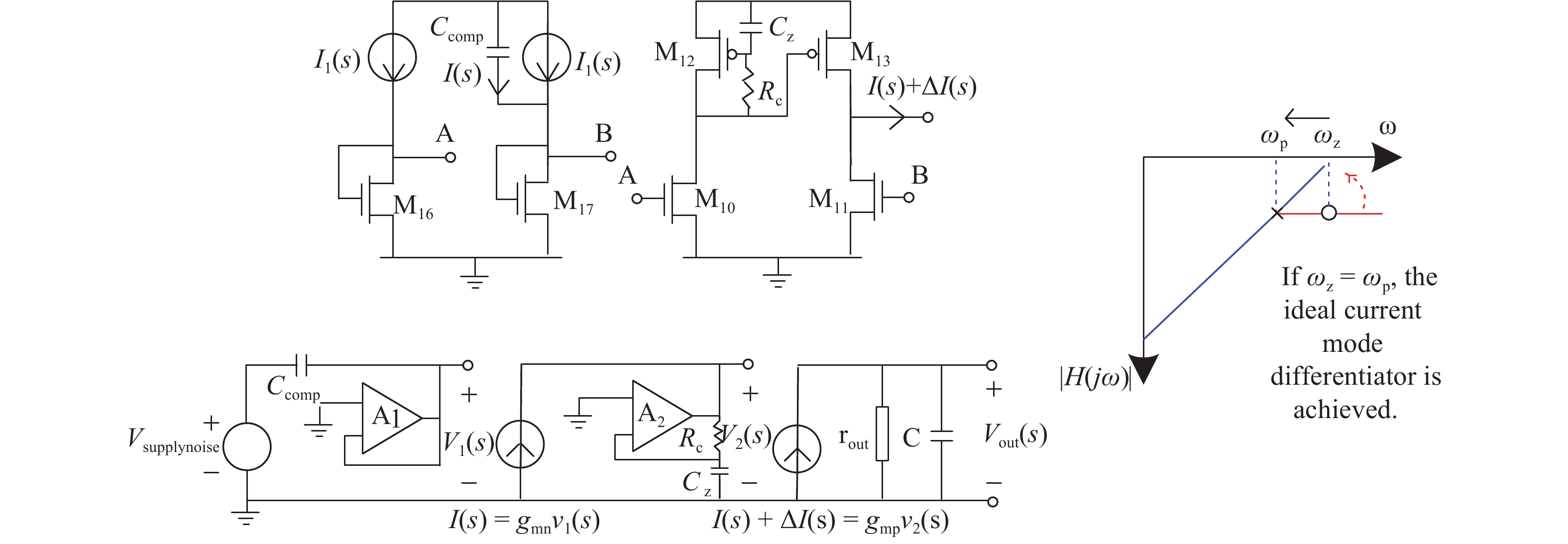

Fig. 4.  An illustration of the proposed differentiator.

DownLoad: Full-Size Img PowerPoint

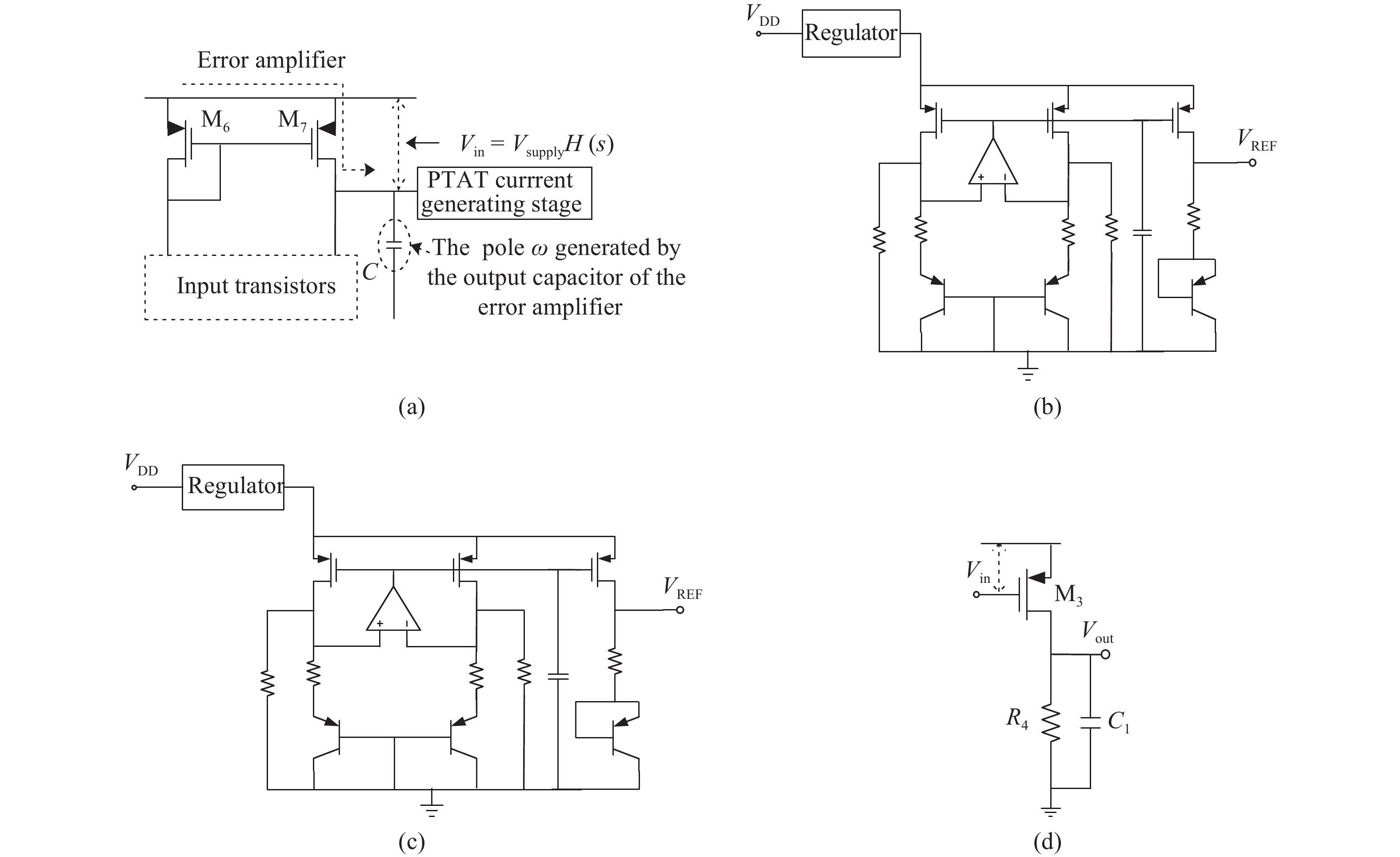

Fig. 5.  (Color online) An illustration of the signal processing in the differentiator.

DownLoad: Full-Size Img PowerPoint

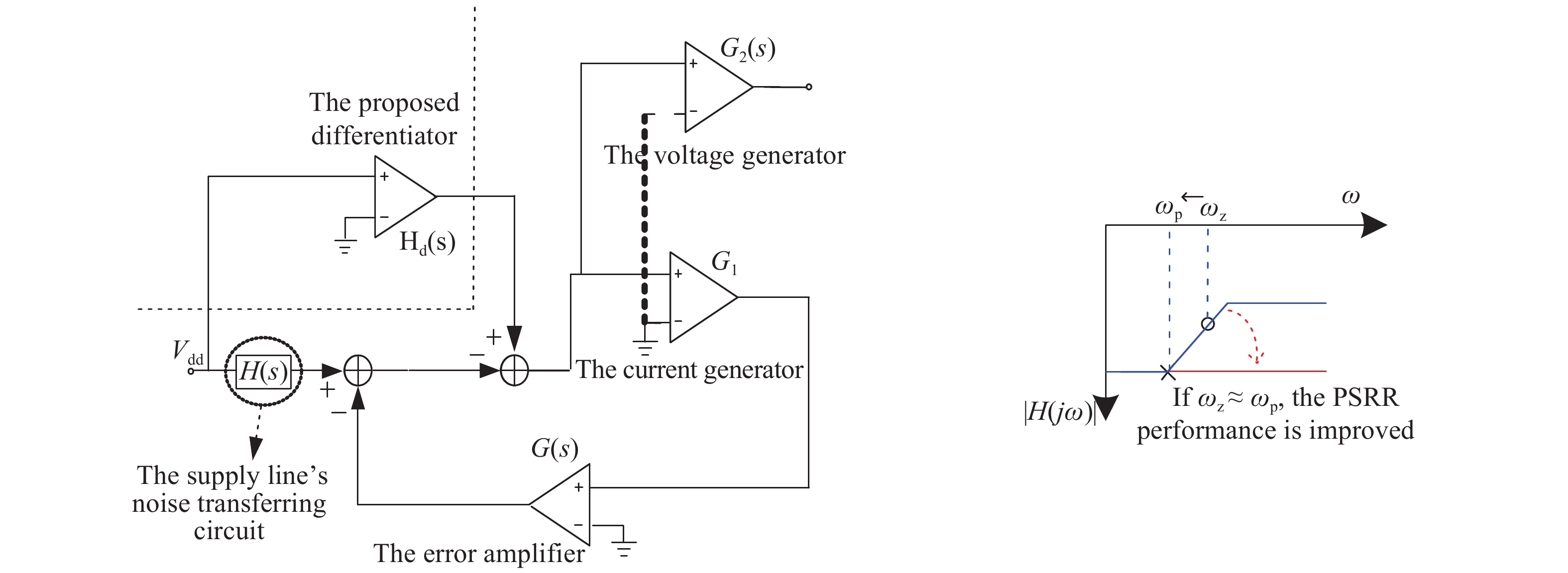

Fig. 6.  (Color online) The illustration of the reference signal processing.

DownLoad: Full-Size Img PowerPoint

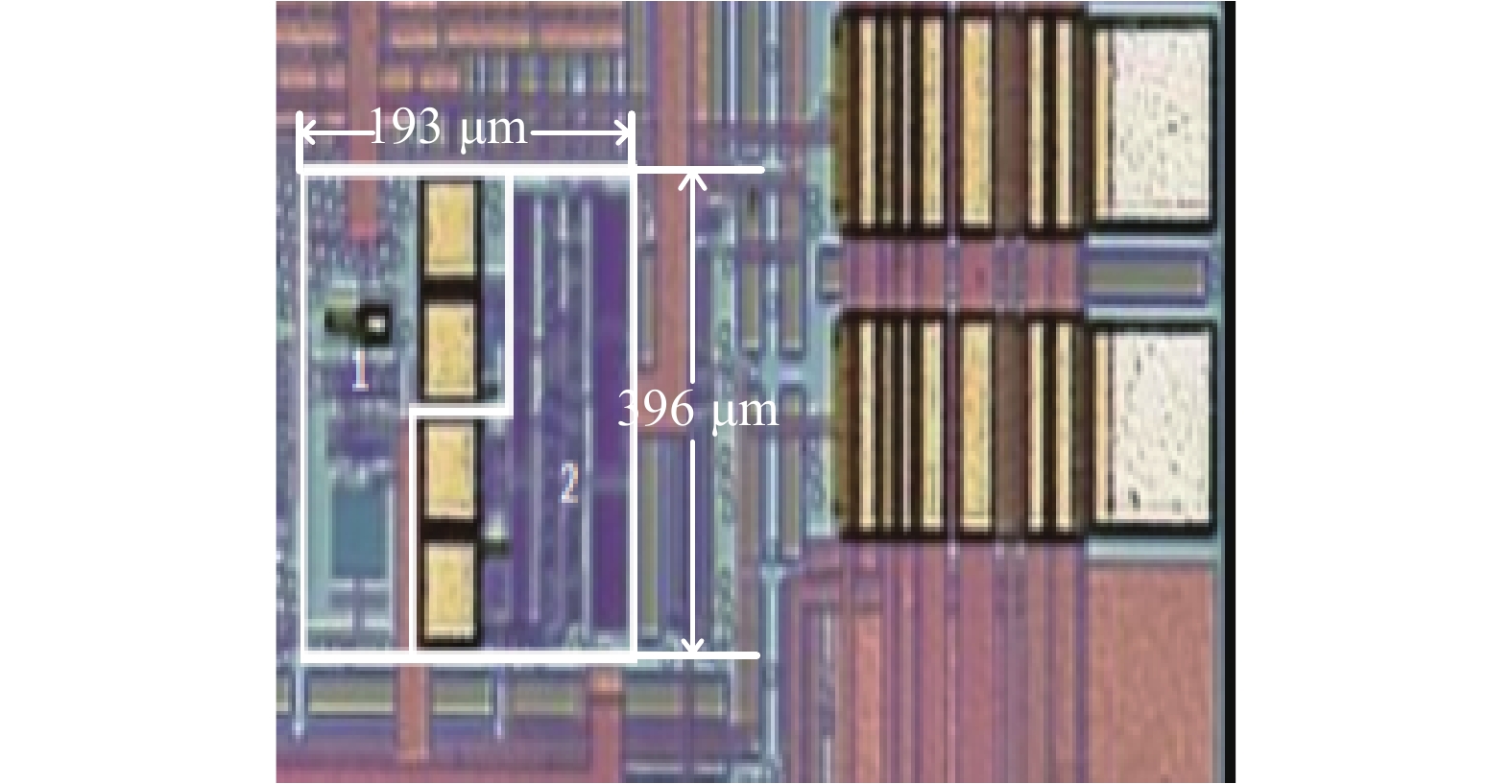

Fig. 7.  (Color online) The prototype of the proposed reference. 1: The voltage reference. 2: The proposed differentiator.

DownLoad: Full-Size Img PowerPoint

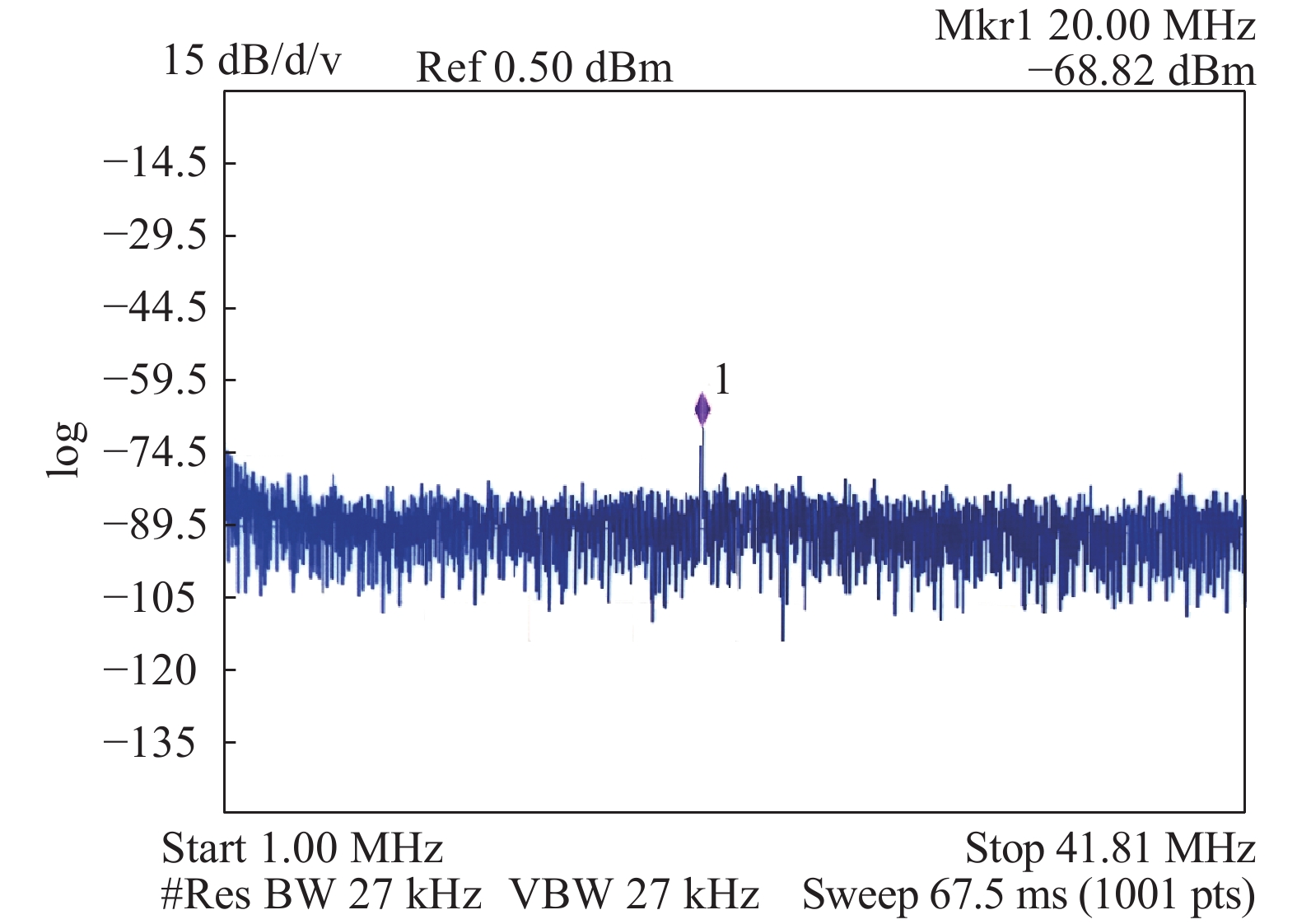

Fig. 8.  (Color online) An illustration of the reference transient response at the supply noise 20 MHz.

DownLoad: Full-Size Img PowerPoint

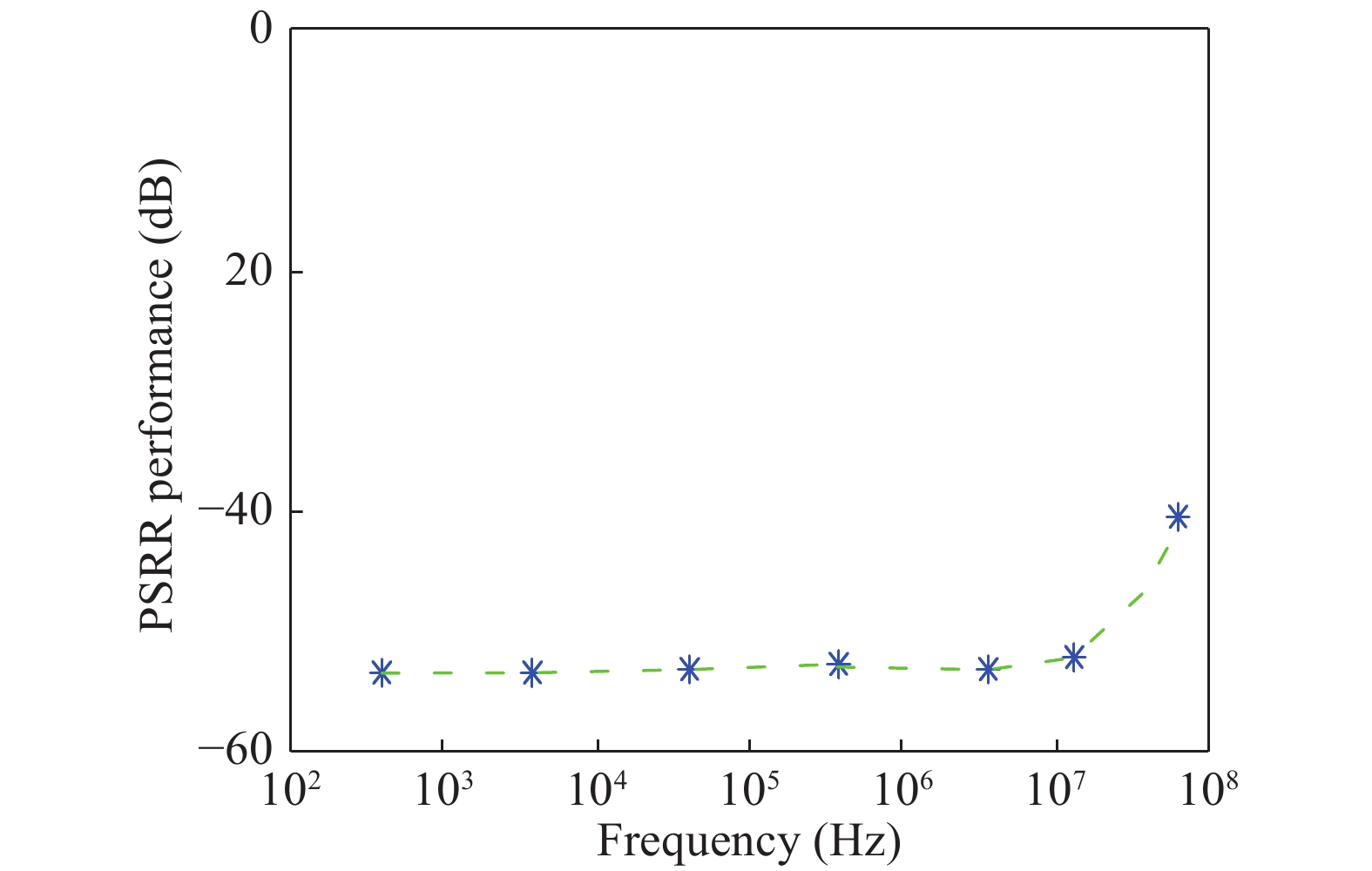

Fig. 9.  (Color online) An illustration of the reference PSRR performance.

DownLoad: Full-Size Img PowerPoint

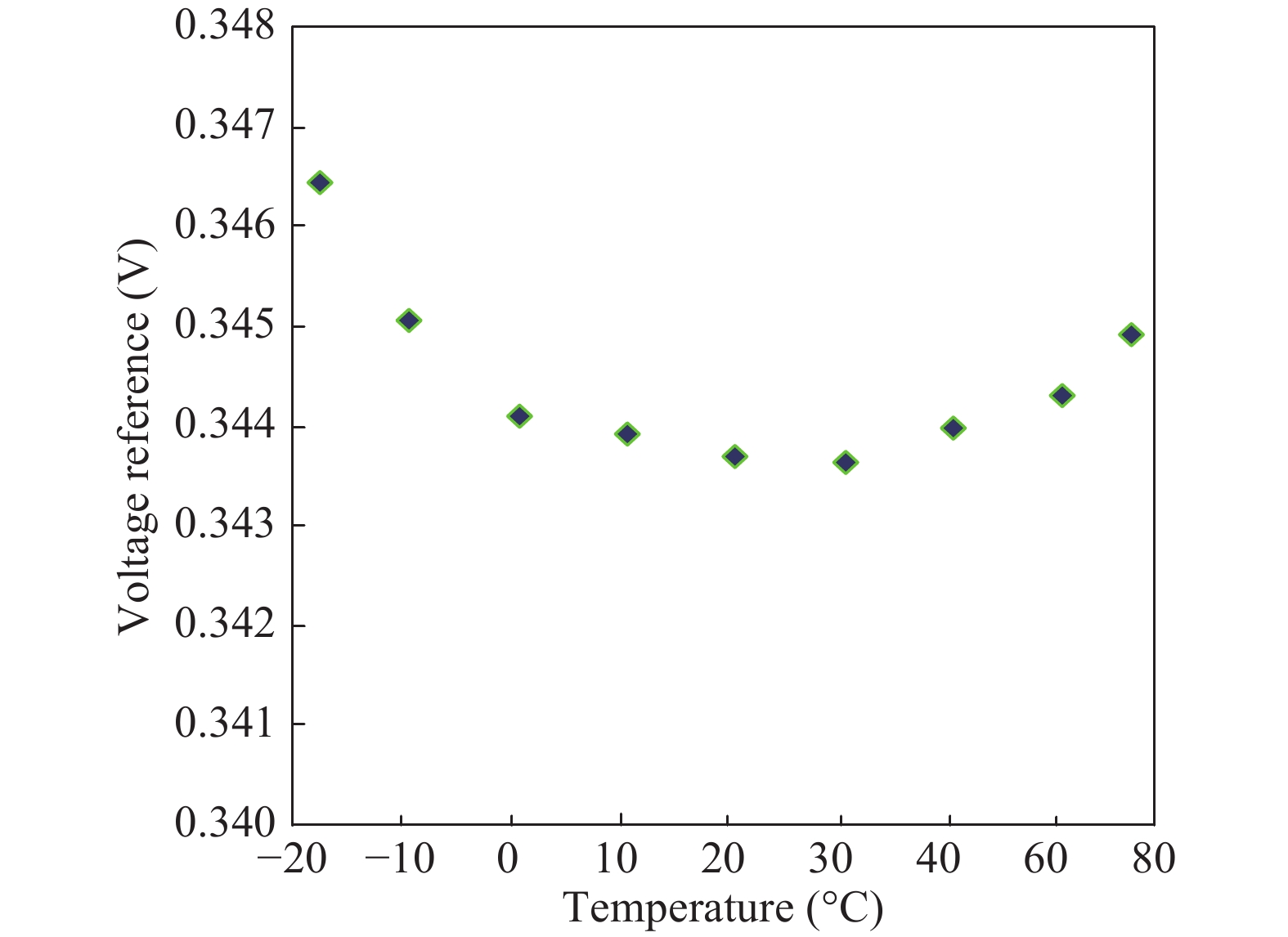

Fig. 10.  (Color online) The characteristics of temperature irrelevant voltage.

DownLoad: Full-Size Img PowerPoint

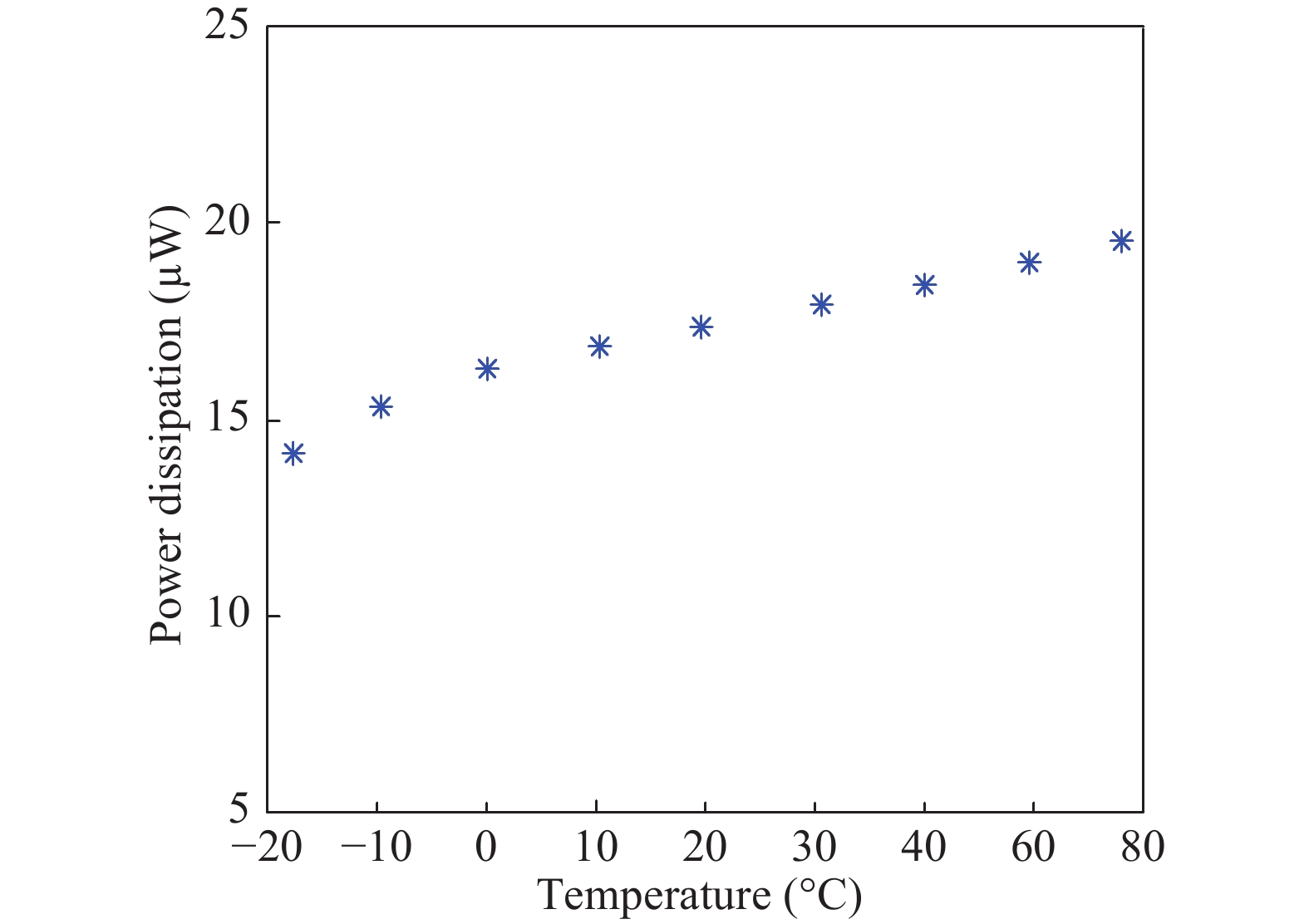

Fig. 11.  (Color online) The measurement of the reference quiescent power.
