Simulation model for electron irradiated IGZO thin film transistors

G K Dayananda1, , C Shantharama Rai2, A Jayarama3 and Hyun Jae Kim4

+ Author Affiliations

 Corresponding author: G K Dayananda, Email: dayanand.gk@gmail.com

DOI: 10.1088/1674-4926/39/2/022002

PDF

Turn off MathJax

Abstract: An efficient drain current simulation model for the electron irradiation effect on the electrical parameters of amorphous In–Ga–Zn–O (IGZO) thin-film transistors is developed. The model is developed based on the specifications such as gate capacitance, channel length, channel width, flat band voltage etc. Electrical parameters of un-irradiated IGZO samples were simulated and compared with the experimental parameters and 1 kGy electron irradiated parameters. The effect of electron irradiation on the IGZO sample was analysed by developing a mathematical model.

Key words: simulation modelIGZOTFTelectron irradiation

Amorphous indium gallium zinc oxide (a-IGZO) is the most promising potential candidate for switching/driving devices and large area display devices, such as thin film transistor (TFT) backplanes in flat-panel displays. The advantages of its superior characteristics are low threshold voltage, high field-effect mobility, transparent and low-temperature deposition etc[1, 2]. Several groups made an effort to increase the mobility of a-IGZO TFTs formed on flexible substrates by pulsed-laser deposition, the RF-sputtering method and the solution processed at a lower temperature[3]. IGZO is promising material for electronic devices and circuits[4]. An efficient drain current simulation model is useful for verifying the thin film transistor characteristics, such as the mobility and on/off ratio etc. Numerical simulation is an indispensable tool to understand the device physical structure and the TFT operation. There are remarkable advances in device fabrication, but there were limited numbers of publications related to the numerical simulation models of a-IGZO TFTs[5]. Most of IGZO simulation models have been reported on device simulation[6, 7]. The advantages of these types of device simulation models are used to predict electrical parameters without fabricating devices. The a-IGZO TFTs were also used in the application of a radiation harsh environment with a change in electrical parameters with respect to electron irradiation dosage[8]. Although the effect of electron irradiation on metal oxide semiconductors has been known to be destructive, the investigations about the mechanism and changing tendencies of metal oxide semiconductor to irradiation are crucial[9]. On the other hand the feasibility of IGZO TFTs and their compatibility of printed electronic elements for space application is challenging[8]. Many of the papers have reported a variety of radiation effects on TFT’s[1012]. However, no simulation model has been reported on the effect of electron irradiation on a-IGZO TFTs. In this paper, a novel drain current simulation model has been developed for the first time to estimate the effect of the irradiation effect on IGZO TFTs. This mathematical model is helpful to predict the electron irradiation effect on electrical parameters of TFTs.

A 200 nm thick MoW layer was grown by sputtering onto the top of the glass substrate for conventional bottom-gate TFT structure. IGZO samples with 3∶1∶2 ratios were prepared through sol–gel technique and TFTs are fabricated as in the reported paper[13].

The TFT characteristics were analysed by a DC probe station Agilent A 1500 at room temperature. For the operation of a thin film transistor, the following standard Eqs. (1)–(4) are used[1]. The drain–source current (IDS) is a function of gate voltage and device physical parameters as in the equation below:

IDS=CiμsatW2L(VGSVth)2,VDSVGSVth, (1)

where width (W), length (L) and gate capacitance (Ci) of the device in the capacitance/unit area. Subthreshold swing (SS) is a gate voltage required for the decade increase in drain current at a constant drain voltage. Subthreshold swing is obtained from the equation given below:

SS=VGS(logIDS)|VDS=Constant. (2)

The threshold voltage (Vth), of a thin film transistor is the minimum gate-to-source voltage that creates a conducting path between the source and drain terminals of the device. Threshold voltage is obtained graphically from the equation below:

IDS=CiμsatW2L(VGSVth). (3)

Saturation mobility is defined as how quickly an electron can move through the active layer, which is obtained by the following equation.

μsat=[dIDSdVGS1CiW2L]2. (4)

Drain current Ion/Ioff ratio is used to examine the switching behavior of the TFT. It is the ratio between the highest measured current (the on-state current, Ion) to the lowest measured current (the off state current, Ioff). For output characteristics, gate source voltage (VGS) is varied from 0 to 10 V. The set of curves are obtained by measurement of the drain current as a function of drain to source voltage (VDS). Fig. 1(a) shows the output characteristics. For transfer characteristics, drain to source voltage (VDS) is varied from 0 to 10 V. The set of curves obtained by measurement of the drain current as a function of gate to source voltage (VGS) are shown in Fig. 1(b) along with the transfer characteristics.

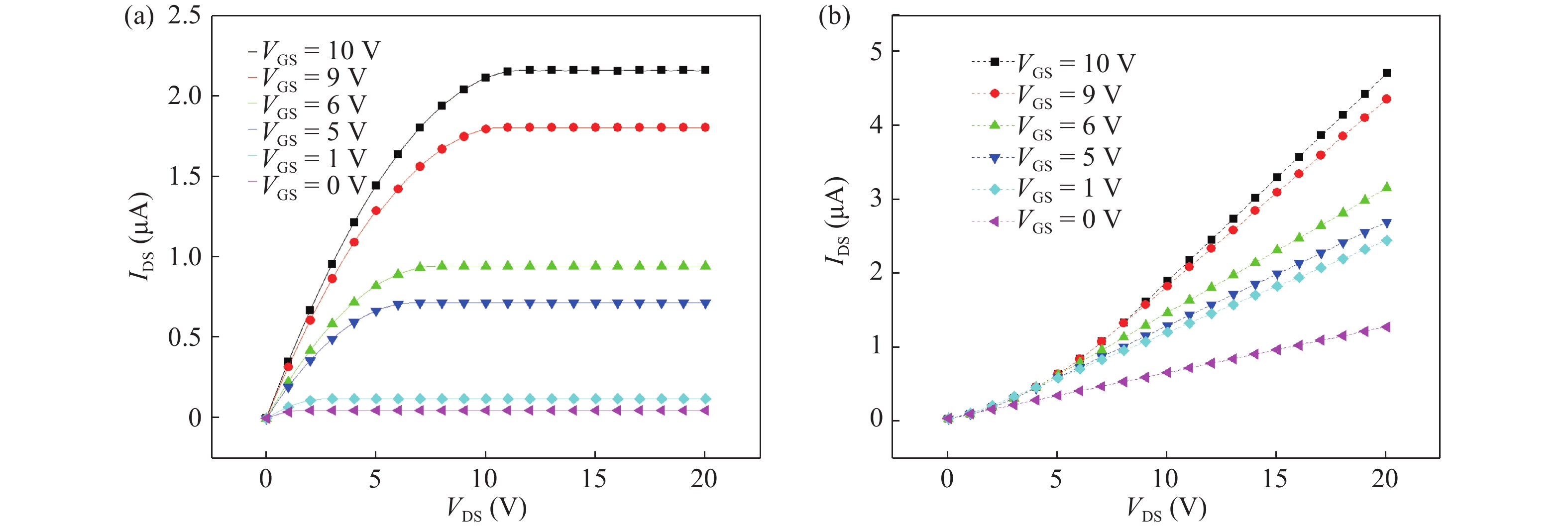

Figure  1.  (Color online) DC characteristics of IGZO TFT. (a) Output characteristics. (b) Transfer characteristics.

Various parameters such as threshold voltage (Vth), saturation mobility (μsat), Ion/Ioff, and subthreshold swing (SS) are extracted. Extraction is done by IGZO TFT values and compared with simulated values. The simulated values of Vth, μsat, Ion/Ioff and SS for VDS = 10 V are taken for comparison with practical values as shown in Figs. 2(a)2(c). Table 1 shows a comparison of the simulated and practical values. There is a slight deviation in these parameters that may be due to the device fabrication process or non linearity in device physical parameters. Further, these TFTs are exposed to an 8 MeV electron source as given below.

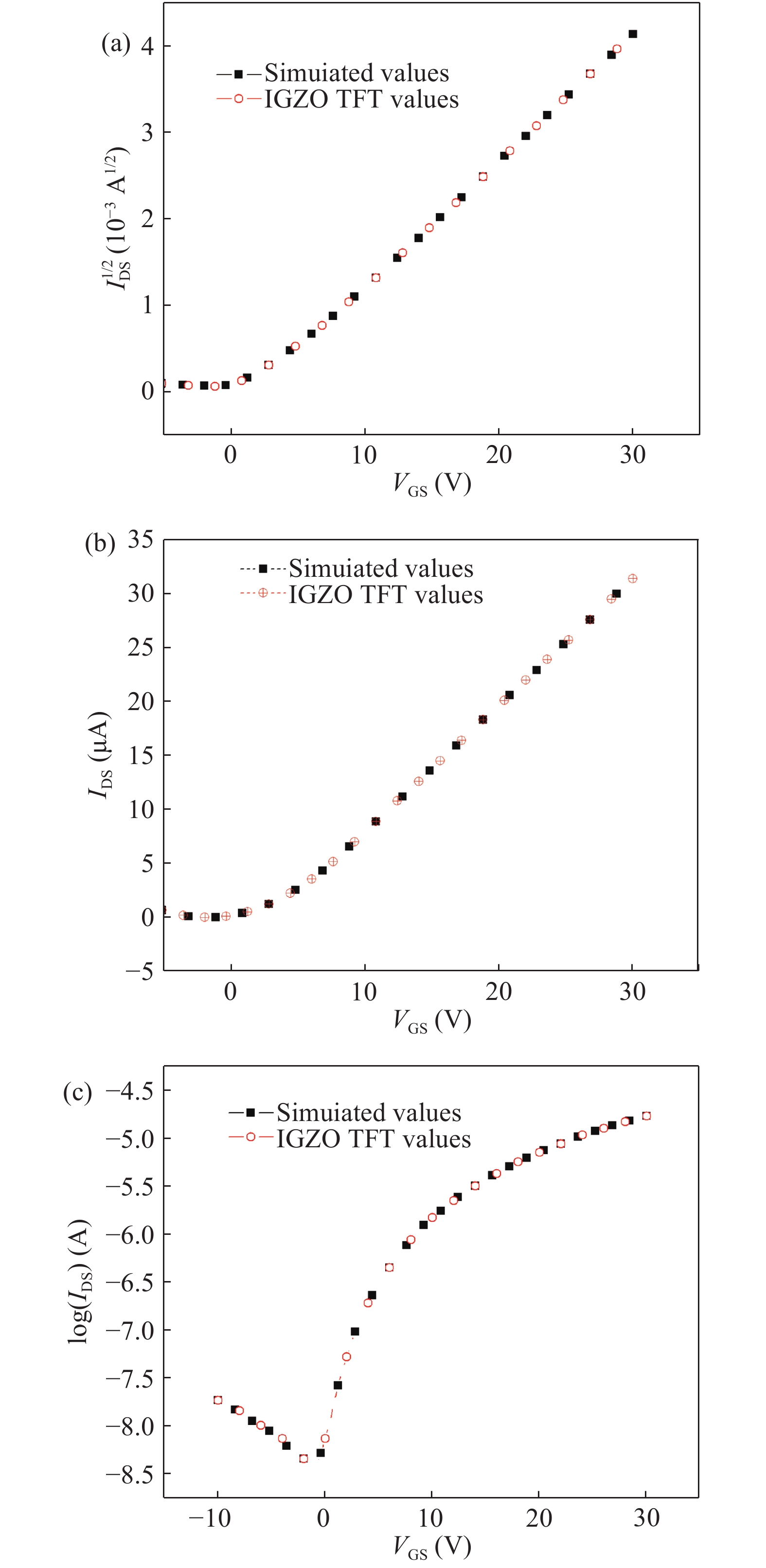

Figure  2.  (Color online) Simulated and IGZO TFT transfer characteristics at VDS = 10 V.
Table  1.  Comparison of different parameter values for both simulated and IGZO TFT values.
Parameter SS (V/Decade) μsat (cm2/(V·s)) Ion/Ioff Vth (V)
Simulated value 1.40 0.976 1.4 × 104 −3.51
IGZO TFT value 1.38 0.853 1.36 × 104 −3.47
DownLoad: CSV  | Show Table

To study the radiation hardened property of IGZO TFTs, these transistors were exposed to electron radiation. Transistors were irradiated with 8 MeV electrons at room temperature from a Microtron accelerator (Fig. 3). The features of the center of the Microtron for electron irradiation are detailed elsewhere[14]. An irradiation dose of 1 kGy electron was exposed perpendicular to TFTs as shown in Fig. 4. The transistors parameters are extracted from IDSVDS and IDSVGS plots.

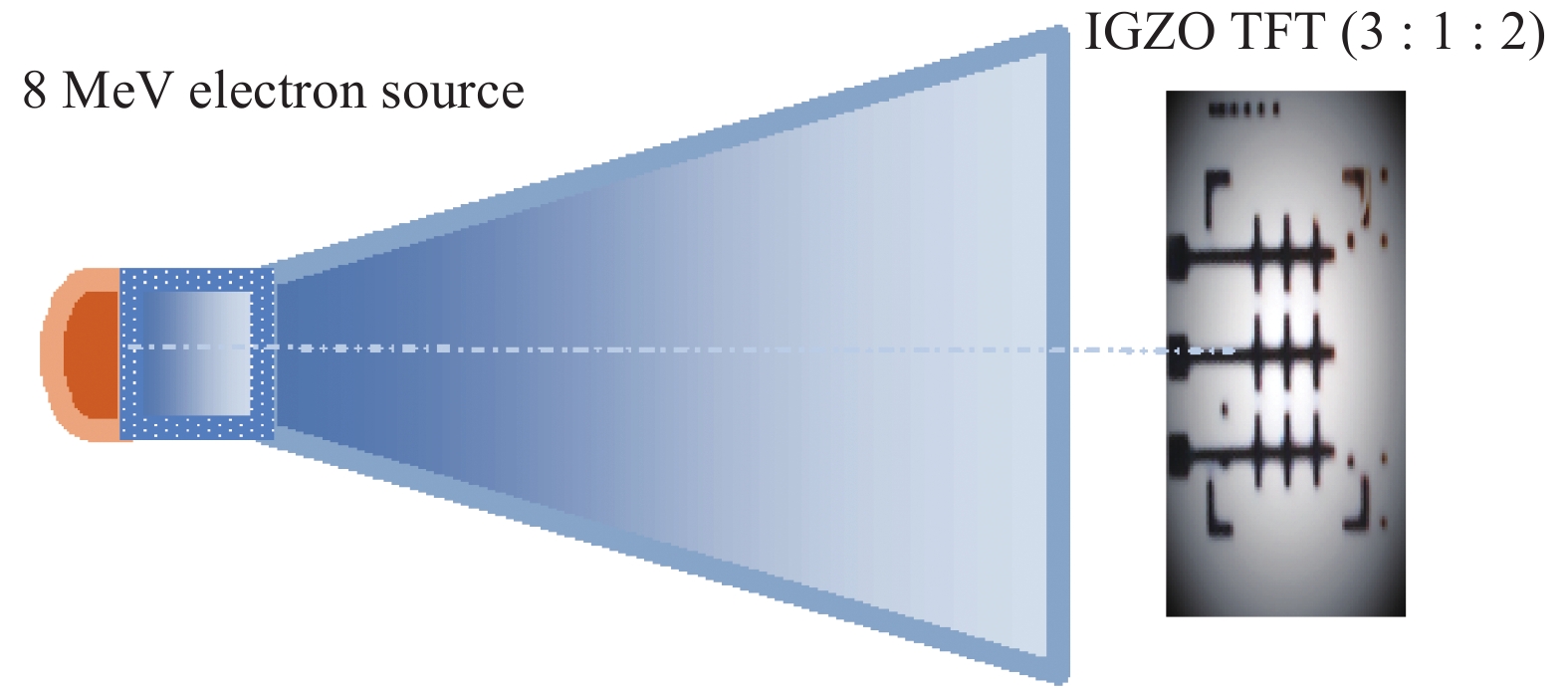

Figure  3.  (Color online) Experimental setup for irradiation.

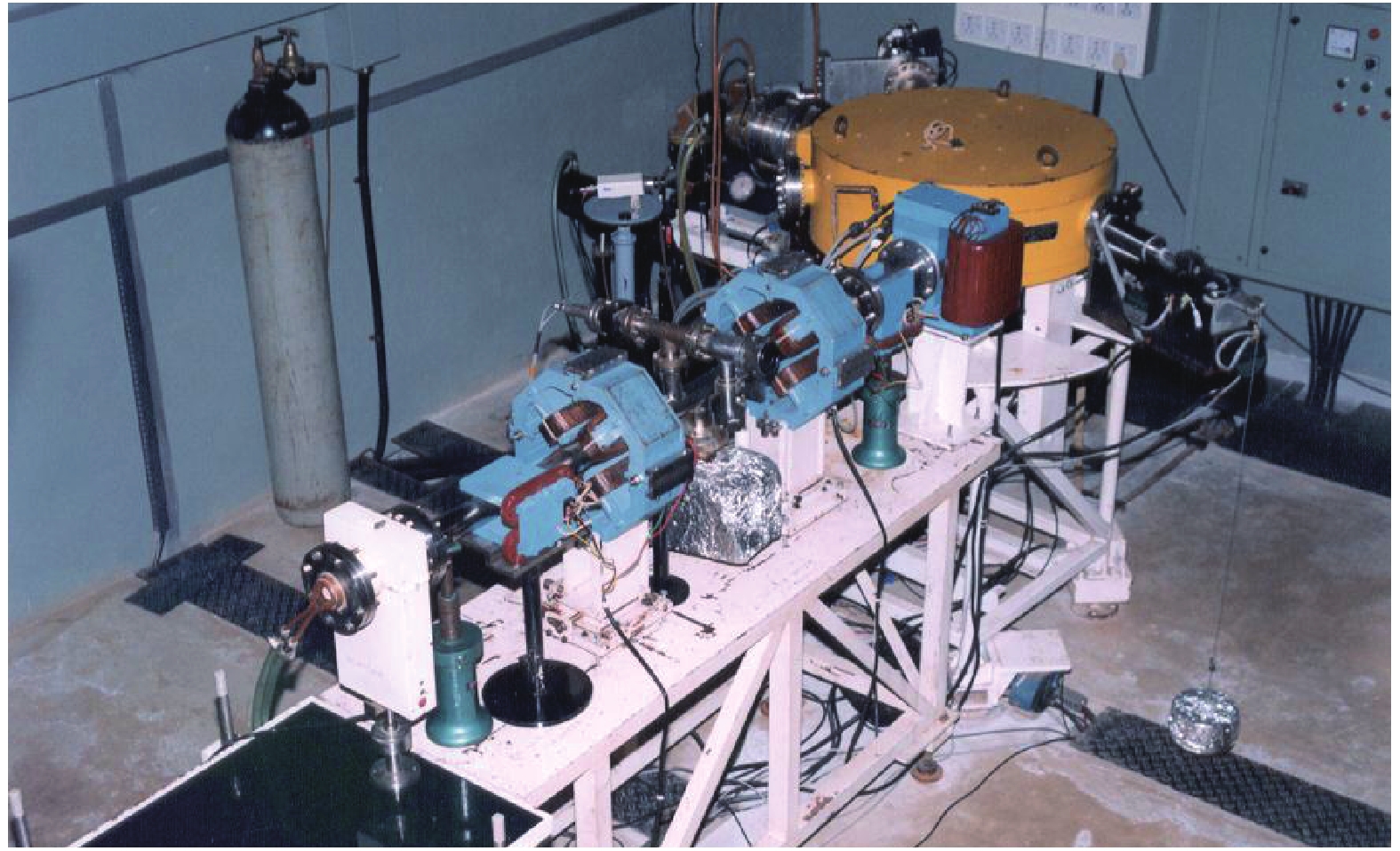

Figure  4.  (Color online) 8 MeV source for irradiation of TFTs in Microton Centre, Mangalore University.

After the irradiation of 1 kGy on the sample, it is observed that the parameters such as Threshold voltage, Saturation mobility, SS, and Ion/Ioff have been effected. In the case of X-ray and ion irradiated thin film transistors[1012] the drain current shift is different from that mentioned in Figs. 6 and 7. This is because electron irradiation stimulates the negatively charged interface trap and oxide trapped charges. Electron irradiation also shows the effect of degradation of these parameters as shown in Figs. 5, 6, and 7(a)7(c). The parameters are compared with before and after irradiation as in Table 2.

Table  2.  Effect of electron irradiation on different TFT parameters.
Parameter SS (V/Decade) μsat (cm2/(V·s)) Ion/Ioff Vth (V)
Before irradiation 3.058749 0.312153 4326.254 −3.8
After 1 kGy irradiation 3.511243 0.29967 6899.364 −1.4
DownLoad: CSV  | Show Table

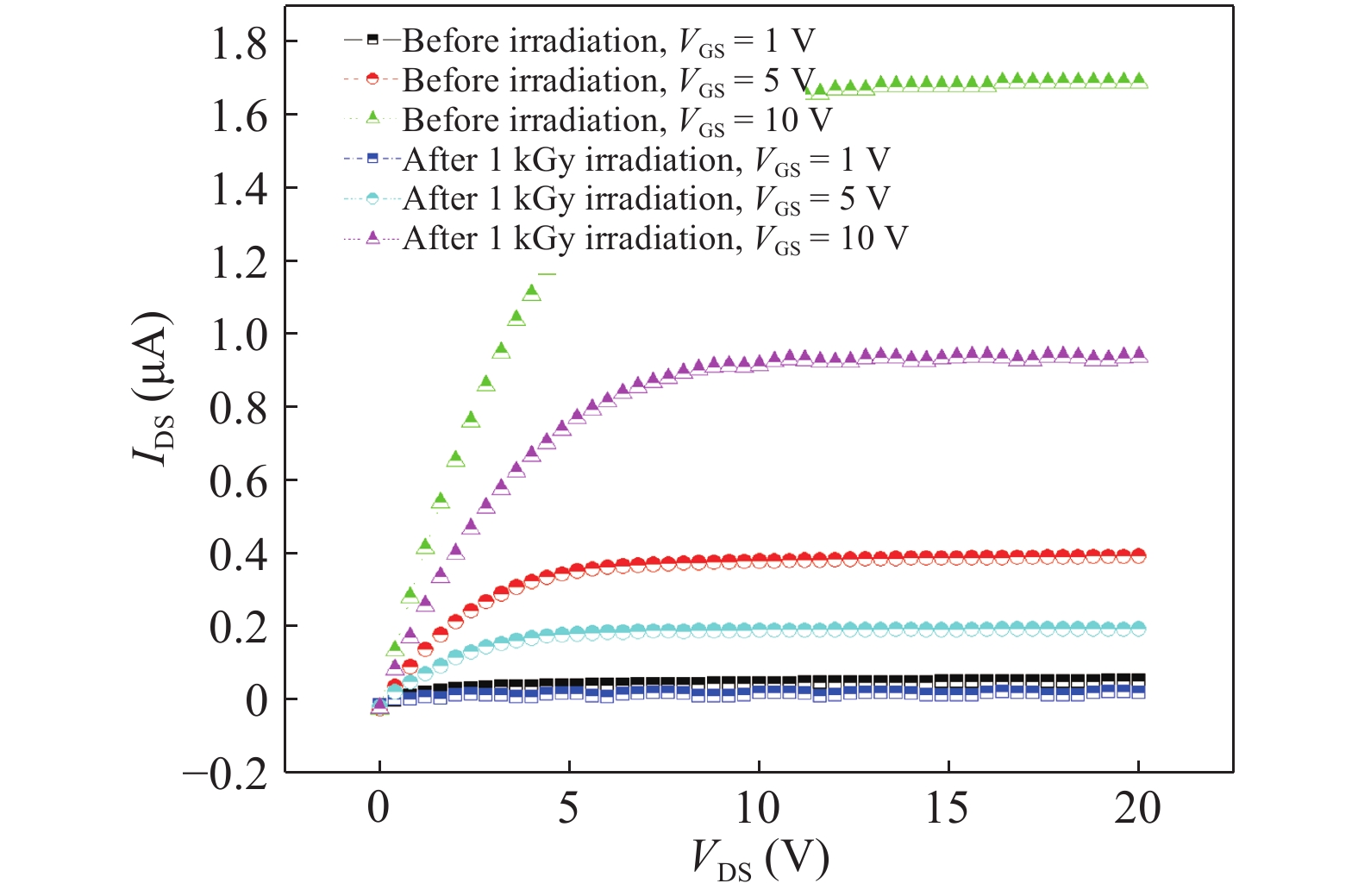

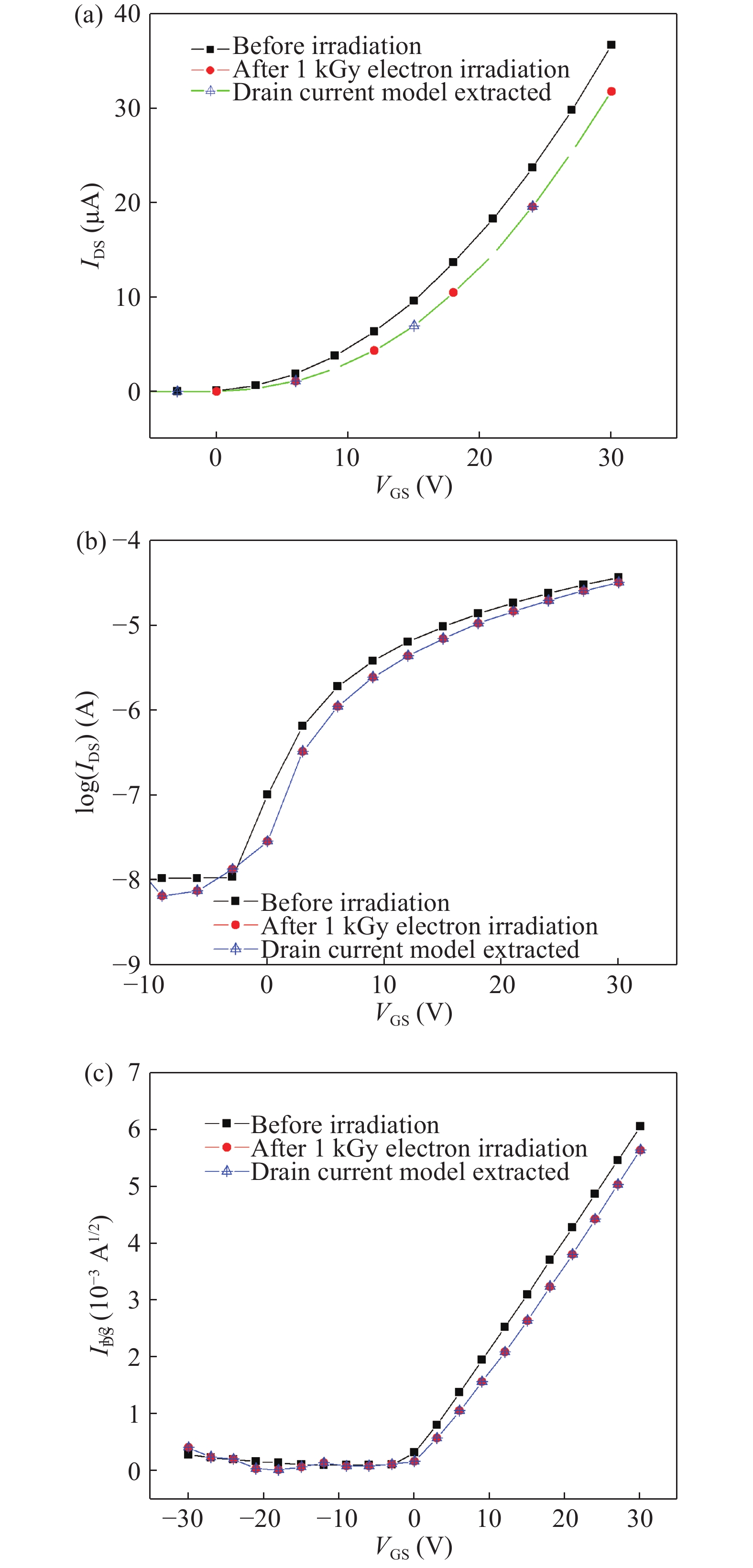

Figure  5.  (Color online) Effect of irradiation on sample before and after irradiation of 1 kGy at VGS = 1, 5, 10 V.

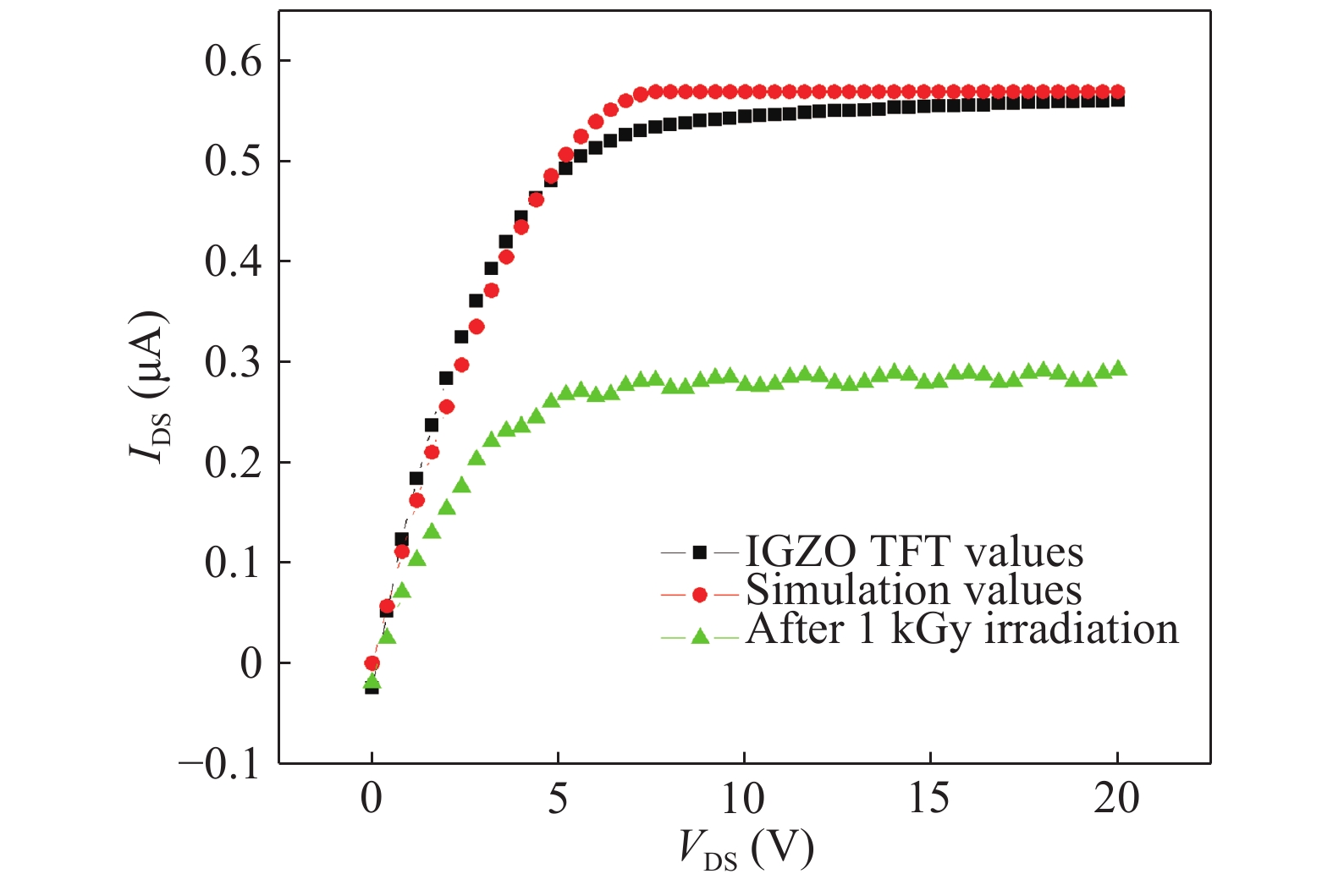

Figure  6.  (Color online) IDSVDS plot for before irradiation and after irradiation of 1 kGy at VGS = 10 V.
Figure  7.  (Color online) Transfer characteristics of before, after irradiation and the drain current model of 1 kGy at VDS = 10 V.

To analyse the effect of electron irradiation, a general model for drain to source current is considered, which is obtained by the linear fit to the curve plotted by taking IDS on the y-axis and VDS on the x-axis. A general model is given in Eq. (5)[15].

IDS=P0+P1[1exp(xt1)]+P2[1exp(xt2)], (5)
P0=Vth=VFB+2ϕf+ 2EsqNa(2ϕF+Vsb)Cox, (6)
P1=P2=μsat=m22LWCox, (7)
t1=2(VGSVth)V2DS2LWCox, (8)
t2=WL2Cox(VGSVth)1/3, (9)

where Vth is the threshold voltage, μsat is the saturation mobility, VGS is the gate to source voltage applied, and VDS is the drain to source voltage applied. W and L are the channel width and length of the transistor. Cox is the gate oxide capacitance per unit area. VFB flat band voltage, ϕF is Fermi potential, Vsb is standby voltage and P0, P1, P2, t1 and t2 are variables. Substituting Eqs. (6) to (9) in Eq. (5) we get the drain to source current as

IDS=Vth+μsat(1exp2xCox2(VGSVth)VDS2W2L)+μsat(1exp2xCox(VthVGS)1/3). (10)

With the same equation given in Eq. (5), analysis for the drain source current equation after electron irradiation is done. It is observed that there is no significant change in threshold voltage and saturation mobility. Saturation mobility can be estimated to have been decreased to a value known as effective saturation mobility, which is given by effective saturation = μsatx, where x is the degradation factor, which depends upon the dosage of irradiation.

A drain current simulation model for solution processed, electron irradiated a-IGZO has been developed to estimate the effect of irradiation effect on IGZO TFTs. The experimental a-IGZO TFT electrical parameters were precisely reproduced by drain current simulation model, and the results suggest that the slight variation in electrical parameters is due to trap charges after electron irradiation. Parameters of drain to source current equations are linear as well as the saturation region being related to the variables of the drain current simulation model. The slight variation in stability of a-IGZO TFT due electron irradiation is reflected in the change in electrical parameters. The threshold voltage and subthreshold swing increase and saturation mobility and Ion/Ioff decrease after 1 kGy electron irradiation. The difference in threshold voltage before and after irradiation is mainly due to latent trap charges due to electron irradiation. This model can be used to predict the effect of electron irradiation on a-IGZO TFTs.



[1]
Kamiya T, Nomura K, Hosono H. Present status of amorphous IGZO thin-film transistors. Sci Technol Adv Mater, 2015, 11(4): 044305
[2]
Ito M, Kon M, Miyazaki C, et al. Amorphous oxide TFT and their applications in electrophoretic displays. Phys Status Solidi, 2008, 205(8): 1885 doi: 10.1002/pssa.v205:8
[3]
Jeong J K, Jeong J H, Yang H W, et al. High performance thin film transistors with co-sputtered amorphous indium gallium zinc oxide channel. Appl Phys Lett, 2007, 91: 113505 doi: 10.1063/1.2783961
[4]
Kumomi H, Nomura K, Kamiya T, et al. Amorphous oxide channel TFTs. Thin Solid Films, 2007, 516(7): 1516
[5]
Hsieh H H, Kamiya T, Nomura K, et al. Modeling of amorphous InGaZnO4 thin film transistors and their subgap density of states. Jpn Appl Phys Lett, 2008, 92: 133503 doi: 10.1063/1.2857463
[6]
Fung T C, Chuang C S, Chen C, et al. Two-dimensional numerical simulation of radio frequency sputter amorphous In–Ga–Zn–O thin-film transistors. J Appl Phys, 2009, 106: 084511 doi: 10.1063/1.3234400
[7]
Park J H, Lee S, Jeon K, et al. Density of states-based DC I–V model of amorphous gallium–indium–zinc–oxide thin-film transistors. IEEE Electron Device Lett, 2009, 30(10): 1069 doi: 10.1109/LED.2009.2028042
[8]
Short K, Buren D. Printable spacecraft: flexible electronics platforms for NASA mission’s. NASA Innovative Advanced Concepts (NAIC), Phase 2 Final Report Printable Spacecraft, September 2014
[9]
Rafí J M, Campabadal F, Ohyama H, et al. 2 MeV electron irradiation effects on the electrical characteristics of metal–oxide–silicon capacitors with atomic layer deposited Al2O3, HfO2 and nanolaminated dielectrics. Solid-State Electron, 2013, 79: 65 doi: 10.1016/j.sse.2012.06.011
[10]
Indluru A, Holbert K E, Alford T L. Gamma radiation effects on indium–zinc oxide thin-film transistors. Thin Solid Films, 2013, 539: 342 doi: 10.1016/j.tsf.2013.04.148
[11]
Cramer T, Sacchetti A, Lobato M T, et al. Radiation-tolerant flexible large-area electronics based on oxide semiconductors. Adv Electron Mater, 2016, 2: 1500489 doi: 10.1002/aelm.v2.7
[12]
Liu Y, Wu W, En Y, et al. Total dose ionizing radiation effects in the indium–zinc oxide thin-film transistors. IEEE Electron Device Lett, 2014, 35(3): 369 doi: 10.1109/LED.2014.2301801
[13]
Kim H J. International collaboration for advanced AMOLED. ICAA Koranet Annual Conference, South Korea, 2010
[14]
Siddappa K, Ganesh, Balakrishna K M, et al. Variable energy microtron for R and D work. Radiat Phys Chem, 1998, 51(4–6): 441 doi: 10.1016/S0969-806X(97)00165-5
[15]
Stoenescu G, Iacobescu G. Fast electron irradiation effects on MOS transistor microscopic parameters—experimental data and theoretical models. J Optoelectron Adv Mater, 2005, 7: 1629
Fig. 1.  (Color online) DC characteristics of IGZO TFT. (a) Output characteristics. (b) Transfer characteristics.

Fig. 2.  (Color online) Simulated and IGZO TFT transfer characteristics at VDS = 10 V.

Fig. 3.  (Color online) Experimental setup for irradiation.

Fig. 4.  (Color online) 8 MeV source for irradiation of TFTs in Microton Centre, Mangalore University.

Fig. 5.  (Color online) Effect of irradiation on sample before and after irradiation of 1 kGy at VGS = 1, 5, 10 V.

Fig. 6.  (Color online) IDSVDS plot for before irradiation and after irradiation of 1 kGy at VGS = 10 V.

Fig. 7.  (Color online) Transfer characteristics of before, after irradiation and the drain current model of 1 kGy at VDS = 10 V.

Table 1.   Comparison of different parameter values for both simulated and IGZO TFT values.

Parameter SS (V/Decade) μsat (cm2/(V·s)) Ion/Ioff Vth (V)
Simulated value 1.40 0.976 1.4 × 104 −3.51
IGZO TFT value 1.38 0.853 1.36 × 104 −3.47
DownLoad: CSV

Table 2.   Effect of electron irradiation on different TFT parameters.

Parameter SS (V/Decade) μsat (cm2/(V·s)) Ion/Ioff Vth (V)
Before irradiation 3.058749 0.312153 4326.254 −3.8
After 1 kGy irradiation 3.511243 0.29967 6899.364 −1.4
DownLoad: CSV
[1]
Kamiya T, Nomura K, Hosono H. Present status of amorphous IGZO thin-film transistors. Sci Technol Adv Mater, 2015, 11(4): 044305
[2]
Ito M, Kon M, Miyazaki C, et al. Amorphous oxide TFT and their applications in electrophoretic displays. Phys Status Solidi, 2008, 205(8): 1885 doi: 10.1002/pssa.v205:8
[3]
Jeong J K, Jeong J H, Yang H W, et al. High performance thin film transistors with co-sputtered amorphous indium gallium zinc oxide channel. Appl Phys Lett, 2007, 91: 113505 doi: 10.1063/1.2783961
[4]
Kumomi H, Nomura K, Kamiya T, et al. Amorphous oxide channel TFTs. Thin Solid Films, 2007, 516(7): 1516
[5]
Hsieh H H, Kamiya T, Nomura K, et al. Modeling of amorphous InGaZnO4 thin film transistors and their subgap density of states. Jpn Appl Phys Lett, 2008, 92: 133503 doi: 10.1063/1.2857463
[6]
Fung T C, Chuang C S, Chen C, et al. Two-dimensional numerical simulation of radio frequency sputter amorphous In–Ga–Zn–O thin-film transistors. J Appl Phys, 2009, 106: 084511 doi: 10.1063/1.3234400
[7]
Park J H, Lee S, Jeon K, et al. Density of states-based DC I–V model of amorphous gallium–indium–zinc–oxide thin-film transistors. IEEE Electron Device Lett, 2009, 30(10): 1069 doi: 10.1109/LED.2009.2028042
[8]
Short K, Buren D. Printable spacecraft: flexible electronics platforms for NASA mission’s. NASA Innovative Advanced Concepts (NAIC), Phase 2 Final Report Printable Spacecraft, September 2014
[9]
Rafí J M, Campabadal F, Ohyama H, et al. 2 MeV electron irradiation effects on the electrical characteristics of metal–oxide–silicon capacitors with atomic layer deposited Al2O3, HfO2 and nanolaminated dielectrics. Solid-State Electron, 2013, 79: 65 doi: 10.1016/j.sse.2012.06.011
[10]
Indluru A, Holbert K E, Alford T L. Gamma radiation effects on indium–zinc oxide thin-film transistors. Thin Solid Films, 2013, 539: 342 doi: 10.1016/j.tsf.2013.04.148
[11]
Cramer T, Sacchetti A, Lobato M T, et al. Radiation-tolerant flexible large-area electronics based on oxide semiconductors. Adv Electron Mater, 2016, 2: 1500489 doi: 10.1002/aelm.v2.7
[12]
Liu Y, Wu W, En Y, et al. Total dose ionizing radiation effects in the indium–zinc oxide thin-film transistors. IEEE Electron Device Lett, 2014, 35(3): 369 doi: 10.1109/LED.2014.2301801
[13]
Kim H J. International collaboration for advanced AMOLED. ICAA Koranet Annual Conference, South Korea, 2010
[14]
Siddappa K, Ganesh, Balakrishna K M, et al. Variable energy microtron for R and D work. Radiat Phys Chem, 1998, 51(4–6): 441 doi: 10.1016/S0969-806X(97)00165-5
[15]
Stoenescu G, Iacobescu G. Fast electron irradiation effects on MOS transistor microscopic parameters—experimental data and theoretical models. J Optoelectron Adv Mater, 2005, 7: 1629
