To enhance the performance of n-type organic thermoelectric materials

Xin Wang1, Yongqiang Shi1, and Liming Ding2,

+ Author Affiliations

 Corresponding author: Yongqiang Shi, shiyq@ahnu.edu.cn; Liming Ding, ding@nanoctr.cn

DOI: 10.1088/1674-4926/43/2/020202

PDF

Turn off MathJax

Organic thermoelectric (OTE) materials that can convert waste heat to electricity have aroused interests due to their unique advantages over traditional inorganic TE materials, such as light weight, mechanical flexibility, low thermal conductivity, and solution processability[1-4]. In general, TE devices require both p-type and n-type semiconductors. The p-type polymers have been extensively studied, showing rapid advances, but there are few efficient n-type TE polymers[5, 6]. Therefore, the development of high-performance n-doped conjugated polymers is demanded.

The TE performance is evaluated by the figure of merit, ZT = S2σT/κ, where S, σ, T, and κ are the Seebeck coefficient, electrical conductivity, absolute temperature, and thermal conductivity, respectively. As the κ values of polymers are much lower than that of inorganic materials, the TE performance of polymers can also be determined by the power factor (PF = S2σ)[7]. Thus, enhancing σ and S is the key to improve TE performance. The inferior performance for n-type OTE materials is mainly due to their low σ, so we focus on the σ issue in this article. To enhance the conductivity, some strategies can be applied, which will be discussed as follows.

Lowering LUMO energy level is an effective approach to improve n-doping[8-10]. Introducing strong electron-withdrawing groups or atoms to the backbone can lower the LUMO level[11-13]. The D–A copolymer P(NDI2OD-T2) has deep-lying LUMO level (–3.80 eV). When doped with n-DMBI, a conductivity of ~10–3 S/cm was achieved[7]. To further down-shift LUMO level, Facchetti et al. designed polymer P(NDI2OD-Tz2) (Fig. 1)[14]. By introducing bithiazole unit, the polymer possesses a more planar backbone than N2200, resulting in a close π–π stacking. The electron-deficient nature of bithiazole enhances electron affinity of the polymer, yielding an enhanced σ of 0.1 S/cm and a reasonable PF of 1.5 μW/(m·K2) (Table 1). To reduce steric hindrance of NDI, thiophene-fused NDI derivative, naphtho[2,3-b:6,7-bʹ]dithiophenediimide (NDTI), was developed by Takimiya et al. Then they developed a polymer PNDTI-BBT-DP with strong electron affinity. It has a low LUMO level (~ –4.4 eV), which is sufficiently low for being doped by n-DMBI. The doped film offered a σ of 5.0 S/cm and a PF of 14 μW/(m·K2)[15]. Recently, Wang et al. reported PNB-TzDP that offered an excellent σ of 11.6 S/cm and a PF of 53.4 μW/(m·K2)[16]. Another strong electron-accepting unit BDOPV was developed by Pei et al., and the derivative polymers have low LUMO levels and have been investigated in various devices[17]. Among them, FBDPPV delivered a high σ of 14 S/cm and a PF of 28 μW/(m·K2). Subsequently, a σ over 90 S/cm was obtained from TBDPPV polymer doped with n-DMBI[18, 19]. Guo et al. synthesized thiazolothienyl imide dimer (DTzTI) unit by replacing thiophene with thiazole to further push down LUMO level. PDTzTI was studied in OTFT[20, 21]. When doped with TDAE, a σ of 4.6 S/cm and a PF of 7.6 μW/(m·K2) were obtained[22]. PCNI-BTI was developed, offering a σ of 23.3 S/cm and a PF of 10 μW/(m·K2)[23]. B←N coordination bonds show electron-withdrawing properties, gifting polymers with low LUMO levels[24]. Liu et al. reported a polymer PBN-19 with BNBP unit. After n-doping, PBN-19 exhibited a σ of 7.8 S/cm and a PF of 24.8 μW/(m·K2)[25].

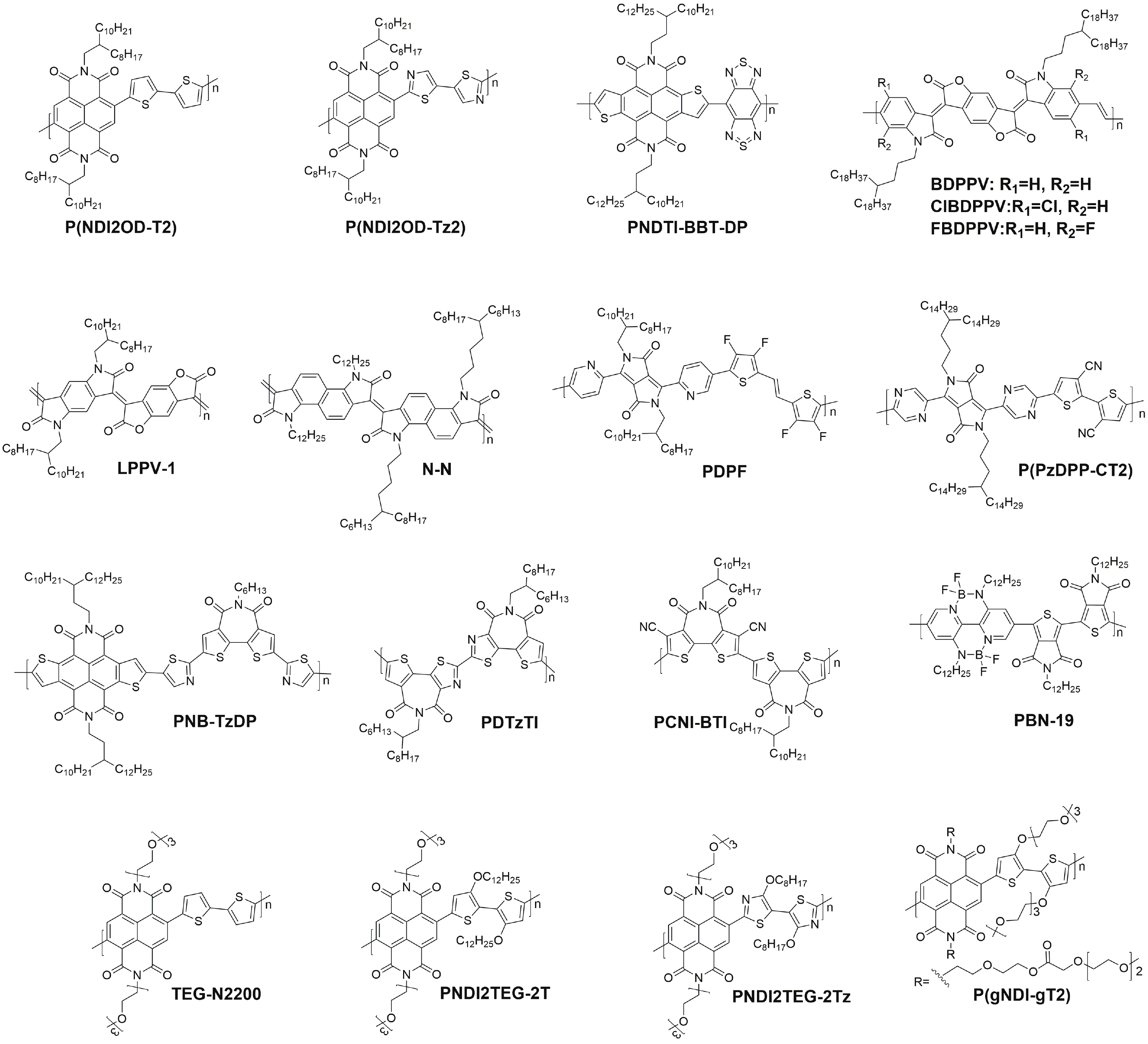

Figure  1.  The chemical structures of representative n-type OTE materials.
DownLoad: Full-Size Img PowerPoint
Table  1.  Performance data for n-type OTE materials.
Polymerσ (S/cm)S (μV/K)PF (μW/(m·K2))Ref.
P(NDI2OD-T2)0.003–0.012[7]
P(NDI2OD-Tz2)0.1–447 ± 151.5[14]
PNDTI-BBT-DP5–16914.2[15]
FBDPPV14–14128[17]
LPPV-11.1–1701.96[8]
N-N0.65–3.2[9]
PDPF1.30–2354.65[10]
P(PzDPP-CT2)8.4–57.3[19]
PNB-TzDP11.6–53.4[16]
PDTzTI4.6–1297.6[22]
PCNI-BTI23.3–83.310.0[23]
PBN-197.8–178.824.8[25]
TEG-N22000.17–0.40[26]
PNDI2TEG-2Tz0.18–159 ± 1584.6 ± 0.2[27]
P(gNDI-gT2)0.3–930.4[28]
DownLoad: CSV  | Show Table

Introducing polar triethylene glycol (TEG) side chains into polymers can improve the miscibility between dopant and polymer. Liu et al. found that the σ and PF of TEG-N2200 can be increased by a factor of 200 after replacing alkyl side chains of N2200 with TEG side chains[26]. It delivered a σ of 0.17 S/cm and a PF of 0.4 μW/(m·K2) (Table 1) after being doped with n-DMBI. They also designed polymer PNDI2TEG-2Tz by replacing thiophene with thiazole unit, and the doped material showed a higher σ of 1.8 S/cm and a higher PF of 4.5 μW/(m·K2) as compared with N2200[27]. Similar methods were also used by other groups[28].

In short, we discussed the strategies of lowering LUMO energy level and incorporating polar side chains for making high-performance n-type OTE materials. More efforts should be focused on molecular engineering.

Y. Shi thanks the National Natural Science Foundation of China (22105004). L. Ding thanks the National Key Research and Development Program of China (2017YFA0206600) and the National Natural Science Foundation of China (51773045, 21772030, 51922032, 21961160720) for financial support.



[1]
Guo X, Facchetti A. The journey of conducting polymers from discovery to application. Nat Mater, 2020, 19, 922 doi: 10.1038/s41563-020-0778-5
[2]
Kiefer D, Kroon R, Hofmann A I, et al. Double doping of conjugated polymers with monomer molecular dopants. Nat Mater, 2019, 18, 149 doi: 10.1038/s41563-018-0263-6
[3]
Lu Y, Wang J, Pei J. Strategies to enhance the conductivity of n-type polymer thermoelectric materials. Chem Mater, 2019, 31, 6412 doi: 10.1021/acs.chemmater.9b01422
[4]
Zhang F, Di C. Exploring thermoelectric materials from high mobility organic semiconductors. Chem Mater, 2020, 32, 2688 doi: 10.1021/acs.chemmater.0c00229
[5]
Jin K, Hao F, Ding L. Solution-processable n-type organic thermoelectric materials. Sci Bull, 2020, 65, 1862 doi: 10.1016/j.scib.2020.07.036
[6]
Xu K, Sun H, Ruoko T P, et al. Ground-state electron transfer in all-polymer donor–acceptor heterojunctions. Nat Mater, 2020, 19, 738 doi: 10.1038/s41563-020-0618-7
[7]
Wang S, Sun H, Ail U, et al. Thermoelectric properties of solution-processed n-doped ladder-type conducting polymers. Adv Mater, 2016, 28, 10764 doi: 10.1002/adma.201603731
[8]
Lu Y, Yu Z, Zhang R, et al. Rigid coplanar polymers for stable n-type polymer thermoelectrics. Angew Chem Int Ed, 2019, 58, 11390 doi: 10.1002/anie.201905835
[9]
Chen H, Moser M, Wang S, et al. Acene ring size optimization in fused lactam polymers enabling high n-type organic thermoelectric performance. J Am Chem Soc, 2021, 143, 260 doi: 10.1021/jacs.0c10365
[10]
Yang C, Jin W, Wang J, et al. Enhancing the n-type conductivity and thermoelectric performance of donor–acceptor copolymers through donor engineering. Adv Mater, 2018, 30, 1802850 doi: 10.1002/adma.201802850
[11]
Shi Y, Ding L. n-Type acceptor-acceptor polymer semiconductors. J Semicond, 2021, 42, 100202 doi: 10.1088/1674-4726/42/10/100202
[12]
Shi Y, Wang Y, Guo X. Recent progress of imide-functionalized n-type polymer semiconductors. Acta Polym Sin, 2019, 50, 873
[13]
Ji X, Xiao Z, Sun H, et al. Polymer acceptors for all-polymer solar cells. J Semicond, 2021, 42, 080202 doi: 10.1088/1674-4926/42/8/080202
[14]
Wang S, Sun H, Erdmann T, et al. A chemically doped naphthalenediimide-bithiazole polymer for n-type organic thermoelectrics. Adv Mater, 2018, 30, 1801898 doi: 10.1002/adma.201801898
[15]
Wang Y, Nakano M, Michinobu T, et al. Naphthodithiophenediimide–benzobisthiadiazole-based polymers: versatile n-type materials for field-effect transistors and thermoelectric devices. Macromolecules, 2017, 50, 857 doi: 10.1021/acs.macromol.6b02313
[16]
Wang Y, Takimiya K. Naphthodithiophenediimide–bithiopheneimide copolymers for high-performance n-type organic thermoelectrics: significant impact of backbone orientation on conductivity and thermoelectric performance. Adv Mater, 2020, 32, 2002060 doi: 10.1002/adma.202002060
[17]
Shi K, Zhang F, Di C, et al. Toward high performance n-type thermoelectric materials by rational modification of BDPPV backbones. J Am Chem Soc, 2015, 137, 6979 doi: 10.1021/jacs.5b00945
[18]
Lu Y, Yu Z, Un H I, et al. Persistent conjugated backbone and disordered lamellar packing impart polymers with efficient n-doping and high conductivities. Adv Mater, 2020, 33, 2005946 doi: 10.1002/adma.202005946
[19]
Yan X, Xiong M, Li J, et al. Pyrazine-flanked diketopyrrolopyrrole (DPP): A new polymer building block for high-performance n-type organic thermoelectrics. J Am Chem Soc, 2019, 141, 20215 doi: 10.1021/jacs.9b10107
[20]
Shi Y, Guo H, Qin M, et al. Thiazole imide-based all-acceptor homopolymer: Achieving high-performance unipolar electron transport in organic thin-film transistors. Adv Mater, 2018, 30, 1705745 doi: 10.1002/adma.201705745
[21]
Shi Y, Guo H, Qin M, et al. Imide-functionalized thiazole-based polymer semiconductors: Synthesis, structure–property correlations, charge carrier polarity, and thin-film transistor performance. Chem Mater, 2018, 30, 7988 doi: 10.1021/acs.chemmater.8b03670
[22]
Liu J, Shi Y, Dong J, et al. Overcoming Coulomb interaction improves free-charge generation and thermoelectric properties for n-doped conjugated polymers. ACS Energy Lett, 2019, 4, 1556 doi: 10.1021/acsenergylett.9b00977
[23]
Feng K, Guo H, Wang J, et al. Cyano-functionalized bithiophene imide-based n-type polymer semiconductors: Synthesis, structure–property correlations, and thermoelectric performance. J Am Chem Soc, 2021, 143, 1539 doi: 10.1021/jacs.0c11608
[24]
Zhao R, Liu J, Wang L. Polymer acceptors containing B←N units for organic photovoltaics. Acc Chem Res, 2020, 53, 1557 doi: 10.1021/acs.accounts.0c00281
[25]
Dong C, Deng S, Meng B, et al. Distannylated monomer of strong electron-accepting organoboron building block: Enabling acceptor-acceptor type conjugated polymers for n-type thermoelectric applications. Angew Chem Int Ed, 2021, 60, 16184 doi: 10.1002/anie.202105127
[26]
Liu J, Qiu L, Alessandri R, et al. Enhancing molecular n-type doping of donor–acceptor copolymers by tailoring side chains. Adv Mater, 2018, 30, 1704630 doi: 10.1002/adma.201704630
[27]
Liu J, Ye G, Zee B, et al. n-type organic thermoelectrics of donor–acceptor copolymers: improved power factor by molecular tailoring of the density of States. Adv Mater, 2018, 30, 1804290 doi: 10.1002/adma.201804290
[28]
Kiefer D, Giovannitti A, Sun H, et al. Enhanced n-doping efficiency of a naphthalenediimide-based copolymer through polar side chains for organic thermoelectrics. ACS Energy Lett, 2018, 3, 278 doi: 10.1021/acsenergylett.7b01146
