Ultrasensitive detection of methamphetamine by antibody-modified transistor assay

Banpeng Cao1, 2, §, Changhao Dai2, §, Xuejun Wang2 and Dacheng Wei2,

+ Author Affiliations

 Corresponding author: Dacheng Wei, weidc@fudan.edu.cn

DOI: 10.1088/1674-4926/44/2/022001

PDF

Turn off MathJax

Abstract: Effective detection of methamphetamine (Met) requires a fast, sensitive, and cheap testing assay. However, commercially available methods require expensive instruments and highly trained operators, which are time-consuming and labor-intensive. Herein, an antibody-modified graphene transistor assay is developed for sensitive and minute-level detection of Met in complex environments. The anti-Met probe captured charged targets within 120 s, leading to a p-doping effect near the graphene channel. The limit of detection reaches 50 aM (5.0 × 10−17 M) Met in solution. The graphene transistor would be a valuable tool for Met detection effective prevention of drug abuse.

Key words: graphene field effect transistorbiosensormethamphetamineantibody immobilization



[1]
Chang T C, Chiang C Y, Lin M H, et al. Fiber optic particle plasmon resonance immunosensor for rapid and sensitive detection of methamphetamine based on competitive inhibition. Microchem J, 2020, 157, 105026 doi: 10.1016/j.microc.2020.105026
[2]
Kumar A, Dangi I, Pawar R. Drug addiction: A big challenge for youth and children's. Int J Res Pharm Pharm Sci Internet, 2019, 4, 35
[3]
Harastani M, Benterkia A, Zadeh F M, et al. Methamphetamine drug abuse and addiction: Effects on face asymmetry. Comput Biol Med, 2020, 116, 103475 doi: 10.1016/j.compbiomed.2019.103475
[4]
Wu K R, Hsiao H H. Rapid and accurate quantification of amphetamine and methamphetamine in human urine by antibody decorated magnetite nanoparticles coupled with matrix-assisted laser desorption ionization time-of-flight mass spectrometer analysis. Anal Chimica Acta, 2018, 1025, 134 doi: 10.1016/j.aca.2018.03.057
[5]
Bor G, Bulut U, Man E, et al. Synthetic antibodies for methamphetamine analysis: Design of high affinity aptamers and their use in electrochemical biosensors. J Electroanal Chem, 2022, 921, 116686 doi: 10.1016/j.jelechem.2022.116686
[6]
Ghorbanizamani F, et al. Ionic liquid-hydrogel hybrid material for enhanced electron transfer and sensitivity towards electrochemical detection of methamphetamine. J Mol Liq, 2022, 361, 119627 doi: 10.1016/j.molliq.2022.119627
[7]
Dai C H, Liu Y Q, Wei D C. Two-dimensional field-effect transistor sensors: The Road toward commercialization. Chem Rev, 2022, 122, 10319 doi: 10.1021/acs.chemrev.1c00924
[8]
Abbasi H Y, Tehrani Z, Devadoss A, et al. Graphene based electrochemical immunosensor for the ultra-sensitive label free detection of Alzheimer's beta amyloid peptides Aβ(1-42). Nanoscale Adv, 2021, 3, 2295 doi: 10.1039/D0NA00801J
[9]
Wang R R, Mao Y, Wang L, et al. Solution-gated graphene transistor based sensor for histamine detection with gold nanoparticles decorated graphene and multi-walled carbon nanotube functionalized gate electrodes. Food Chem, 2021, 347, 128980 doi: 10.1016/j.foodchem.2020.128980
[10]
Kang H, Wang X J, Guo M Q, et al. Ultrasensitive detection of SARS-CoV-2 antibody by graphene field-effect transistors. Nano Lett, 2021, 21, 7897 doi: 10.1021/acs.nanolett.1c00837
[11]
Forsyth R, Devadoss A, Guy O J. Graphene field effect transistors for biomedical applications: Current status and future prospects. Diagnostics, 2017, 7, 45 doi: 10.3390/diagnostics7030045
[12]
Fu W, El Abbassi M, Hasler T, et al. Electrolyte gate dependent high-frequency measurement of graphene field-effect transistor for sensing applications. Appl Phys Lett, 2014, 104, 013102 doi: 10.1063/1.4857616
[13]
Zhan B B, Li C, Yang J, et al. Graphene field-effect transistor and its application for electronic sensing. Small, 2014, 10, 4042 doi: 10.1002/smll.201400463
[14]
Nag A, Mitra A, Mukhopadhyay S C. Graphene and its sensor-based applications: A review. Sens Actuat A, 2018, 270, 177 doi: 10.1016/j.sna.2017.12.028
[15]
Wang L Q, Wang X J, Wu Y G, et al. Rapid and ultrasensitive electromechanical detection of ions, biomolecules and SARS-CoV-2 RNA in unamplified samples. Nat Biomed Eng, 2022, 6, 276 doi: 10.1038/s41551-021-00833-7
[16]
Jang Y Jang M, Kim H, et al. Point-of-use detection of amphetamine-type stimulants with host-molecule-functionalized organic transistors. Chem, 2017, 3, 641 doi: 10.1016/j.chempr.2017.08.015
[17]
Du X C, Hao H X, Qin A J, et al. Highly sensitive chemosensor for detection of methamphetamine by the combination of AIE luminogen and cucurbit[7]uril. Dyes Pigments, 2020, 180, 108413 doi: 10.1016/j.dyepig.2020.108413
[18]
Mandani S, Rezaei B, Ensafi A A. Sensitive imprinted optical sensor based on mesoporous structure and green nanoparticles for the detection of methamphetamine in plasma and urine. Spectrochim Acta A, 2020, 231, 118077 doi: 10.1016/j.saa.2020.118077
[19]
Ganapati S, Isaacs L. Acyclic cucurbit[n]uril-type receptors: Preparation, molecular recognition properties and biological applications. Isr J Chem, 2018, 58, 250 doi: 10.1002/ijch.201700098
[20]
Dai C H, Guo M Q, Wu Y L, et al. Ultraprecise antigen 10-in-1 pool testing by multiantibodies transistor assay. J Am Chem Soc, 2021, 143, 19794 doi: 10.1021/jacs.1c08598
[21]
Yang Y B, Yang X D, Zou X M, et al. Ultrafine graphene nanomesh with large on/off ratio for high-performance flexible biosensors. Adv Funct Mater, 2017, 27, 1604096 doi: 10.1002/adfm.201604096
[22]
Song Y Q, Zou W T, Lu Q, et al. Graphene transfer: Paving the road for applications of chemical vapor deposition graphene. Small, 2021, 17, 2007600 doi: 10.1002/smll.202007600

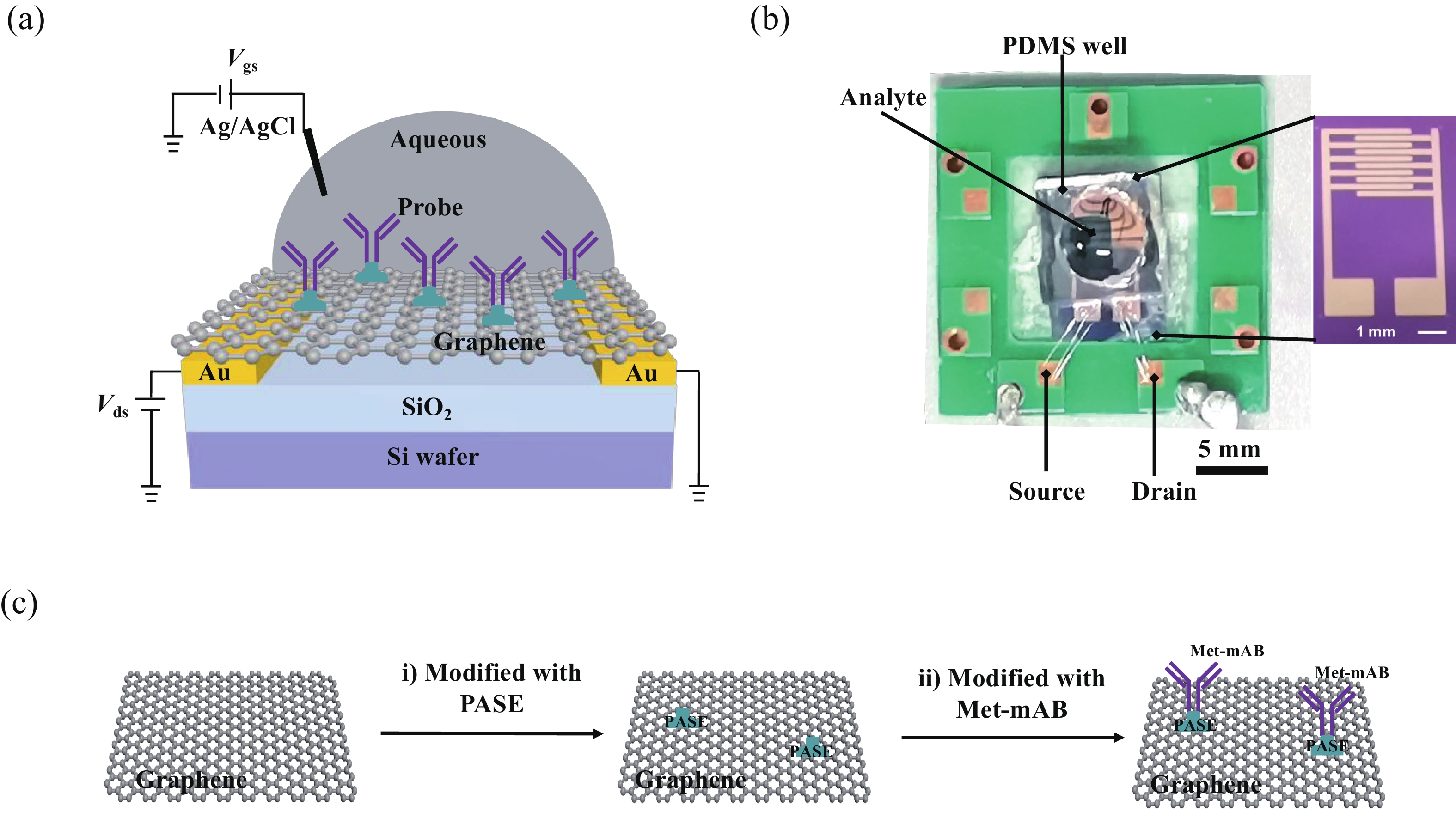

Fig. 1.  (Color online) (a) Schematic diagram of GFET. (b) The Image of the GFET and zoomed-in chip. (c) The fabrication process of the biosensor on graphene surface.

Fig. 2.  (Color online) IdsVg transfer characteristic curve in (a) PBS solution, (b) fluidartificial saliva, (c) bovine serum fluid, and (d) artificial urine.

Fig. 3.  (Color online) (a) Schematic illustration of the detection mechanism. (b) Schematic illustration of the change of Dirac cone causing by electron doping.

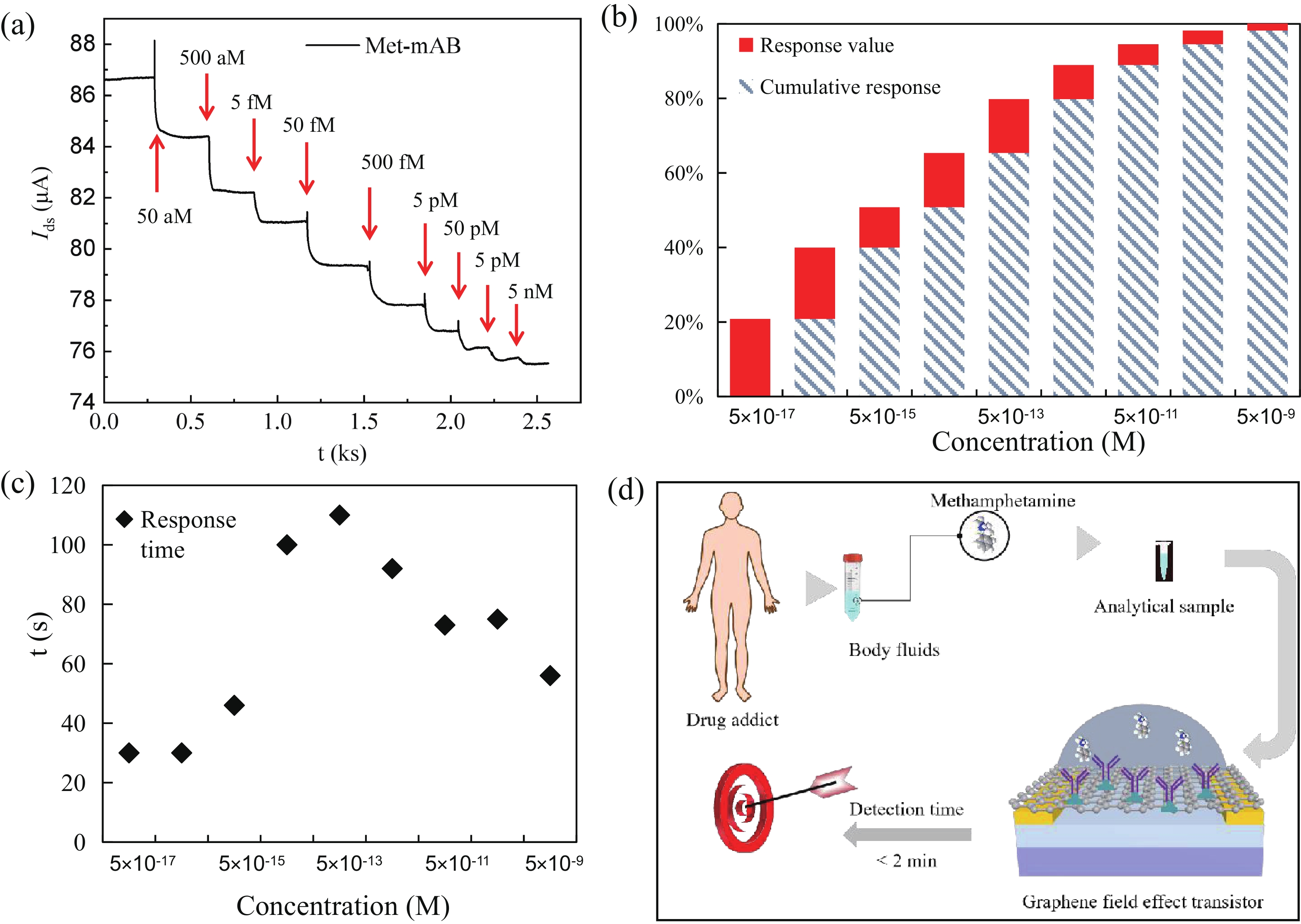

Fig. 4.  (Color online) GFET sensor devices in PBS solution detect Met-BSA in real time. (a) Idst output characteristic curve. (b) Normalized treatment. (c) Response time. (d) Schematic diagram for Met detection in biological fluids using the GFET.
